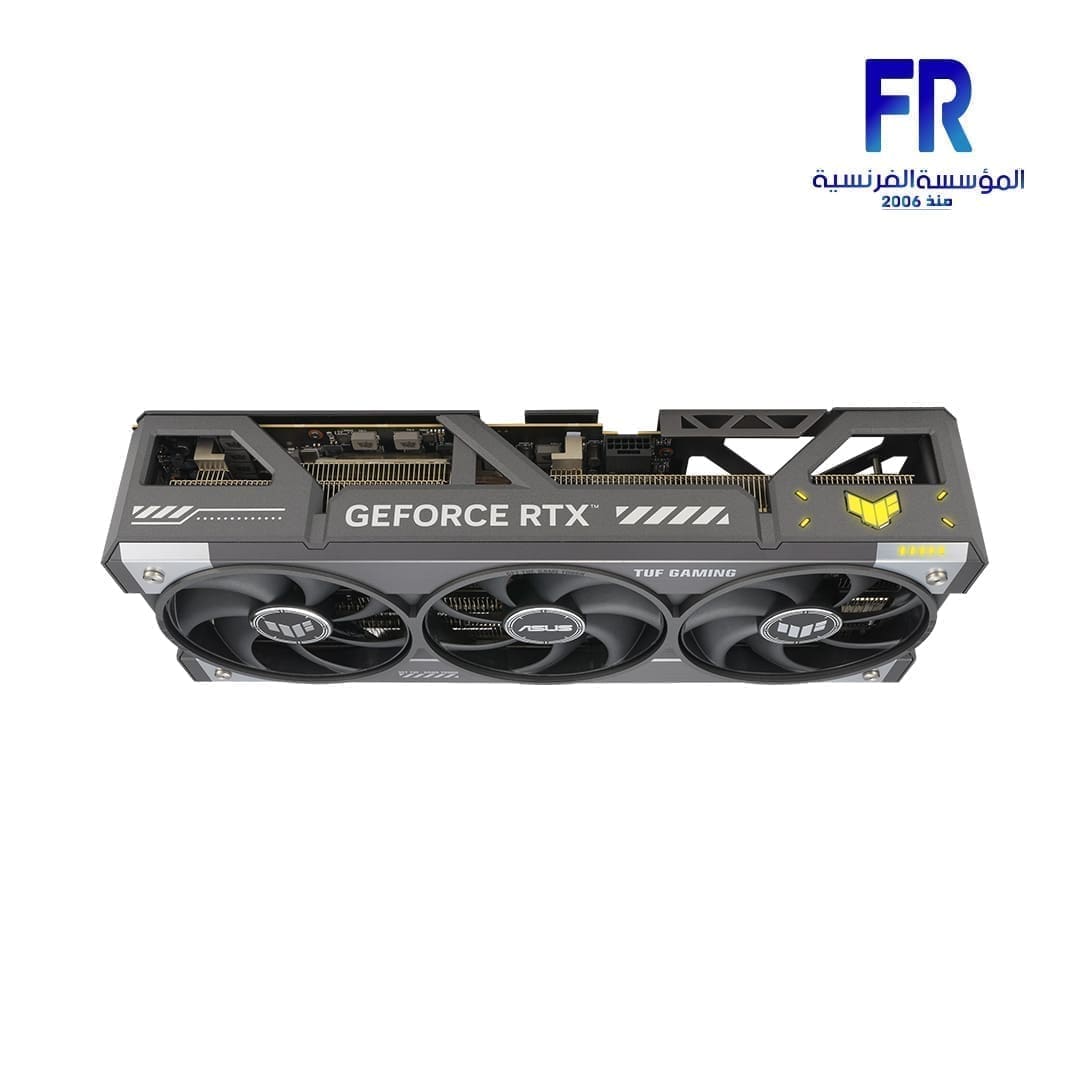

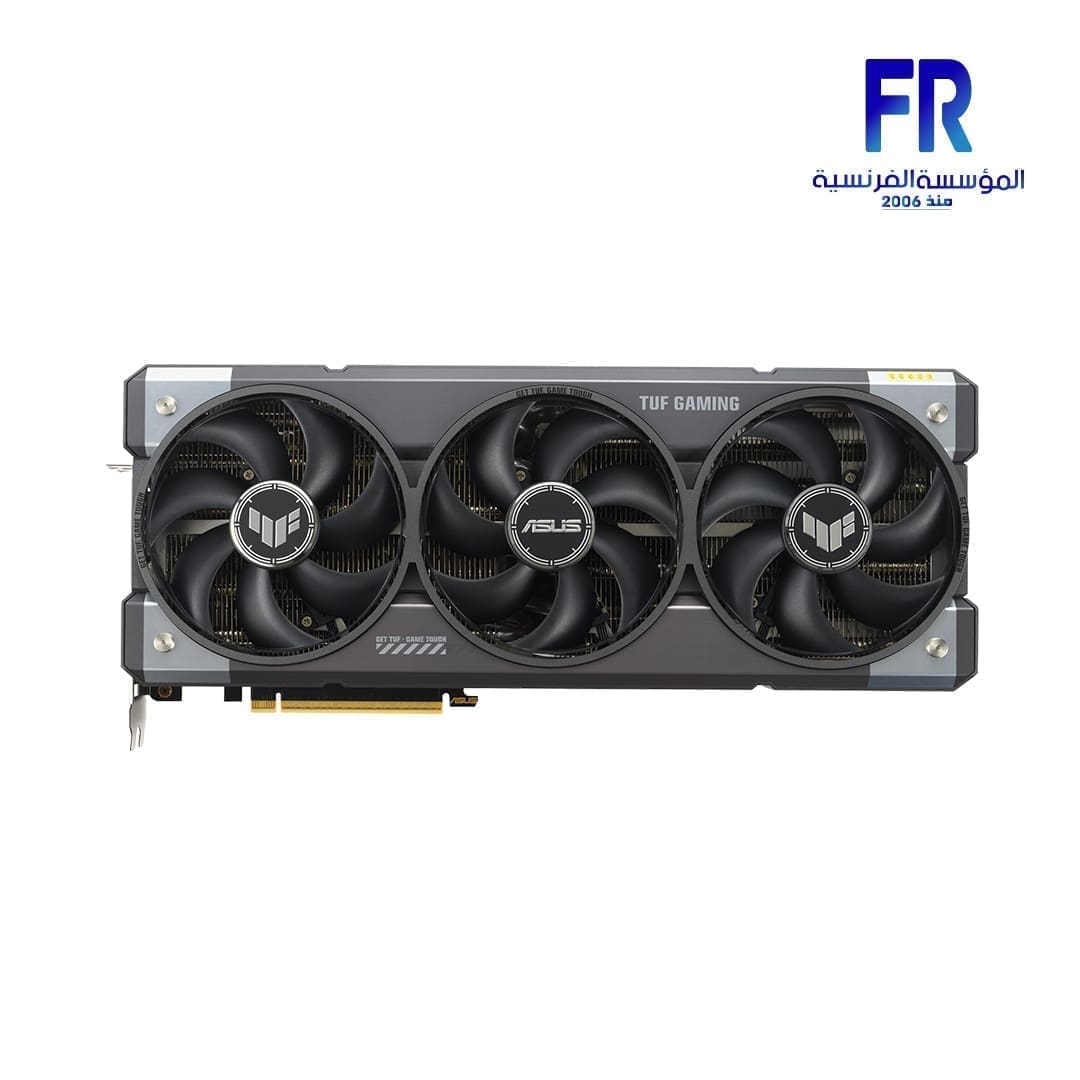

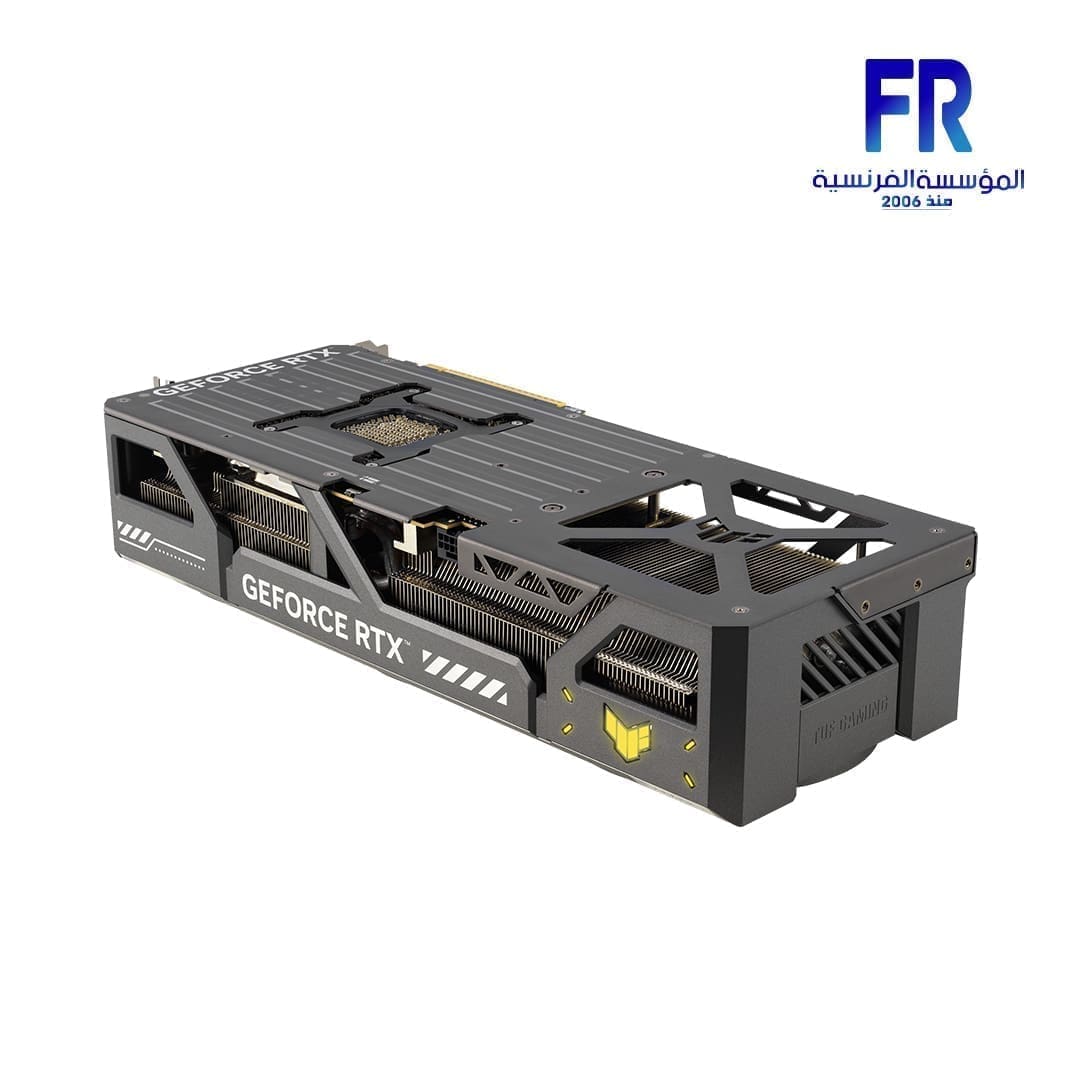

Asus GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 Graphic Card

Asus GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 كارت الشاشة

Asus GeForce RTX 5090 TUF Gaming OC 32GB GDDR7 كارت الشاشة

• Model: TUF-RTX5090-O32G-GAMING

• Graphic Engine: NVIDIA® GeForce RTX™ 5090

• AI Performance: 3551 TOPs

• Bus Standard: PCI Express 5.0

• OpenGL: OpenGL® 4.6

• Video Memory: 32GB GDDR7

• Engine Clock:

  • OC mode: 2580 MHz

  • Default mode: 2550 MHz (Boost Clock)

• CUDA Cores: 21760

• Memory Speed: 28 Gbps

• Memory Interface: 512-bit

• Resolution: Digital Max Resolution 7680 x 4320

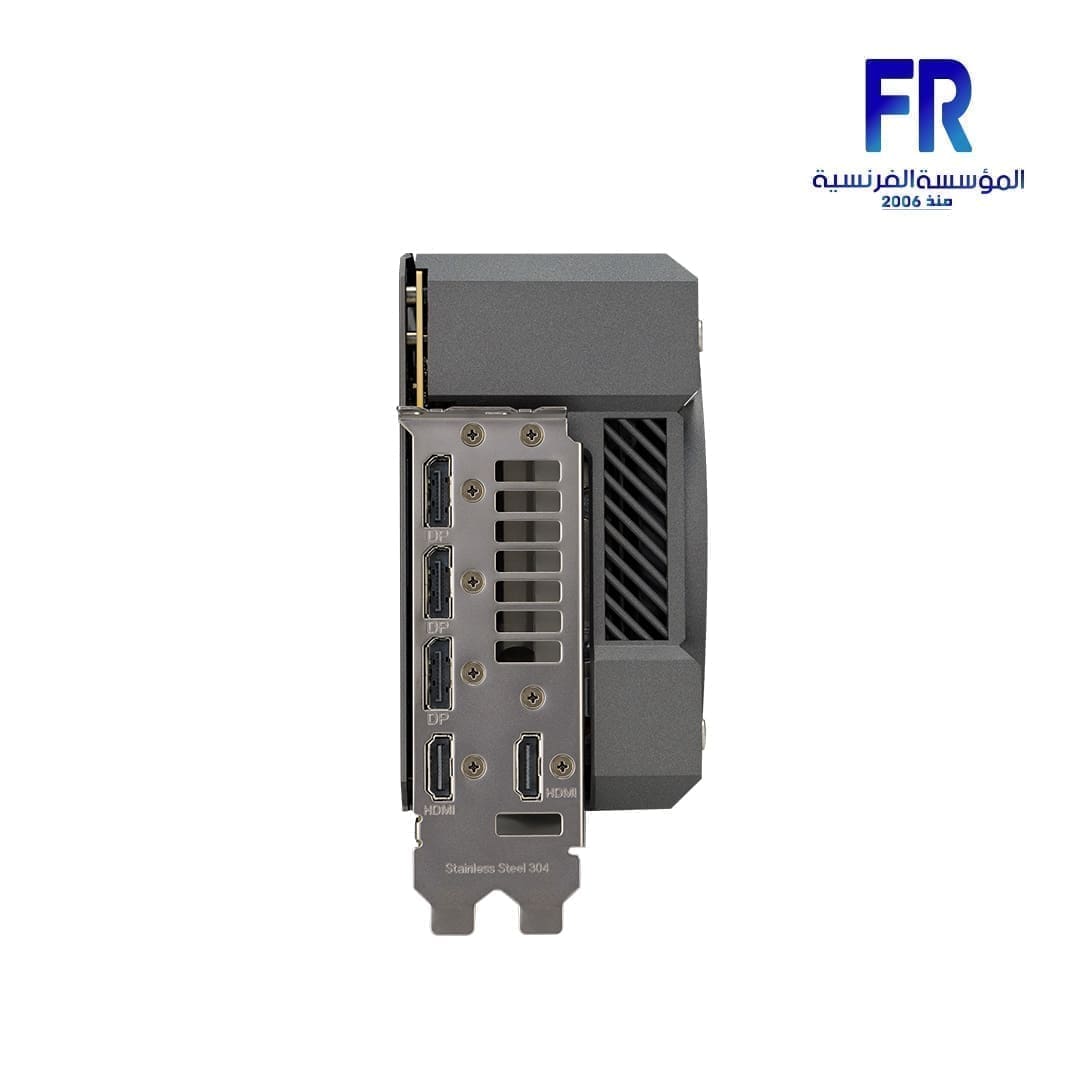

• Interface:

  • 2x Native HDMI 2.1b

  • 3x Native DisplayPort 2.1b

• HDCP Support: Yes (2.3)

• Maximum Display Support: 4

• NVLink/Crossfire Support: No

Accessories:

• Included Items:

  • 1 x Speedsetup Manual

  • 1 x TUF Graphics Card Holder

  • 1 x TUF Velcro Hook & Loop

  • 1 x TUF Magnet

  • 1 x TUF Gaming Certificate

  • 1 x Thank You Card

  • 1 x Adapter Cable (1 to 4)

Software:

• ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver (Download from ASUS Support Site)

Physical Dimensions:

• Size: 348 x 146 x 72 mm (13.7 x 5.7 x 2.8 inches)

Power Requirements:

• Recommended PSU: 1000W

• Power Connectors: 1 x 16-pin

Additional Features:

• Slot: 3.6 Slot

• AURA SYNC: ARGB Lighting

ASUS TUF RTX 5090: Game TUF, Dominate

The ASUS TUF RTX 5090 is built for gamers who demand unwavering performance and exceptional durability. This graphics card, powered by the NVIDIA Blackwell architecture, is engineered to conquer the most demanding games and withstand the harshest conditions. The TUF RTX 5090 isn’t just about raw power; it’s about reliable performance you can count on.

Premium Durability: Built to Last

The TUF RTX 5090 is fortified with military-grade components, including TUF chokes, MOSFETs, and 5K black metallic capacitors. This robust construction ensures rock-solid power delivery and exceptional longevity. A protective PCB coating shields the card from moisture and debris, further enhancing its durability. ASUS GPU Guard and a supporting bracket minimize the risk of damage and ensure stable mounting.

Cooling Mastery: Keeping it Cool Under Pressure

The TUF RTX 5090 boasts a 3.6-slot design optimized for superior heat transfer. A massive heatsink array, featuring 12 heatpipes and a vapor chamber, efficiently dissipates heat from the GPU. Exclusive MaxContact technology increases the heat spreader surface area for improved thermal conductivity. Axial-tech fans, spinning on dual-ball bearings, deliver up to 23% more airflow than standard designs. The fans operate quietly at low temperatures and intelligently ramp up as needed. A phase-change GPU thermal pad ensures optimal contact between the GPU and the cooling solution.

Performance and Features: Unleash the Power

The TUF RTX 5090 leverages the cutting-edge NVIDIA Blackwell architecture, including:

• Fifth-Gen Tensor Cores for maximum AI performance with FP4 and DLSS 4.
• New Streaming Multiprocessors optimized for neural shaders.
• Fourth-Gen Ray Tracing Cores built for Mega Geometry.
• NVIDIA DLSS 4 with Multi Frame Generation for AI-enhanced graphics and performance.
• NVIDIA Reflex 2 with Frame Warp for game-winning responsiveness.

Software and Utilities: Fine-Tune Your Experience

ASUS GPU Tweak III provides an intuitive interface for monitoring and overclocking your TUF RTX 5090. Customize fan speeds, adjust clock frequencies, and optimize performance with ease.

The Perfect PSU Companion: Powering Your TUF RTX 5090

For optimal performance, ASUS recommends pairing your TUF RTX 5090 with a TUF Gaming Gold Series PSU. These power supplies are engineered for exceptional durability and reliable power delivery, making them the perfect complement to your high-performance graphics card. Use the ASUS PSU calculator to determine the best wattage for your system.
