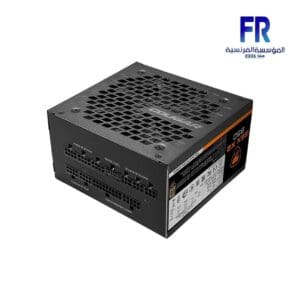

Cougar GEX X2 850w 80 Plus Gold ATX3.1 Fully Modular Power Supply

Cougar GEX X2 850w 80 Plus Gold ATX3.1 Fully Modular Power Supply

5900 جنية

80 PLUS Gold Certified – Up to 91% efficiency for energy savings.
PCIe 5.0 Ready – 12+4 pin connector supports next-gen GPUs.
Fully Modular Design – Reduces clutter for better airflow.
Japanese Capacitors – Ensures durability and stable power.
Silent Cooling – HDB fan with Zero Noise Mode for quiet operation.

غير متوفر بالمخزون

Price Match Guarantee

رمز المنتج: 192554005744 التصنيف: مزود طاقة الوسوم: PCIe 5.0, GEX X2, Silent Cooling, FULLY MODULAR, ATX 3.1, 850W, Japanese Capacitors, مزود طاقة, 80 PLUS GOLD, High Efficiency, COUGAR العلامة التجارية: COUGAR

Cougar GEX X2 850w 80 Plus Gold ATX3.1 Fully Modular مزود الطاقة

Cougar GEX X2 850w 80 Plus Gold ATX3.1 Fully Modular Power Supply SPECIFICATIONS:

Power Output

AC Input: 100-240V~, 50-60Hz, 12-6A
DC Output:
- +3.3V: 20A
- +5V: 20A
- +12V: 70.8A (850W)
- -12V: 0.3A
- +5Vsb: 3A
Total Power:
- 100W (+3.3V & +5V)
- 850W (+12V)
- 3.6W (-12V)
- 15W (+5Vsb)

Connector & Pin Configuration

Main (24-pin, 20+4): 1
CPU (8-pin, 4+4): 1
Peripherals (8-pin): 1
SATA (4-pin): 2
12V-2X6 (5-pin): 10
PCI-E (12+4-pin): 1
PCI-E (8-pin, 6+2): 3

Support PCI Express 5.0 Graphics Cards 12+4 Pin Connector

Connect the 12V-2X6 with true 200% power excursion dynamic outputs

80 PLUS Gold Certified

Up to 91% efficiency power conversion to cut down your electricity bill

Durable HDB Fan

Hydro Dynamic Bearing Fan: Extended durability and lower noise levels

100% Refined Japanese Capacitors

Outstanding components extend the longevity of PSU.

Fully Modular Power Supply Unit

Connect only the cables you need for less clutter and better airflow

Zero Noise Mode and Fan Curve Tuning

Advanced technology for noise minimization

Compatible with The Lastest PC Technology

Created for user with current and next-generation multi-core CPU platforms

Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature

Efficiency

The GEX X2 series features a highly efficient design that surpasses the 80Plus Gold standard, to help you save money on your electricity bill.

Smart Zero Fan

The fan will be set in motion when the PSU loading is going over 30% for minimizing fan noise.

HDB Fan

Using COUGAR’s exclusive 120mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.

Compact Size: for All PC Cases

At 140mm in length, GEX X2 is one of the most compact fully modular PSU. This means it will fit in a wide range of cases, and give you additional flexibility for building your PC.

Fully Modular Cables / Flat Cables

Connect only the cables you need, reducing cable clutter and friction and improving the airflow and the ease of installation of DIY solutions.

مزود طاقة

الموديل	GEX X2
Psu-Cable-Type	FULL MODULAR
PSU WATT	850 W
ENERGY EFFICIENT	80 PLUS GOLD
Protection	OCP, OPP, OTP, OVP, SCP, UVP
PSU Capacitors	Japanese Capacitors
DC to DC	YES
Fan Size (mm)	120mm
Part Number	GEX X2 850
الضمان	1 سنة
