Gigabyte Z790 D AC Motherboard

10300 جنية

“Intel LGA 1700 Socket: Supports 14th and 13th Gen Intel Core Series Processors
Dual Channel DDR5, 4*DIMMs
Sturdy Power Design: Twin 12* + 1 + 1 Phases Digital VRM
Comprehensive Thermal Design: Fully Covered MOSFET Heatsinks, M.2 Thermal Guard, Ultra Durable Armor, 6-layer & 2X Copper PCB
Next Gen Connectivity: PCIe 5.0, Triple NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2×2 Type-C
Fast Networking: 2.5GbE LAN
Fine Tuning Features: Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU”

غير متوفر بالمخزون

Price Match Guarantee

رمز المنتج: 889523042038 التصنيفات: Intel Motherboards, لوحة الام الوسوم: Z790 D AC, motherboard, GIGABYTE, Z790 D AC Motherboard العلامة التجارية: GIGABYTE

Gigabyte Z790 D AC اللوحه الام

Gigabyte Z790 D AC

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE’s website for the latest CPU support list.) L3 cache varies with CPU
Chipset	Intel® Z790 Express Chipset
Memory	14th and 13th Generation Intel® Core™ i9/i7 Processors: – Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: – Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz** * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wireless- AC 9560 (PCB rev. 1.0) – WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band – BLUETOOTH 5.1 – Support 11ac 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4) – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_3)
Storage Interface	CPU: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) – 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports, available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

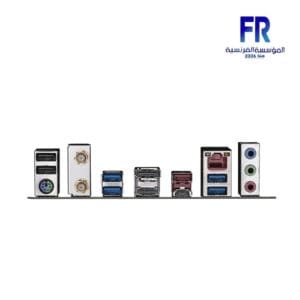

Back Panel Connectors	1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

لوحة الام

الموديل	Z790 D AC
CHIPSET MANUFACTURERS	انتل
CPU Socket	LGA 1700
Motherboard Chipset	Z790
Motherboard Type	ATX
CPU SERIES	intel 14th & 13th & 12th
Technology	DDR5
Memory Speed	4400 MHz, 4800 MHZ, 4866 MHz, 5200MHZ, 5600 MHz, 6000MHz, 6200MHZ, 6400Mhz, 6800Mhz, 7000 MHz, 7200MHZ, 7400MHZ, 7600MHZ
Max Memory Size	192GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 5.0
PCI-E Slots (M.2)	3
SATAIII	4x SATA 6.0 Gb/s
Communication module	Bluetooth, Wireless
Part Number	Z790 D AC
الضمان	3 سنوات
