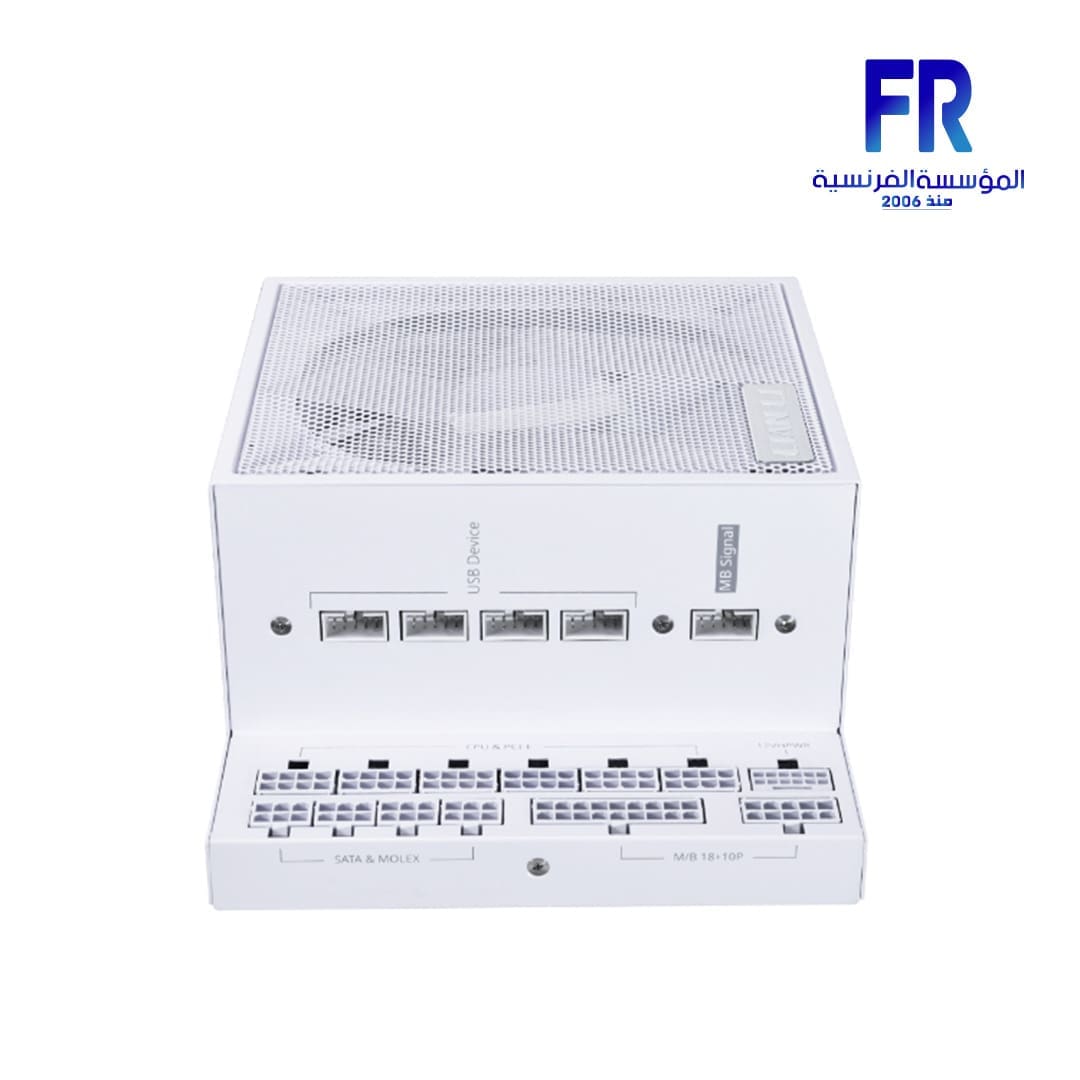

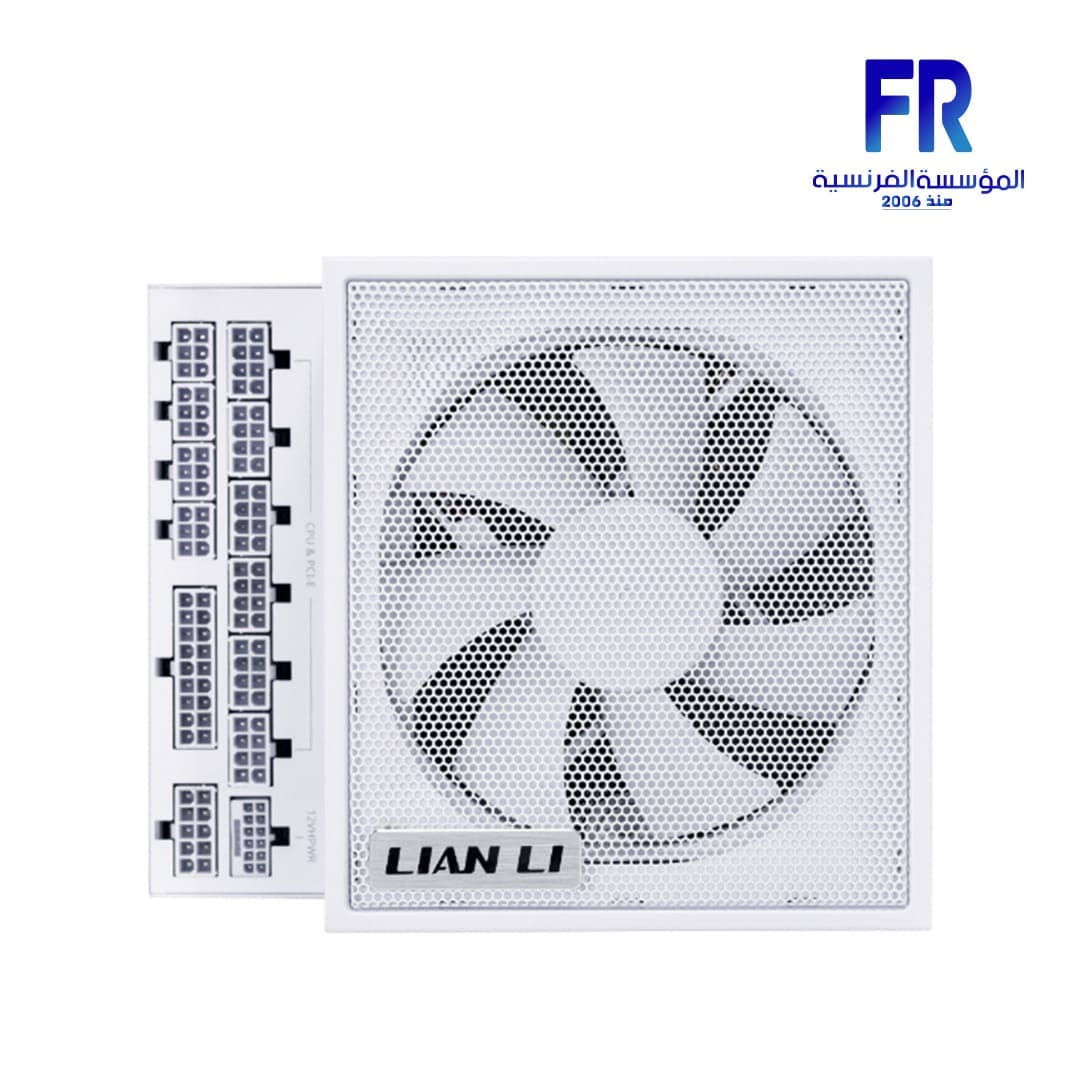

Lian Li Edge EG1000 1000W 80 Plus PLATINUM ATX 3.1 Full Modular White Power Supply

Lian Li Edge EG1000 1000W 80 Plus PLATINUM ATX 3.1 Full Modular White مزود الطاقة

The Lian Li Edge EG1000 1000W White Power Supply introduces a revolutionary L-shape design, specifically engineered for dual-chamber cases like the Lian Li O11 series. This ATX 3.1 compliant PSU boasts 80 PLUS Platinum efficiency and integrates a unique USB hub. Furthermore, it combines aesthetics with convenience, featuring fully modular, premium braided sleeved cables for a clean and organized PC build.

Innovative Design & Platinum Efficiency

This power supply’s L-shape design is ideal for vertical installation in a dual-chamber chassis’s second chamber, reorienting connectors outward for simplified cable management. Additionally, the Edge series integrates a 1-to-7 USB hub with four internal 9-pin USB 2.0 headers, providing uninterruptible power to connected devices like fan controllers even when the PC is off. It achieves top-tier energy efficiency, as evidenced by its 80 PLUS Platinum, Cybenetics Platinum, and PPLP Platinum certifications, which reduce power consumption and heat output.

Lian Li ensures stable and secure power delivery with its in-house R&D 12V-2×6 alloy copper soldered terminals, featuring a dual-color shell for connection confirmation and gold plating to prevent short circuits. Moreover, the PSU incorporates industrial-grade German EPCOS bulk capacitors and LLC topology with Active PFC for enhanced efficiency and reliable power. The 120mm FDB fan operates quietly, with a fanless mode at low loads, ensuring optimal cooling with minimal noise. Premium braided sleeved cables with included cable combs also contribute to a clean build aesthetic.

Explore compatible [Relevant Category: 1000W Power Supplies] or check [Brand Name: Lian Li] Products for other options. Find full details on the official [Product Name: EDGE PSU Series] product page.

Specifications (Model: EG1000 White)

• Model Name: EDGE1000
• Color: White
• Form Factor: ATX 3.1
• Power Supply Design: Fully Modular
• Dimensions (DxWxH): 182mm x 86mm x 150mm
• Max. DC Output: 1000W
• Efficiency Certification: 80 PLUS PLATINUM / Cybenetics PLATINUM / PPLP PLATINUM (up to 92.36% MAX)
• PFC: Active PFC (> 0.90 under full load @ 115Vac, 60Hz)
• Capacitors: German EPCOS bulk capacitors
• Fan Type: 120mm FDB Fan (with fanless mode)
• Fan Speed: Up to 2400 RPM
• Fan Noise Level: Up to 33.61 dBA
• Connectors: 1x 24/20-Pin MB, 2x 8/4+4 Pin CPU, 4x 8/6+2 Pin PCIe, 1x 12V-2×6, Multiple SATA & Peripheral, USB Hub connectors
• Cables: Premium braided sleeved with cable combs (MB/CPU/GPU)
• USB Hub: Built-in with 4 internal USB 2.0 headers (1-to-7 functionality)
• Protective Circuits: OCP, OVP, OTP, OPP, SCP, UVP, SIP, NLP, Inrush Current Limiter
• Warranty: 10 Years
• Model Number (SKU): EG1000.WE00.UK
• UPC: 8112565010
