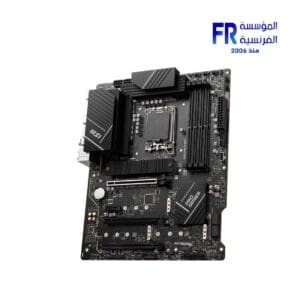

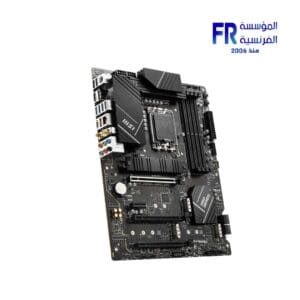

Msi Pro Z790-P Wifi DDR5 Motherboard

10899 جنية

ATX Form Factor
Intel Z790 Chipset
LGA 1700 Socket
4 x Dual-Channel DDR5-7000 (OC)
6 x SATA III, 4 x M.2
PCIe 5.0, 4.0 & 3.0 x16 Slots
1 x PCIe 3.0 x1 Slot
7.1-Channel Realtek ALC897 Codec
2.5 GbE LAN, Wi-Fi 6E & Bluetooth 5.2
USB 3.2 Gen 2×2 Type-C Port

متوفر في المخزون

Price Match Guarantee

رمز المنتج: 824142302125 التصنيفات: Intel Motherboards, لوحة الام الوسوم: PRO Z790 P, motherboard, msi, WIFI, DDR5 العلامة التجارية: MSI

Msi Pro Z790-P Wifi DDR5 اللوحه الام

Chipset	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel^® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN	Intel^® 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED

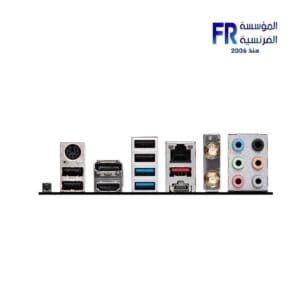

BACK PANEL PORTS	Keyboard / Mouse DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button USB 2.0 HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm

لوحة الام

الموديل	Pro Z790-P
CHIPSET MANUFACTURERS	انتل
CPU Socket	LGA 1700
Motherboard Chipset	Z790
Motherboard Type	ATX
CPU SERIES	intel 14th & 13th & 12th
Technology	DDR5
Memory Speed	4800 MHZ, 4866 MHz, 5200MHZ, 5400Mhz, 5600 MHz, 5800, 6000MHz, 6200MHZ, 6400Mhz, 6600Mhz, 6800Mhz, 7000 MHz
Max Memory Size	256GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 5.0
PCI-E Slots (M.2)	4
SATAIII	6x SATA 6G
Communication module	Bluetooth, Wireless
Part Number	911-7E06-062
الضمان	3 سنوات
