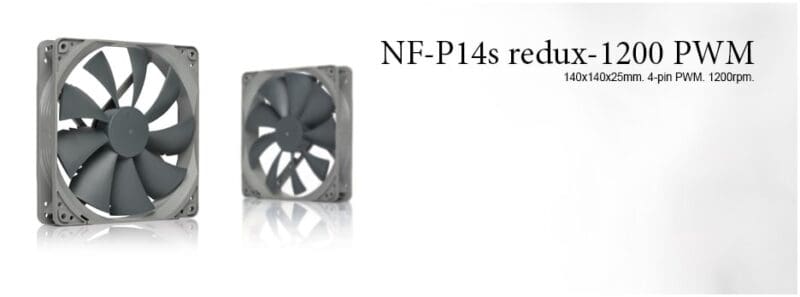

Noctua NF P14s redux 1200 PWM 140mm Fan

Noctua NF-P14s redux 1200 PWM 140mm Fan:

The Noctua NF-P14s redux 1200 PWM 140mm Fan is a highly-regarded cooling solution, reissuing Noctua’s classic NF-P14 design in a streamlined, value-oriented package. This fan features a square 140mm frame with standard 140mm mounting holes, making it a versatile choice for CPU coolers, radiators, and various case ventilation applications. It delivers an excellent balance of high static pressure, strong airflow, and remarkably quiet operation, embodying Noctua’s reputation for premium quality.

Key Features for Versatile & Silent Cooling:

Optimized for High-Impedance Applications: The NF-P14s’s pressure-optimized nine-blade impeller and Vortex-Control Notches are specifically engineered for challenging environments. Consequently, this design ensures outstanding performance when pushing air through restrictive CPU coolers, dense water-cooling radiators, or cases with tight fan grills, while also contributing to a more pleasant fan noise profile.

Advanced PWM Control with Semi-Passive Mode: This fan supports fully automatic speed control via a 4-pin PWM connector, allowing it to adapt dynamically to your system’s thermal needs. Its custom-designed NE-FD1 PWM IC with Smooth Commutation Drive (SCD) suppresses switching noises, ensuring quieter operation at lower speeds. Furthermore, it supports a 0% PWM duty cycle, enabling the fan to stop completely when temperatures allow for passive cooling.

Exceptional Longevity with SSO2 Bearing: The NF-P14s redux 1200 PWM utilizes Noctua’s highly regarded SSO-Bearing technology (often referred to as SSO2 for its magnetic self-stabilization). This advanced bearing ensures superior long-term stability and exceptionally quiet operation. It is rated for over 150,000 hours of continuous use, backed by a comprehensive 6-year manufacturer’s warranty.

Streamlined Redux Edition: As part of the redux line, this fan offers Noctua’s premium quality at a more accessible price point. It maintains the core engineering excellence while adopting a neutral grey aesthetic and streamlined packaging, making it an excellent choice for value-conscious builders. You can also customize its appearance with optional NA-SAVP1 anti-vibration pads from Noctua’s accessories line.

Explore compatible CPU Coolers or check Noctua Products for other options. Find full details on the official Noctua NF-P14s redux 1200 PWM product page.

Specifications:

• Size: 140x140x25mm
• Mounting Hole Spacing: 124.5×124.5 mm
• Connector: 4-pin PWM
• Bearing Type: SSO-Bearing
• Max. Rotational Speed: 1200 RPM (±10%)
• Min. Rotational Speed (PWM): 350 RPM (±20%)
• Max. Airflow: 110.3 m³/h (or 64.9 CFM)
• Max. Static Pressure: 1.29 mm H₂O
• Max. Acoustical Noise: 19.6 dB(A)
• Max. Input Power: 0.96 W
• Max. Input Current: 0.08 A
• Operating Voltage: 12 V
• MTTF (Mean Time To Failure): >150,000 hours
• Warranty: 6 years manufacturer’s warranty
• Model Number/SKU: NF-P14s redux-1200 PWM
• EAN/UPC: 4716123315247
