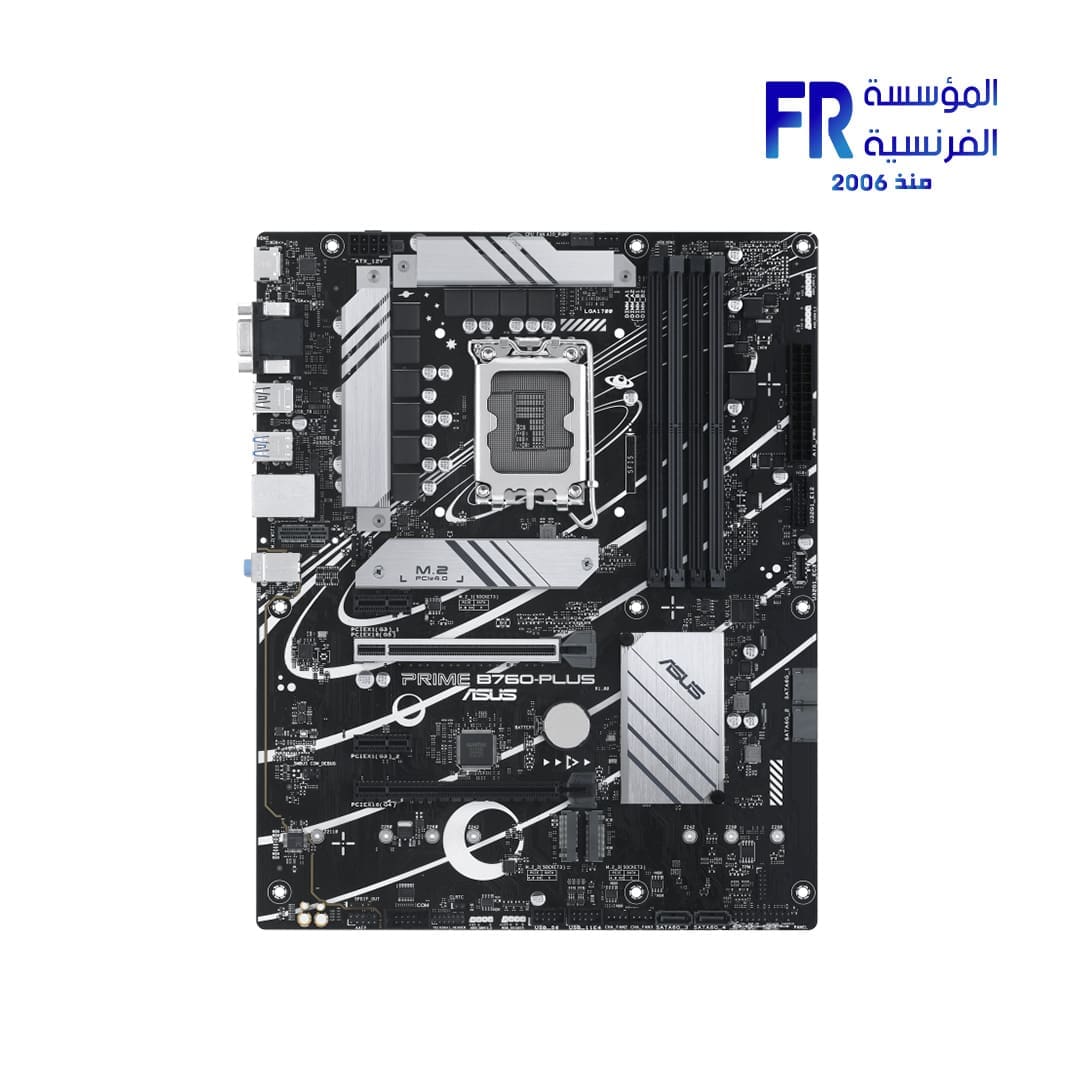

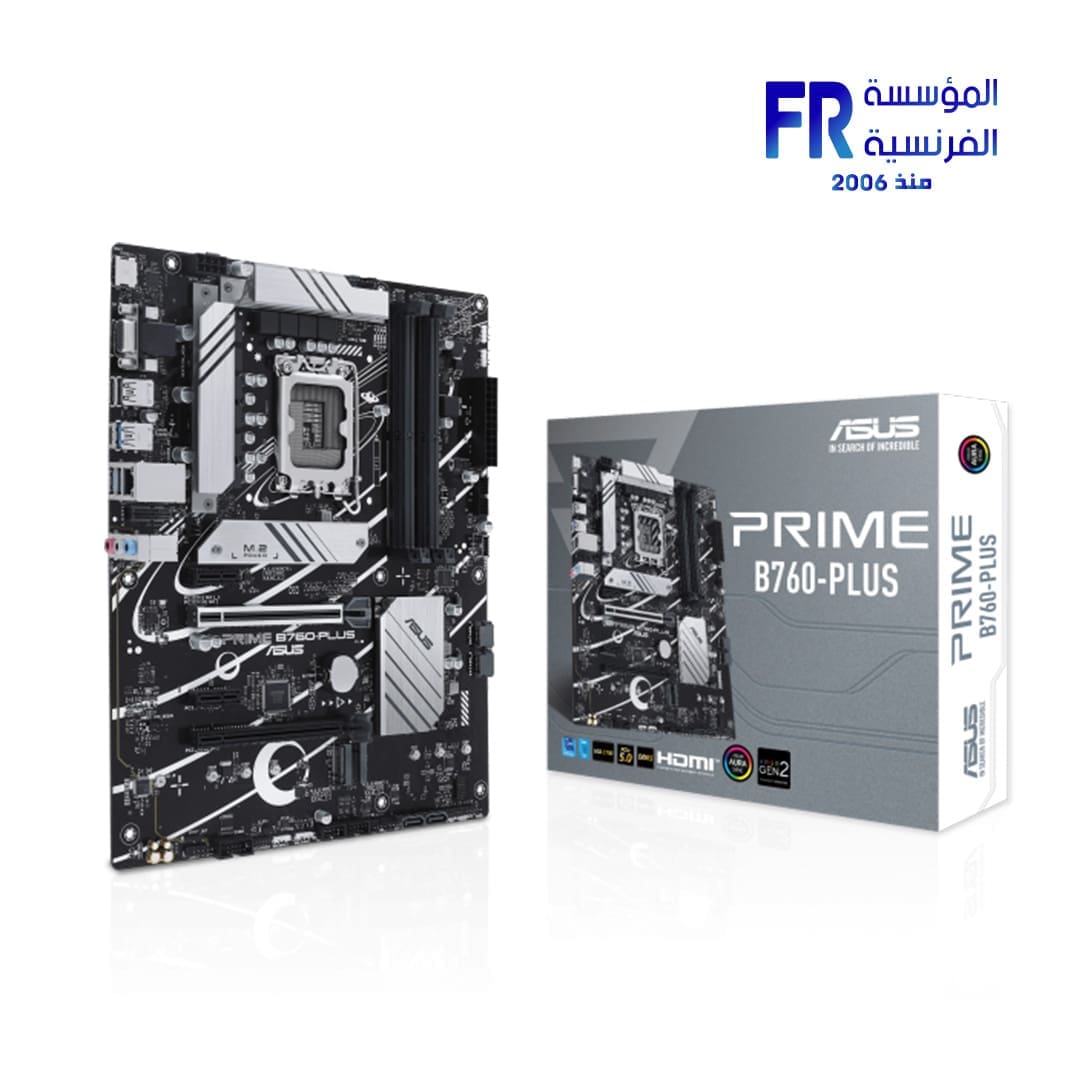

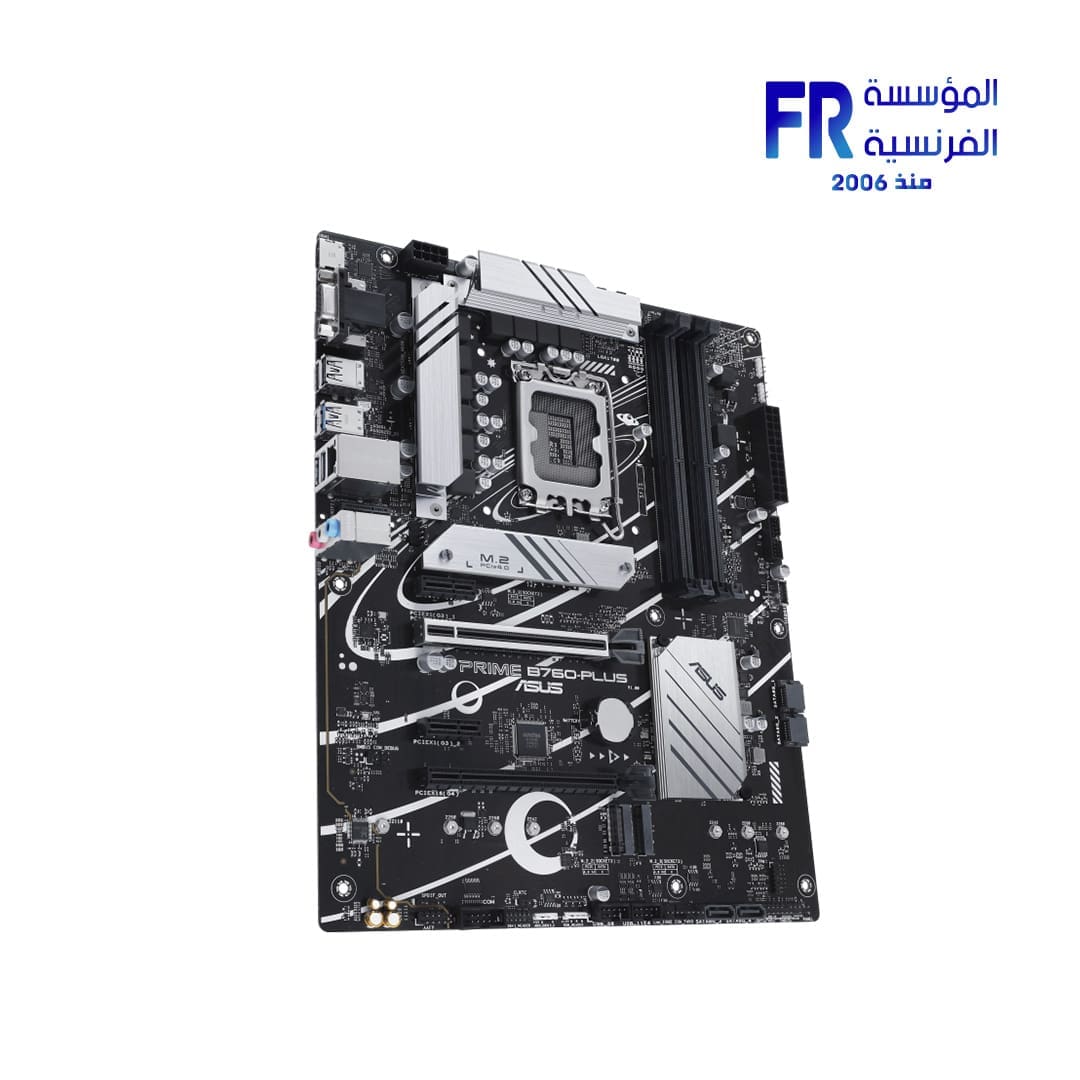

Asus Prime B760 Plus Motherboard

Asus Prime B760 Plus Motherboard

Build a powerful and versatile system with the ASUS Prime B760-PLUS motherboard. Designed for Intel® 14th, 13th, and 12th Gen processors (LGA1700), this ATX board offers a solid foundation using the Intel® B760 chipset. It embraces modern standards like high-speed **DDR5 memory** (up to 7200+ MT/s OC). Additionally, it features a future-proof **PCIe 5.0 x16 slot**. Furthermore, it provides ample storage options with **triple M.2 slots** and robust connectivity, including **2.5Gb Ethernet**. Consequently, the ASUS Prime B760-PLUS is an excellent all-around choice for gamers, creators, and everyday users. It’s ideal for those seeking a feature-rich ATX board without the Z-series premium.

Discover Balanced Performance & Future-Ready Features

The Prime B760-PLUS is engineered to deliver stable performance and essential modern features. To begin with, it supports the latest Intel processors. It also unlocks the potential of **DDR5 memory** through ASUS OptiMem II technology. This enhances signal integrity for better overclocking headroom. A key highlight is the primary **PCIe 5.0 x16 SafeSlot Core+**. Specifically, this provides double the bandwidth of PCIe 4.0 for next-generation graphics cards. Additionally, comprehensive cooling solutions, including VRM and M.2 heatsinks, ensure stability under load.

Moreover, storage flexibility is excellent. The board offers **three M.2 slots**. Two support fast PCIe 4.0 x4 speeds, while one runs at PCIe 4.0 x2. Four traditional SATA 6Gb/s ports are also available. Networking is upgraded too, featuring a fast **Realtek 2.5Gb Ethernet** port for quicker wired connections. While integrated Wi-Fi is not included, a dedicated vertical M.2 slot (Key E) allows for easy addition of a Wi-Fi module if needed. Furthermore, connectivity includes high-speed rear USB ports like **USB 3.2 Gen 2×2 Type-C® (20Gbps)**. Front panel headers for USB 3.2 Gen 1 Type-C® are also provided. Finally, Aura Sync headers provide options for RGB lighting customization.

ASUS Prime B760-PLUS Specifications

• CPU Socket: Intel® LGA1700 (Supports 14th, 13th & 12th Gen Intel® Core™, Pentium® Gold, Celeron®)
• Chipset: Intel® B760
• Form Factor: ATX (30.5 cm x 24.4 cm)
• Memory: 4 x DIMM, Max. 192GB, DDR5 7200+(OC) – 4800 MHz
• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 3.0 x1
• Storage: 3 x M.2 slots (1x PCIe 4.0 x4 CPU, 1x PCIe 4.0 x4 Chipset, 1x PCIe 4.0 x2 Chipset), 4 x SATA 6Gb/s ports
• Networking: Realtek 2.5Gb Ethernet
• Wireless: M.2 Slot (Key E) for Wi-Fi Module (Module Sold Separately)
• Video Outputs: 1x DisplayPort 1.4, 1x HDMI™ 2.1, 1x VGA

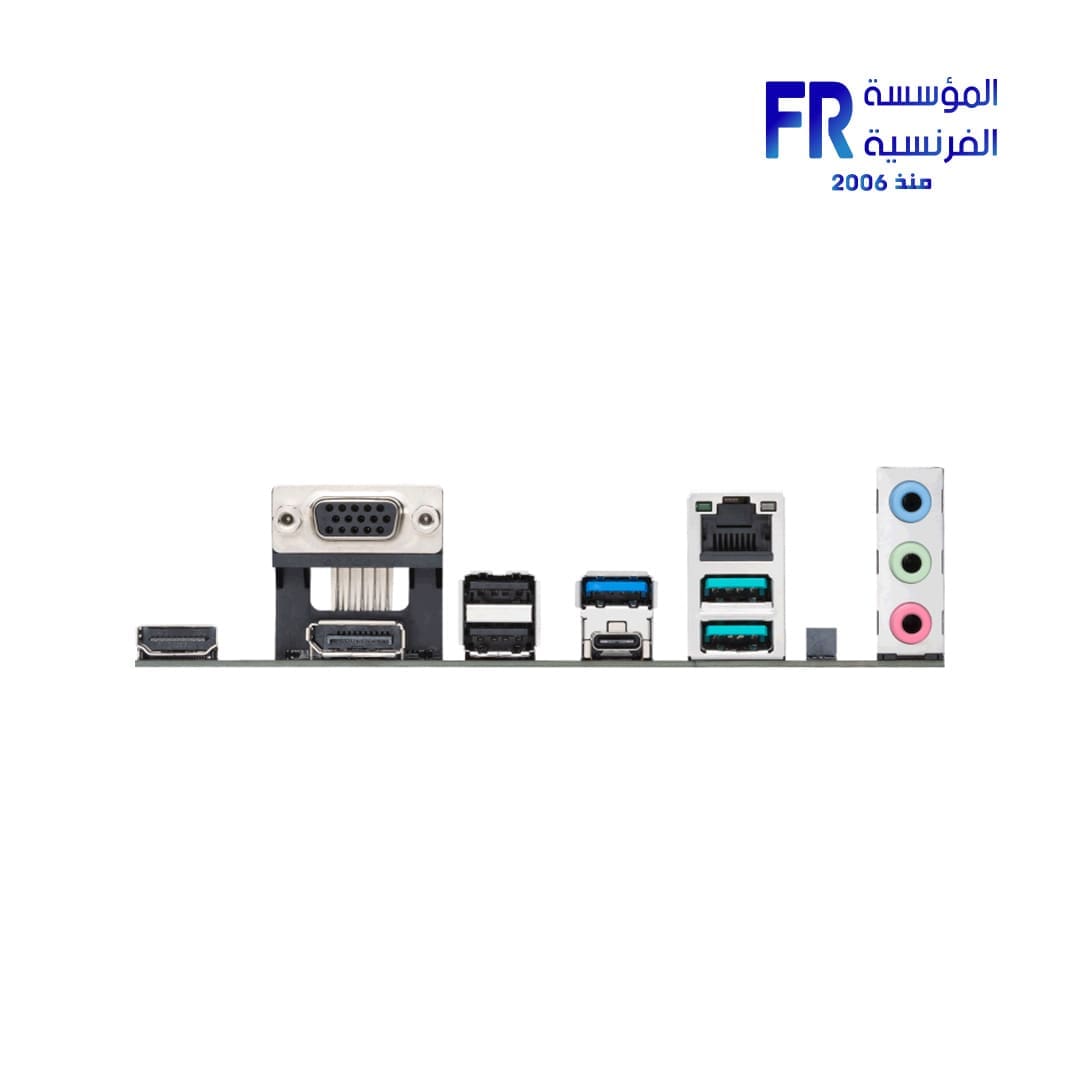

• Rear USB: 1x USB 3.2 Gen 2×2 (Type-C®), 2x USB 3.2 Gen 2 (Type-A), 1x USB 3.2 Gen 1 (Type-A), 2x USB 2.0 (Type-A)
• Front USB: 1x USB 3.2 Gen 1 (Type-C®) connector, 1x USB 3.2 Gen 1 header (2 ports), 2x USB 2.0 headers (4 ports)
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Special Features: PCIe 5.0 x16 Slot, DDR5 Support, Triple M.2 Slots, 2.5Gb LAN, OptiMem II, VRM & M.2 Heatsinks, Aura Sync Headers, Front USB-C Header, M.2 Key E Slot for Wi-Fi

Q&A

Who is the ASUS Prime B760-PLUS for?

This motherboard is ideal for users building a mainstream ATX system. It suits Intel 12th, 13th, or 14th Gen processors. Users wanting a solid feature set including DDR5 support, PCIe 5.0 readiness, and good storage options will appreciate it. It’s designed for those not needing the overclocking capabilities or extra features of a Z-series chipset.

Why choose the ASUS Prime B760-PLUS?

Its key strengths include the **PCIe 5.0 x16 slot** for future graphics card compatibility. Support for high-speed **DDR5 memory** and generous storage with **triple M.2 slots** are also important. Additionally, the fast **2.5Gb Ethernet** port and comprehensive USB connectivity, including rear **20Gbps Type-C®**, make the ASUS Prime B760-PLUS a well-balanced and forward-looking option for its price.

What are the Pros?

Pros: PCIe 5.0 x16 slot for future-proofing; Supports high-speed DDR5 memory; Triple M.2 slots for ample fast storage; Fast 2.5Gb Ethernet; Good rear USB including 20Gbps Type-C; Front panel USB-C header; Includes M.2 slot for optional Wi-Fi; VRM and M.2 heatsinks included.

What are the Cons?

Cons: B760 chipset does not support CPU overclocking; No integrated Wi-Fi module included; One M.2 slot runs at slower PCIe 4.0 x2 speeds; Basic audio codec.

Verdict

The ASUS Prime B760-PLUS offers a compelling blend of modern features and value for builders using the Intel LGA1700 platform. Its inclusion of a **PCIe 5.0 x16 slot**, support for fast **DDR5 memory**, **triple M.2 slots**, and **2.5Gb LAN** provides a strong foundation for current and future components. While it lacks integrated Wi-Fi and CPU overclocking, it still delivers essential performance and connectivity in a reliable ATX package. Therefore, if you’re looking for a well-rounded and future-ready B760 motherboard, the ASUS Prime B760-PLUS is a solid motherboard choice. Find complete specifications on the official ASUS product page.
