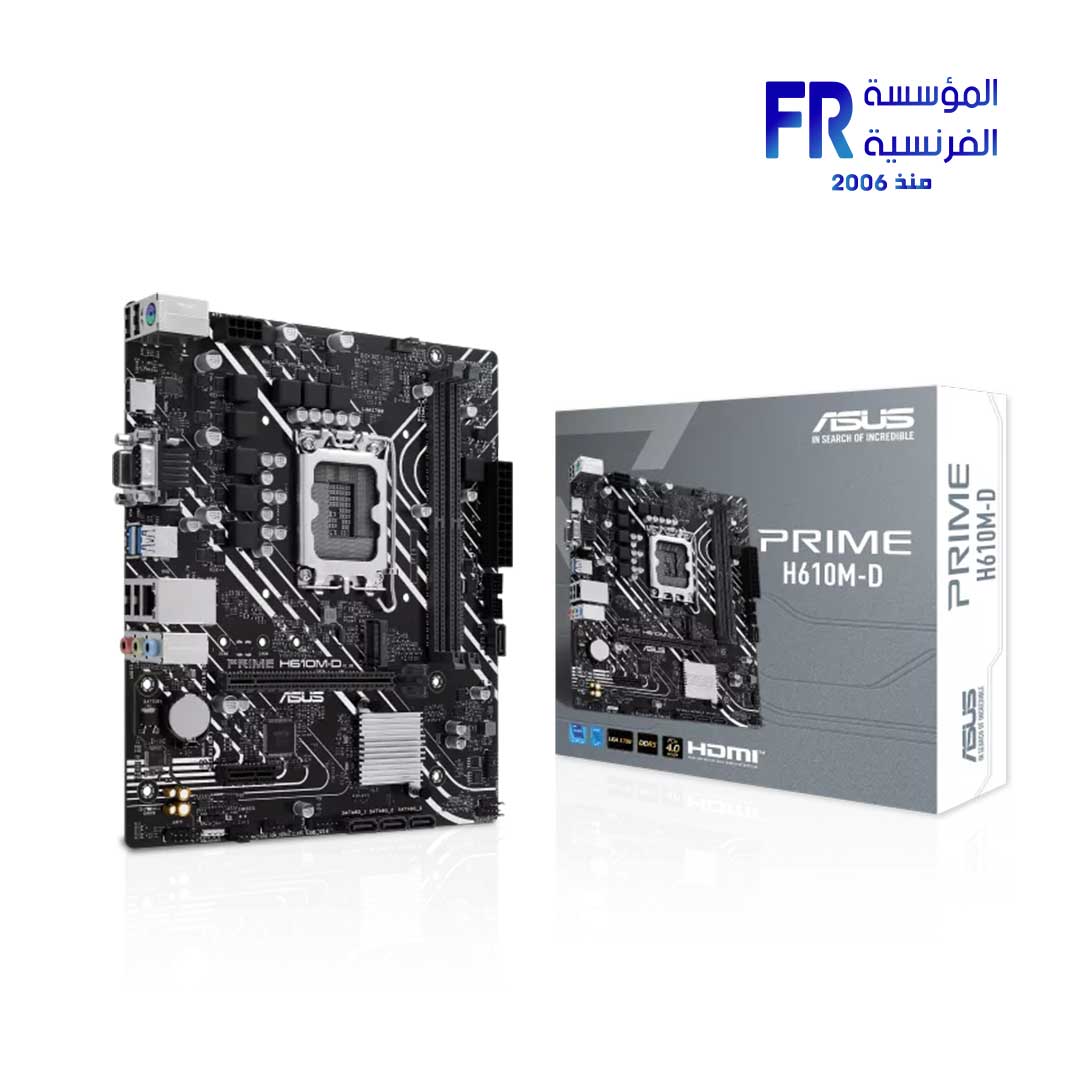

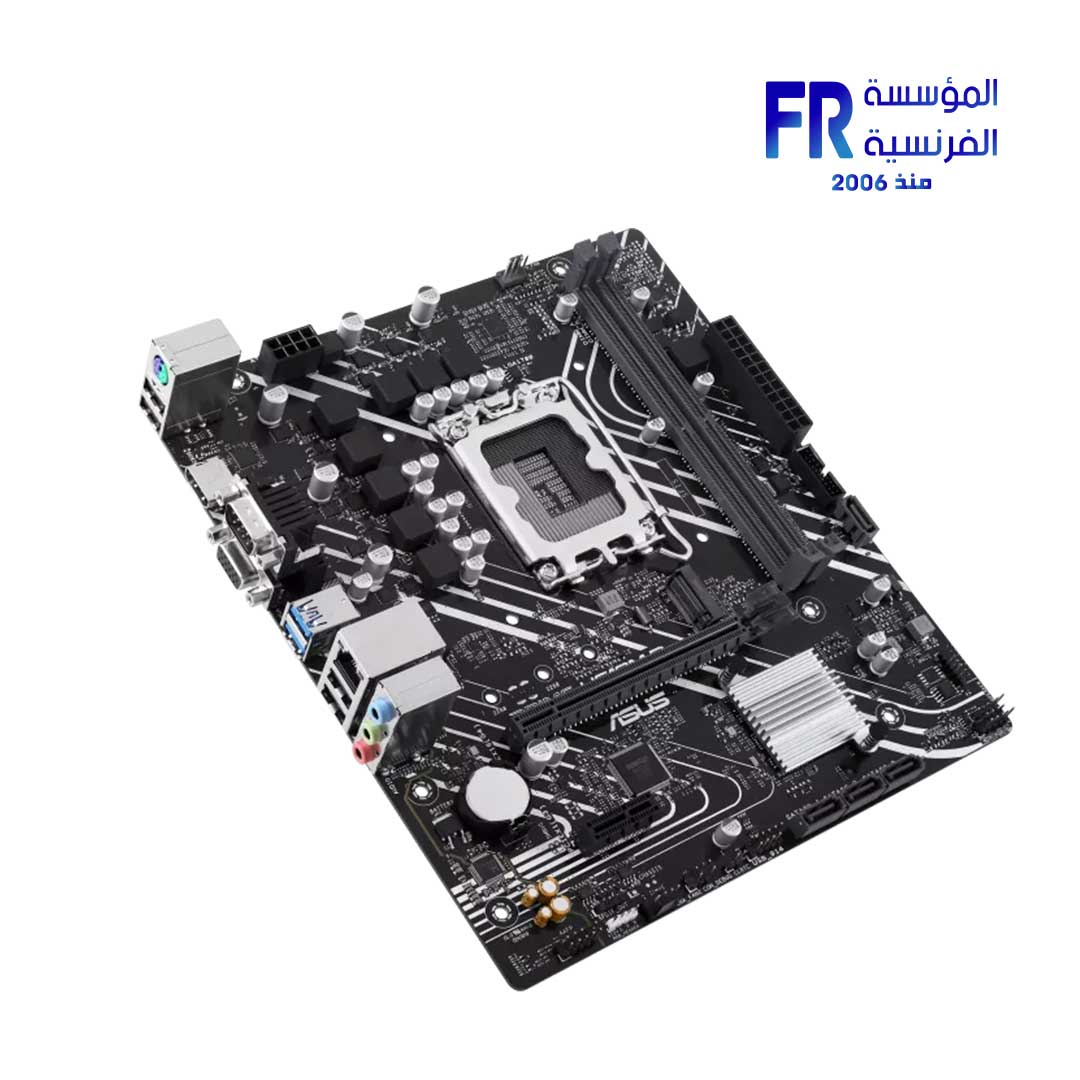

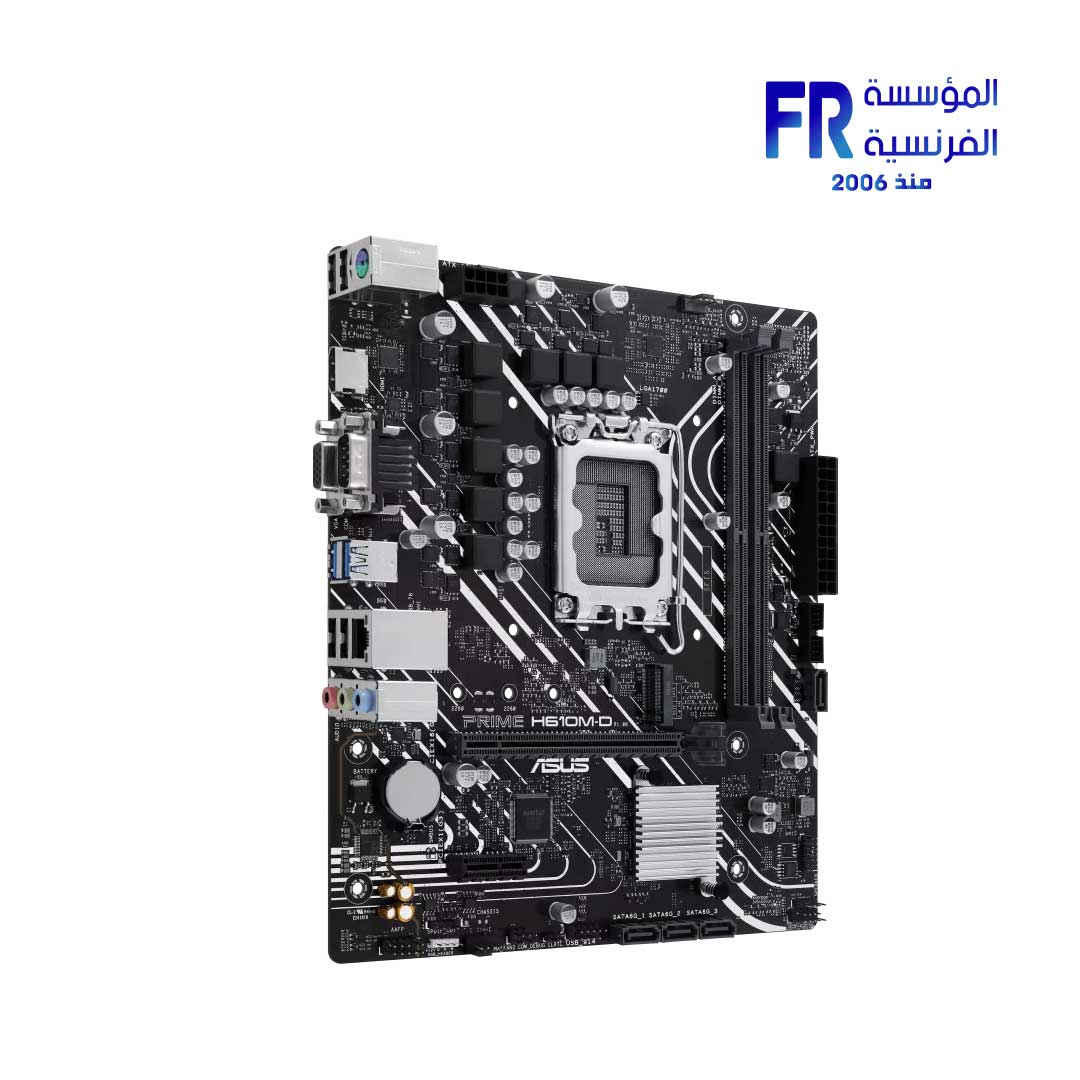

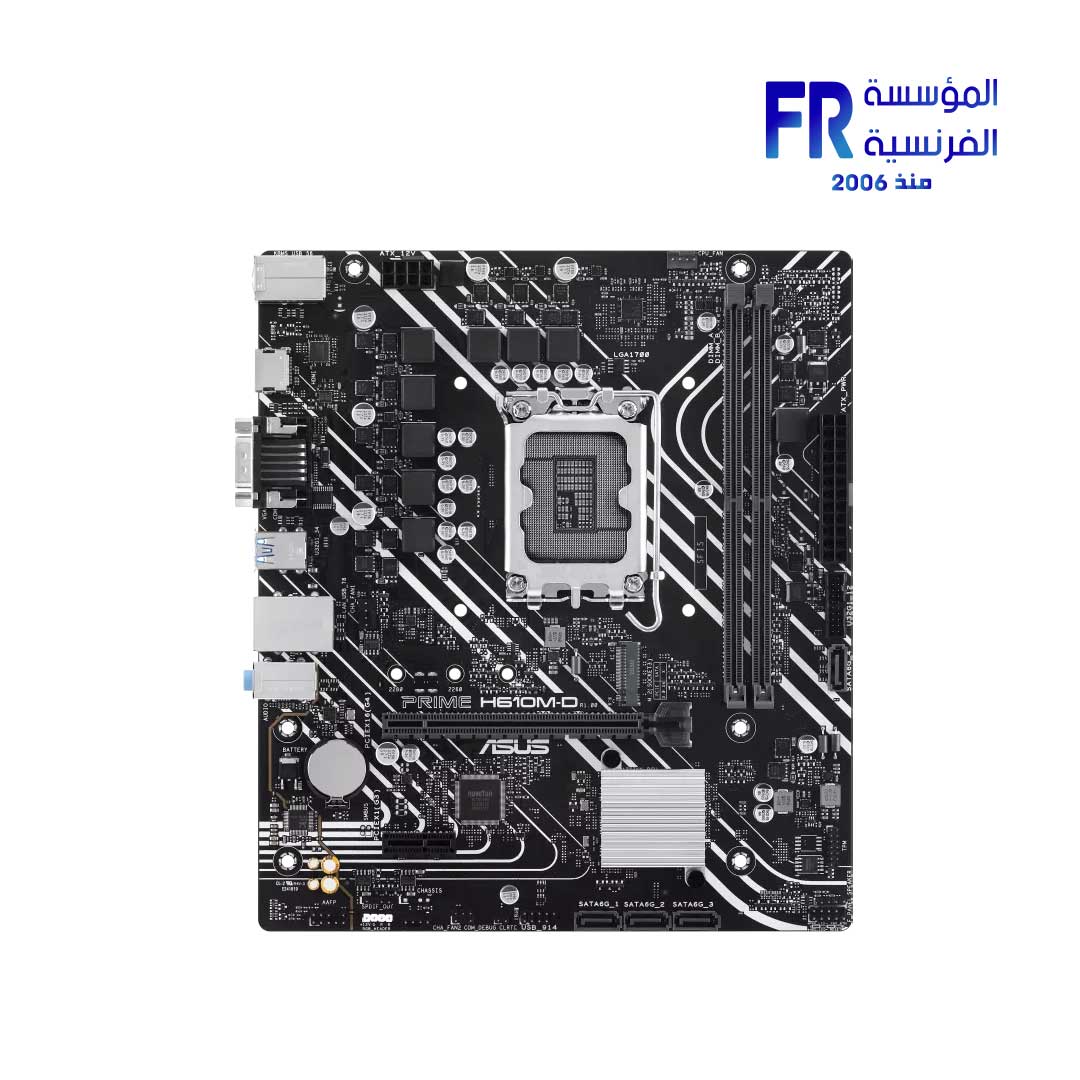

Asus Prime H610M-D Motherboard

Asus Prime H610M-D Motherboard

The Asus Prime H610M-D motherboard is expertly engineered to unleash the full potential of 14th, 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options via intuitive software. Furthermore, it provides users and PC DIY builders with essential features for daily productivity and reliable performance in a micro-ATX form factor.

Core Features & Connectivity

Built on the Intel® H610 chipset, this motherboard supports up to 96GB of DDR5 memory with speeds up to 5600MHz (OC) and Intel® XMP profile support. Specifically, it features a PCIe 4.0 x16 slot for modern graphics cards and an M.2 slot supporting PCIe 3.0 x4 mode (up to 32 Gbps) for fast SSD storage. Additionally, ASUS 5X Protection III provides multiple hardware safeguards, including DIGI+ VRM, Overvoltage Protection, and SafeSlot Core.

Connectivity includes Realtek 1Gb Ethernet, rear USB 3.2 Gen 1 and USB 2.0 ports, plus headers for front panel USB 3.2 Gen 1 and USB 2.0. Moreover, it offers both HDMI™ (supporting 4K@60Hz) and VGA display outputs, along with a COM port and PS/2 combo port for legacy device support. Cooling is managed by Fan Xpert 2+ software controlling CPU and chassis fan headers, complemented by a PCH heatsink.

Explore compatible Intel Motherboards or check Asus Products for other options. Find full details on the official Asus Prime H610M-D product page.

Specifications

• Model: PRIME H610M-D
• CPU Socket: Intel® LGA1700 (Supports 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron®)
• Chipset: Intel® H610
• Form Factor: micro-ATX (23.4 cm x 20.3 cm)
• Memory: 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered
• Memory Architecture: Dual Channel
• XMP Support: Yes (Intel® Extreme Memory Profile)
• Graphics Output: 1 x VGA, 1 x HDMI™ 2.1 (Supports 4K@60Hz)
• Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
• Storage: 1 x M.2 slot (Key M, type 2242/2260/2280, PCIe 3.0 x4 mode), 4 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 1Gb Ethernet
• Rear USB: 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A)
• Front USB Headers: 1 x USB 3.2 Gen 1 (supports 2 ports), 1 x USB 2.0 (supports 2 ports)
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Back Panel Ports: PS/2 Keyboard/Mouse combo, VGA, HDMI™, LAN (RJ45), 2x USB 3.2 Gen 1, 4x USB 2.0, 3x Audio jacks, COM port
• Internal Connectors: CPU Fan, Chassis Fan (2x), 24-pin Main Power, 8-pin +12V Power, M.2, SATA (4x), USB 3.2 Gen 1 header, USB 2.0 header, RGB header, Clear CMOS, Front Panel Audio, S/PDIF Out, Speaker, SPI TPM, System Panel
• Special Features: ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O), Q-Design (Q-DIMM, Q-LED Core, Q-Slot), Aluminum heatsink design, RGB header
• Software: Armoury Crate, Fan Xpert 2+, AI Suite 3 (EPU, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, UEFI BIOS (EZ Mode)
• Operating System Support: Windows® 11, Windows® 10 64-bit
• Model Number: 90MB1G80-M0EAY0
• UPC: 197105339897
