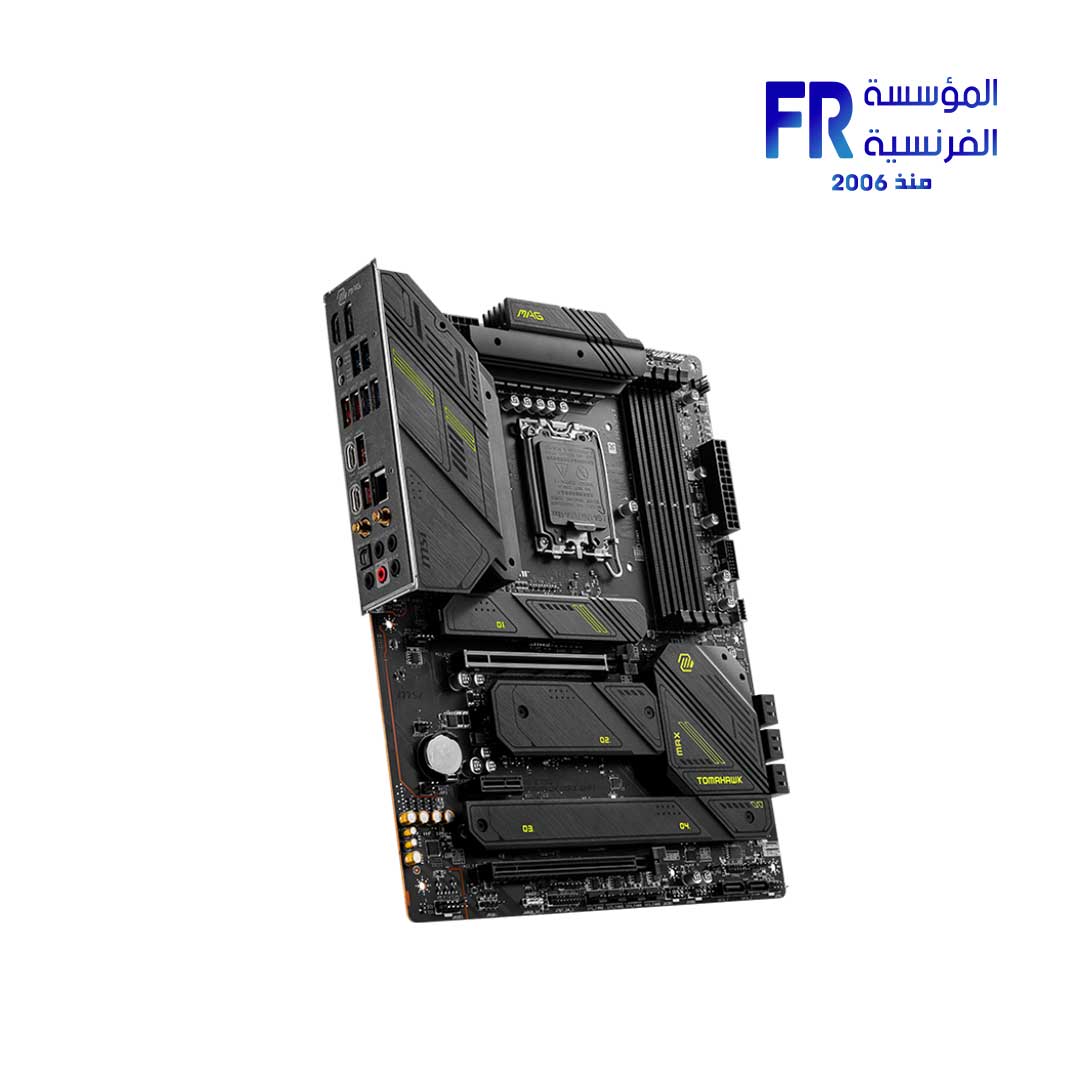

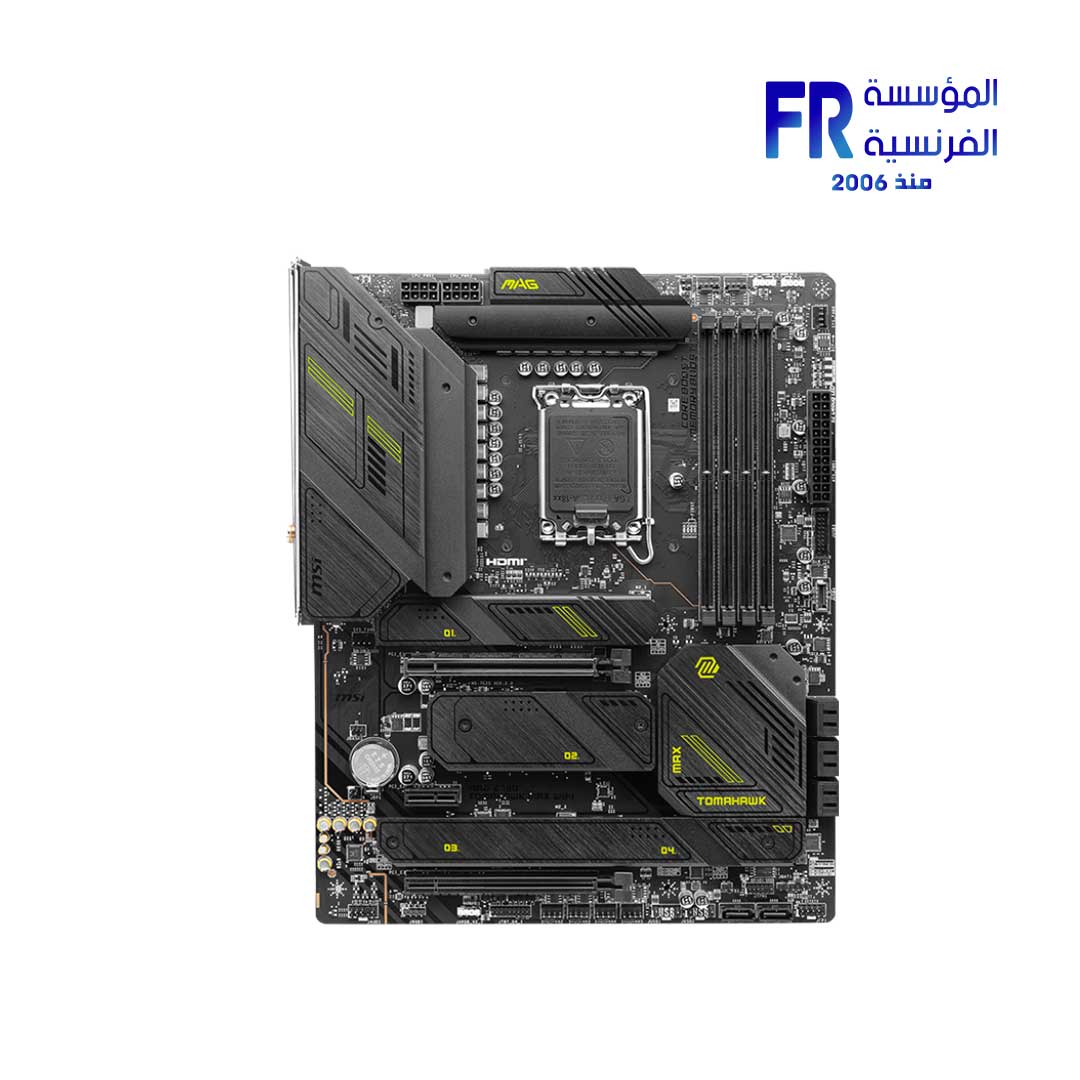

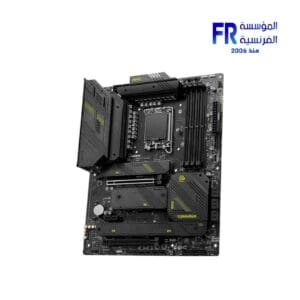

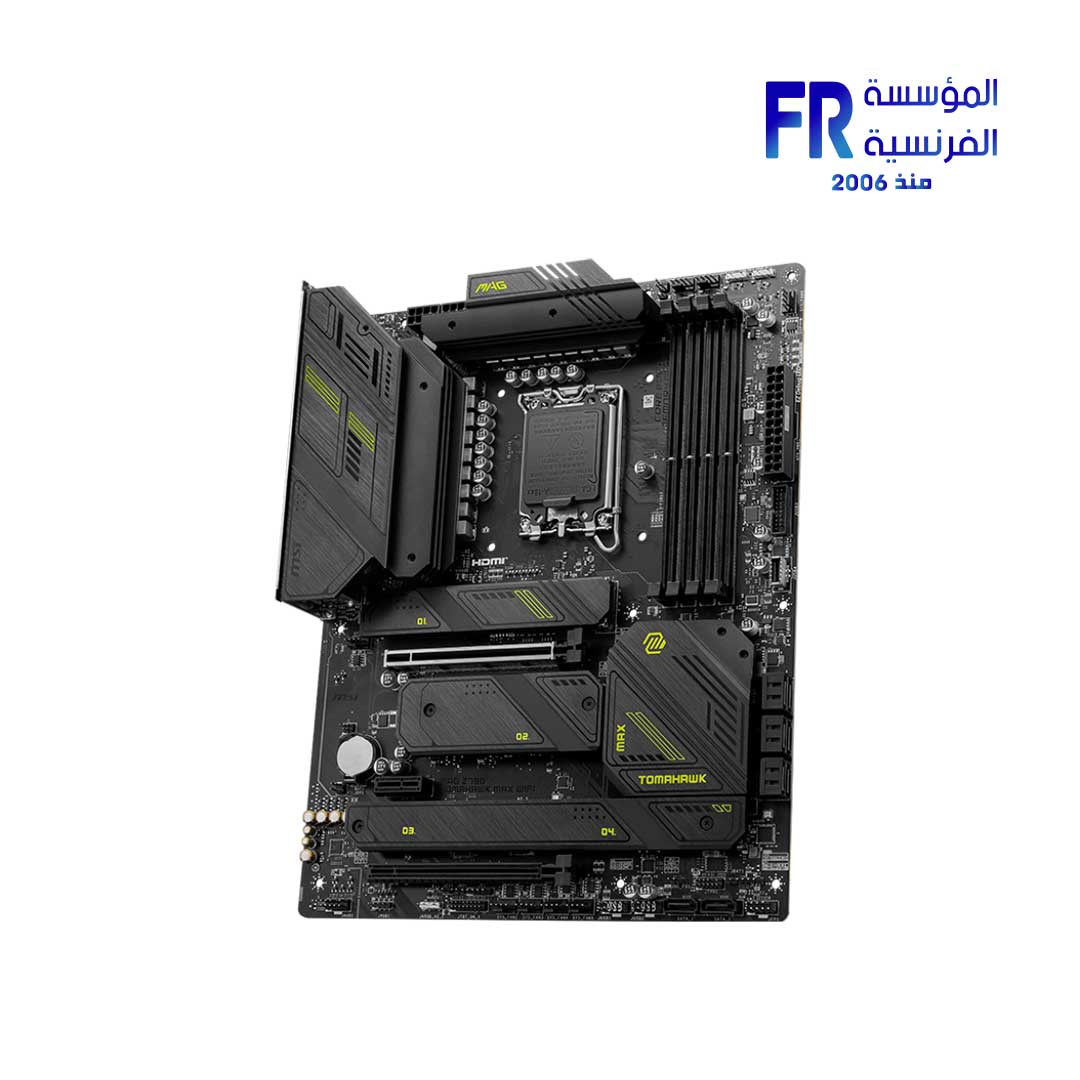

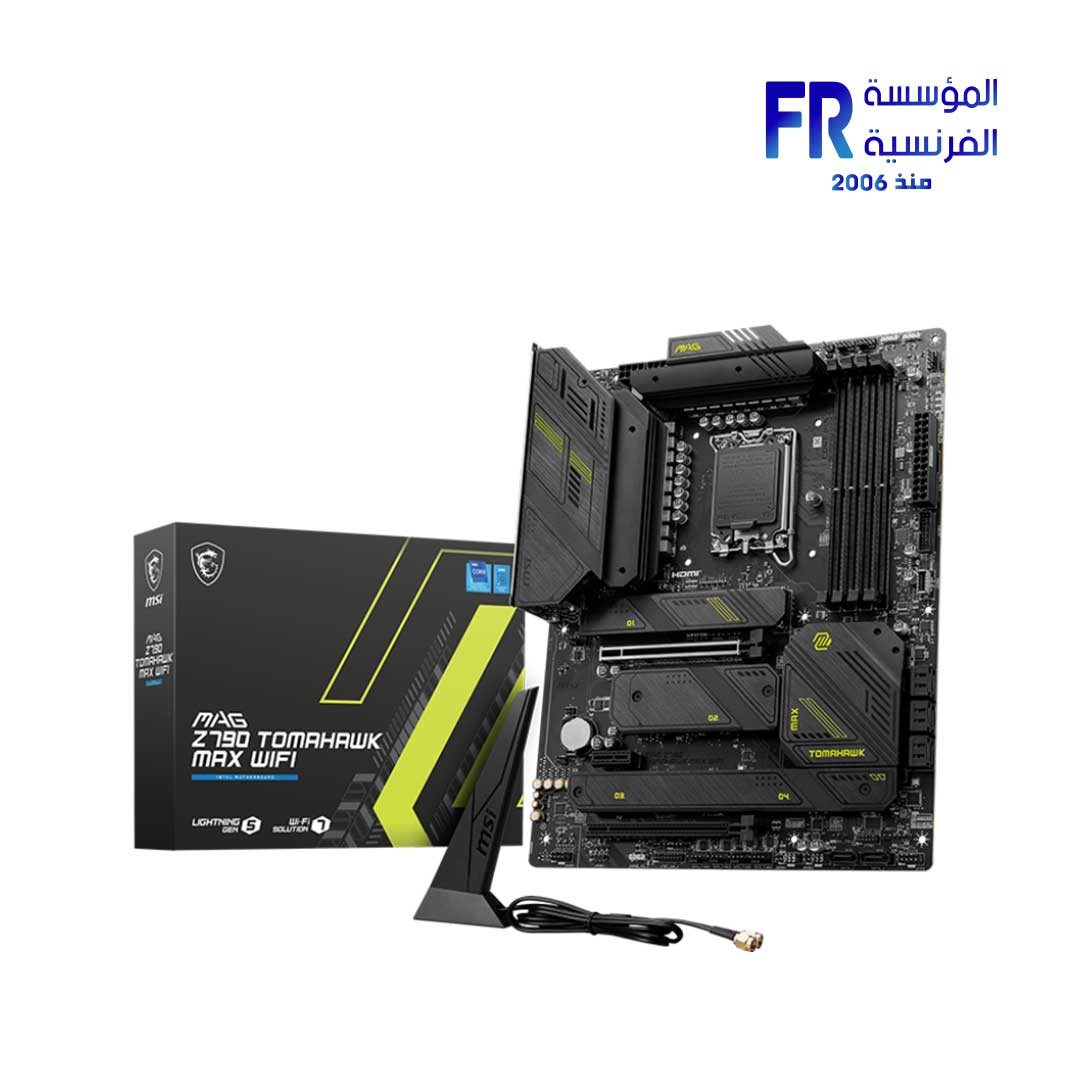

Msi Mag Z790 Tomahawk Max Wifi Motherboard

Msi Mag Z790 Tomahawk Max Wifi Motherboard

The Msi Mag Z790 Tomahawk Max Wifi motherboard is built on the powerful Intel Z790 chipset, ready to support Intel® Core™ 14th, 13th, and 12th Gen processors. It leverages next-generation technologies like DDR5 memory up to 7800+ MHz (OC), PCIe 5.0 for graphics cards and M.2 storage. Furthermore, it offers cutting-edge connectivity with Wi-Fi 7 and Intel 2.5Gbps LAN for demanding gaming and productivity tasks.

Next-Gen Connectivity & Storage

Experience blazing-fast speeds with the primary PCIe 5.0 x16 slot and a PCIe 5.0 x4 M.2 slot for the latest GPUs and NVMe SSDs. Specifically, this board offers extensive storage options with a total of four M.2 slots (1x PCIe 5.0, 3x PCIe 4.0) and eight SATA 6Gb/s ports. Additionally, stay ahead with ultra-fast networking provided by Intel 2.5Gbps LAN and the latest Wi-Fi 7 standard, supporting speeds up to 5.8Gbps and Bluetooth 5.4.

Connect all your peripherals with a comprehensive array of USB ports, including rear USB 3.2 Gen 2×2 20Gbps Type-C, multiple 10Gbps Type-A and Type-C ports, and additional front panel headers. Moreover, the Realtek ALC4080 audio codec delivers high-performance 7.1-channel USB audio for an immersive sound experience. The board also features EZ Debug LEDs for quick troubleshooting.

Explore compatible Intel Motherboards or check MSI Products for other options. Find full details on the official Msi Mag Z790 Tomahawk Max Wifi product page.

Specifications

• Model: MAG Z790 TOMAHAWK MAX WIFI
• CPU Socket: LGA 1700 (Supports 14th/13th/12th Gen Intel® Core™, Pentium® Gold, Celeron®)
• Chipset: Intel® Z790
• Form Factor: ATX (304.8mm x 243.84mm)
• Memory: 4 x DDR5 DIMM, Max. 256GB, up to 7800+(OC) MHz
• Memory Architecture: Dual Channel, Supports Intel® XMP 3.0
• Graphics Output: 1 x HDMI™ 2.1 (4K@60Hz), 1 x DisplayPort 1.4 (8K@60Hz)
• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1
• Storage: 1 x M.2 PCIe 5.0 x4, 3 x M.2 PCIe 4.0 x4 (1 shared with SATA), 8 x SATA 6Gb/s
• RAID Support: RAID 0/1/5/10 for SATA & M.2 NVMe
• Ethernet: Intel® 2.5Gbps LAN
• Wireless: Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz bands up to 5.8Gbps
• Bluetooth: Bluetooth® 5.4
• Audio: Realtek® ALC4080 Codec, 7.1-Channel USB High Performance Audio

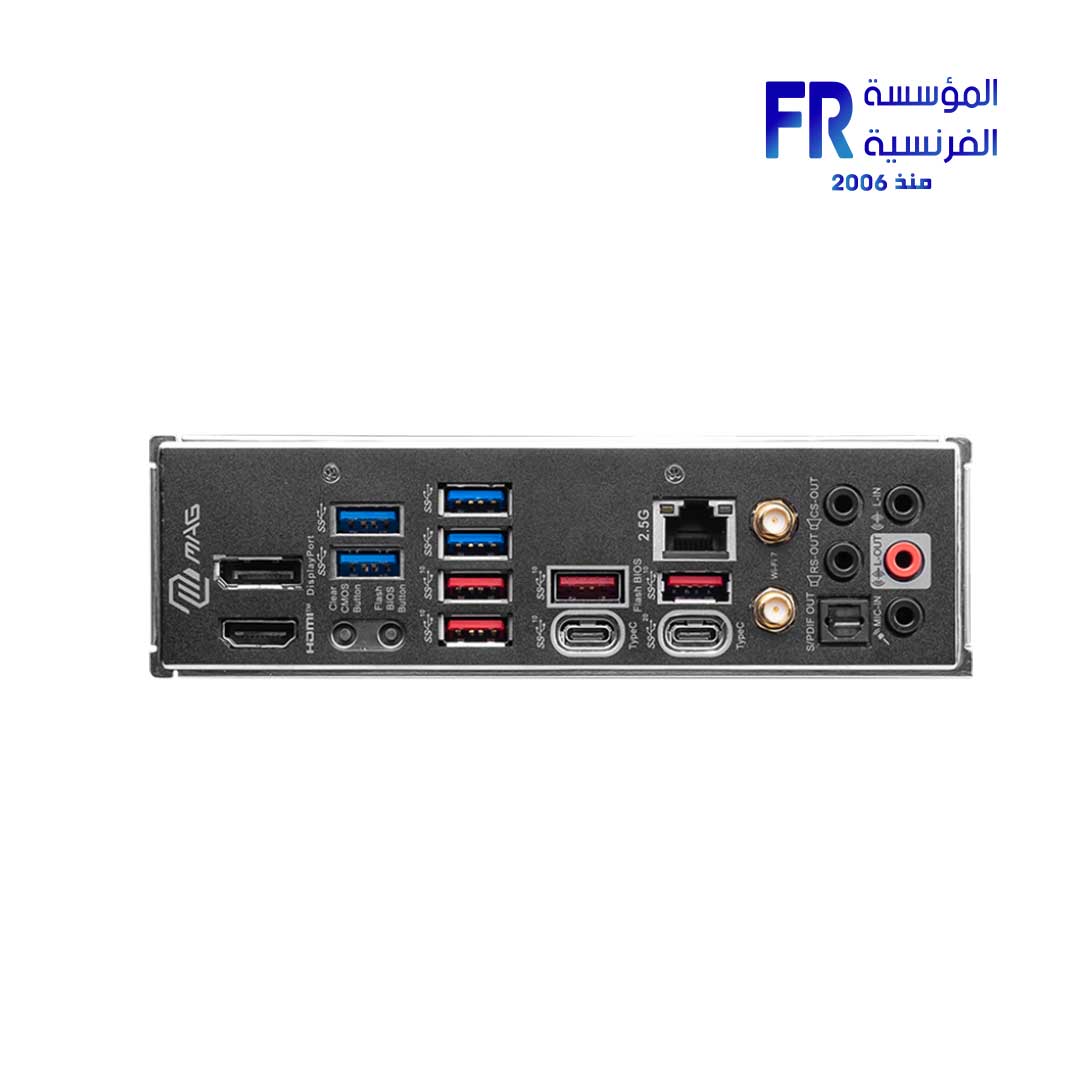

• Rear USB: 1x USB 3.2 Gen 2×2 20Gbps (Type-C), 5x USB 3.2 Gen 2 10Gbps (4x Type-A, 1x Type-C), 4x USB 3.2 Gen 1 5Gbps (Type-A)
• Front USB Headers: 1x USB 3.2 Gen 2 10Gbps (Type-C), 2x USB 3.2 Gen 1 5Gbps (supports 4 ports), 2x USB 2.0 (supports 4 ports)
• Internal IO: Fan headers (CPU, Pump, System x6), RGB headers (3x ARGB_V2, 1x JRGB), TPM header, Tuning Controller, Front Panel, Audio, Chassis Intrusion, USB4 Card Connector
• Features: EZ Debug LED, Flash BIOS Button, Clear CMOS Button
• Operating System Support: Windows® 11 / 10 64-bit
• Model Number: 911-7E25-026
• UPC: 824142336250
