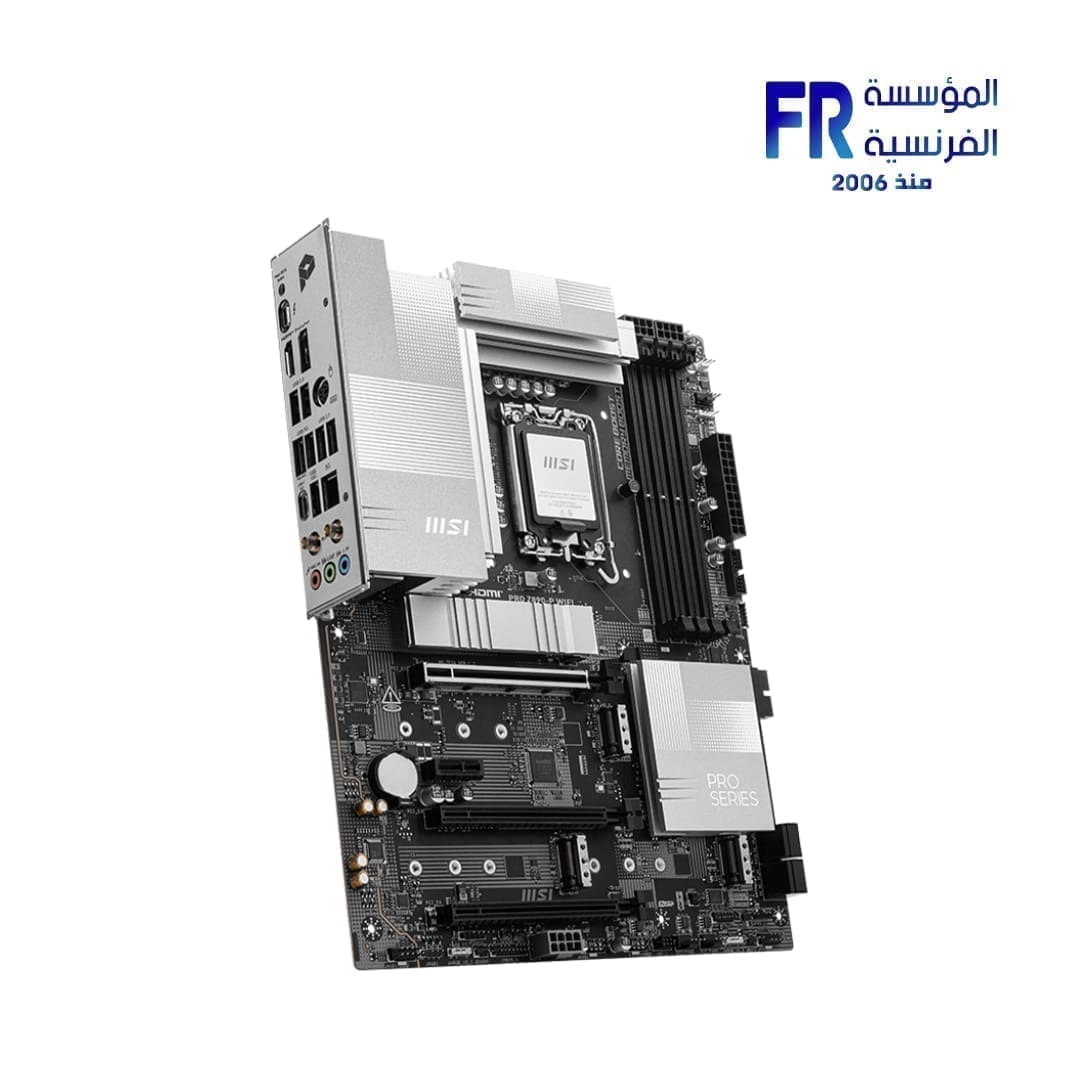

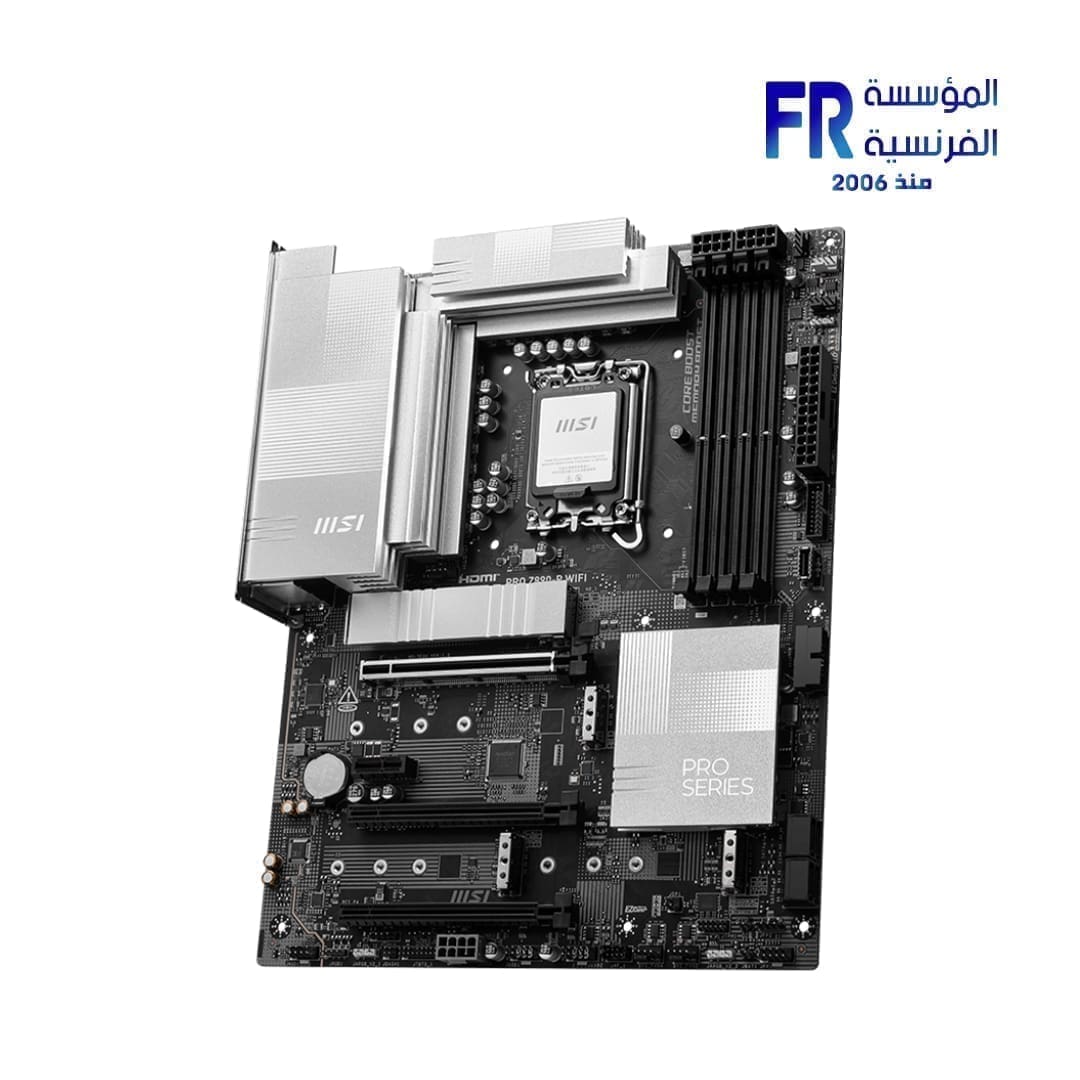

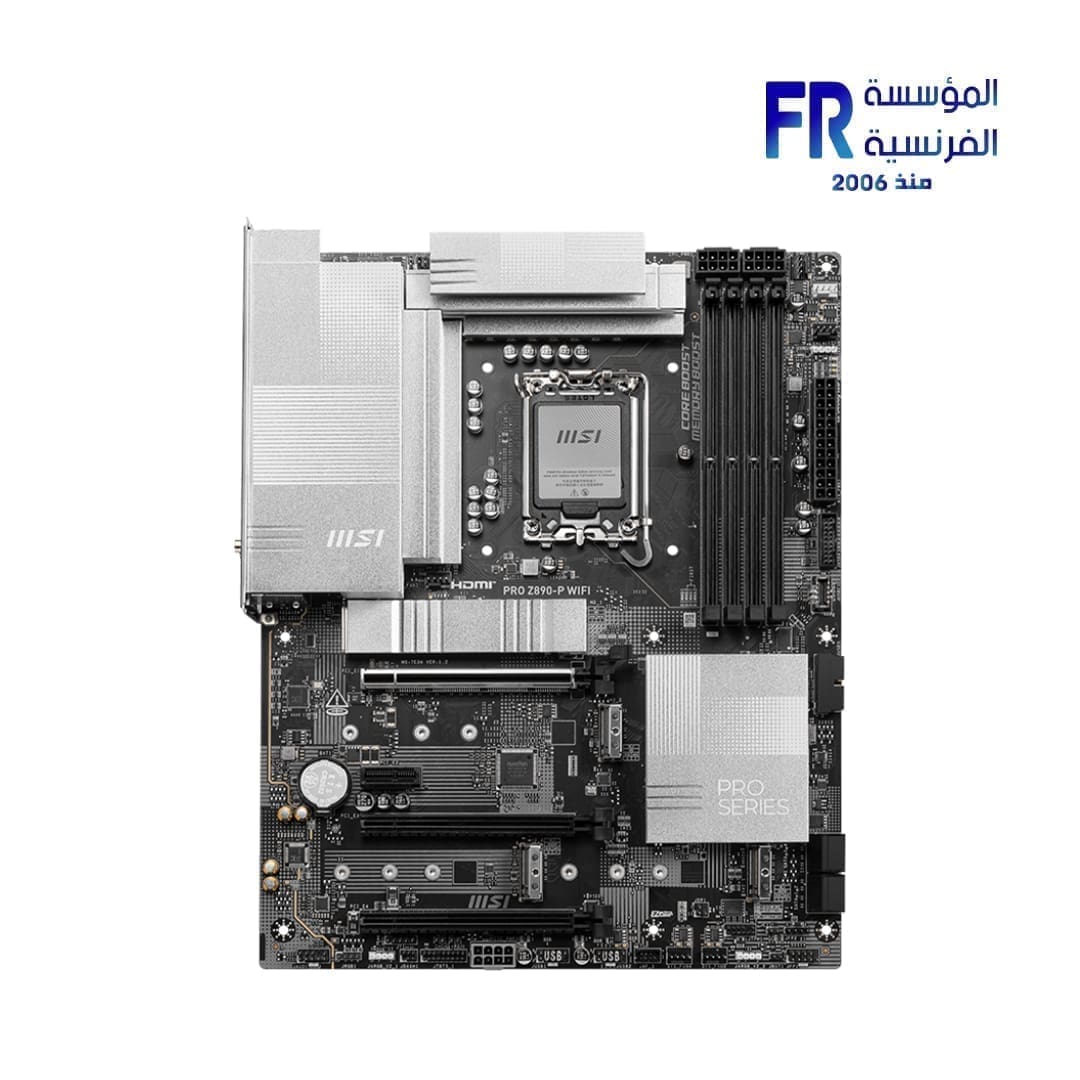

Msi Pro Z890 P Wifi Motherboard

Msi Pro Z890 P Wifi Motherboard

Msi Pro Z890 P Wifi Motherboard

General

• Chipset: INTEL Z890
• Socket: LGA 1851
• Form Factor: ATX (243.84mm x 304.8mm)
• Operating System: Windows® 11 64-bit

CPU Support

• Supports Intel® Core™ Ultra Processors (Series 12)

Memory

• 4x DDR5 UDIMM slots
• Maximum Memory Capacity: 256GB
• Supports 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

Storage

• 4x M.2 slots (PCIe 5.0 x4, PCIe 4.0 x4, SATA)
• 4x SATA 6G ports
• Supports RAID 0, 1, 5, 10 (SATA & M.2 NVMe)

Onboard Graphics

• 1x HDMI 2.1 (up to 4K 60Hz)
• 1x DisplayPort 1.4 (up to 4K 60Hz)
• 1x Thunderbolt 4 (up to 8K display)

Expansion Slots

• 3x PCI-E x16 slots (PCIe 5.0 x16, PCIe 4.0 x4)
• 1x PCI-E x1 slot (PCIe 4.0)

Networking

• Realtek® ALC897 Codec (7.1-Channel High Definition Audio)
• Realtek® 8126 5Gbps LAN
• Intel® Wi-Fi 7 (pre-installed M.2 Key-E)
• Bluetooth® 5.4

USB Ports

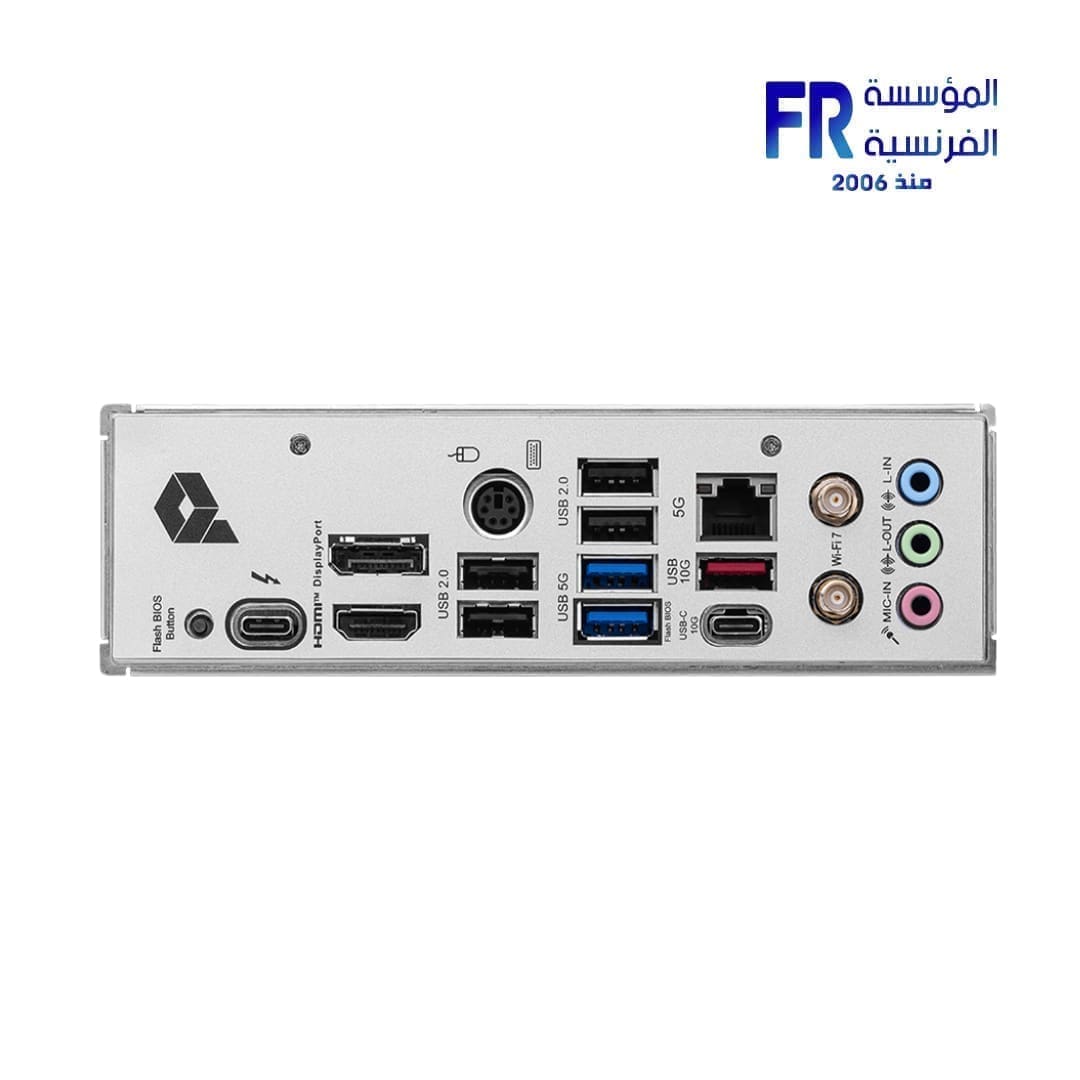

• Rear Panel:
  • 4x USB 2.0
  • 2x USB 5Gbps Type-A
  • 1x USB 10Gbps Type-A
  • 1x USB 10Gbps Type-C
  • 1x Thunderbolt 4 40Gbps (Type-C)
• Front Panel:
  • 4x USB 2.0
  • 4x USB 5Gbps Type-A
  • 1x USB 20Gbps Type-C

Other Features

• EZ Debug LED
• 4x EZ Conn-header
• 3x Addressable V2 RGB LED connector
• TPM 2.0 support
