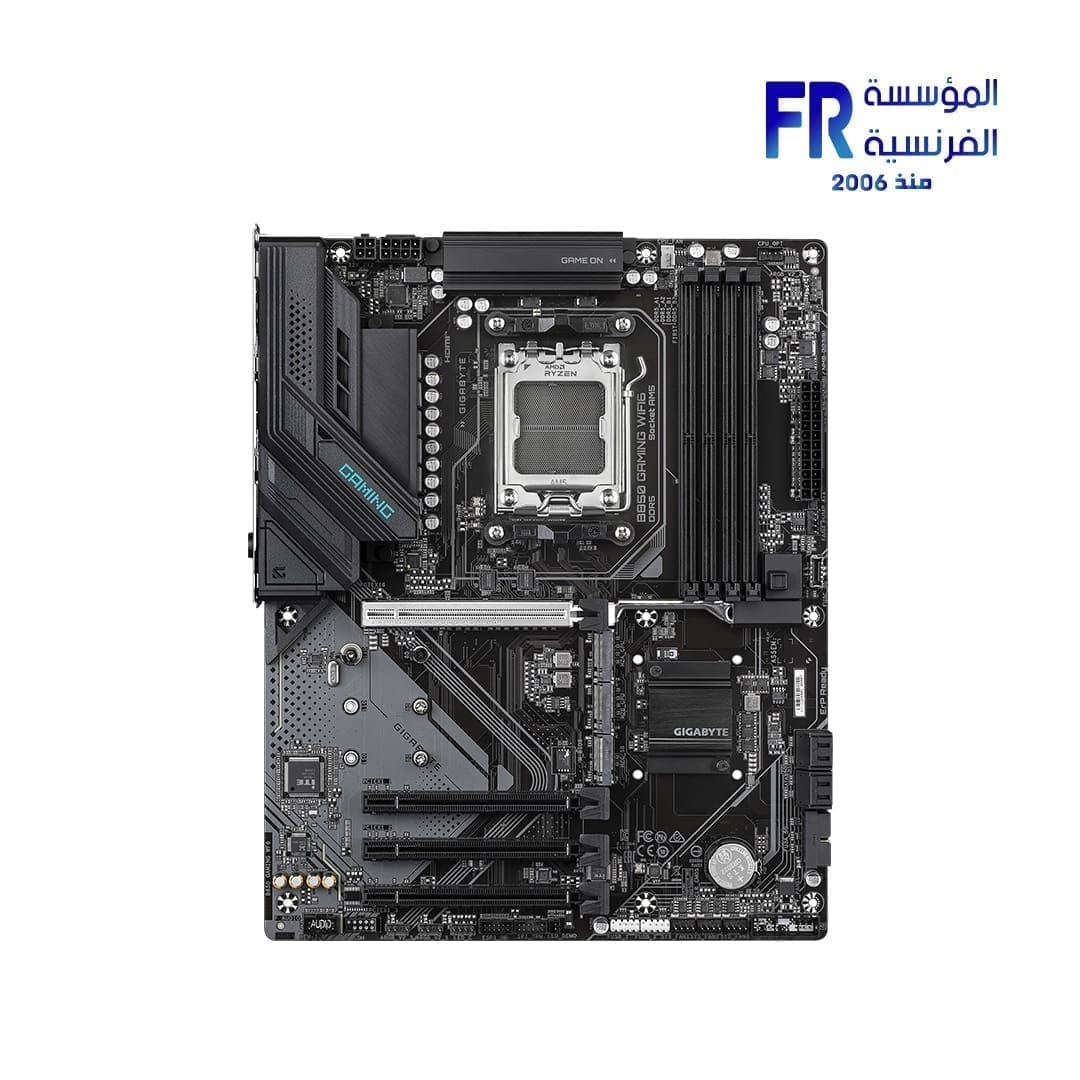

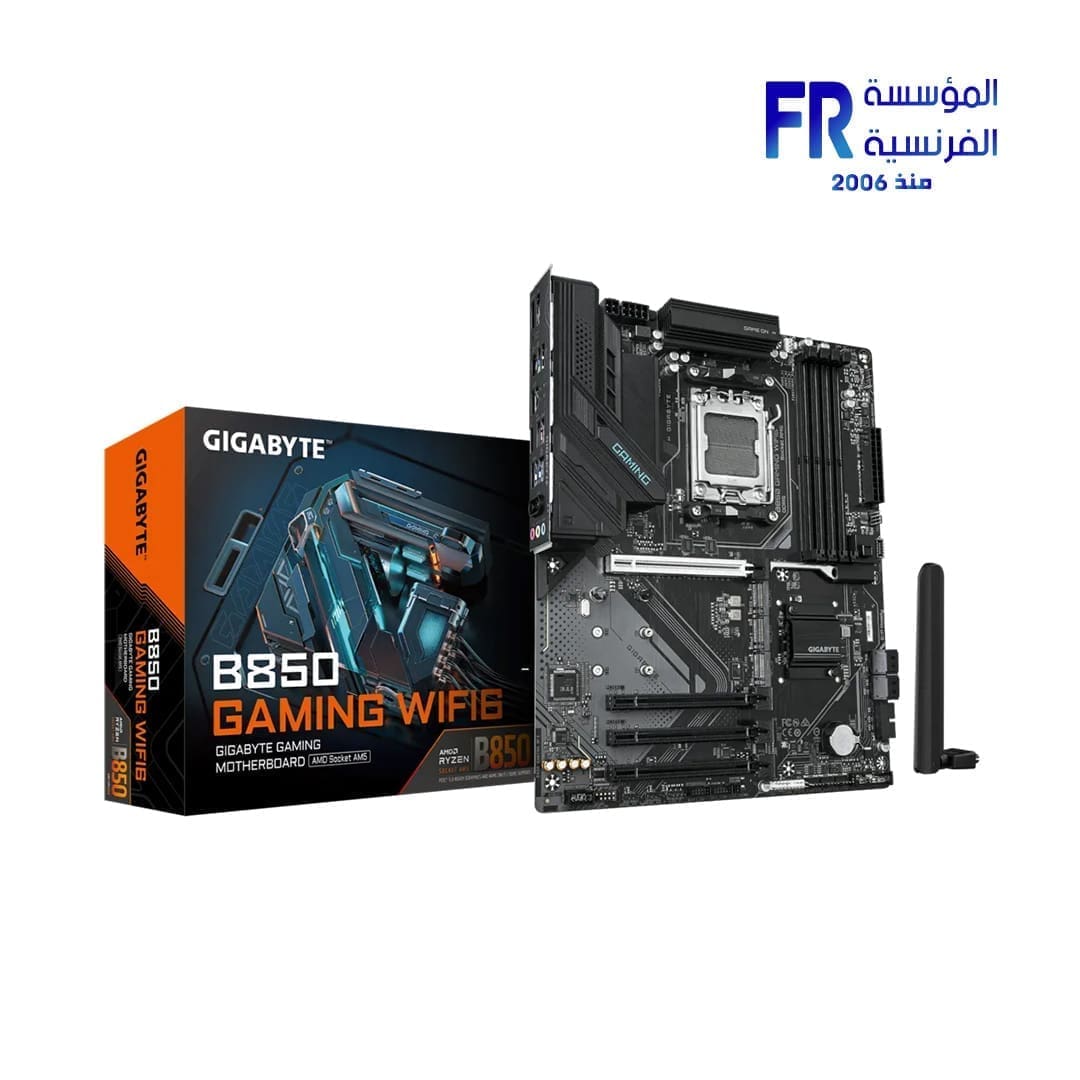

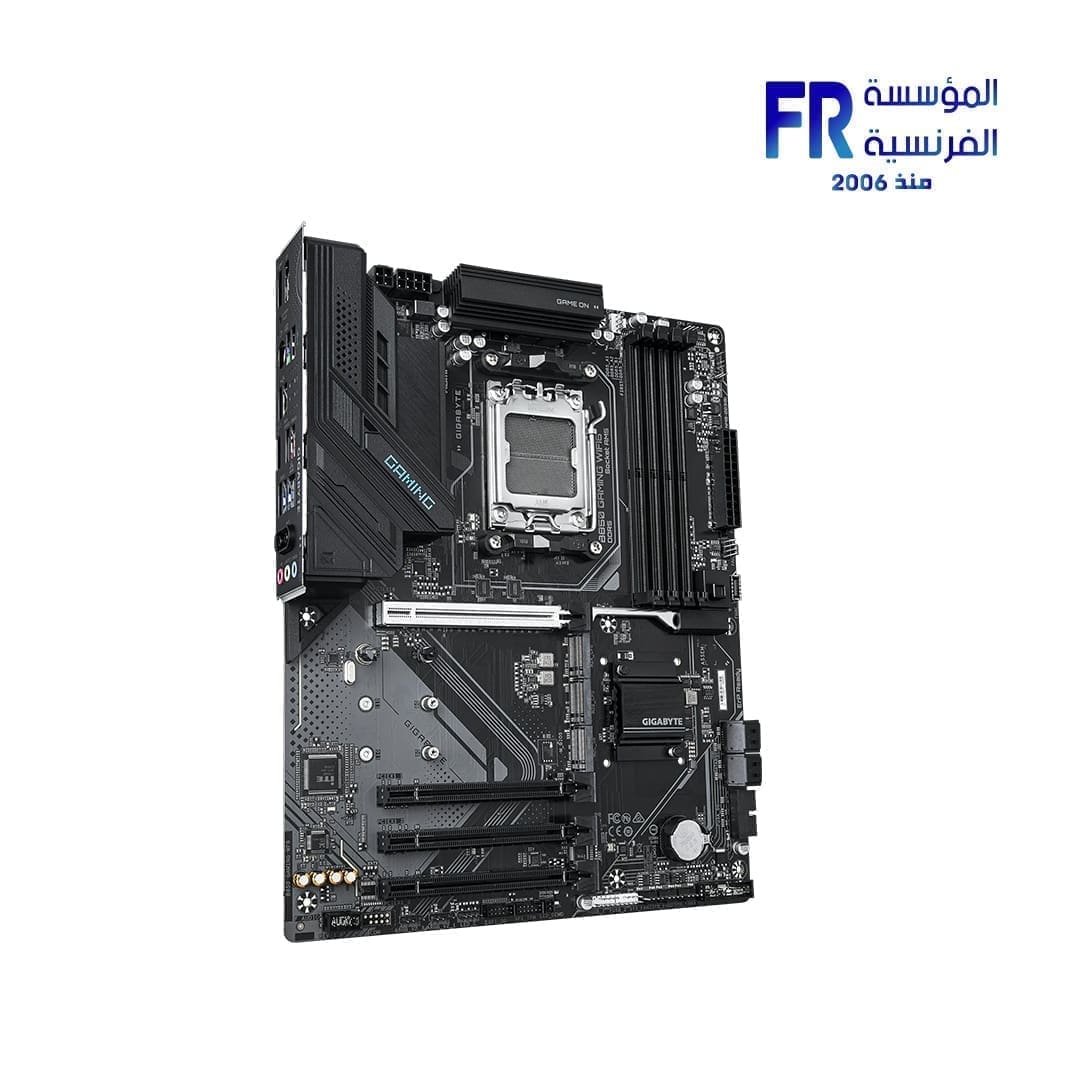

Gigabyte B850 Gaming WIFI 6 AM5 Motherboard

Gigabyte B850 Gaming WIFI 6 AM5 اللوحه الام

Gigabyte B850 Gaming WIFI 6 AM5 Motherboard Specification :

CPU Support

• AMD Socket AM5
• Supports:
  • AMD Ryzen™ 9000 Series
  • AMD Ryzen™ 8000 Series
  • AMD Ryzen™ 7000 Series
• (Refer to GIGABYTE’s website for updates)

Chipset

• AMD B850

Memory

• Supports DDR5 memory:
  • Up to 8200 MT/s (O.C.)
  • Various speeds down to 4400 MT/s
• 4 x DDR5 DIMM sockets
• Max system memory: 256 GB (64 GB per DIMM)
• Dual-channel memory architecture
• Supports:
  • Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
  • AMD EXPO™ & XMP memory modules
• (Memory support depends on CPU and configuration)

Onboard Graphics

• Integrated AMD Radeon™ Graphics (CPU-dependent)
• Display Outputs:
  • 1 x DisplayPort (Max 3840×2160 @144Hz, DP 1.4, HDR)
  • 1 x HDMI (Max 4096×2160 @60Hz, HDMI 2.1, HDCP 2.3, HDR)

Audio

• Realtek® Audio CODEC
• Supports:
  • High Definition Audio
  • 2/4/5.1/7.1-channel audio
  • Configurable via software

LAN & Wireless

• Realtek® GbE LAN (1 Gbps)
• Realtek® Wi-Fi 6 (RTL8851BE)
  • Supports Wi-Fi a/b/g/n/ac/ax (2.4/5 GHz)
  • Bluetooth 5.3

Expansion Slots

• 1 x PCIe x16 slot (from CPU):
  • Ryzen 9000/7000: PCIe 5.0 x16
  • Ryzen 8000 (Phoenix 1): PCIe 4.0 x8
  • Ryzen 8000 (Phoenix 2): PCIe 4.0 x4
  • Supports only GPU or NVMe SSD
• Chipset Slots:
  • 3 x PCIe x16 slots (PCIe 3.0 x1 each)

Storage

• M.2 Slots:
  • M2A_CPU (CPU) – PCIe 5.0 x4/x2 (9000/7000 CPUs), PCIe 4.0 x4/x2 (8000 CPUs)
  • M2B_CPU (CPU) – PCIe 4.0 x4/x2 (9000/7000 CPUs), PCIe 4.0 x2 (Phoenix 2)
  • M2C_SB (Chipset) – PCIe 4.0 x2
• SATA:
  • 4 x SATA 6Gb/s
• RAID Support:
  • NVMe: RAID 0, 1, 5 (9000 only), 10
  • SATA: RAID 0, 1, 10

USB Ports

• CPU-controlled:
  • 1 x USB Type-C® (USB 3.2 Gen 1)
  • 2 x USB 3.2 Gen 2 Type-A (red)
• Chipset-controlled:
  • 1 x USB Type-C® (USB 3.2 Gen 1, internal)
  • 4 x USB 3.2 Gen 1 (2 back, 2 internal)
  • 4 x USB 2.0/1.1 (back panel)
  • 4 x USB 2.0/1.1 (internal headers)

Internal I/O Connectors

• Power Connectors:
  • 1 x 24-pin ATX
  • 1 x 8-pin ATX 12V
  • 1 x 4-pin ATX 12V
• Cooling & RGB:
  • 1 x CPU fan header
  • 1 x CPU fan/water pump header
  • 3 x system fan headers
  • 1 x system fan/water pump header
  • 3 x Addressable RGB Gen2 headers
  • 1 x RGB LED strip header
• Storage & USB:
  • 3 x M.2 sockets
  • 4 x SATA 6Gb/s connectors
  • 1 x USB Type-C® header (USB 3.2 Gen 1)
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
• Other:
  • 1 x Trusted Platform Module header
  • 1 x Reset jumper
  • 1 x Clear CMOS jumper

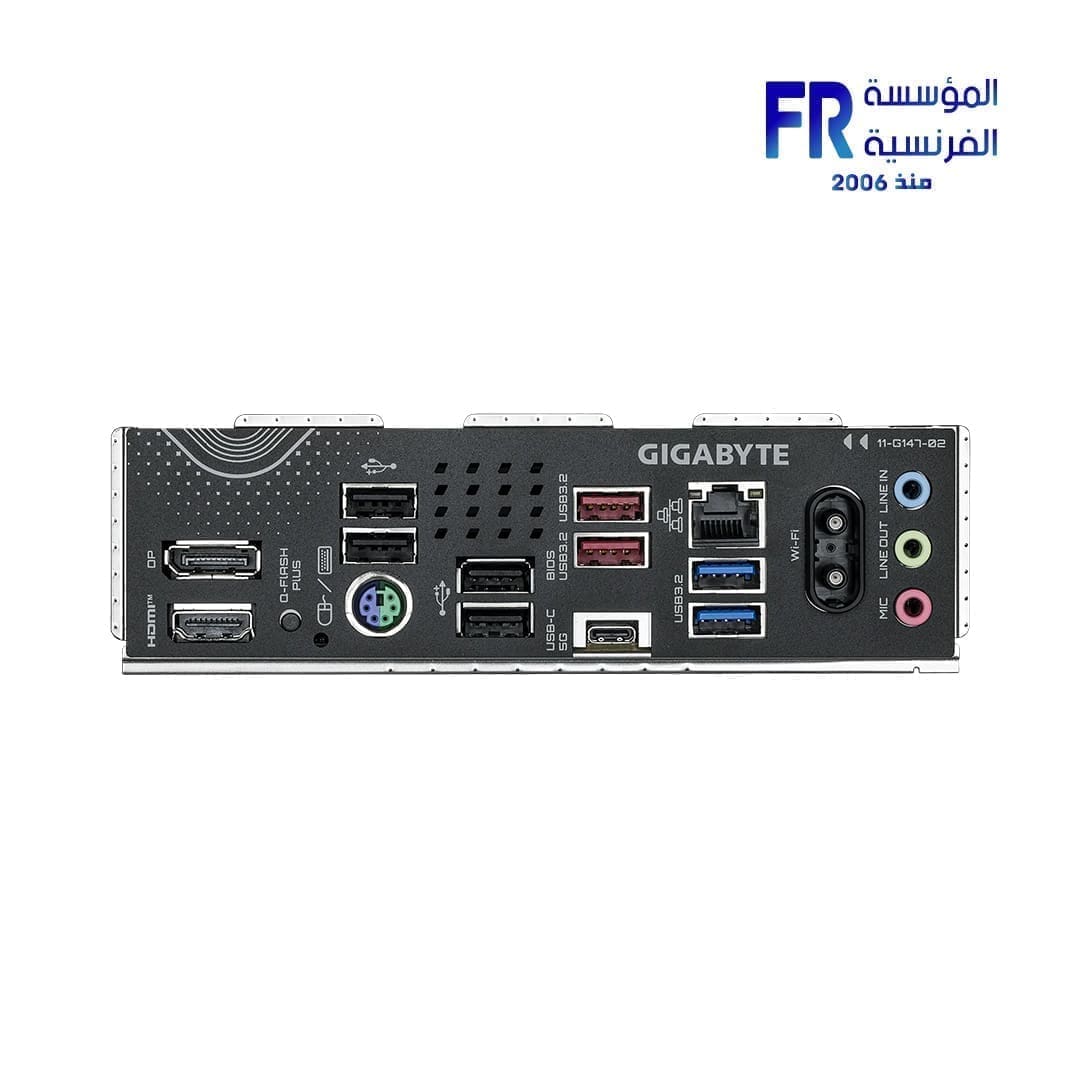

Back Panel I/O

• 1 x DisplayPort
• 1 x HDMI
• 1 x Q-Flash Plus button
• 4 x USB 2.0/1.1
• 1 x PS/2 keyboard/mouse port
• 2 x USB 3.2 Gen 2 Type-A (red)
• 1 x USB Type-C® (USB 3.2 Gen 1)
• 1 x RJ-45 LAN port
• 2 x USB 3.2 Gen 1
• 2 x Wi-Fi antenna connectors
• 3 x Audio jacks

Other Features

• I/O Controller: iTE® Chip
• Hardware Monitoring:
  • Voltage, temperature, fan speed, water cooling flow rate
  • Fan fail warning & speed control
• BIOS:
  • 256 Mbit flash
  • AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• GIGABYTE Control Center (GCC)
• Q-Flash & Q-Flash Plus
• Smart Backup

Bundled Software

• Norton® Internet Security (OEM)
• LAN bandwidth management software

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• ATX (30.5cm x 24.4cm)
