What is the key technology in the AMD Ryzen 5 7500X3D Processor?

The 7500X3D features AMD's 3D V-Cache technology, which stacks an extra 64MB of L3 cache vertically onto the CPU die, resulting in a massive 96MB of total L3 cache specifically designed to boost frame rates and reduce latency in enthusiast desktop gaming.

Which CPU socket and memory standards does the Ryzen 5 7500X3D use?

The processor uses the AM5 socket, requiring an AMD 600 or 800 series chipset motherboard. It exclusively supports DDR5 system memory and utilizes AMD EXPO technology for easy memory overclocking.

Is a cooler included with the boxed Ryzen 5 7500X3D?

No, the processor does not include a thermal solution (PIB). Due to the nature of 3D V-Cache technology, a high-performance liquid cooler is recommended for optimal thermal management and performance.

تصفية

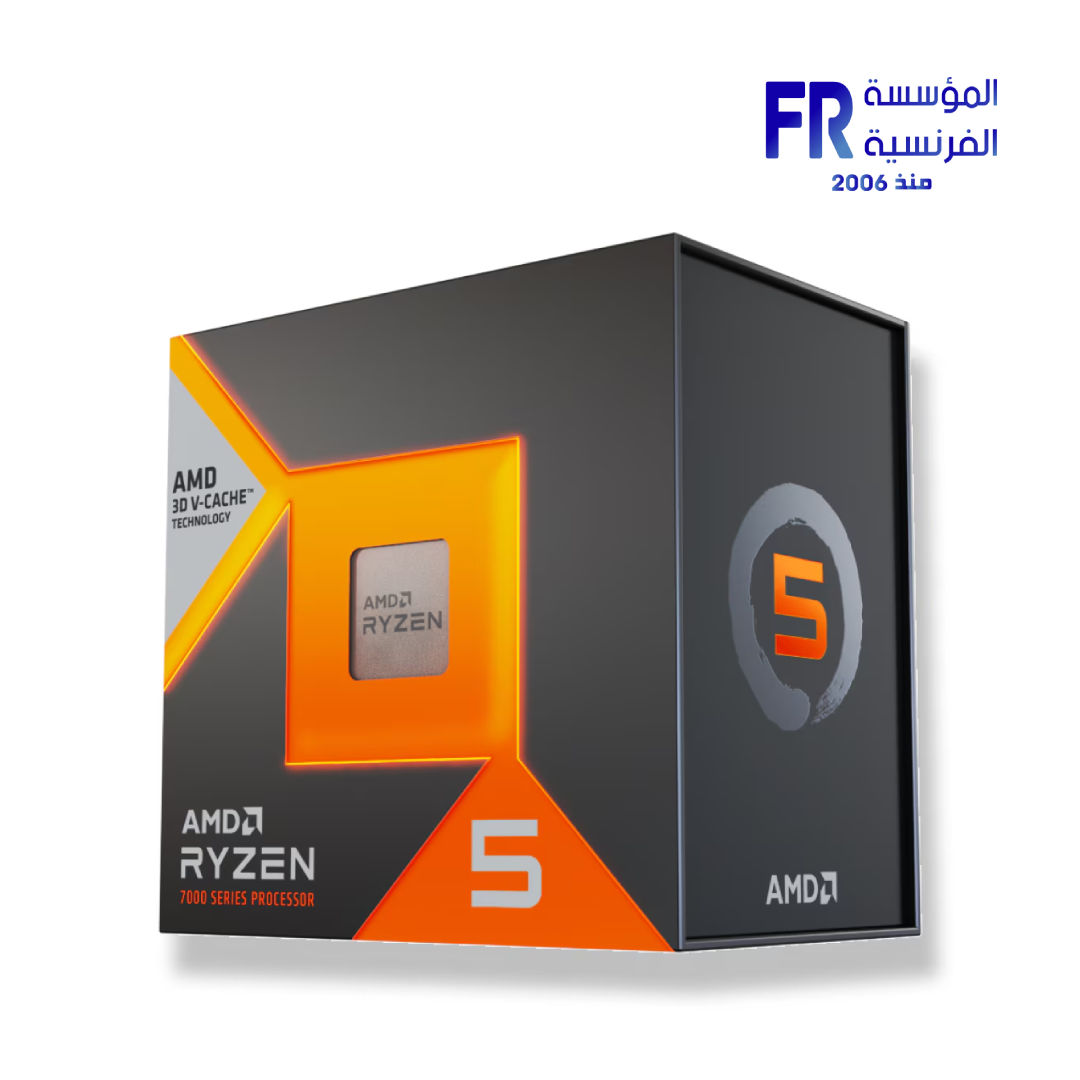

AMD Ryzen 5 7500X3D Processor

14300 جنية

Part Number (Product ID): 100-100001904W0F
CPU Cores / Threads: 6 Cores / 12 Threads (Zen 4 Architecture)
Total L3 Cache: 96 MB (with 3D V-Cache Technology)
Max Boost Clock: Up to 4.5 GHz
PCI Express Version: PCIe 5.0 (28 Total Lanes)
Platform / TDP: AM5 Socket / 65W Default TDP
Warranty: 3 سنوات

غير متوفر بالمخزون

Price Match Guarantee

رمز المنتج: 730143318167 التصنيفات: AMD Processor, بروسيسور الوسوم: 100-100001904W0F, 3D V-Cache, 5, 730143318167, 7500X3D, AMD, AMD Ryzen series, CPU, Desktop processor, Gaming CPU, البروسيسور, RYZEN, Ryzen 7000 Series العلامة التجارية: AMD

AMD Ryzen 5 7500X3D Desktop Processor

The AMD Ryzen 5 7500X3D is a powerful 6-core, 12-thread desktop processor featuring revolutionary 3D V-Cache technology to dominate high-refresh-rate gaming on the AM5 platform.

6 Cores / 12 Threads

Zen 4 Architecture

96 MB L3

Total Cache (3D V-Cache)

Up to 4.5 GHz

Max Boost Clock

65W

Default TDP

Zen 4 Architecture and 3D V-Cache Technology in the Ryzen 5 7500X3D

Unmatched Gaming Performance via 3D V-Cache

To begin with, the Ryzen 5 7500X3D is built on the advanced Zen 4 architecture using TSMC 5nm process technology. The processor’s core innovation is AMD’s revolutionary 3D V-Cache technology, which dramatically increases the L3 cache size to a massive 96MB. Consequently, this huge cache directly benefits latency-sensitive tasks like gaming, delivering significant frame rate improvements and making it one of the most effective gaming CPUs available at its price point.

Furthermore, with 6 cores and 12 threads operating at a 4.0 GHz Base Clock and up to 4.5 GHz Max. Boost Clock, it offers a superb balance between single-threaded speed for gaming and multi-threaded performance for modern applications.

AM5 Platform Ready with PCIe 5.0 and DDR5

Furthermore, the 7500X3D leverages the latest AM5 platform, exclusively supporting DDR5 memory and offering full PCIe 5.0 connectivity. This provides access to the fastest SSDs and graphics cards, maximizing system throughput. In addition, the processor supports AMD EXPO™ for simplified DDR5 memory overclocking, Precision Boost Overdrive (PBO), and Curve Optimizer for advanced tuning. Consequently, the low 65W Default TDP makes it an energy-efficient choice for high-end gaming rigs.

Technical Specifications for AMD Ryzen 5 7500X3D Processor

Specification	Detail
Model Name / Product ID	AMD Ryzen™ 5 7500X3D / 100-100001904W0F
UPC/EAN	730143318167
CPU Cores / Threads	6 Cores / 12 Threads (Zen 4 Architecture)
Max Boost / Base Clock	Up to 4.5 GHz / 4.0 GHz
Total L3 Cache	96 MB (with 3D V-Cache Technology)
Default TDP / Tjmax	65W / 89°C
CPU Socket / Chipsets	AM5 / A620, B650, X670 (and E variants)
Memory Type / Speed	DDR5 (Max 128GB, up to 5200 MT/s native)
PCI Express Version	PCIe 5.0 (28 Total Lanes)
Integrated Graphics	AMD Radeon™ Graphics (2 Cores, 2200 MHz)

⚠️ Important Caution:

The AMD Ryzen 5 7500X3D is sold as a Boxed Processor without a bundled thermal solution (cooler not included). Due to the sensitivity of 3D V-Cache to high temperatures and to ensure maximum performance, AMD recommends pairing this CPU with an effective third-party air or liquid cooler. Do not operate without an adequate cooling solution installed.

Shop More From AMD Ryzen

Explore All Processors

Important Notice: All information, specifications, and images provided herein are for reference and illustrative purposes only. Visual representations may not be perfectly accurate. Product specifications, features, and appearance can vary by model and country, and are subject to change without notice by the manufacturer. While we strive to present the most precise and comprehensive information, errors in typography or photography may occur.

For the most accurate and up-to-date details, we strongly recommend referring to the official manufacturer’s website. All trademarks and copyrights are the property of their respective owners.

If you have suggestions, or if you notice an error or incorrect information in this draft, please help us improve by reporting it directly via our feedback form: Alfrensia.com – Website Feedback & Report Form.

بروسيسور

الموديل	Ryzen 5 7500X3D
CHIPSET MANUFACTURERS	AMD
Code Name	Raphael AM5
CPU SERIES	Ryzen 5
CPU Generation	Ryzen 7000
CPU Socket	AM5
CORES	6 Cores
THREADS	12 Threads
OPERATING FREQUENCY	4.0GHz
MAX TURBO FREQUENCY	Up to 4.5 GHz
L2 CACHE	6 MB
L3 CACHE	96MB
Technology	DDR5
MEMORY CHANNEL	2
Max Memory Size	128 GB
INTEGRATED GRAPHICS	AMD Radeon™ Graphics
Part Number	100-100001904W0F
الضمان	3 سنوات
