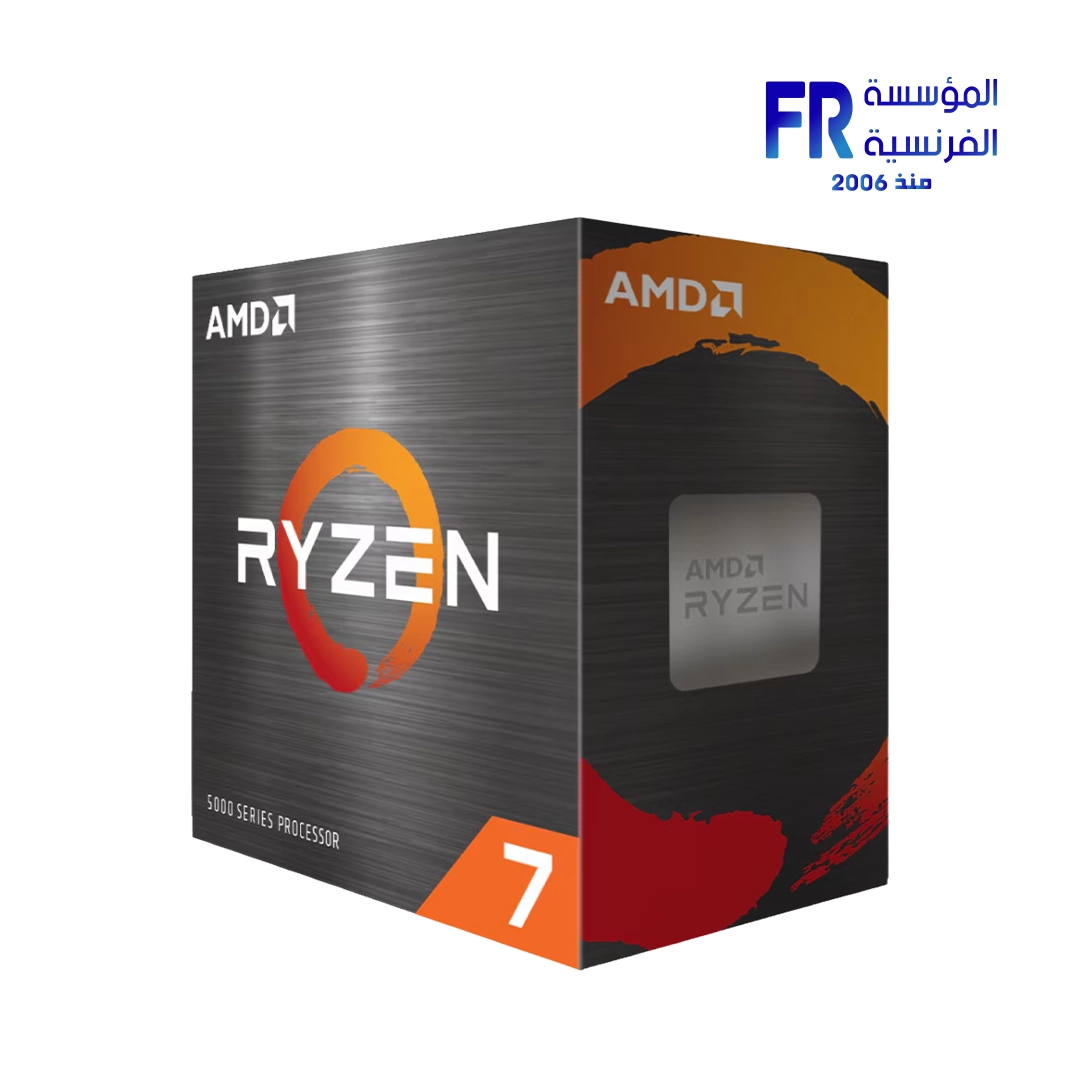

AMD Ryzen 7 5800XT Processor

AMD Ryzen 7 5800XT المعالج:

The AMD Ryzen 7 5800XT المعالج delivers proven, exceptional game performance for enthusiast desktops. This **AMD Ryzen 7 5800XT Processor** features 8 CPU Cores and 16 Threads, providing robust multitasking and powerful processing for demanding applications. Built on the TSMC 7nm FinFET process technology, it offers efficient power consumption. Furthermore, it is unlocked for overclocking, allowing enthusiasts to push performance even further.

AMD Ryzen 7 5800XT Processor: Elite Game Performance & Overclocking:

This AMD Ryzen 7 5800XT Processor operates with a Base Clock of 3.8 GHz. It can reach a Max. Boost Clock of up to 4.8 GHz. Its 8 CPU Cores and 16 Threads efficiently handle intensive workloads. Specifically, the processor includes a substantial 32 MB of L3 Cache and 4 MB of L2 Cache. This significantly contributes to its responsive performance in gaming, content creation, and productivity tasks.

AMD Ryzen 7 5800XT Processor: Advanced Architecture & Connectivity:

The AMD Ryzen 7 5800XT Processor is based on the Zen 3 Processor Architecture. This provides significant performance improvements over previous generations. It utilizes the AM4 CPU Socket, ensuring broad compatibility with a wide range of motherboards, including X570, B550, A520, X470, and B450 chipsets. It supports PCIe® 4.0 for high-bandwidth graphics cards and other expansion devices. For system memory, it supports DDR4 up to 3200 MT/s in a dual-channel configuration, providing ample bandwidth for system operations.

AMD Ryzen 7 5800XT Processor: Thermal Solution & Key Technologies:

This **AMD Ryzen 7 5800XT Processor** comes with an AMD Wraith Prism Thermal Solution (PIB), providing effective cooling and vibrant RGB lighting right out of the box. It has a Default TDP of 105W and a Max. Operating Temperature (Tjmax) of 90°C. Supported technologies include AMD StoreMI Technology, AMD SenseMI Technology, AMD Ryzen™ Master Utility for advanced control, and AMD Ryzen™ VR-Ready Premium. These enhance its capabilities for various workloads and virtual reality experiences.

Explore compatible AMD Processors or check AMD Products for other options. Find full details on the official AMD Ryzen 7 5800XT product page.

Specifications:

General Specifications:

• Name: AMD Ryzen™ 7 5800XT
• Family: Ryzen
• Series: Ryzen 5000 Series
• Form Factor: Boxed Processor, Desktops
• Market Segment: Enthusiast Desktop
• Regional Availability: Global
• Former Codename: Vermeer
• Processor Architecture: Zen 3

CPU Core & Performance:

• CPU Cores: 8
• Multithreading (SMT): Yes
• Threads: 16
• Max. Boost Clock: Up to 4.8 GHz
• Base Clock: 3.8 GHz
• L1 Cache: 512 KB
• L2 Cache: 4 MB
• L3 Cache: 32 MB
• Default TDP: 105W
• Processor Technology for CPU Cores: TSMC 7nm FinFET
• Processor Technology for I/O Die: 12nm (Globalfoundries)
• CPU Compute Die (CCD) Size: 74mm²
• I/O Die (IOD) Size: 125mm²
• Package Die Count: 2
• Unlocked for Overclocking: Yes
• CPU Socket: AM4
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal & OS Support:

• Thermal Solution (PIB): AMD Wraith Prism
• Max. Operating Temperature (Tjmax): 90°C
• Launch Date: 07/31/2024
• OS Support: Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit

الاتصال:

• Native USB 3.2 Gen 2 (10Gbps) Ports: 4
• Native USB 3.2 Gen 1 (5Gbps) Ports: 0
• Native USB 2.0 (480Mbps) Ports: 0
• Native SATA Ports: 2
• PCI Express® Version: PCIe® 4.0
• Native PCIe® Lanes (Total/Usable): 24 / 20
• Additional Usable PCIe Lanes from Motherboard: X570 (16x Gen 4), X470 (2x Gen 3, 8x Gen 2)
• NVMe Support: Boot, RAID0, RAID1, RAID10

Memory:

• System Memory Type: DDR4
• Memory Channels: 2
• Max. Memory: 128 GB
• System Memory Subtype: UDIMM
• Max Memory Speed: 2x1R DDR4-3200, 2x2R DDR4-3200, 4x1R DDR4-2933, 4x2R DDR4-2667
• ECC Support: Yes (Requires mobo support)

Graphics & Key Features:

• Graphics Model: Discrete Graphics Card Required
• Product ID Boxed: 100-100001582BOX
• Product ID Tray: 100-000001582
• Product ID MPK: 100-100001582MPK, 100-100001582CPK
• Supported Technologies: AMD Zen 3 Core Architecture, AMD StoreMI Technology, AMD Ryzen™ Master Utility, AMD Ryzen™ VR-Ready Premium
• UPC: 730143316576
