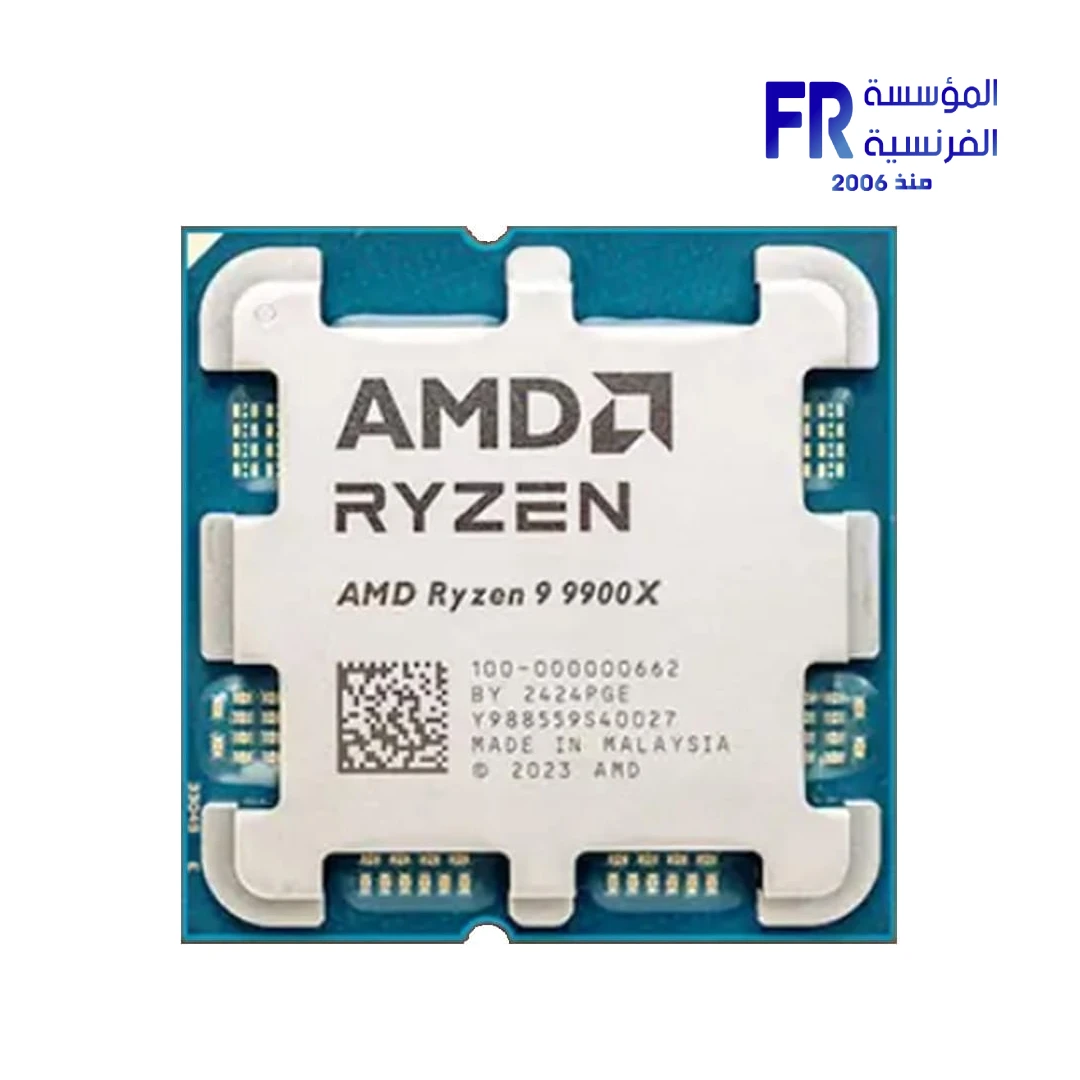

AMD Ryzen 9 9900X Tray Processor

✅ Authorized AMD Partner in Egypt | Official 3-Year Warranty | Tray Processor (No Cooler Included) | Expert PC Building Consultation Available

⚡ Engineering Highlights at a Glance:

• 12 Cores / 24 Threads: Zen 5 cores with SMT for gaming, streaming, and content creation workloads.
• 64MB L3 Cache: Large cache pool for reduced memory stalls in games and productivity applications.
• Up to 5.6 GHz Boost: Base clock of 4.4 GHz with a maximum boost of 5.6 GHz for responsive single-core performance.
• AM5 Socket and PCIe 5.0: Works with A620, B650, B650E, B840, B850, X670, X670E, X870, and X870E chipsets, with PCIe 5.0 support.
• DDR5 Support: Dual-channel DDR5 up to 5600 MT/s with 2 modules, up to 256GB total capacity.
• 120W TDP: Lower default power than the 16-core Ryzen 9 models, which eases cooler and PSU requirements.
• Tray Processor: Ships without a cooler; AMD recommends a liquid cooler for optimal performance.

Cooling Is Mandatory

This is a Tray processor with no included cooler, and AMD recommends a liquid cooler for optimal performance . The 120W TDP is lower than the 16-core models, but sustained loads still need strong cooling. Pair the 9900X with a 240mm AIO or a high-end air cooler rated for 120W+. Without adequate cooling, the CPU will hit its 95°C Tjmax and throttle.

Motherboard and Memory

The AM5 socket works with A620, B650, B650E, B840, B850, X670, X670E, X870, and X870E chipsets. Choose a board whose VRM matches the 120W TDP and whose BIOS supports the Ryzen 9000 Series. Install DDR5 in matched pairs for dual-channel operation, and enable AMD EXPO in the BIOS to run the rated speed. Official memory support is DDR5-5600 with 2 modules; 4 x 1R and 4 x 2R configurations run at DDR5-3600, so use two modules for the best memory performance.

Overclocking and Platform

The processor is unlocked, so you can raise the multiplier, use Precision Boost Overdrive, and apply Curve Optimizer offsets in Ryzen Master. Because the 9900X runs at 5.6 GHz boost on light loads, keep overclocking conservative and monitor temperatures under load. The board’s chipset choice affects PCIe 5.0 lane count and USB connectivity; X870E and X670E boards typically offer more of both. Check your chosen chipset’s spec sheet before purchase if you need specific PCIe 5.0 or USB 3.2 Gen 2 ports.

Pair the 9900X with a B650E, X670E, or X870E motherboard for full PCIe 5.0 support and a VRM rated for 120W. B650 and B850 boards work if their VRM is adequate; check the board’s CPU support list before purchase.

Because this is a Tray processor, budget for a separate cooler . AMD recommends a liquid cooler for optimal performance; a 240mm AIO or a high-end air cooler rated for 120W+ is a practical choice. Check your case’s radiator or cooler height clearance before ordering.

Install DDR5 in two matched modules to run at the official 5600 MT/s speed; four modules drop to 3600 MT/s. Enable AMD EXPO in the BIOS and verify stability with a memory test. For gaming and streaming, 32GB is a practical starting point; for heavier content work, 64GB or 128GB provides more headroom.

Update the motherboard BIOS to the latest version before installing the CPU, because Ryzen 9000 Series support depends on the BIOS revision. Use the integrated Radeon graphics for troubleshooting before adding a discrete GPU, and confirm your PSU wattage with a power supply calculator that includes the 9900X under sustained load plus your GPU.
