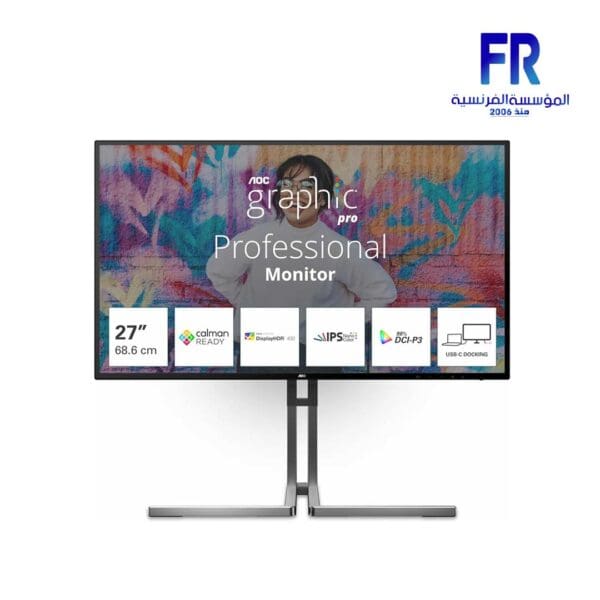

Aoc U27U3CV/74 27 Inch 60Hz 4Ms UHD Nano IPS Gaming Monitor

• Display information

• Screen size (inch)
  27
• Screen size (cm)
  68.6
• Flat / Curved
  Flat
• Display hardness
  3H
• Panel treatment
  Antiglare (AG)
• Pixel Pitch (mm)
  0.1554
• Pixels per Inch
  163
• Panel resolution
  3840×2160
• Resolution name
  UHD
• Aspect ratio
  16:9
• Panel type
  Nano IPS
• Backlight type
  WLED
• Max Refresh rate
  60 Hz
• Response time GtG
  4 ms
• Static contrast ratio
  1300:1
• Dynamic contrast ratio
  50M:1
• Viewing angle (CR10)
  178/178
• Display colours
  1.073B (8bits+FRC)
• Brightness in nits
  350 cd/m2
• OD Response (typical)
  4 ms GtG
• Panel Haze Value
  25%
• Picture enhancement
  ✓
• Support 1:1 function
  ✓
• Local Dimming Zones
  Global Dimming
• Gamma Adjustment
  Yes (supports Gamma 1.8/2.0/2.2/2.4/2.6)

• Video Features

• Sync technology (VRR)
  Adaptive Sync
• Digital Signal Frequency Vertical
  40-60Hz
• Digital Signal Frequency Horizontal
  30K-140KHz
• HDR (High Dynamic Range)
  VESA Certified DisplayHDR™ 400
• Blue Light Technology
  Low Blue Light
• Multiview (PbP, PiP)
  PiP+PbP
• Colour space (sRGB) CIE 1931 %
  135.2
• Colour space (sRGB) CIE 1976 %
  130.3
• Colour space (DCI-P3) CIE 1931 %
  99.7
• Colour space (DCI-P3) CIE 1976 %
  103.8
• Colour space (Adobe RGB) CIE 1931 %
  100.2
• Colour space (Adobe RGB) CIE 1976 %
  111.6
• Colour space (NTSC) CIE 1931 %
  95.8
• Colour space (NTSC) CIE 1976 %
  113.6
• Colour space (BT 709) CIE 1931 %
  135.2
• Colour space (BT 709) CIE 1976 %
  130.3
• Colour space (BT 2020) CIE 1931 %
  71.5
• Colour space (BT 2020) CIE 1976 %
  75.6
• Flicker-Free
  Flicker Free
• KVM
  Yes
• Delta E<2 (sRGB)
  Delta E<2 (sRGB)
• Color space mode
  sRGB, Display P3, DCI-P3, Adobe RGB, Rec. 2020, Rec 709
• 3D LUT 17x17x17 and 14-bit LUT
  3D LUT 17x17x17 and 14-bit LUT
• Calman Ready
  Yes
• Color Accuracy
  E<2

• Cabinet information

• Bezel type (front)
  4-sided frameless
• Bezel Colour (front)
  Black
• Bezel finishing (front)
  Painted
• Cabinet colour (backside)
  Black
• Cabinet finishing (backside)
  Texture
• Removable stand
  ✓
• Speakers
  ✓
• Speaker power
  3 W x 2
• Kensington Lock
  ✓
• Vesa wallmount
  100×100
• I/O define: Connectors on rear cabinet
  Vertical insert
• Quick release function
  ✓
• Sound enhancement
  No
• Stand screw spec
  Thumb screw
• VESA Mount screw Spec
  M4 x 10
• MonitorWebcam
  No
• Ergonomic information
  Tilt
  -­6.5° ~ 23°
• Height adjust (mm)
  150mm
• Swivel
  -30° ~30°
• Pivot
  -­90° ~ 90°
• Auto Pivot (G sensor)
  G sensor + Imenu to change windows setting

• Sustainability

• TCO Certified
  Yes
• EPEAT
  Yes (any level)
• Post-consumer recycled plastic
  85%
• EPA (latest version)
  ✓
• Halogen free
  ✓
• Carton material
  Paper
• Carton material print
  Water Print (Brown Carton)

• Power Consumption

• Power supply
  Internal
• Power source
  100 – 240V 50/60Hz
• Power consumption on (maximum) in watts
  206
• Power consumption on (typical) in watts
  44
• Power consumption standby in watts
  0.3
• Power consumption off in watts
  0.3
• Power LED indicator (Operation)
  White
• Power LED indicator (Standby)
  Orange
• Power Switch
  ✓
• Smart Power
  ✓

• Connectivity information

• HDMI
  HDMI 2.0 x 2
• Digital HDCP (HDMI version)
  HDCP 2.2
• DisplayPort
  DisplayPort 1.4 x 1
• USB-C connectivity
  1 x USB-C (DP1.4 Alt Mode, USB3.2 Gen 2 – upstream, 10Gbps, w/ HDR, Max. PD 96W Smart Power, HDR, Adaptive Sync), 1 x USB-C (USB3.2 Gen 2 – upstream, 10Gbps), 1 x USB-C (USB3.2 Gen 2 – downstream, 10Gbps, power supply up to 15W)
• USB Hub
  ✓
• USB Hub speed
  USB 3.2 (Gen 2)
• USB downstream ports
  USB-A x4, USB-C x1 (Power supply up to 15W)
• Audio Output
  1x Audio out
• DP HDCP version
  HDCP 2.2
• mini USB (for external keypad)
  No
• Thunderbolt in
  0x
• Thunderbolt out
  0x
• PD for USB C/TBT
  USB C1 : USB PD version 3.0, typical 96W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.8A), USB C3 : power supply up to 15W
• USB Hub up stream
  1 x USB3.2 type C Gen 2, 10 Gbit/s
• RJ45
  1x 10M/100M/1G
• USB Hub Down Stream
  4 x USB3.2 type A Gen1, 5Gbps (BC1.2×1 yellow), 1 USB 3.2 type C Gen1, 5Gbps

• Product Dimensions

• Product dimensions incl. base (WxHxD) mm
  612.7 x (401.3~543.6) × 238.4
• Product dimensions excl. base (WxHxD) mm
  612.7× 353.12 x 51.25
• Packaging dimensions (WxHxD) mm
  825 x 480 x 162
• Gross weight incl. package (in kg)
  10.02
• Net weight excl. package (in kg)
  6.54
• Product without stand (kg)
  4.85

• What’s in the box

• HDMI cable
  1.8
• Displayport cable
  1.8
• USB-C to C/A cable
  1.2
• Power Cable
  ✓
• Color and brightness uniformity report in box
  ✓
• Luminance uniformity
  93~105%

• Other information

• EAN
  4038986182072
• Warranty period
  3 years
• MTBF
  30.000 hours (with backlight)
• MTBF (excluding panel)
  70.000 hours
• Operation System
  Windows 8.1/10/11, MacOS
• OSD type
  Normal
• Plug & Play Compatibility
  Yes, DDC/CI

• Maximum Resolution by connector

• Default resolution by input
  3840 x 2160@60Hz
• Max resolution by input
  3840 x 2160@60Hz
• Max resolution for USB C/TBT (with USB information)
  10 bit panel USB-C@USB3.2 + source HBR2: UHD 30Hz (444 8/10bit) – USB-C@USB3.2 + source HBR3: UHD 60Hz (444 8 bit/422 10bit) – USB-C@USB2.0 + source HBR2: UHD 60Hz (444 8/10bit) – USB-C@USB2.0 + source HBR3: UHD 60Hz (444 8/10bit)
