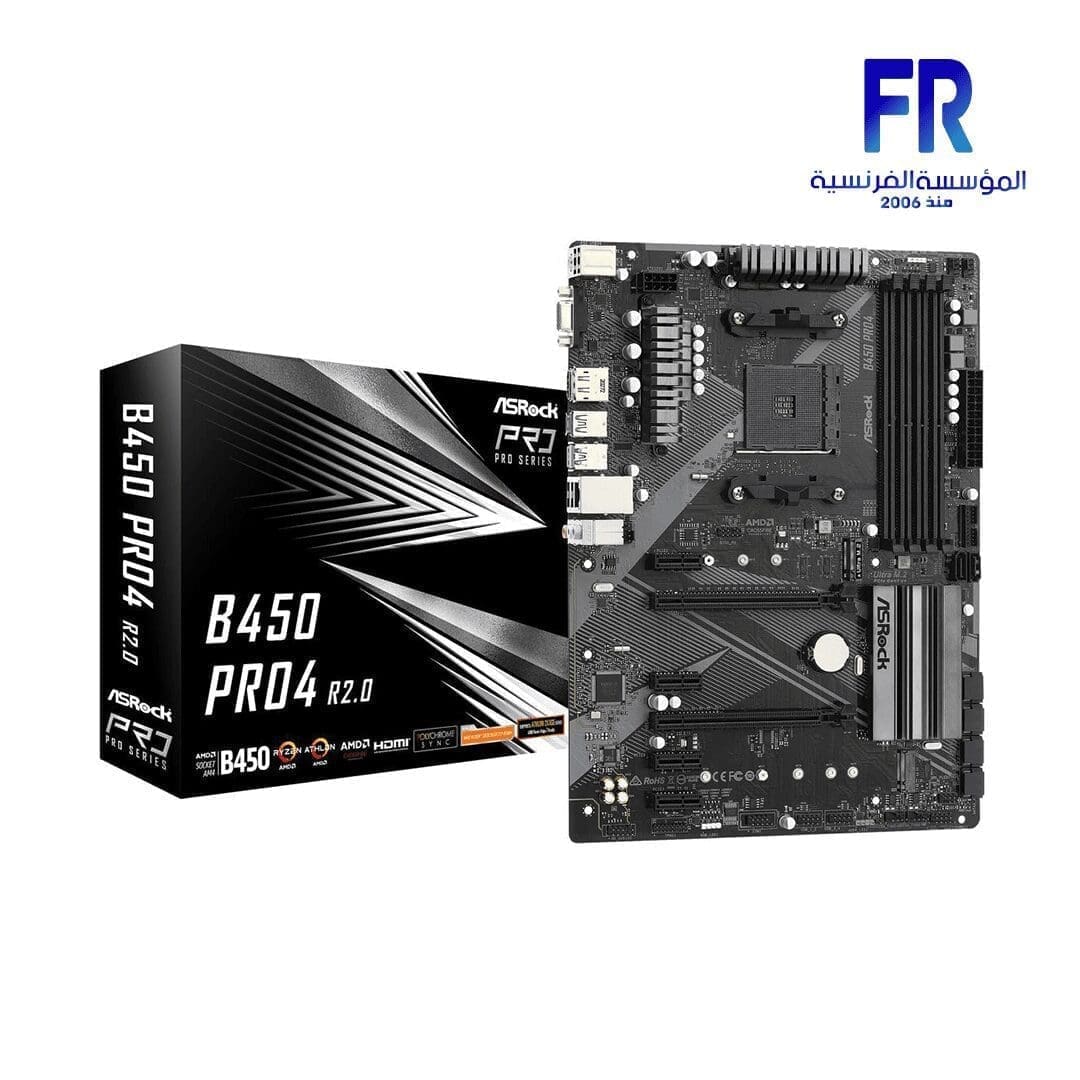

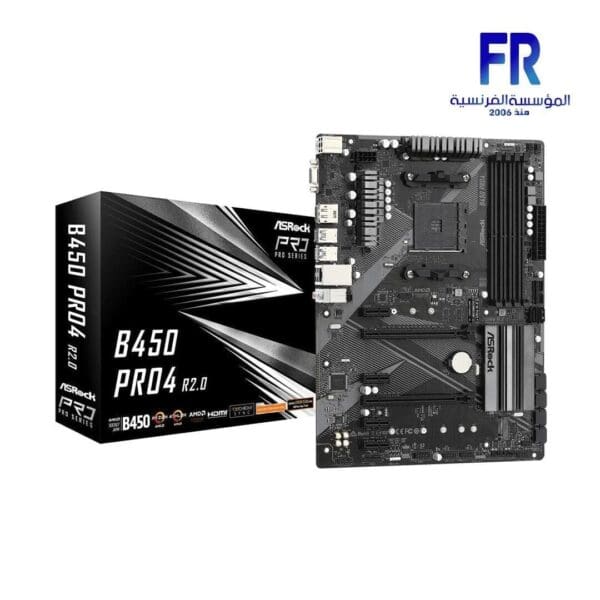

Asrock B450 Pro 4 Motherboard
3600 جنية
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- Supports DDR4 3200+ (OC)
- 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
- AMD Quad CrossFireX™
- Graphics Output: HDMI, Display Port, D-Sub
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.1 Gen2 (Rear Type A+C)
- 6 USB 3.1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
Out Of Stock.
-
Unique FeatureASRock USB 3.1 Gen2
– ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– Premium Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB
ASRock Ultra M.2 (PCIe Gen3 x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop -
CPU– Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
– Digi Power design
– 9 Power Phase design -
Chipset– AMD Promontory B450
-
Memory– Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
– Max. capacity of system memory: 128GB**
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots*For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support.Ryzen Series CPUs (Vermeer):
Ryzen Series CPUs (Matisse):
Ryzen Series APUs (Cezanne):
Ryzen Series APUs (Renoir):
Ryzen Series CPUs (Pinnacle Ridge):
Ryzen Series CPUs (Picasso):
Ryzen Series CPUs (Summit Ridge):
Ryzen Series CPUs (Raven Ridge):
SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
-
BIOS– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– DRAM Voltage multi-adjustment -
Graphics– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Three graphics output options: D-Sub, HDMI and DisplayPort 1.2
– Supports Triple Monitor
– Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
– Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP 1.4 with HDMI and DisplayPort 1.2 Ports
– Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
-
Audio– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– ELNA Audio Caps -
LAN– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE -
SlotsAMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
– 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
– 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)*
AMD Athlon series CPUs
– 2 x PCI Express 3.0 x16 Slots (PCIE2: x4 mode; PCIE4: x2 mode)*- 4 x PCI Express 2.0 x1 Slots
– Supports AMD Quad CrossFireX™ and CrossFireX™***Supports NVMe SSD as boot disks
If M2_1 is occupied, PCIE4 will be disabled.**This feature is only supported with Ryzen Series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge, Pinnacle Ridge, Picasso and Raven Ridge). -
Storage– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
– 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**
– 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)***M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.
**If M2_1 is occupied, PCIE4 will be disabled.
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit -
Connector– 1 x COM Port Header
– 1 x TPM Header
– 1 x Power LED and Speaker Header
– 1 x RGB LED Header*
– 1 x Addressable LED Header**
– 1 x AMD Fan LED Header***
– 1 x CPU Fan Connector (4-pin)****
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
– 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)*Supports in total up to 12V/3A, 36W LED Strip
**Supports in total up to 5V/3A, 15W LED Strip
***The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M.
****The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
*****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
******The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. -
Rear Panel I/O– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.2
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
– 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
– 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone -
Software and UEFISoftware
– ASRock A-Tuning
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock Full HD UEFI
– ASRock Instant Flash
– ASRock Easy RAID Installer*These utilities can be downloaded from ASRock Live Update & APP Shop. -
Support CD– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 2 x Screws for M.2 Sockets -
Hardware Monitor– Temperature Sensing: CPU, MB
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, Vcore -
Form Factor– ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
– Solid Capacitor design -
OS
– Microsoft® Windows® 10 64-bit / 11 64-bit*
*Summit Ridge do not officially support Windows® 11. -
Certifications– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
