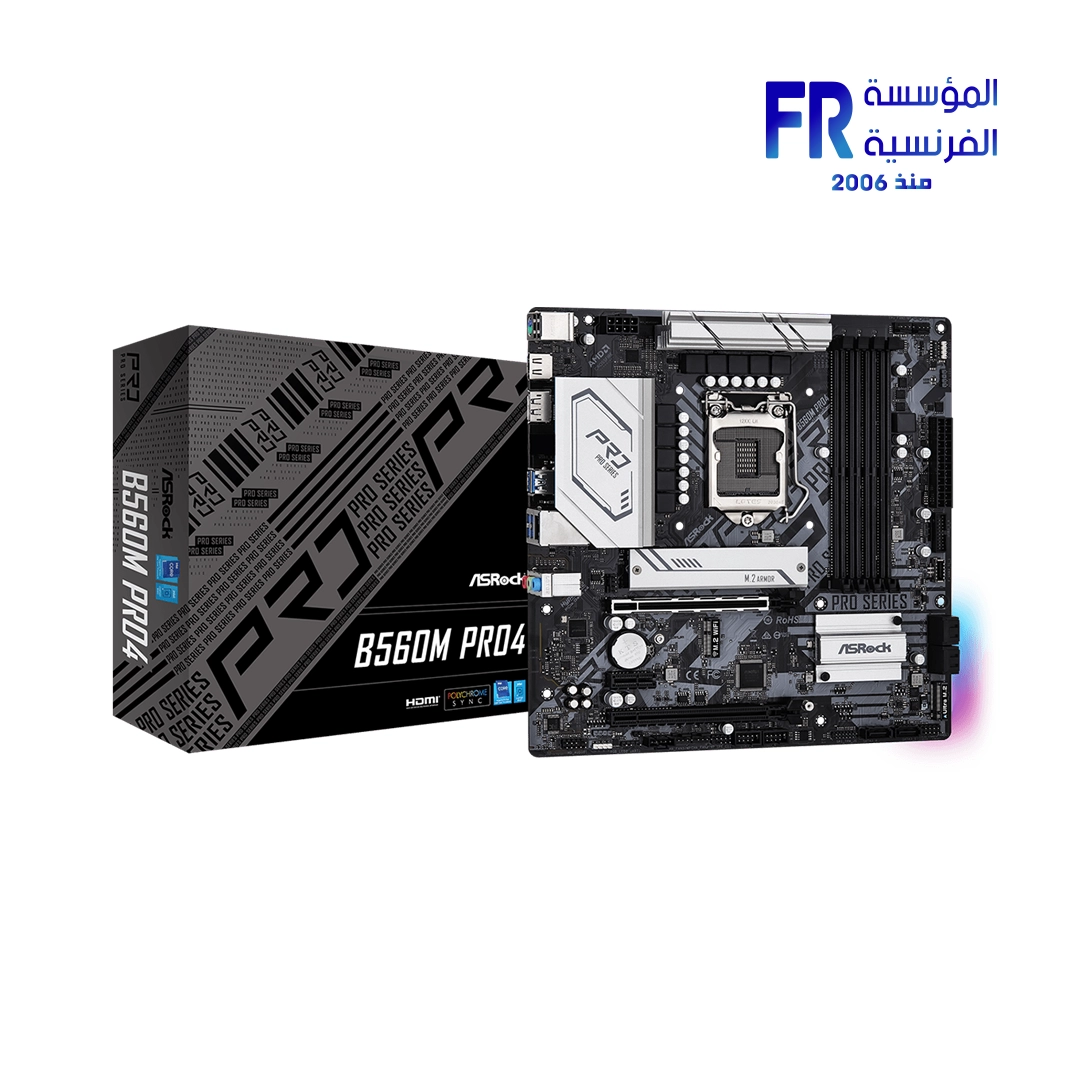

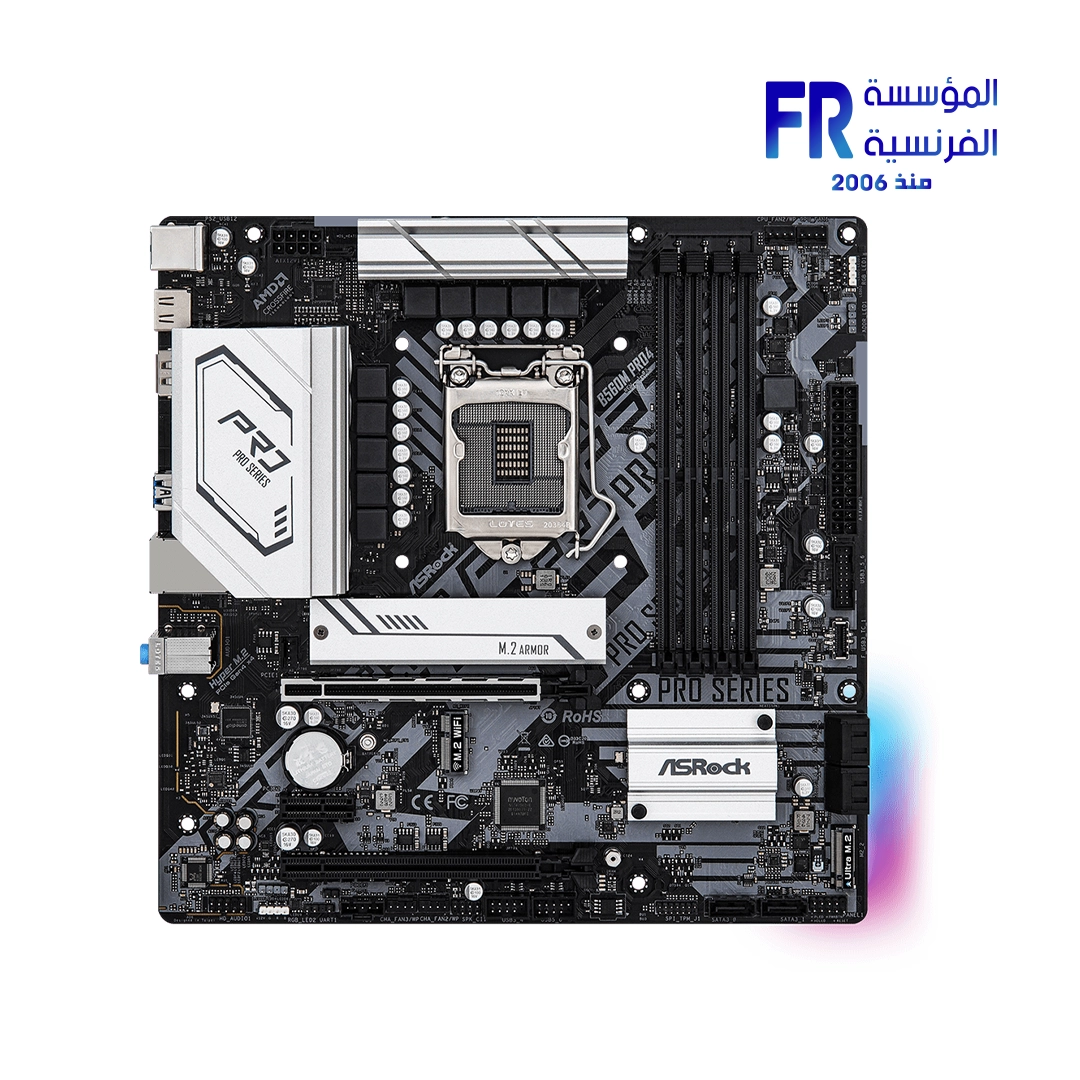

Asrock B560M Pro4 Motherboard

Asrock B560M Pro4 Motherboard

The Asrock B560M Pro4 Motherboard is a robust and efficient micro-ATX solution for your Intel 10th and 11th Gen Core processors. It combines a solid power design with essential connectivity and storage options. This makes it an excellent choice for building a reliable and compact PC for everyday tasks and light gaming.

---

Reliable Performance and Durable Design:

Support for 10th and 11th Gen Intel Core Processors:

The ASRock B560M Pro4 motherboard supports both 10th and 11th Gen Intel® Core™ Processors (LGA1200 socket). It features an 8 Phase Power Design with Premium 50A Power Chokes. This ensures stable and efficient power delivery to the CPU. This robust design is ideal for demanding applications and general computing. Consequently, your system will achieve consistent performance.

Dual Channel DDR4 Memory Support:

Equipped with four DDR4 DIMM slots, this motherboard supports Dual Channel DDR4 memory technology. It allows for memory speeds up to 4800+(OC) with 11th Gen Intel Core processors and 4600+(OC) with 10th Gen. The maximum system capacity is 128GB. It also supports Intel® Extreme Memory Profile (XMP) 2.0. This ensures fast data access and improved performance for memory-intensive tasks.

ASRock Super Alloy and Steel Slot:

The B560M Pro4 features ASRock Super Alloy components for enhanced durability. This includes Premium 50A Power Chokes, Sapphire Black PCB, and High Density Glass Fabric PCB. It also incorporates ASRock Steel Slot, providing enhanced strength for PCIe slots. This robust construction ensures reliable operation and longevity, even under heavy use.

---

Fast Connectivity and Versatile Storage:

Next-Gen PCIe 4.0 and M.2 Storage:

The motherboard features a PCIe 4.0 x16 slot for 11th Gen Intel Core Processors, providing high bandwidth for the latest graphics cards. For storage, it includes one Hyper M.2 (PCIe Gen4x4) socket for ultra-fast NVMe SSDs. Additionally, one Ultra M.2 socket supports PCIe Gen3x4 and SATA3, offering versatile storage options. Six SATA3 6.0 Gb/s connectors are also available. This comprehensive storage array ensures rapid data access and ample space for all your files.

Comprehensive USB and Gigabit LAN:

The ASRock B560M Pro4 offers a range of USB connectivity. It includes a front panel USB 3.2 Gen1 Type-C header, along with four rear USB 3.2 Gen1 ports and two front USB 3.2 Gen1 headers. Additionally, it provides six USB 2.0 ports (two rear, four front). For networking, an Intel® Gigabit LAN ensures a stable and responsive online experience. All USB and LAN ports are equipped with Full Spike Protection for enhanced safety.

Optimized for Integrated Graphics:

This motherboard supports dual graphics output via HDMI and DisplayPort 1.4 ports. It leverages Intel® Xe Graphics Architecture (Gen 12) with 11th Gen Intel Core Processors, offering resolutions up to 4K 60Hz. This provides crisp visuals for multimedia and general use without needing a dedicated graphics card. HDCP 2.2/2.3 support ensures compatibility with protected content.

---

Enhanced Audio and User-Friendly Features:

Immersive Nahimic Audio:

Experience superior audio quality with 7.1 CH HD Audio, powered by the Realtek ALC897 Audio Codec. The motherboard supports Surge Protection, ensuring audio integrity. Furthermore, Nahimic Audio enhances your listening experience with immersive sound effects and crystal-clear voice communication. This makes games and multimedia more engaging and vibrant.

ASRock EZ Troubleshooter and Auto Driver Installer:

The ASRock B560M Pro4 offers user-friendly features for easy setup and troubleshooting. The ASRock POST Status Checker (PSC) provides visual indicators for quick diagnosis of system issues during boot-up. Additionally, the ASRock Live Update & APP Shop simplifies driver installation. This ensures a hassle-free experience for building and maintaining your PC.

Specifications:

• CPU Support: 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors (LGA1200)
• Chipset: Intel® B560
• Memory: 4 x DDR4 DIMM Slots, Dual Channel, up to 4800+(OC) MHz (11th Gen), 4600+(OC) MHz (10th Gen), Max 128GB, XMP 2.0
• Graphics Output: HDMI 2.0 (4K 60Hz with 11th Gen), HDMI 1.4 (4K 30Hz with 10th Gen), DisplayPort 1.4 (4K 60Hz), HDCP 2.2/2.3
• Audio: Realtek ALC897 7.1 CH HD Audio, Nahimic Audio, Surge Protection
• LAN: Intel® Gigabit LAN (10/100/1000 Mb/s)
• PCIe Slots: 1 x PCIe 4.0 x16 (11th Gen), 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1, 1 x M.2 Socket (Key E for WiFi/BT)
• Storage: 6 x SATA3 6.0 Gb/s, 1 x Hyper M.2 (PCIe Gen4x4), 1 x Ultra M.2 (PCIe Gen3x4 & SATA3)
• USB Ports (Rear): 4 x USB 3.2 Gen1, 2 x USB 2.0
• USB Ports (Front Headers): 1 x USB 3.2 Gen1 Type-C Header, 1 x USB 3.2 Gen1 Header (2 ports), 2 x USB 2.0 Headers (4 ports)
• Form Factor: Micro ATX (9.6-in x 9.6-in)
• OS Support: Microsoft Windows® 10 64-bit / 11 64-bit
• Unique Features: ASRock Super Alloy, Intel® 4-Layer Memory POOL Technology, ASRock Steel Slot, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock POST Status Checker, ASRock Full Spike Protection
