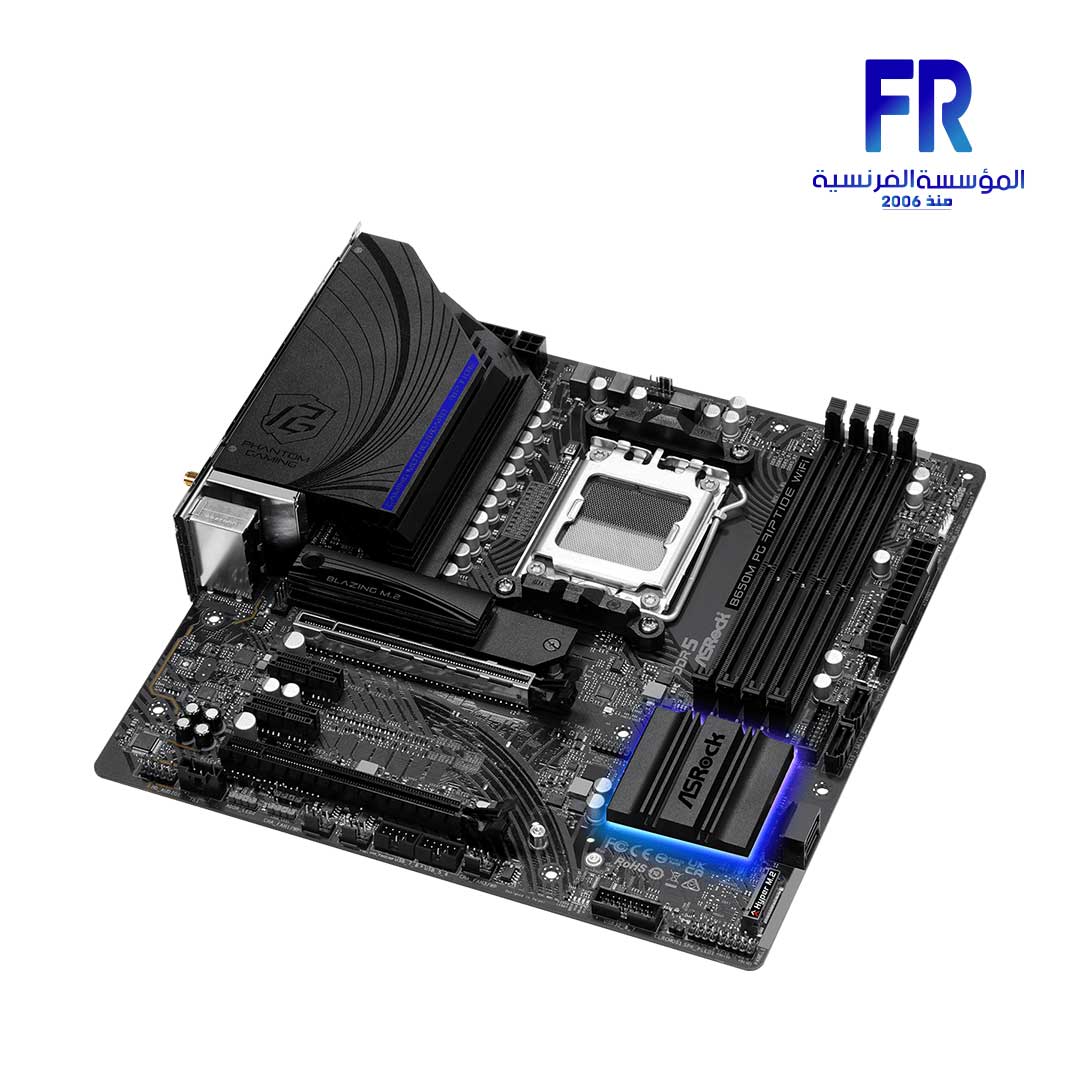

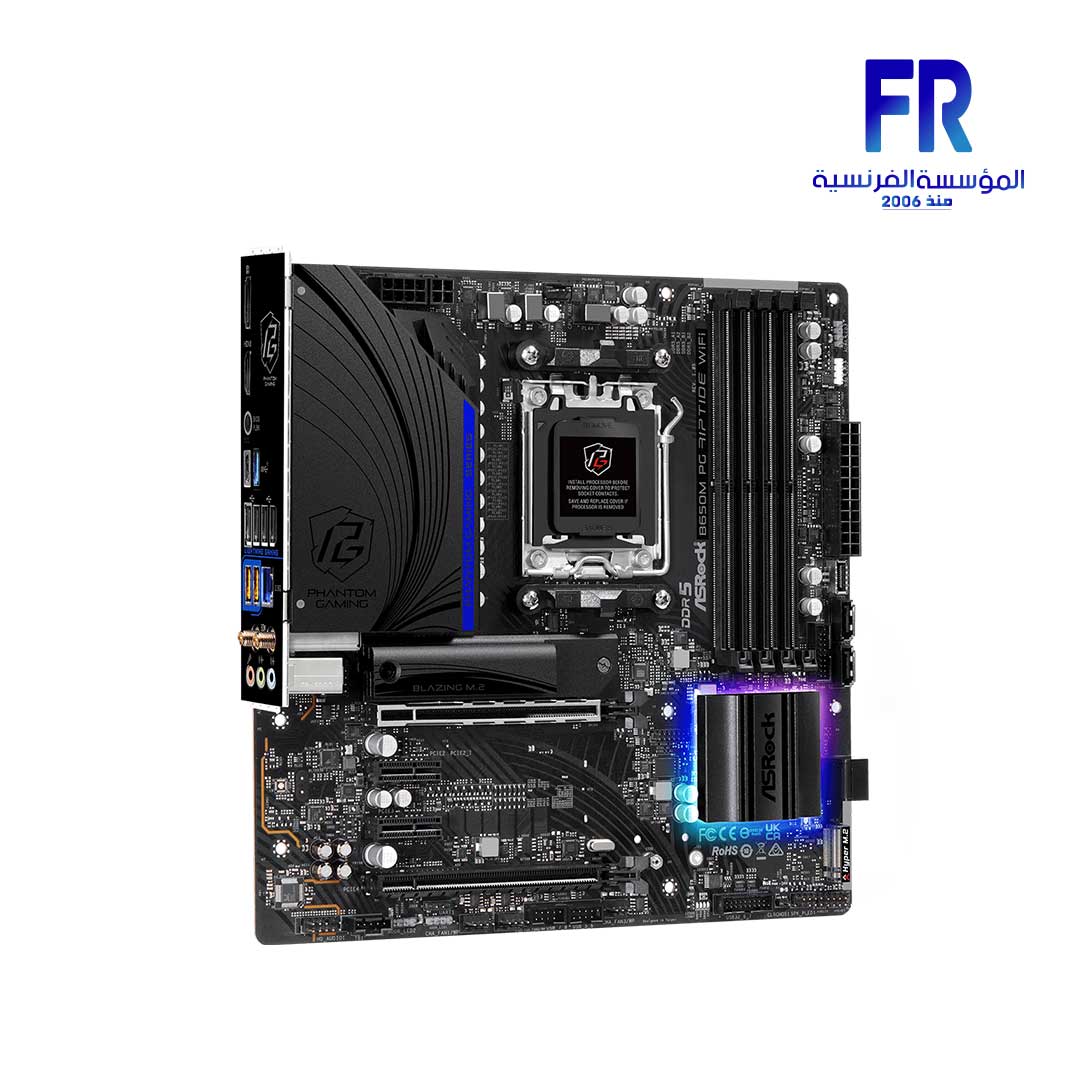

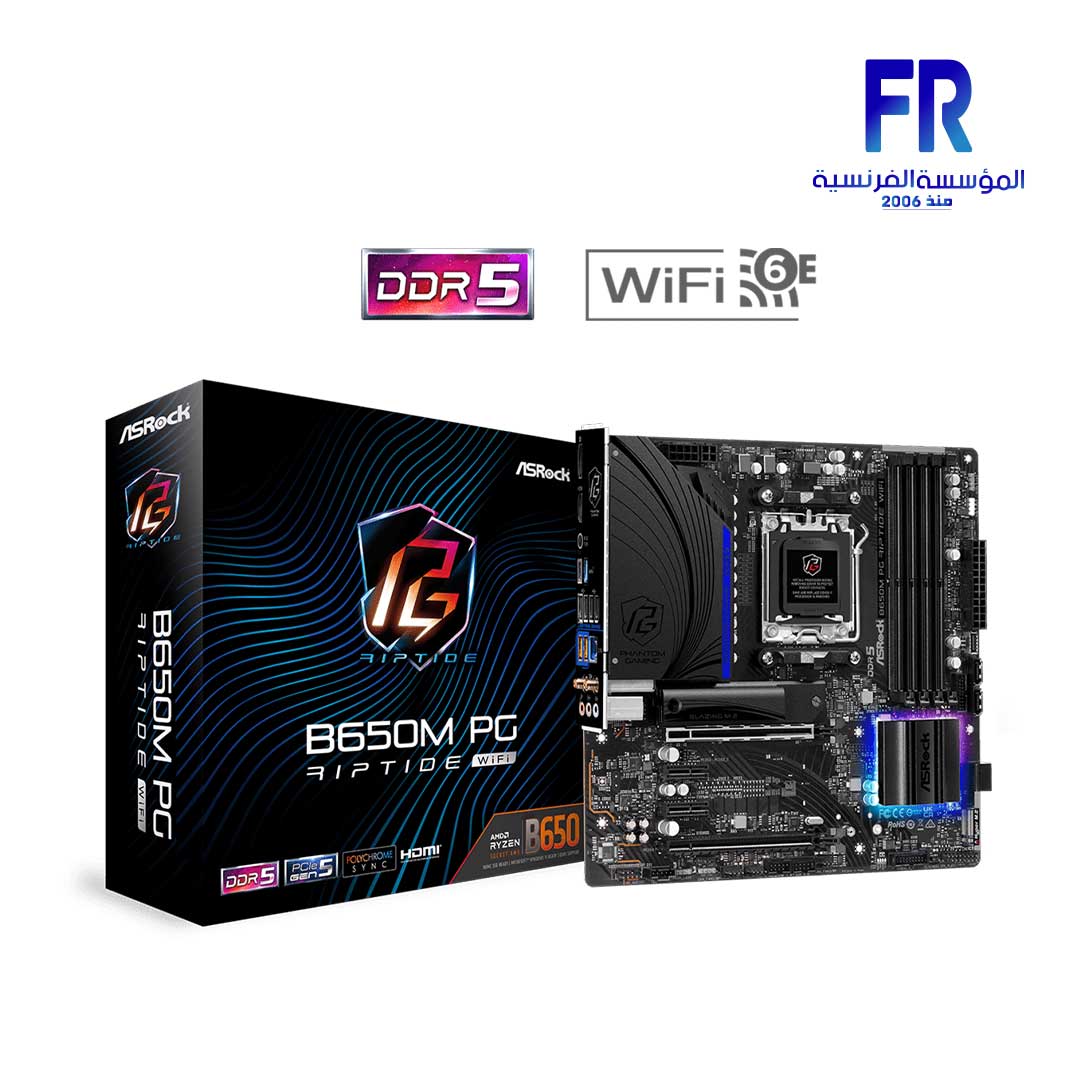

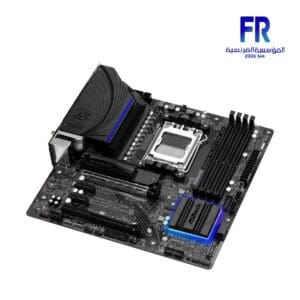

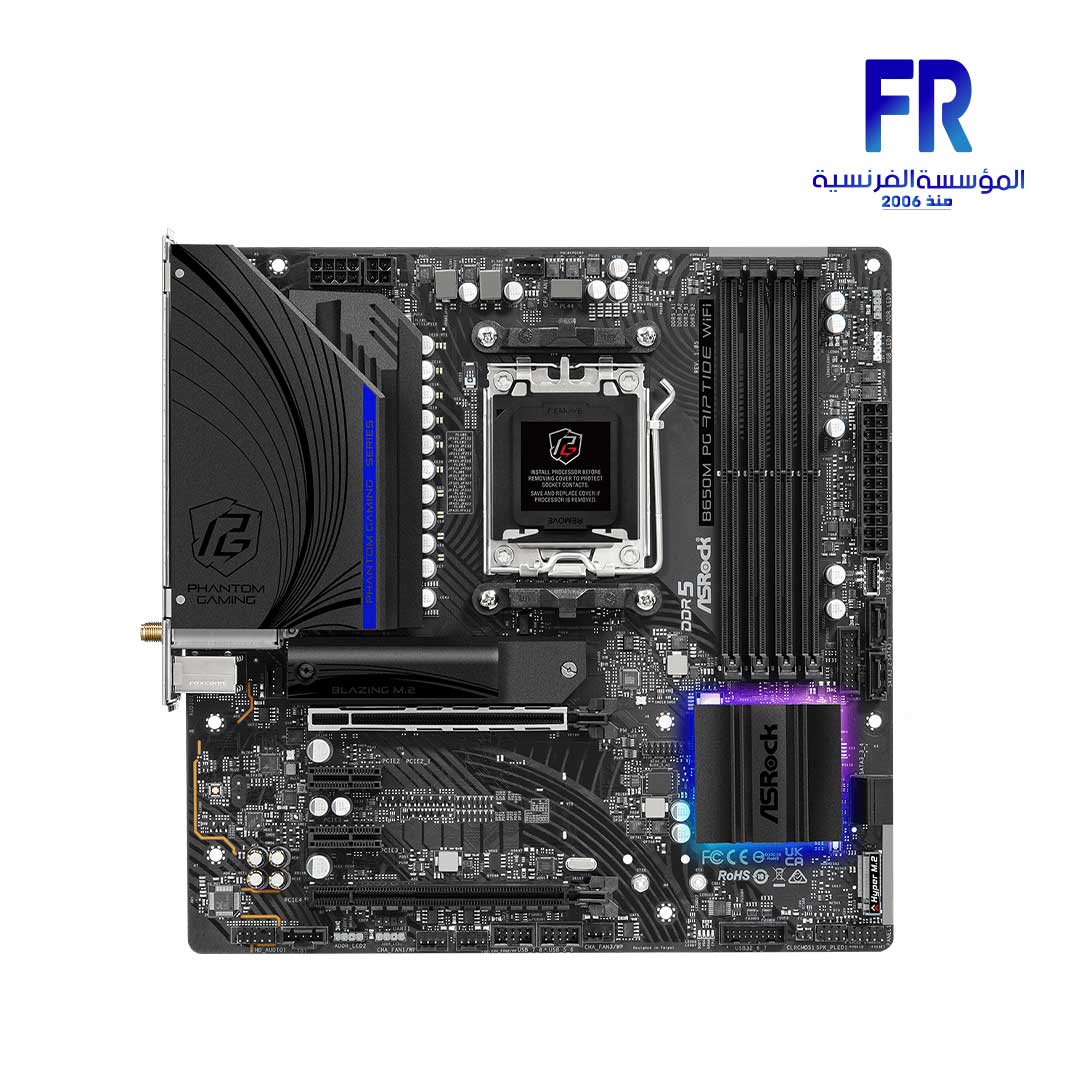

Asrock B650M PG RIPTIDE WIFI Motherboard

Asrock B650M PG RIPTIDE WIFI اللوحات الأم

Asrock B650M PG RIPTIDE WIFI Motherboard specs :

• • Unique Feature

    Superb Productivity
    – PCIe Gen5 (M.2)
    – Dual Channel DDR5
    Rock-Solid Durability
    – 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor
    – Flexible Integrated I/O Shield
    Ultrafast Gaming
    – 2.5G LAN, 802.11ax Wi-Fi 6E Module
    – ASRock Lightning Gaming Ports
    EZ Update
    – BIOS Flashback Button
    – ASRock Auto Driver Installer
    EZ Troubleshooter
    – ASRock Post Status Checker

  • CPU

    – Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

    *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

  • Chipset

    – AMD B650

  • Memory

    – Dual Channel DDR5 Memory Technology
    – 4 x DDR5 DIMM Slots
    – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
    – Max. capacity of system memory: 256GB
    – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

    *Please refer to Memory Support List for more information.

  • BIOS

    – 256Mb AMI UEFI Legal BIOS with GUI support

  • Graphics

    Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

  • Audio

    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    – Nahimic Audio

  • LAN

    – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – Dragon RTL8125BG
    – Supports Phantom Gaming LAN Software
    – Smart Auto Adjust Bandwidth Control
    – Visual User Friendly UI
    – Visual Network Usage Statistics
    – Optimized Default Setting for Game, Browser, and Streaming Modes
    – User Customized Priority Control

• Wireless LAN

  – 802.11ax Wi-Fi 6E Module
  – Supports IEEE 802.11a/b/g/n/ac/ax
  – Supports Dual-Band 2×2 with extended 6GHz band* support
  – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  – Supports Bluetooth + High speed class II
  – Supports MU-MIMO

  *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.

• Slots

  CPU:
  – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  – 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
  Chipset:
  – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
  – 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

  *Supports NVMe SSD as boot disks
  Supports AMD CrossFire™
  15μ Gold Contact in VGA PCIe Slot (PCIE1)

• وحدات التخزين

  CPU:
  – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
  Chipset:
  – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  – 4 x SATA3 6.0 Gb/s Connectors

  *Supports NVMe SSD as boot disks

• RAID

  – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

  *Requires additional M.2 NVMe expansion cards to support RAID 10

• USB

  – 1 x USB 3.2 Gen2 Type-C (Rear)
  – 1 x USB 3.2 Gen2 Type-A (Rear)
  – 1 x USB 3.2 Gen1 Type-C (Front)
  – 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
  – 8 x USB 2.0 (4 Rear, 4 Front)

  *All USB ports support ESD Protection

• Connector

  – 1 x SPI TPM Header
  – 1 x Power LED and Speaker Header
  – 1 x RGB LED Header*
  – 3 x Addressable LED Headers**
  – 1 x CPU Fan Connector (4-pin)***
  – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x 4 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  – 1 x Front Panel Type C USB 3.2 Gen1 Header

  *Supports in total up to 12V/3A, 36W LED Strip
  **Support in total up to 5V/3A, 15W LED Strip
  ***CPU_FAN1 supports the fan power up to 1A (12W).
  ****CPU_FAN2/WP supports the fan power up to 2A (24W).
  *****CHA_FAN1~3/WP support the fan power up to 2A (24W).
  CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

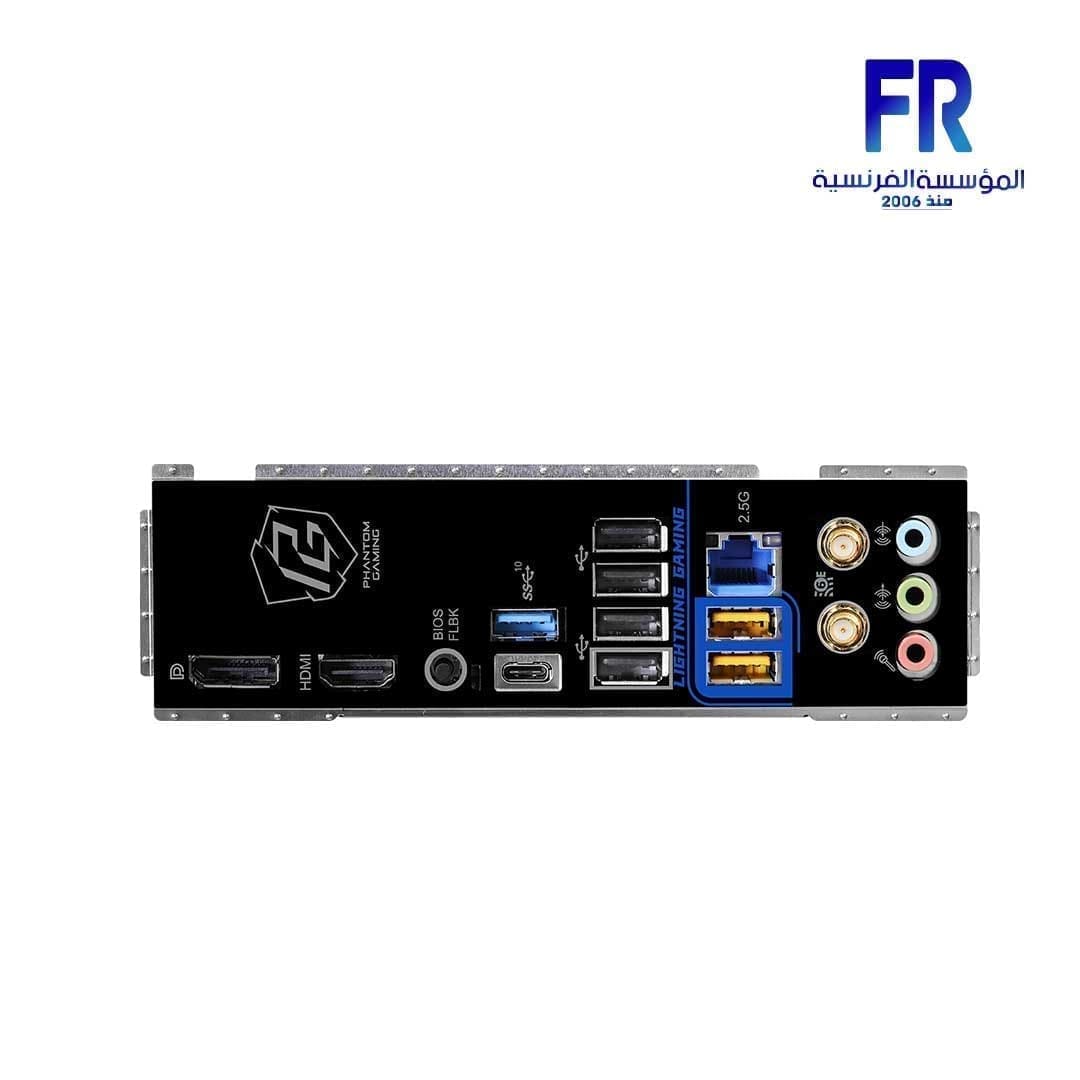

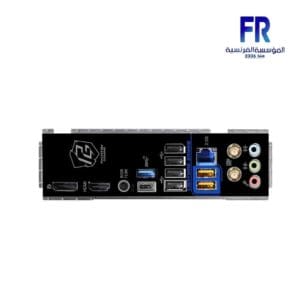

• Rear Panel I/O

  – 2 x Antenna Ports
  – 1 x HDMI Port
  – 1 x DisplayPort 1.4
  – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
  – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
  – 2 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports.)
  – 4 x USB 2.0 Ports
  – 1 x RJ-45 LAN Port
  – 1 x BIOS Flashback Button
  – HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

  Software
  – ASRock Motherboard Utility (Phantom Gaming Tuning)
  – ASRock Phantom Gaming LAN Software
  – ASRock Polychrome SYNC*
  UEFI
  – ASRock Full HD UEFI
  – ASRock Auto Driver Installer
  – ASRock Instant Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

  – 1 x User Manual
  – 2 x SATA Data Cables
  – 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  – 2 x Screws for M.2 Sockets
  – 1 x Standoff for M.2 Socket

• Form Factor

  – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  – 2oz Copper PCB

• OS

  – Microsoft Windows^® 10 64-bit / 11 64-bit

• Certifications

  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
