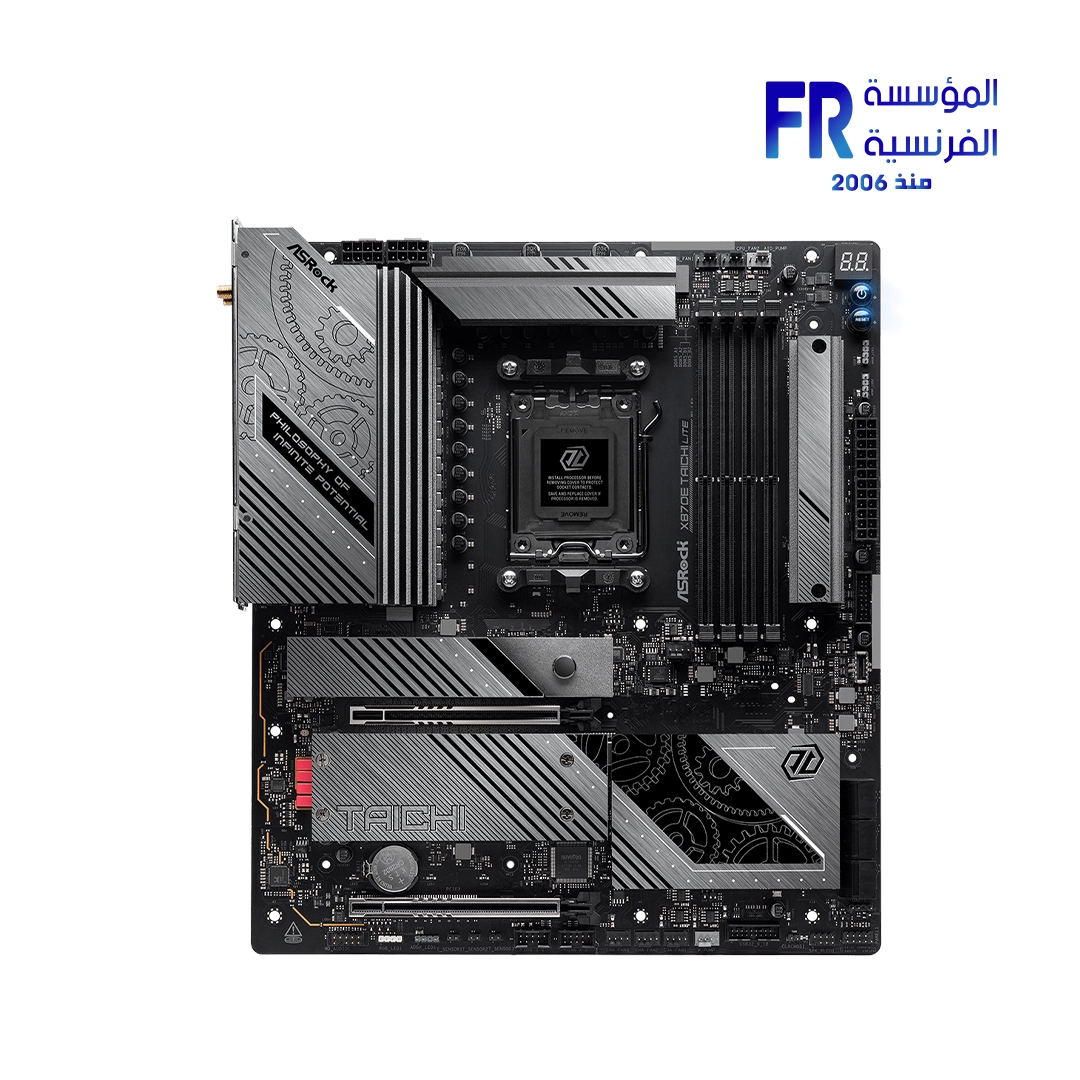

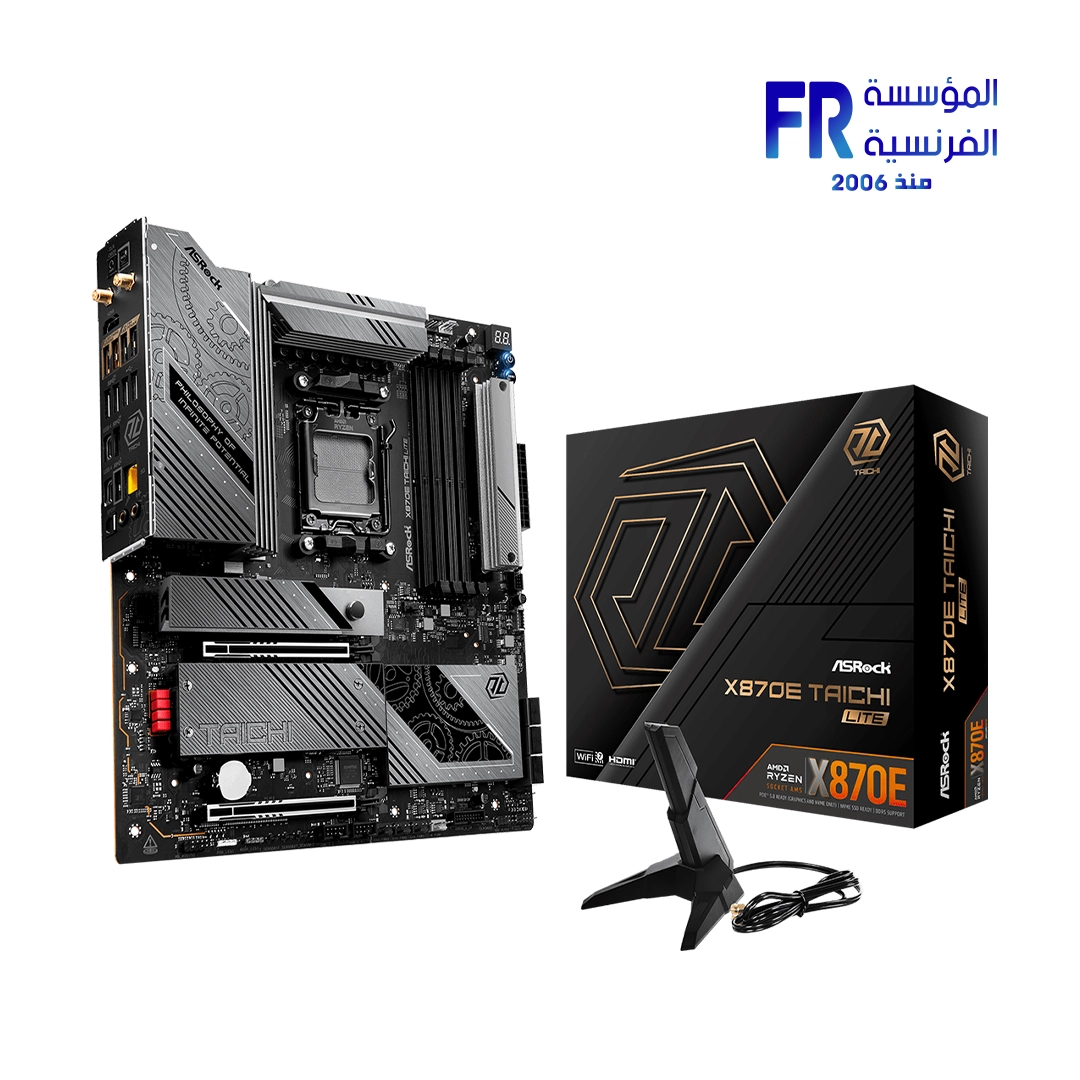

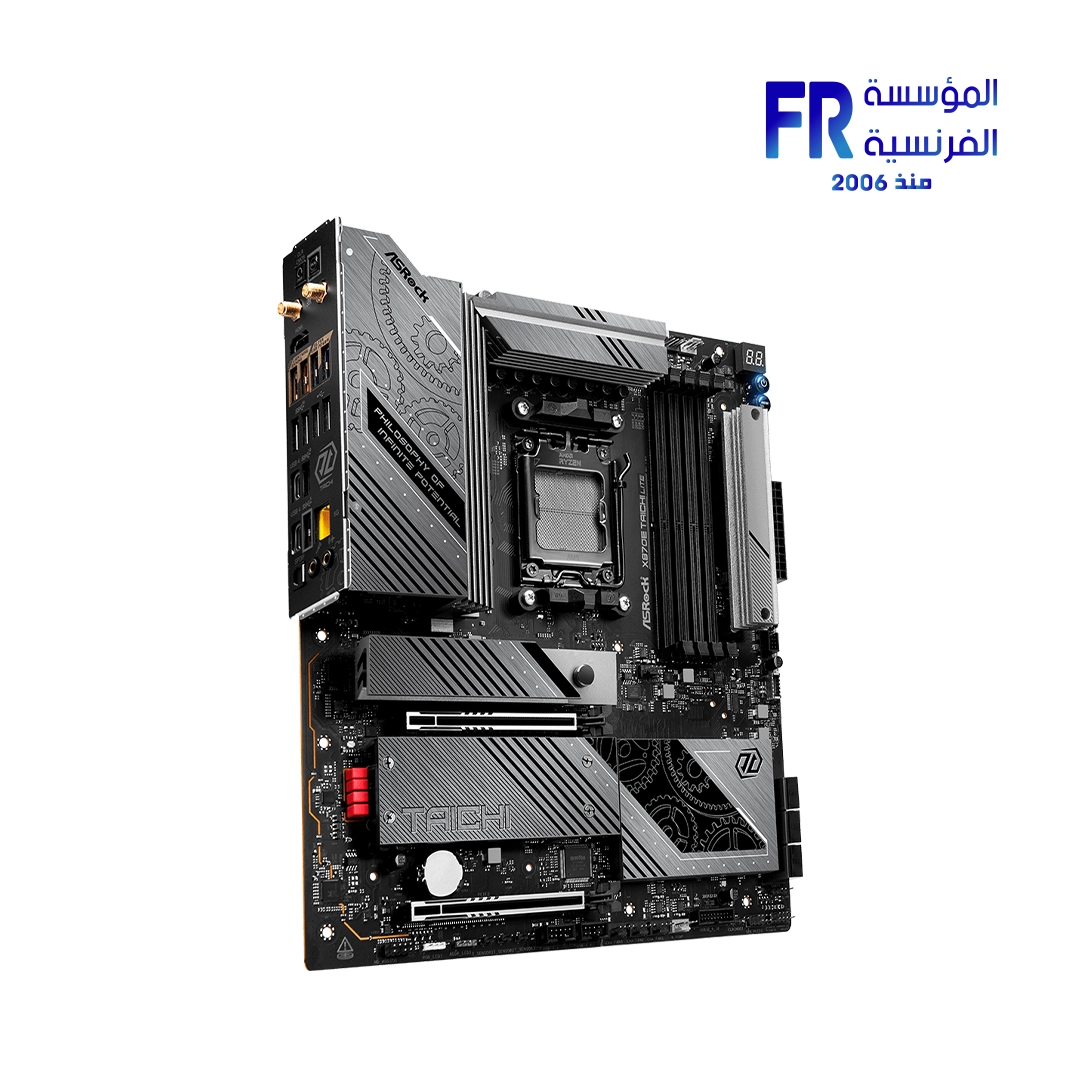

Asrock X870E Taichi Lite Motherboard

ASRock X870E Taichi Lite Motherboard

The ASRock X870E Taichi Lite Motherboard is simply brilliant, offering top-tier performance in a streamlined, functionality-focused design. Engineered for superb productivity and rock-solid durability, this motherboard integrates cutting-edge technologies like dual PCIe Gen5 slots, DDR5 memory support, and dual USB4 Type-C ports. Furthermore, it ensures ultrafast connectivity with 5G LAN and Wi-Fi 7, making it an ideal foundation for extreme high-performance AMD Ryzen™ systems.

---

Unleash Extreme Performance:

Experience unparalleled computing power with the ASRock X870E Taichi Lite. This motherboard is meticulously designed to support the latest AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors. It provides a robust platform for the most demanding applications and intense gaming. Moreover, its advanced features ensure that your system operates at peak efficiency and speed, even under heavy loads.



Cutting-Edge Processor and Memory Support:

The X870E Taichi Lite fully supports Dual Channel DDR5 Memory Technology. It features 4 DDR5 DIMM slots, allowing for a massive maximum system memory capacity of 256GB. It also supports DDR5 ECC/non-ECC, un-buffered memory up to an impressive 8200+(OC) MHz. Additionally, the motherboard supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules. Consequently, this ensures optimal memory performance for all your tasks, from competitive gaming to professional content creation.

Blazing-Fast Dual PCIe Gen5 Slots:

Benefit from lightning-fast data transfer speeds with dual PCIe Gen5 slots. The motherboard includes two PCIe 5.0 x16 slots (PCIE1 and PCIE2) for graphics, which can operate in x16 or x8/x8 modes. This ensures maximum bandwidth for the latest and most powerful GPUs, providing a significant advantage in graphics-intensive applications and games. Therefore, you can build a future-proof system with ample expansion capabilities.

Quad Hyper M.2 Storage for Ultimate Speed:

Achieve unparalleled storage performance with four M.2 sockets. One Blazing M.2 Socket (M2_1) supports PCIe Gen5x4 mode, delivering speeds up to 128 Gb/s for ultra-fast NVMe SSDs. Furthermore, three Hyper M.2 Sockets (M2_2, M2_3, M2_4) support PCIe Gen4x4 mode, offering speeds up to 64 Gb/s. This extensive M.2 support provides flexible and high-speed storage options. The motherboard also supports RAID 0, 1, and 10 for M.2 NVMe storage devices, as well as RAID 0, 1, and 10 for SATA drives, ensuring both speed and data redundancy.

---

Unrivaled Durability and Ultrafast Networking:

The ASRock X870E Taichi Lite Motherboard is built for enduring stability and superior network performance. Its robust power delivery system, featuring server-grade components, ensures reliable operation under even the most extreme loads. Additionally, state-of-the-art wireless and wired networking capabilities provide seamless and high-speed connectivity for all your online activities, from competitive gaming to large file transfers.



Server-Grade Durability and Power Delivery:

This motherboard boasts Server-Grade Low-Loss PCB, ensuring enhanced signal integrity and system stability. It features an impressive 24+2+1 Power Phase design, incorporating 110A SPS (Smart Power Stage) for VCore and SOC components. This delivers incredibly stable and efficient power to the CPU, even during heavy overclocking. An enlarged heatsink armor effectively dissipates heat, maintaining optimal temperatures. Furthermore, 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) ensure extended lifespan and reliability.

Next-Gen Wi-Fi 7 and 5G LAN:

Experience the pinnacle of wireless connectivity with the integrated 802.11be 2×2 Wi-Fi 7 Module. This module supports 2.4GHz, 5GHz, and 6GHz frequency bands, including 160MHz channel bandwidth with 6GHz for incredibly fast speeds. It also features Bluetooth 5.4 and MU-MIMO technology. For wired connections, the Realtek RTL8126 5 Gigabit LAN provides blazing-fast 10/100/1000/2500/5000 Mb/s speeds. This ensures minimal latency for online gaming and rapid data transfers. Please note that the Wi-Fi 7 module is supported by Microsoft Windows® 11 only.

---

Advanced Audio and User-Friendly Features:

The ASRock X870E Taichi Lite Motherboard integrates a variety of advanced features and user-friendly tools. These enhance system functionality, simplify troubleshooting, and offer extensive customization options. From high-fidelity audio to convenient BIOS management, this motherboard provides a comprehensive and intuitive experience for every user.



Immersive Audio Experience:

Enjoy an unparalleled audio experience with 5.1 CH HD Audio, powered by the Realtek ALC4082 Audio Codec. The motherboard incorporates WIMA Audio Capacitors for rear outputs and an ESS SABRE9219 DAC for rear panel audio, delivering an impressive 130dB SNR. Individual PCB Layers for R/L Audio Channel ensure pristine sound separation. Moreover, Direct Drive Technology on the front headphone port supports high-impedance headsets up to 600 Ohm. Nahimic Audio further enhances your gaming and multimedia experience with virtual surround sound and voice clarity.

Comprehensive USB Connectivity:

The motherboard offers extensive connectivity options for all your peripherals. It includes two rear USB4 Type-C ports, delivering blazing-fast 40 Gb/s data transfer speeds and supporting USB PD 3.0 up to 15W charging. Additionally, it features a front USB 3.2 Gen2x2 Type-C header (20 Gb/s), five USB 3.2 Gen2 Type-A ports (rear), seven USB 3.2 Gen1 Type-A ports (three rear, four front), and six USB 2.0 ports (two rear, four front). All USB ports come with ESD Protection, ensuring device safety.

EZ Troubleshooting and Customization:

Simplify system setup and maintenance with ASRock’s user-friendly features. The BIOS Flashback Button allows for easy firmware updates without a CPU. ASRock Auto Driver Installer ensures hassle-free driver setup. The motherboard also includes Dr. Debug with LED, a Power Button with LED, and a Reset Button with LED for convenient troubleshooting and control. ASRock Polychrome SYNC allows for customizable RGB lighting, while comprehensive fan control ensures optimal cooling and acoustics.

---

Key Specifications:

Processor & Chipset:

• CPU Support: AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors
• Chipset: AMD X870E

Memory & Graphics:

• Memory:
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) MHz
  • Max. capacity: 256GB
  • Supports XMP and EXPO memory modules
• Graphics: Integrated AMD RDNA™ graphics (actual support varies by CPU)
  • 1 x HDMI 2.1 (up to 4K 120Hz)
  • 2 x USB4 (up to 8K 30Hz, CPU’s embedded graphics only)

Audio & Networking:

• Audio: 5.1 CH HD Audio (Realtek ALC4082 Codec), WIMA Audio Capacitors, ESS SABRE9219 DAC, Direct Drive Technology on Front headphone port, Nahimic Audio
• LAN: 5 Gigabit LAN (Realtek RTL8126)
• Wireless LAN: 802.11be 2×2 Wi-Fi 7 Module (2.4GHz/5GHz/6GHz, Bluetooth 5.4, MU-MIMO)

Expansion & Storage:

• Expansion Slots:
  • 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2, support x16 or x8/x8 modes)
  • 1 x Vertical M.2 Socket (Key E) for WiFi/BT module
  • Supports AMD CrossFire™
• Storage:
  • 1 x Blazing M.2 Socket (M2_1, PCIe Gen5x4)
  • 3 x Hyper M.2 Sockets (M2_2, M2_3, M2_4, PCIe Gen4x4)
  • 6 x SATA3 6.0 Gb/s Connectors
  • Supports RAID 0/1/10 for SATA and M.2 NVMe storage devices

USB & Internal Connectors:

• USB Ports:
  • 2 x USB4 Type-C (Rear, 40 Gb/s, supports USB PD 3.0 up to 15W charging)
  • 1 x USB 3.2 Gen2x2 Type-C (Front)
  • 5 x USB 3.2 Gen2 Type-A (Rear)
  • 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
• Internal Connectors: 3 x Thermistor Cable Headers, Power LED/Speaker Header, RGB LED Header, 3 x Addressable LED Headers, 2 x CPU Fan Connectors, 4 x Chassis Fan Connectors, 1 x AIO Pump Fan Connector, 1 x Water Pump Fan Connector, 24 pin ATX Power, 2 x 8 pin 12V Power, Front Panel Audio, 2 x USB 2.0 Headers, 2 x USB 3.2 Gen1 Headers, Front Panel Type C USB 3.2 Gen2x2 Header, Dr. Debug with LED, Power Button with LED, Reset Button with LED

Rear Panel I/O & Software:

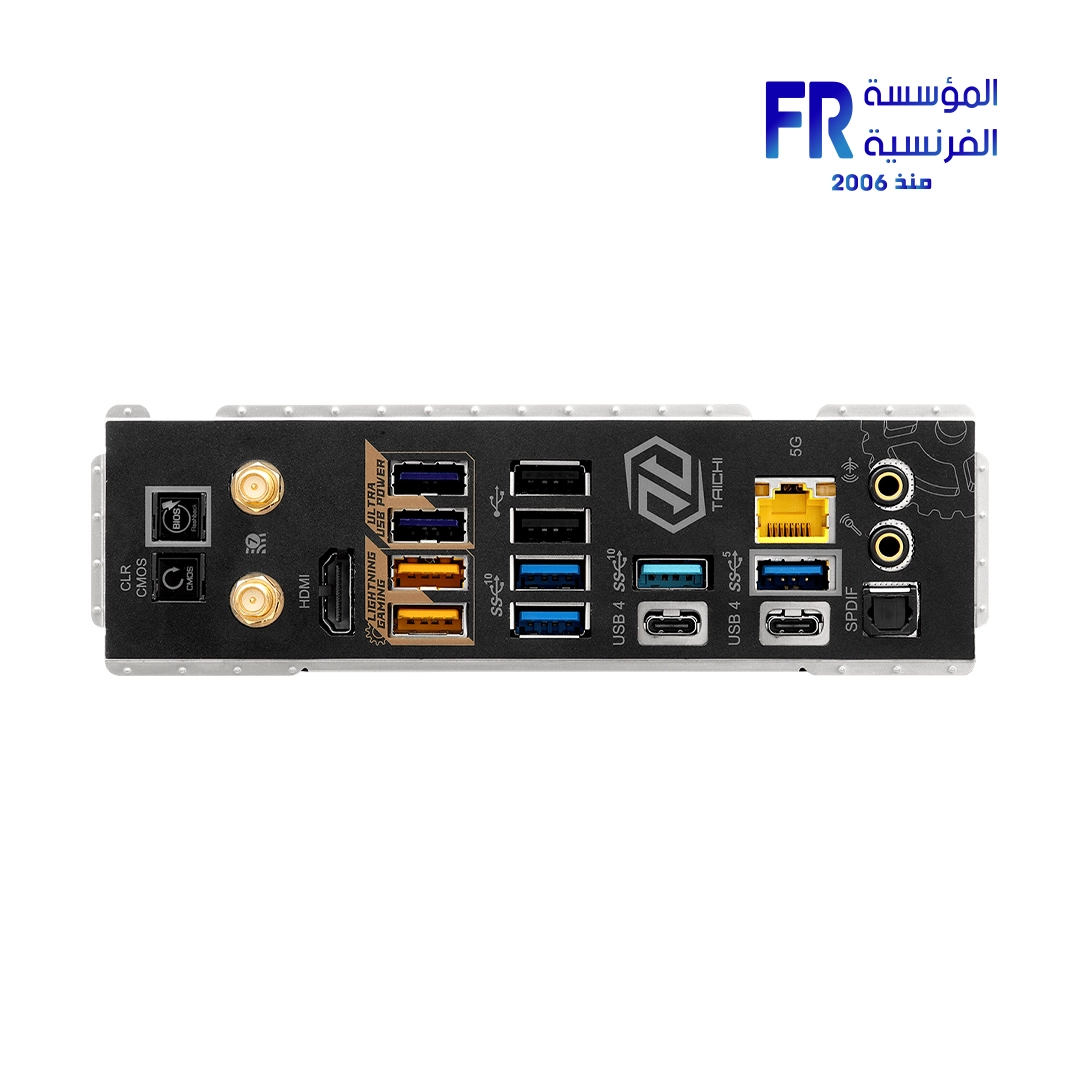

• Rear Panel I/O: 2 x Antenna Ports, 1 x HDMI, 1 x Optical SPDIF Out, 2 x USB4 Type-C, 5 x USB 3.2 Gen2 Type-A (Lightning Gaming Ports), 3 x USB 3.2 Gen1 Type-A (Ultra USB Power), 2 x USB 2.0, 1 x RJ-45 LAN, 1 x Clear CMOS Button, 1 x BIOS Flashback Button, Line Out Jack, Microphone Input Jack
• Software & UEFI: ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC, ASRock XFast LAN, EZ Mode, Full HD UEFI, Auto Driver Installer, Instant Flash

Form Factor & Certifications:

• Form Factor: EATX (12.0-in x 10.5-in, 30.5 cm x 26.7 cm), 8 Layer PCB, 2oz Copper PCB
• OS Support: Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications: FCC, CE, ErP/EuP ready
• Model Number/SKU: 90-MXBPA0-A0UAYZ

---

For more detailed information, memory support lists, and driver downloads, please visit the official ASRock X870E Taichi Lite product page.
