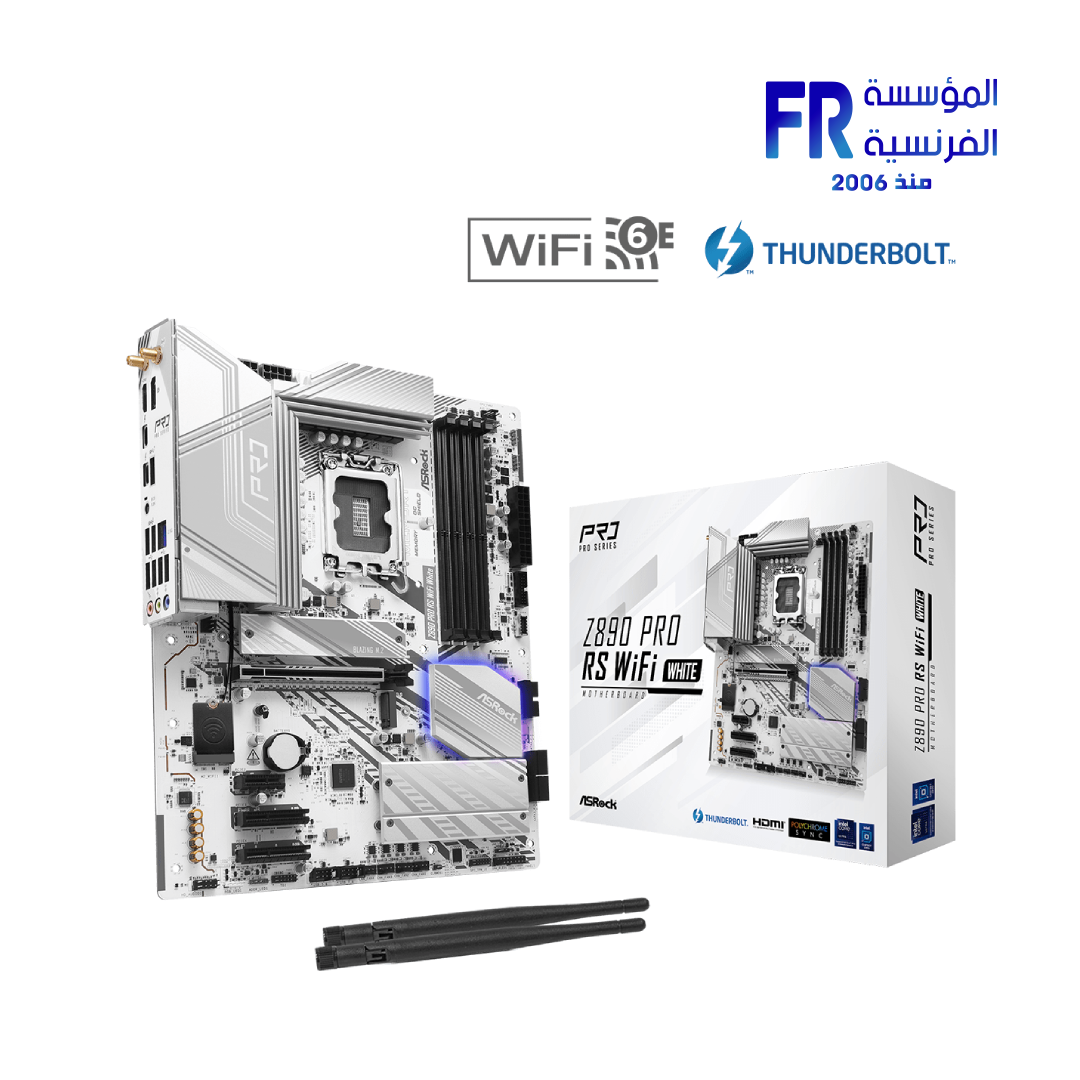

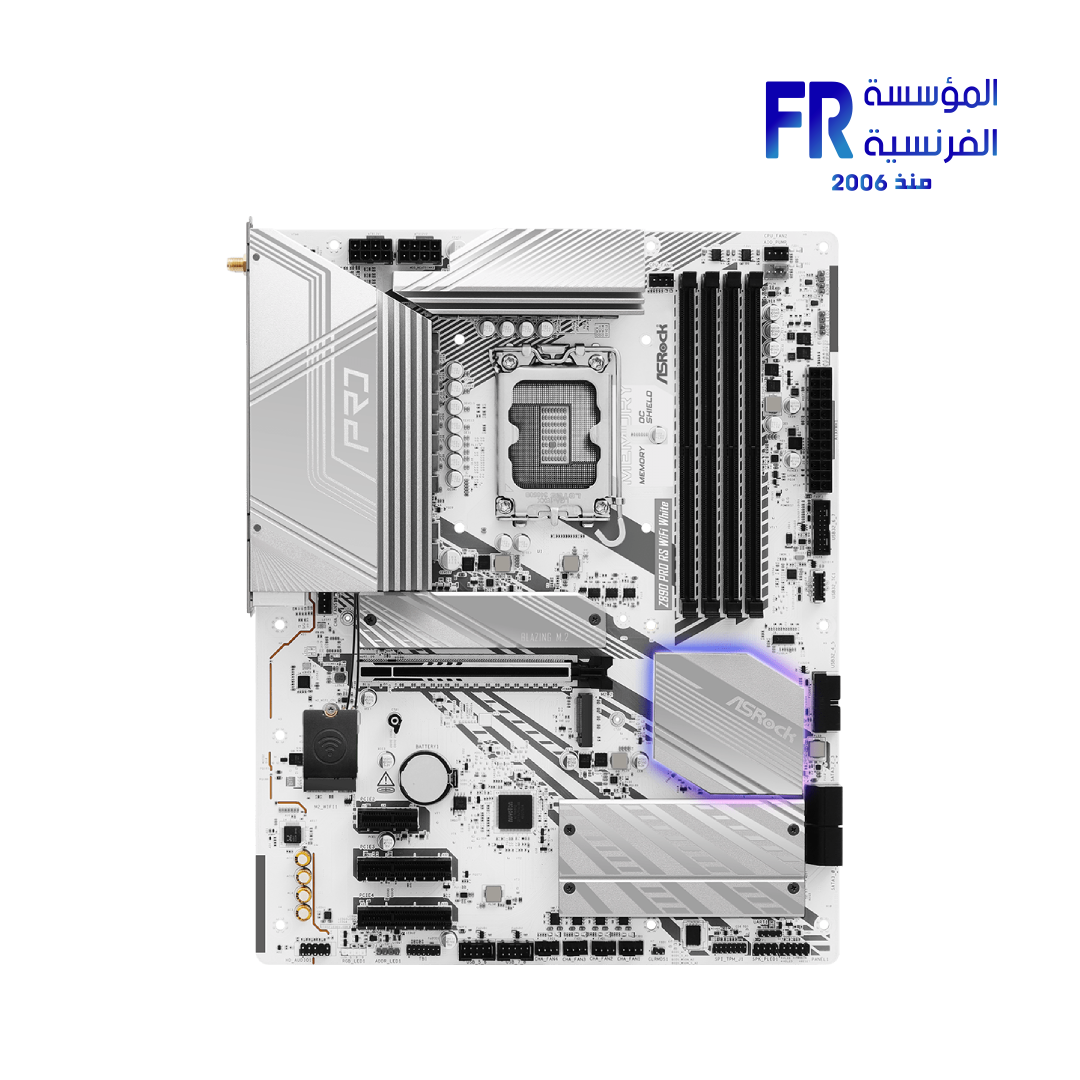

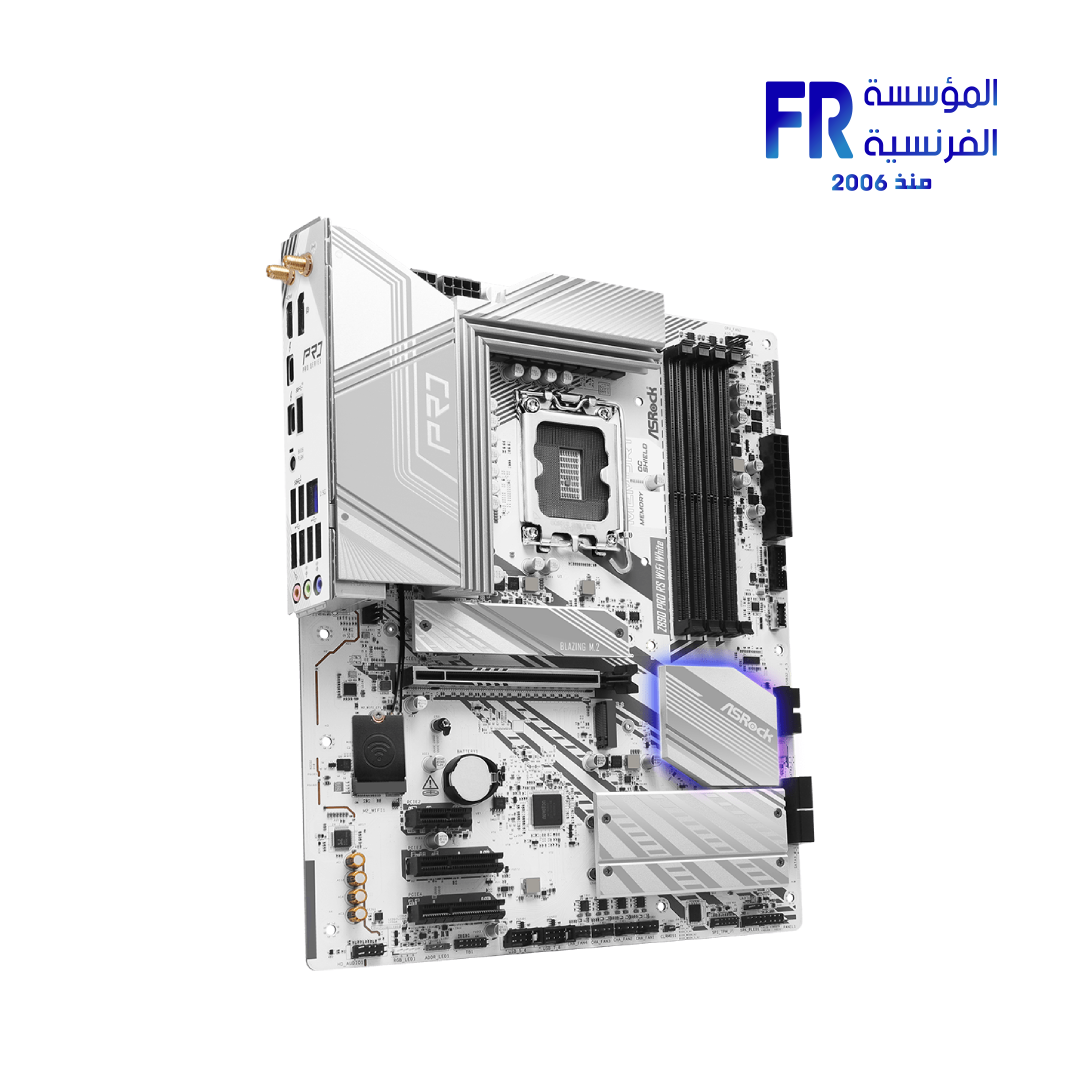

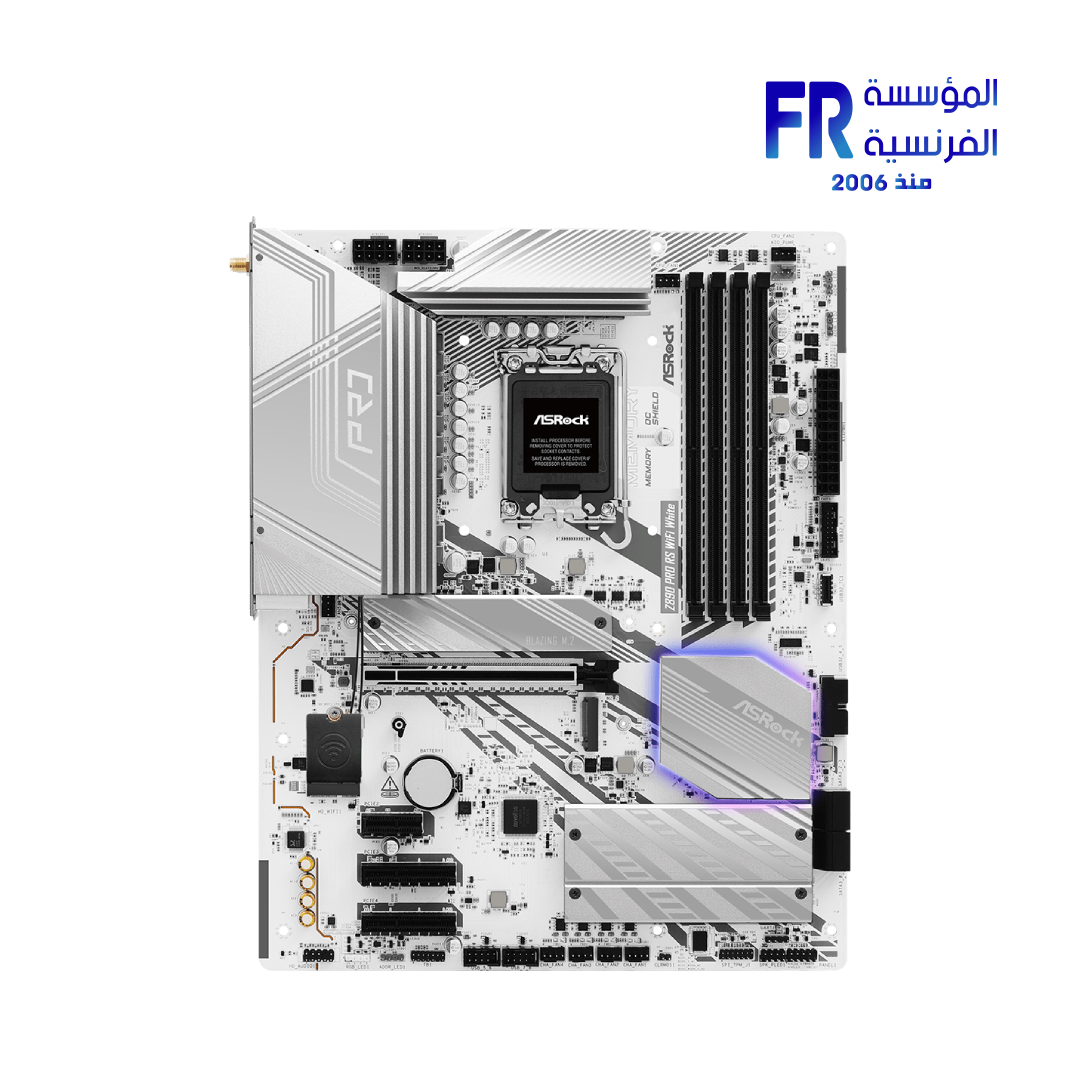

Asrock Z890 Pro RS WiFi White Motherboard

ASRock Z890 Pro RS WiFi White اللوحه الام

The ASRock Z890 Pro RS WiFi White Motherboard represents a significant evolution in ASRock’s popular PRO series. It masterfully combines a modern, futuristic design with attractive specifications and perfect balance. This motherboard is specifically optimized for Intel® Core™ Ultra Processors (Series 2) on the LGA1851RL-ILM socket. It delivers superb productivity with PCIe Gen5 for graphics and M.2 storage. Additionally, it offers dual-channel DDR5 memory support and ultra-fast Thunderbolt™ 4 Type-C ports. Overall, its rock-solid durability and ultrafast connectivity make it an ideal choice for enthusiasts and professionals seeking the ultimate in performance and aesthetics.

Key Features of the ASRock Z890 Pro RS WiFi White Motherboard:

Superb Productivity and Advanced Performance:

This ASRock Z890 Pro RS WiFi White Motherboard offers unparalleled productivity. It features PCIe Gen5 for both graphics cards and M.2 storage, delivering a breathtaking 128 Gb/s transfer speed for future ultrafast SSDs. Furthermore, Dual Channel DDR5 memory technology supports speeds up to an impressive 9066MHz+ (OC), with a maximum capacity of 256GB. It also fully supports Clocked Unbuffered DIMM (CUDIMM) and Intel® Extreme Memory Profile (XMP) 3.0x.

Additionally, the motherboard supports Intel® Core™ Ultra Processors (Series 2). This includes Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT). An integrated NPU also provides dedicated AI acceleration. For graphics output, it offers HDMI 2.1 (4K 120Hz). Moreover, two Intel® Thunderbolt™ 4 ports provide additional display output at up to 8K 60Hz / 5K 120Hz.

Rock-Solid Durability and Enhanced Reliability:

The ASRock Z890 Pro RS WiFi White Motherboard prioritizes durability. It features a robust 16+1+1+1+1 Power Phase design with Dr. MOS for VCore+GT. This ensures completely smooth power delivery to the CPU, supporting seamless overclocking. Moreover, enlarged heatsink armor ensures efficient heat dissipation.

Memory OC Shield technology effectively reduces electromagnetic interference (EMI), which enables stable memory overclocking. A flexible Integrated I/O Shield also simplifies installation. High-quality, conductive polymer 20K Long-lasting Black Caps significantly extend the motherboard’s lifespan, providing long-term reliability. Furthermore, a 2oz Copper PCB further enhances stability and thermal efficiency, especially for overclocking.

Ultrafast Wired and Wireless Connectivity:

For ultrafast connectivity, the ASRock Z890 Pro RS WiFi White Motherboard features 2.5G LAN (Dragon RTL8125BG). This provides exceptional speeds for online activities. Moreover, the 802.11axe Wi-Fi 6E Module supports dual-band 2×2 with extended 6GHz band support. Consequently, this ensures high-speed wireless networking. Bluetooth 5.3 further guarantees seamless peripheral connections. Additionally, Smart Auto Adjust Bandwidth Control and User Customized Priority Control optimize network performance for a smooth online experience.

Comprehensive Storage Solutions:

Storage options are comprehensive with this motherboard. It includes one Blazing M.2 (PCIe Gen5x4) socket. Furthermore, two Hyper M.2 (PCIe Gen4x4) sockets and one Hyper M.2 (PCIe Gen4x4 & SATA3) socket are also present. Additionally, four SATA3 6.0 Gb/s connectors provide flexible storage configurations. It also supports RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage devices. This ensures both data redundancy and enhanced performance for your valuable data.

Extensive USB and Fan Control Options:

USB connectivity is extensive. The motherboard offers two Thunderbolt™ 4 Type-C (Rear) ports. Additionally, you gain one USB 3.2 Gen2x2 Type-C (Front) port, one USB 3.2 Gen2 Type-A (Rear) port, six USB 3.2 Gen1 (two Rear, four Front) ports, and eight USB 2.0 ports (four Rear, four Front). All USB ports feature essential ESD Protection. Furthermore, the motherboard includes various fan connectors (CPU, Chassis, and AIO Pump) with Smart Fan Speed Control. This ensures optimal cooling and balanced system acoustics.

User-Friendly Features and Comprehensive Support:

This ASRock Z890 Pro RS WiFi White Motherboard offers user-friendly EZ Update features. These include a BIOS Flashback Button and ASRock Auto Driver Installer for convenient updates. Moreover, EZ Troubleshooter features ASRock Post Status Checker for easy diagnostics. Software such as ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, and ASRock Polychrome SYNC provide comprehensive control and customization options.

The UEFI BIOS itself offers ASRock EZ Mode, Full HD UEFI, and My Favorites for intuitive navigation. It fully supports Microsoft Windows® 11 64-bit. Furthermore, the package comes with essential accessories, including SATA cables, WiFi antennas, and M.2 screws/standoffs. The ATX form factor then ensures compatibility with standard PC cases.

Explore compatible Motherboards or check ASRock Products for other options. Find full details on the official ASRock Z890 Pro RS WiFi White Motherboard product page. For more information on Intel’s new processors, visit Intel Core Ultra Processors.

Specifications of the ASRock Z890 Pro RS WiFi White Motherboard:

• Model: Z890 Pro RS WiFi White
• CPU Support: Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
• Chipset: Intel® Z890
• Memory: Dual Channel DDR5, 4 x DIMM Slots, up to 9066MHz+(OC), Max 256GB, Supports XMP 3.0x, CUDIMM
• Graphics: 1 x HDMI 2.1 (4K 120Hz), 1 x DisplayPort 1.4 (8K 60Hz / 5K 120Hz), 2 x Intel® Thunderbolt™ 4 (8K 60Hz / 5K 120Hz) (CPU integrated graphics required)
• Audio: 7.1 CH HD Audio (Realtek ALC897), Nahimic Audio
• LAN: Dragon RTL8125BG 2.5 Gigabit LAN
• Wireless LAN: 802.11axe 2×2 Wi-Fi 6E Module, Bluetooth 5.3
• PCIe Slots (CPU): 1 x PCIe 5.0 x16 Slot (PCIE1)
• PCIe Slots (Chipset): 2 x PCIe 4.0 x4 Slots (PCIE3, PCIE4), 1 x PCIe 4.0 x1 Slot (PCIE2), 1 x M.2 Socket (Key E) for WiFi/BT
• M.2 Storage (CPU): 1 x Blazing M.2 Socket (M2_1) Gen5x4 (128 Gb/s), 1 x Hyper M.2 Socket (M2_2) Gen4x4 (64 Gb/s)
• M.2 Storage (Chipset): 1 x Hyper M.2 Socket (M2_3) Gen4x4 (64 Gb/s), 1 x Hyper M.2 Socket (M2_4) Gen4x4 / SATA3 (64 Gb/s)
• SATA Connectors: 4 x SATA3 6.0 Gb/s
• RAID Support: RAID 0, 1, 5, 10 for SATA and M.2 NVMe storage
• USB (Rear Panel): 2 x Thunderbolt™ 4 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0
• USB (Front Headers): 1 x USB 3.2 Gen2x2 Type-C, 2 x USB 3.2 Gen1 (4 ports), 2 x USB 2.0 (4 ports)
• Power Connectors: 1 x 24 pin ATX, 2 x 8 pin 12V (Hi-Density)
• Fan Connectors: 2 x CPU Fan, 5 x Chassis Fan, 1 x AIO Pump Fan
• LED Headers: 1 x RGB LED Header, 3 x Addressable LED Headers
• Form Factor: ATX (30.5 cm x 24.4 cm), 2oz Copper PCB
• OS Support: Microsoft Windows® 11 64-bit
• Certifications: FCC, CE, ErP/EuP ready
• Model Number/SKU: 90-MXBQC0-A0UAYZ
• EAN/UPC: 4710483947476
