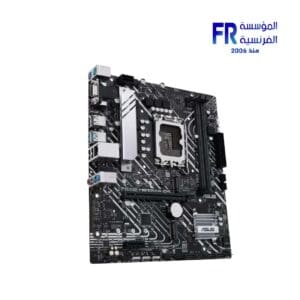

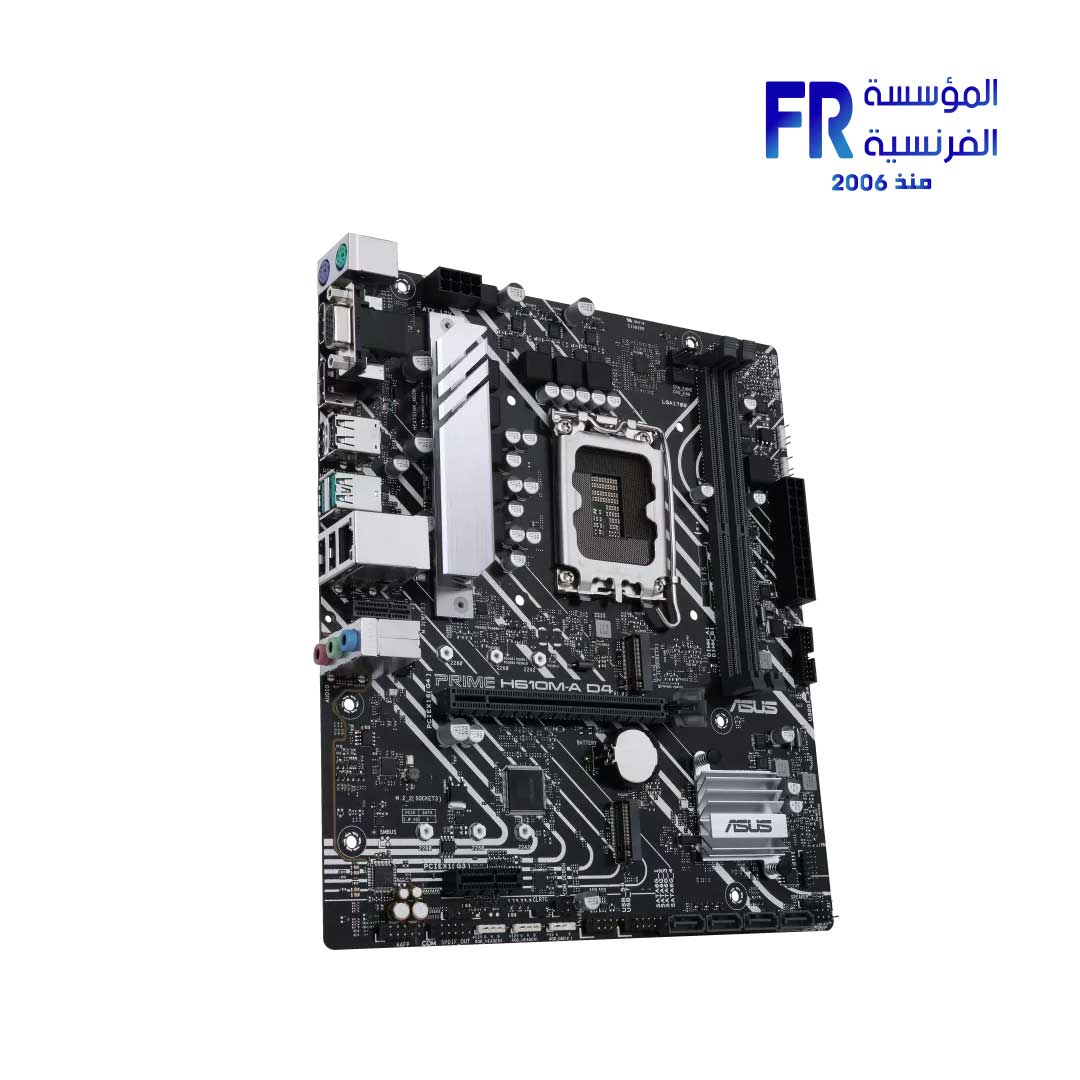

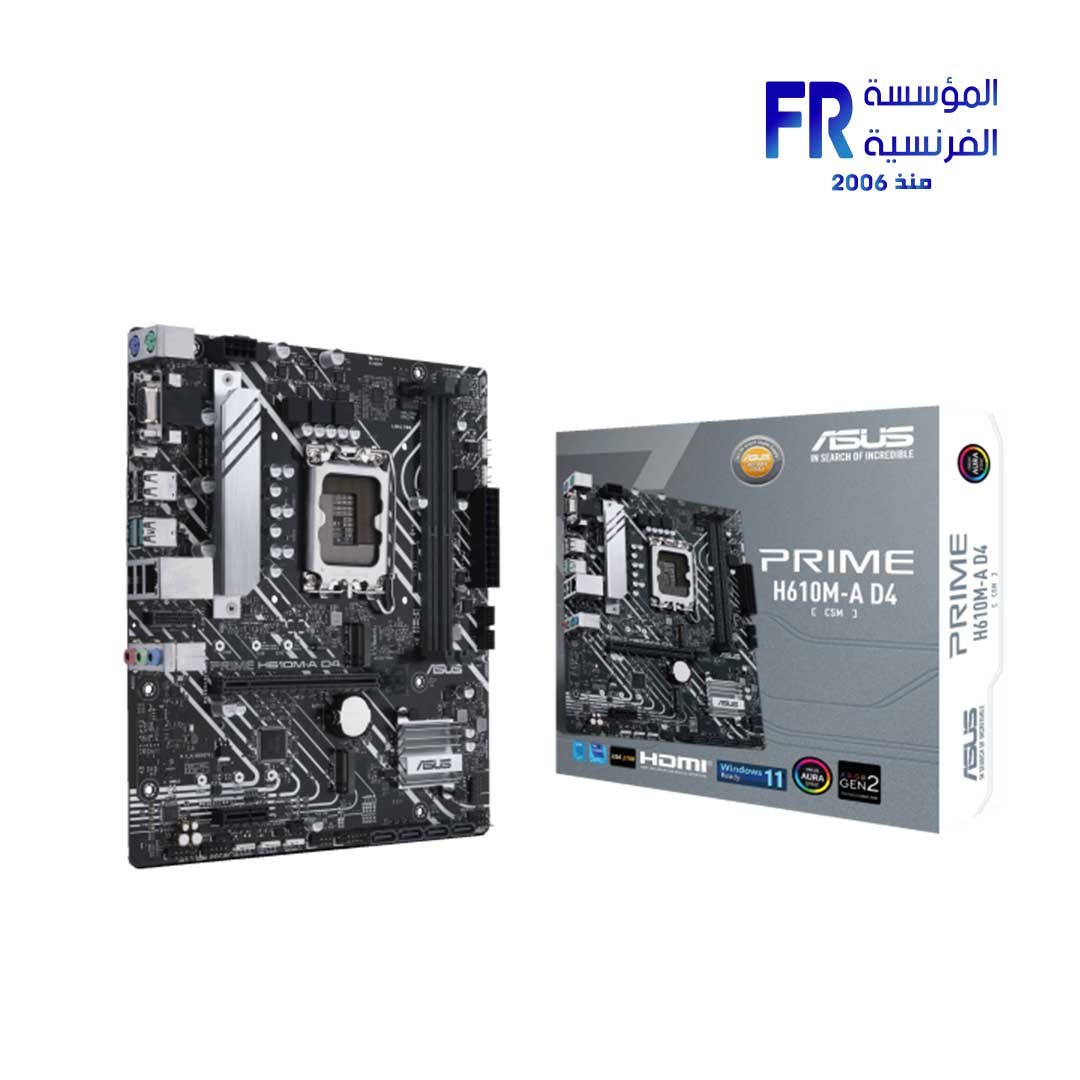

Asus Prime H610M-A D4 Csm Motherboard

Asus Prime H610M-A D4 اللوحات الأم

• PRIME H610M-A D4-CSM

  News & Updates

  2024/08/12: The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.

  CPU

  Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• * Refer to www.asus.com for CPU support list.

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset

  Intel® H610 Chipset

  Memory

  2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

• Dual Channel Memory Architecture

• Supports Intel® Extreme Memory Profile (XMP)

• * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

  Graphics

  1 x DisplayPort**

• 1 x D-Sub port

• 1 x HDMI® port***

• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• *** Supports 4K@60Hz as specified in HDMI 2.1.

  Expansion Slots

  Intel® Core™ Processors (14th & 13th & 12th Gen)

• 1 x PCIe 4.0 x16 slot

• Intel® H610 Chipset

• 1 x PCIe 3.0 x1 slot

  وحدات التخزين

  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

• Intel® H610 Chipset

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

• 4 x SATA 6Gb/s ports

• Ethernet

  1 x Intel® 1Gb Ethernet

  Wireless & Bluetooth

  V-M.2 slot only (Key E, CNVi & PCIe)*

• * Wi-Fi module is sold separately.

  USB

  Rear USB (Total 6 ports)

• 2 x USB 3.2 Gen 2 ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 5 ports)

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

• 2 x USB 2.0 headers support additional 3 USB 2.0 ports

  Audio

  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• – Supports up to 24-Bit/192 kHz playback

• Audio Features

• – Audio Shielding

• – Premium audio capacitors

• – Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

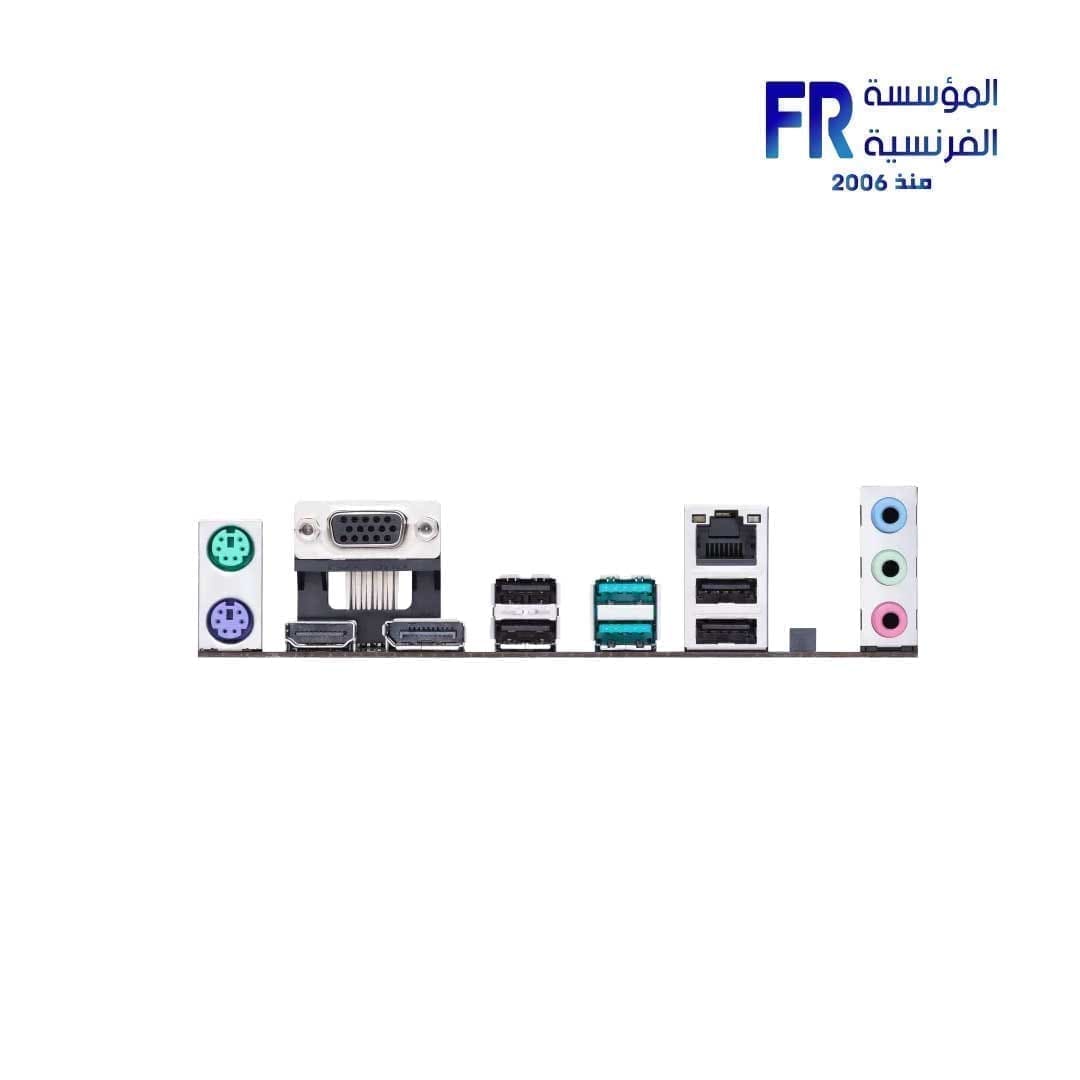

  Back Panel I/O Ports

  2 x USB 3.2 Gen 2 ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 1 x HDMI® port

• 1 x D-Sub port

• 1 x V-M.2 slot (Key E)

• 1 x Intel® 1Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 Keyboard (purple) port

• 1 x PS/2 Mouse (green) port

  Internal I/O Connectors

  Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 2 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• Storage related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

• 2 x USB 2.0 headers support additional 3 USB 2.0 ports

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 2 x AURA RGB headers

• 1 x Clear CMOS header

• 1 x Front Panel Audio header (AAFP)

• 1 x COM Port header

• 1 x S/PDIF Out header

• 1 x Speaker header

• 1 x SPI TPM header (14-1pin)

• 1 x 10-1 pin System Panel header

• Special Features

  ASUS 5X PROTECTION III

• – DIGI+ VRM

• – LANGuard

• – Overvoltage Protection

• – SafeSlot Core

• – Stainless-Steel Back I/O

• ASUS Q-Design

• – Q-DIMM

• – Q-Slot

• ASUS Thermal Solution

• – VRM heatsink design

• AURA Sync

• – AURA RGB headers

• – Addressable Gen 2 headers

  Software Features

  ASUS Exclusive Software

• Armoury Crate

• – AURA Creator

• – AURA Sync

• – Fan Xpert 2+

• AI Suite 3

• – Performance And Power Saving Utility

• TurboV EVO

• EPU

• DIGI+ VRM

• ASUS CPU-Z

• IT Management software supported

• – ASUS Control Center Express(ACCE)

• Norton Anti-virus software (Free Trial version)

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• – ASUS CrashFree BIOS 3

• – ASUS EZ Flash 3

• – ASUS UEFI BIOS EZ Mode

  BIOS

  128 Mb Flash ROM, UEFI AMI BIOS

  Manageability

  WOL by PME, PXE

  Accessories

  Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x I/O Shield

• 1 x M.2 SSD screw package

• Installation Media

• 1 x Support DVD

• Documentation

• 1 x ACC Express Activation Key Card

• 1 x User guide

  Operating System

  Windows® 11 64-bit, Windows® 10 64-bit

  Form Factor

  mATX Form Factor

• 9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
