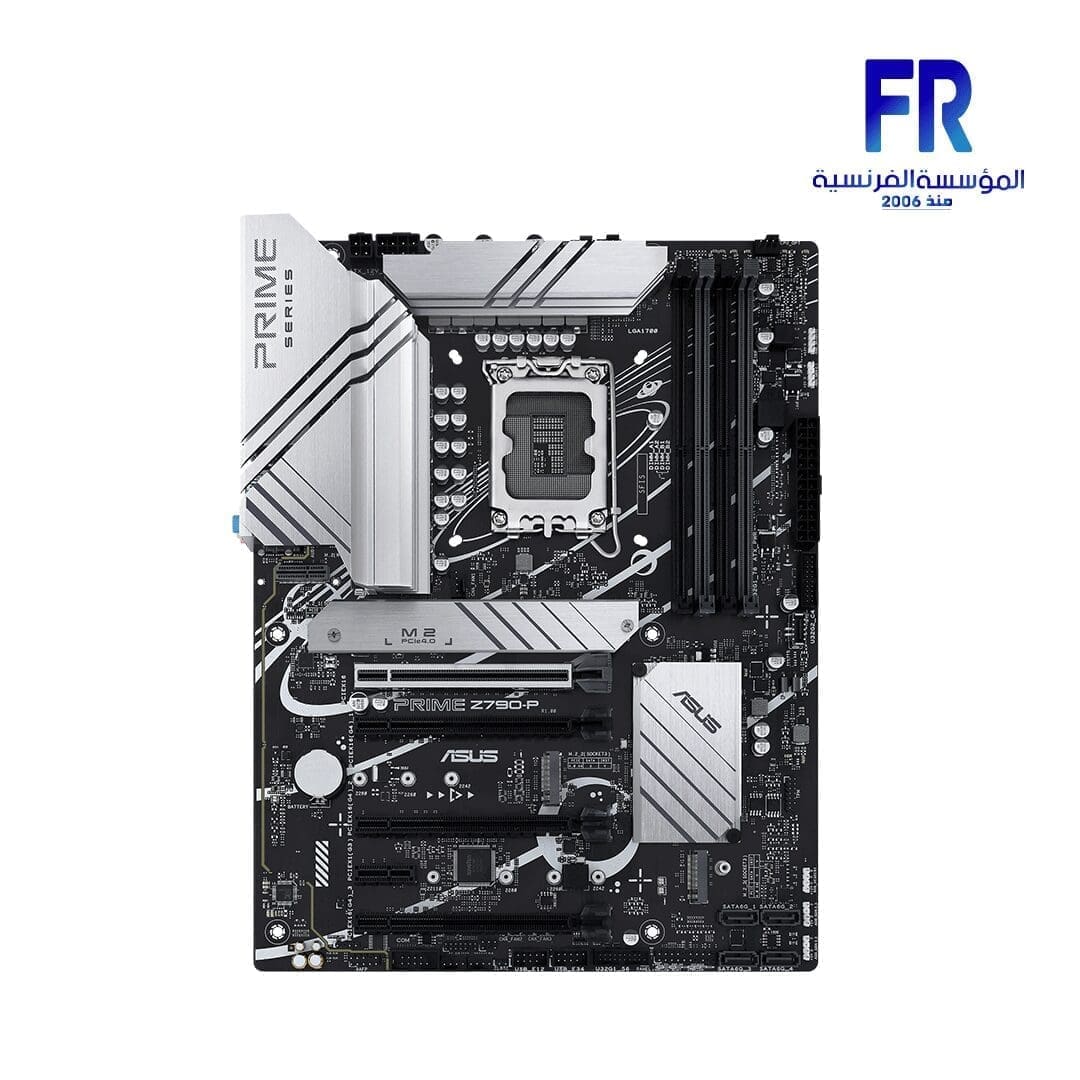

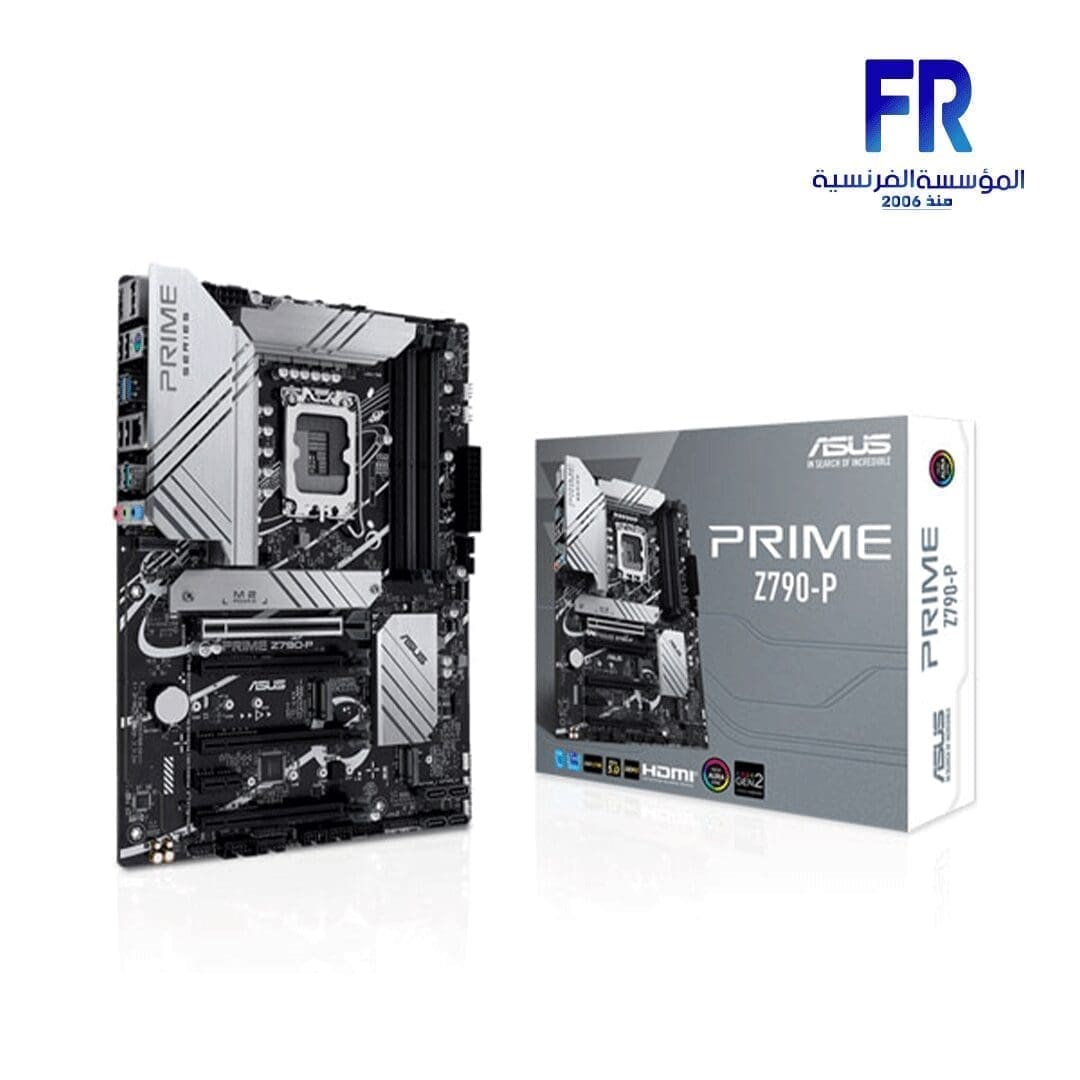

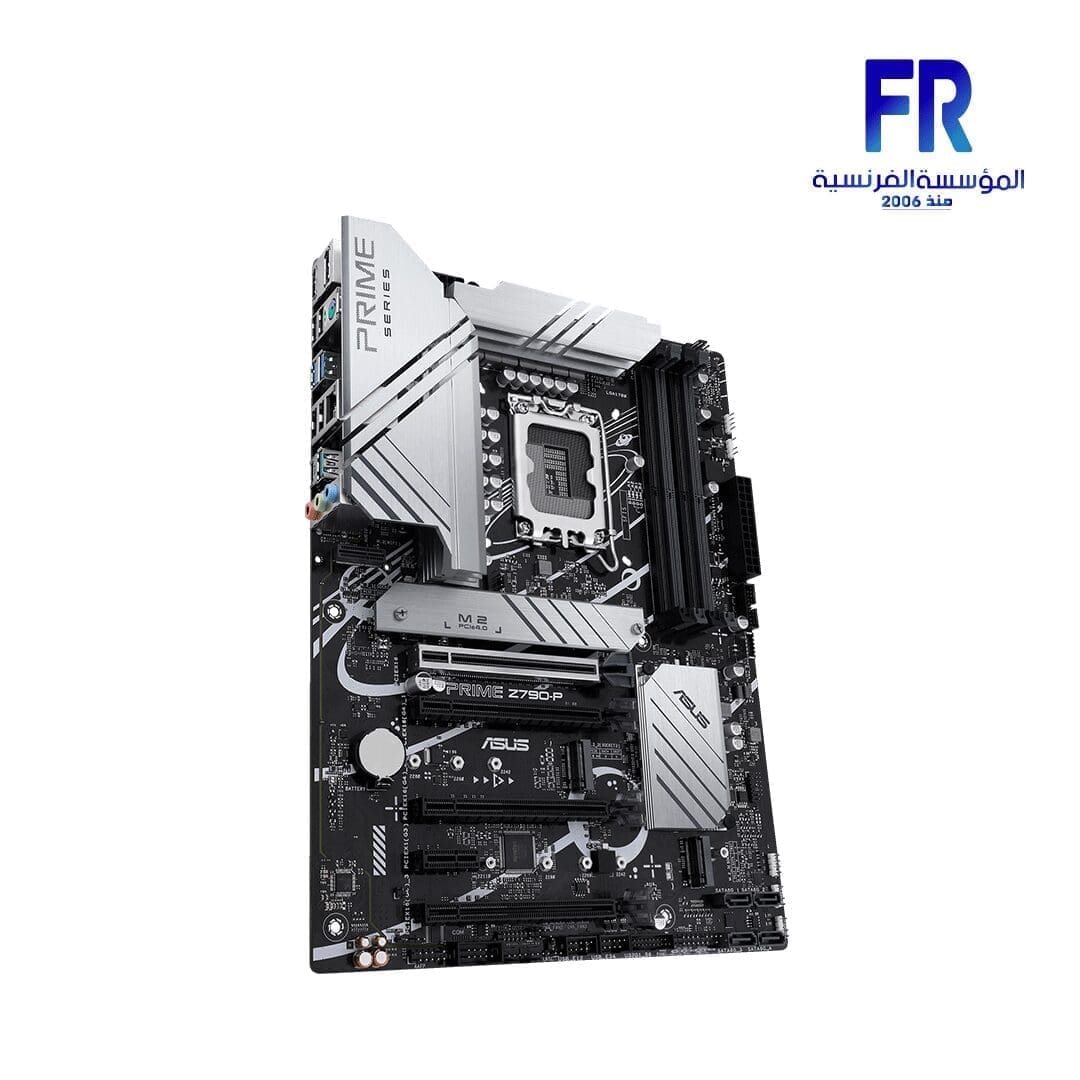

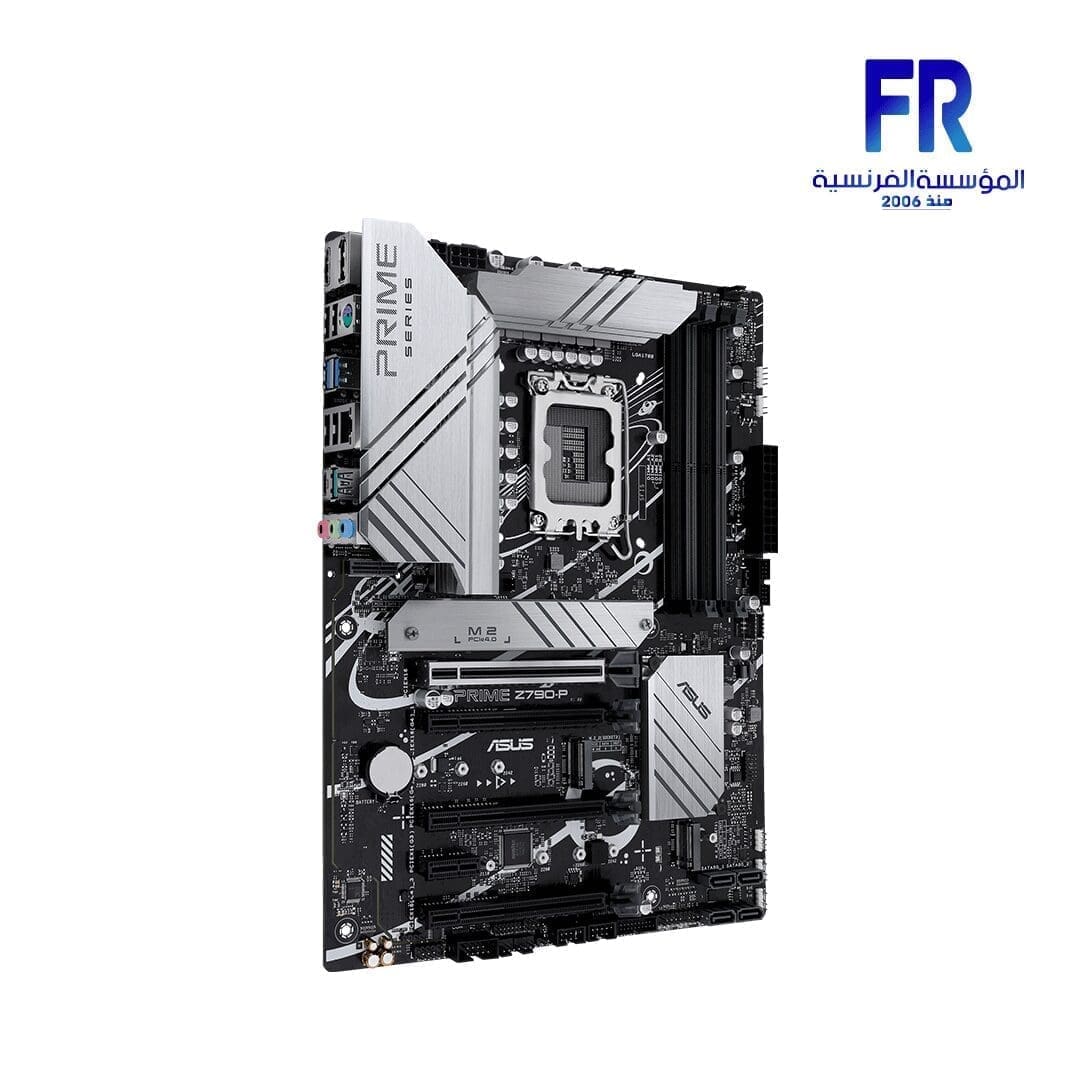

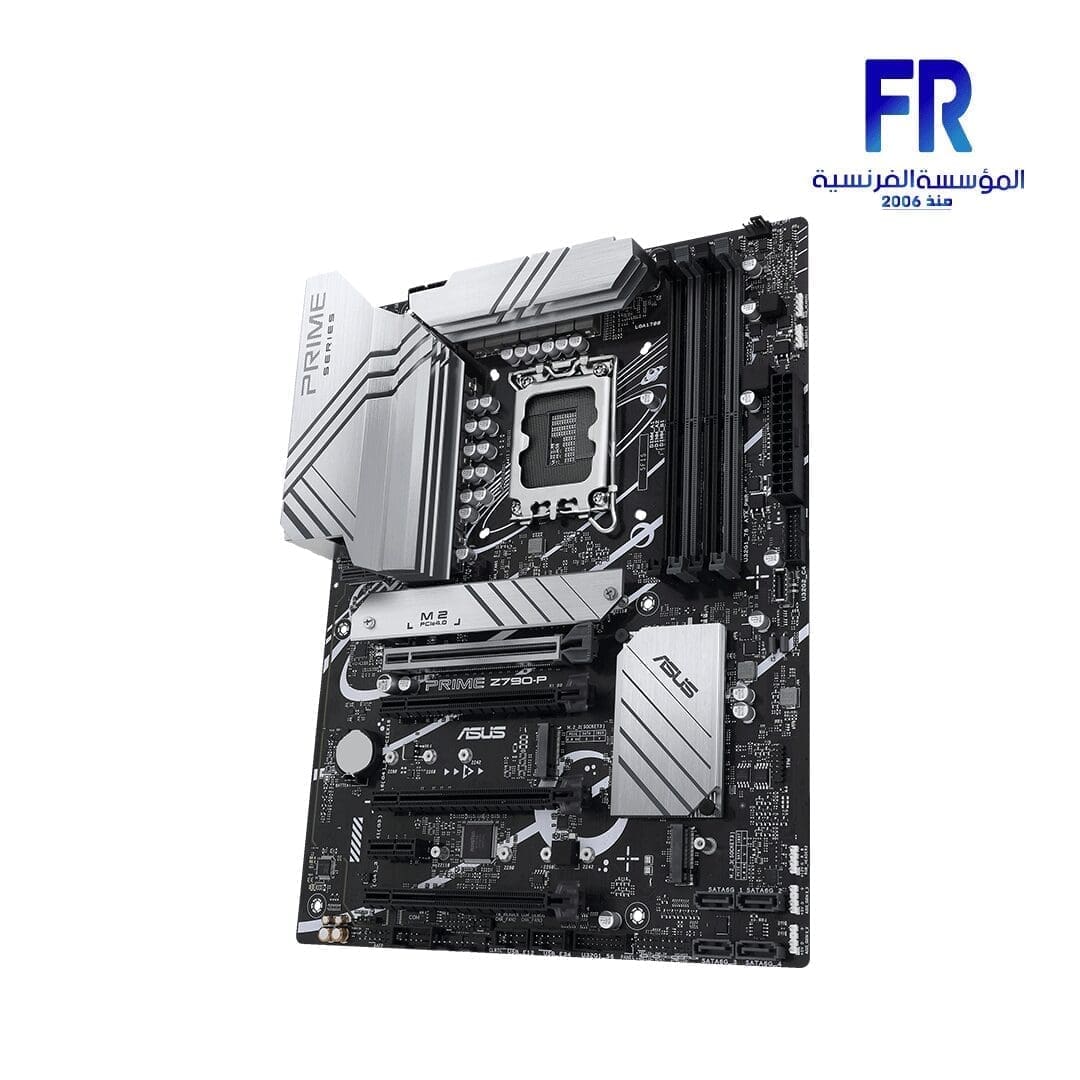

Asus Prime Z790 P DDR5 Motherboard
11500 جنيه
ASUS Prime Z790-P-CSM, an Intel Z790 LGA 1700 ATX
motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS,
DDR5, Realtek 2.5 Gb LAN, HDMI®, DP, USB 3.2 Gen 2×2 Type-C®,
front USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®)
مش متوفر دلوقتي… بس البديل عندنا
فريق مبيعاتنا هيرشحلك بديل متوفر بنفس المستوى أو أعلى، وبأفضل سعر، على واتساب على طول.
تواصل مع فريق مبيعاتنا للحصول على البديلغير متوفر حالياً
هل تريد أن يتم إخطارك عندما يتوافر هذا المنتج في المخزون مجددًا؟
بدائل متوفرة دلوقتي
PRIME Z790-P 13th Gen Intel ATX Motherboard from ASUS
THE LATEST ADDITION TO THE PRIME SERIESASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. The PRIME Z790-P motherboard features DDR5, PCIe 5.0 support, 2.5Gb Ethernet, DisplayPort, HDMI, USB 3.2 Gen 2 and Aura Sync. Boasting robust power design, comprehensive cooling solutions and intelligent tuning options, users and PC DIY builders are provided with a range of performance optimisations via intuitive software and firmware features.
LGA 1700Intel Socket
Z790Chipset
13th Gen Intel CoreProcessors
ATXForm Factor
Outstanding Performance
BOOST YOUR PRODUCTIVITYThe PRIME Z790-P motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
AEMP II FOR ULTIMATE DDR5 PERFORMANCEASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimised clock speed that can effortlessly unleash performance.
Intelligent Control
FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
ALL-AROUND ENERGY EFFICIENCYThe Power Saving function contains several settings can easily optimise power consumption and maximise energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Is your Windows Genuine?Many copies of Windows operating systems bought from unofficial channels like auction websites are not Genuine, even if they have allowed you to upgrade to newer versions. Buying a Genuine copy from an authorised reseller like Scan ensures you will get the latest updates, security patches and support from Microsoft.
Cooler by Design
CONFIGURABLE COOLINGPRIME Z790-P features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
MULTIPLE TEMPERATURE SOURCESEach header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimise cooling for GPU- and CPU-intensive tasks.
VRM HEATSINKS AND THERMAL PADSThe extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.
ASUS PRIME Z790 P
Add A Personal Touch
AURA SYNCA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
STATIC
BREATHING
STROBING
RAINBOW
COLOUR CYCLE
STARRY NIGHT
MUSIC EFFECT
SMART
Advanced Configuration Options
UEFI BIOSThe renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
ADVANCED TUNING FOR SERIOUS TWEAKERSAn intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performfvance just the way you want.
Lightning Fast Connectivity
1 – HDMI®
2 – DisplayPort
3 – 2 x USB 2.0 ports (Type-A)
4 – Keyboard/Mouse Combo
5 – 2 x USB 3.2 Gen 1 ports (Type-A)
6 – 2 x USB 2.0 ports (Type-A)
7 – Realtek 2.5Gb Ethernet
8 – 1 x USB 3.2 Gen 2×2 Type-C®
9 – 1 x USB 3.2 Gen 2 port (Type-A)
10 – 3 x Audio Jacks
11 – 1 x Vertical M.2 slot (Key E)
CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x HDMI® port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
– To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
وحدات التخزين
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet
Wireless & Bluetooth
*Wi-Fi module is sold separately.
USB
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
* USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x Vertical M.2 slot (Key E)
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
1 x 4-pin AIO Pump header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt™ (USB4®) Header
Special Features
– DIGI+ VRM (- Digital power design with DrMOS)
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-Slot
– Q-LED Core
ASUS Thermal Solution
– Flexible M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB headers
– Addressable Gen 2 headers
Software Features
Armoury Crate
– Aura Sync
– Fan Xpert 4 (with AI Cooling II)
– Power Saving
AI Suite 3
-TurboV EVO
-PC Cleaner
-DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS
Manageability
Accessories
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
Documentation
1 x User guide
Operating System
Form Factor
12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
