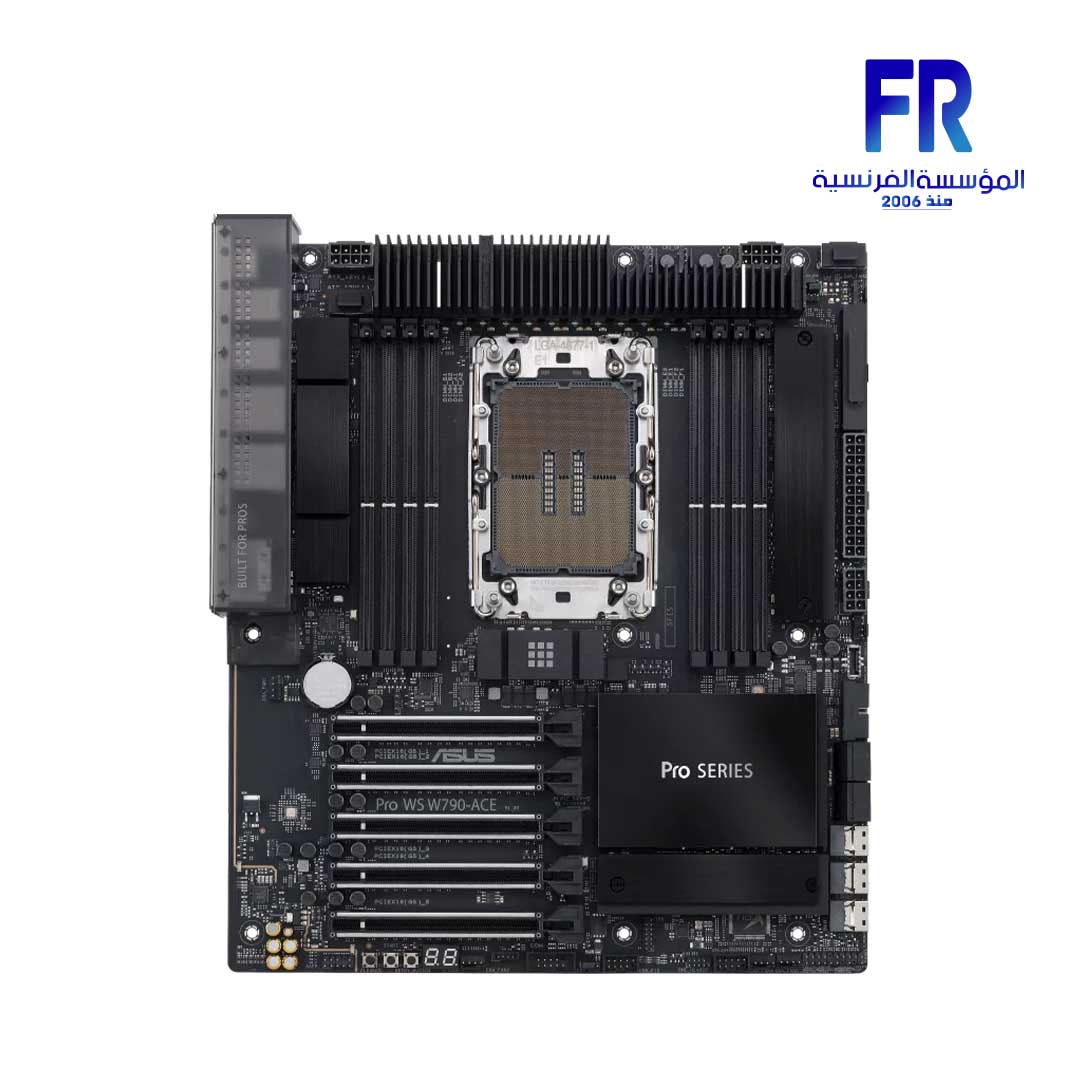

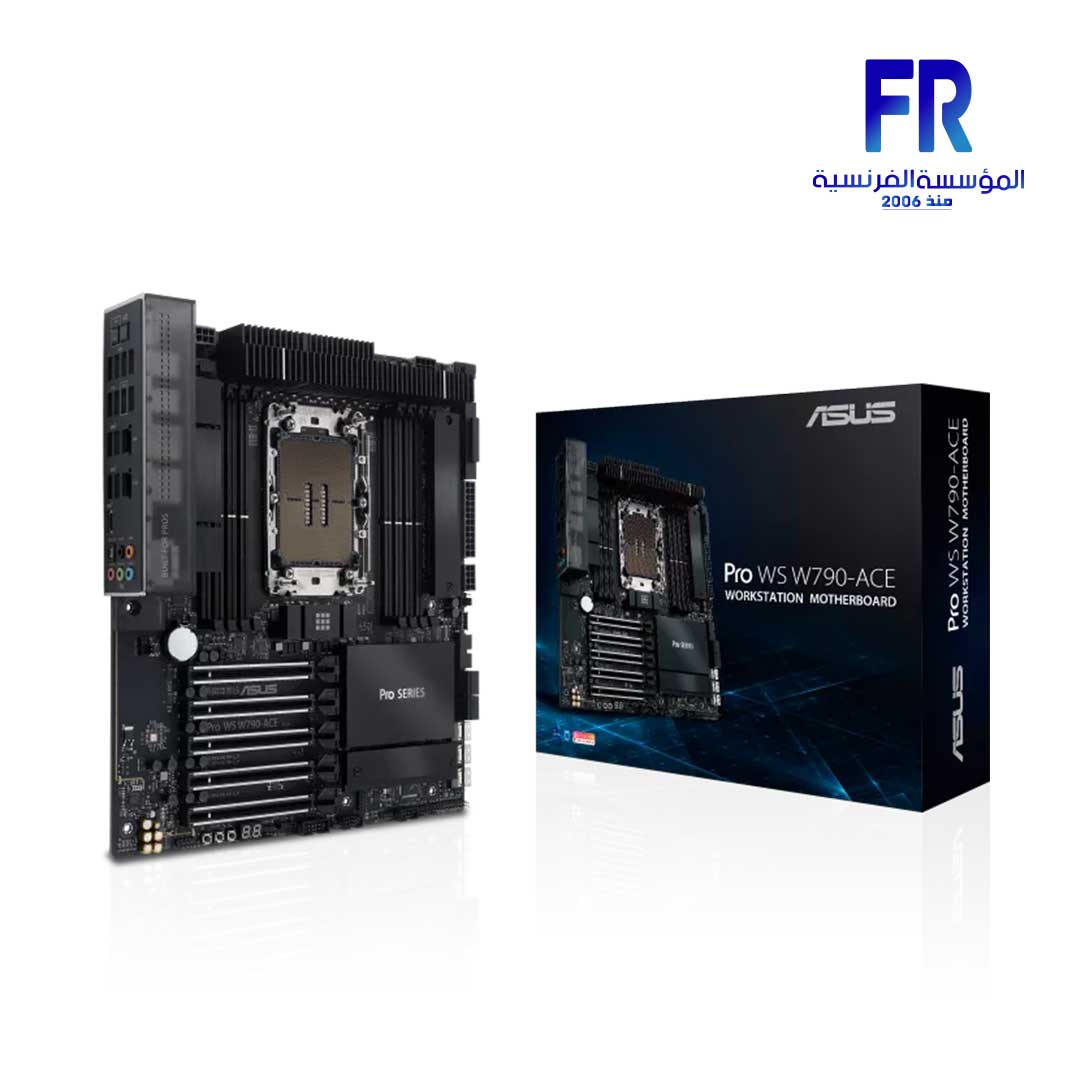

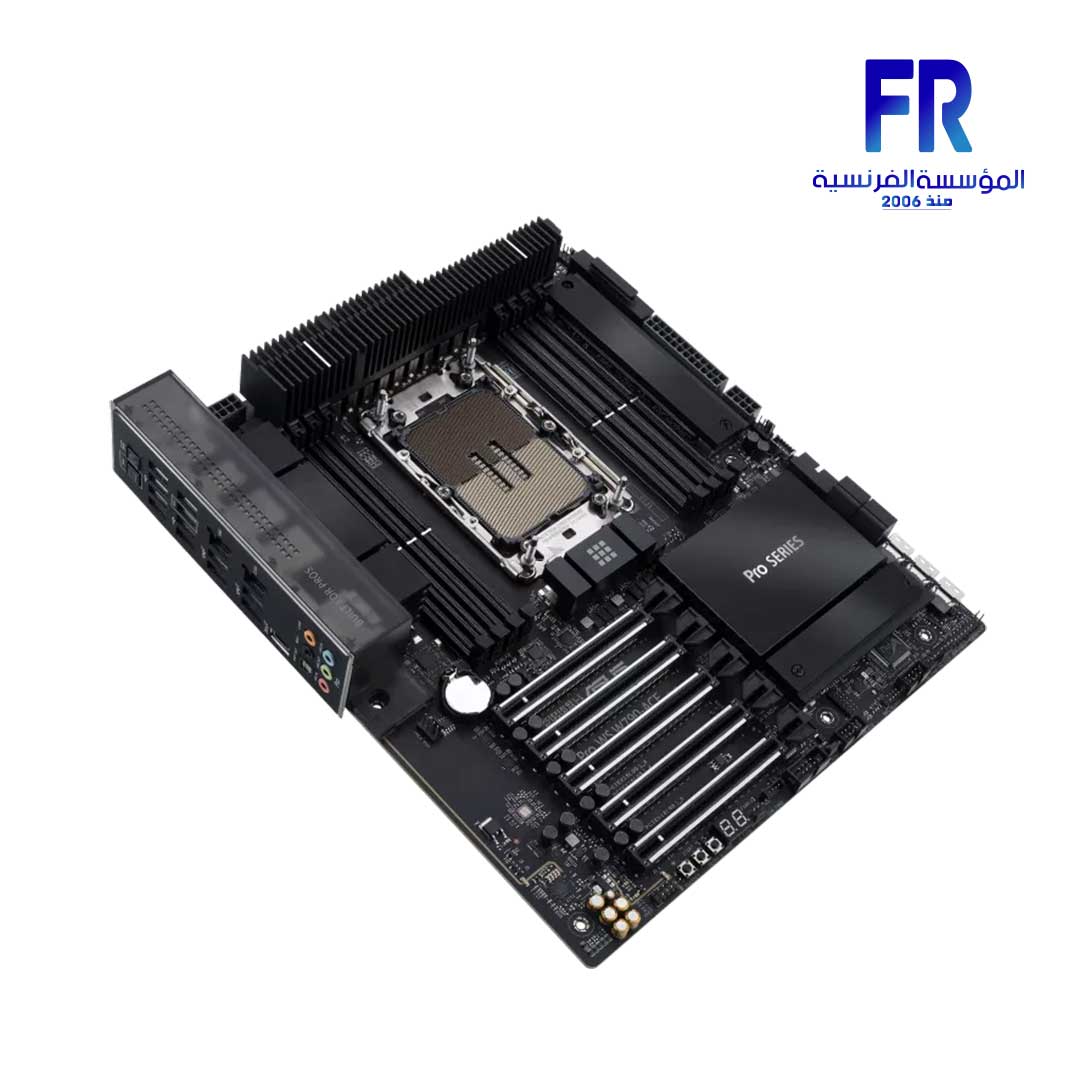

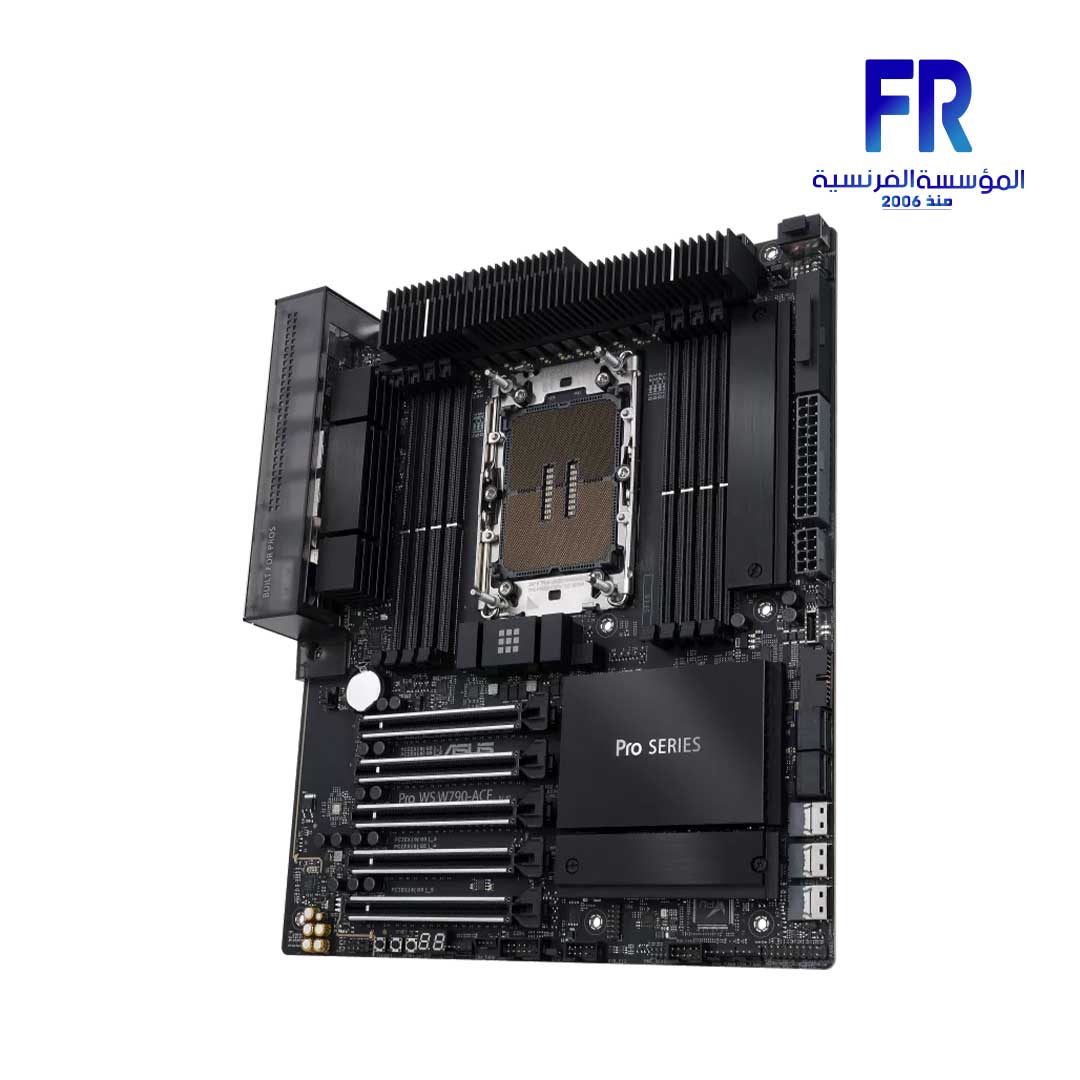

اسوس Pro WS W790 ACE Intel LGA 4677 CEB workstation motherboard

• CPU

  Intel^® Socket LGA4677 for Xeon^® W-3400 and W-2400 Series Processors*
  Supports Intel^® Turbo Boost Max Technology 3.0
  * Refer to www.asus.com for CPU support list.

• Chipset

  Intel^® W790 Chipset

• Memory

  8 x DIMM slots, Max. 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory*
  Quad Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
  configuration, for more information please refer to CPU/Memory Support under the Support tab or visit  https://www.asus.com/support/

• Expansion Slots

  Intel® Xeon™ W-3400 and W-2400 Series Processors
  5 x PCIe 5.0 x16 slot(s) (supports x16, x16, x16, x0/x8, x16/x8 modes)
  * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
  peripherals.

• Storage

  Total supports 2 x M.2 slots, 4 x SATA 6Gb/s ports and 3 x SlimSAS ports*
  Intel® W790 Chipset**
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  SlimSAS_1 slot supports  PCIe 3.0 x4 mode NVMe device
  SlimSAS_2 slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is perchased seperately.
  SlimSAS_3 slot supports  PCIe 4.0 x4 mode NVMe device
  4 x SATA 6Gb/s ports*
  * Supports Intel® Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (Intel®VMD)
  ** Intel® VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC HW_Key is purchased separately.

• Ethernet

  1 x Marvell® AQtion 10Gb Ethernet
  1 x Intel® 2.5Gb Ethernet
  ASUS LANGuard

• USB

  Rear USB (Total 13 ports)
  1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
  4 x USB 3.2 Gen 2 port(s) (4 x Type-A )
  8 x USB 2.0 port(s) (8 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 2×2 (supports USB Type-C®)
  1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

• Audio

  Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
  – Impedance sense for front and rear headphone outputs
  – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  – Supports up to 32-Bit/192 kHz playback*
  Audio Features
  – Power pre-regulator reduces power input noise to ensure consistent performance
  – Rear optical S/PDIF out port
  – Premium audio capacitors
  – Dedicated audio PCB layers
  – Unique de-pop circuit
  * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1
  Surround Sound audio.

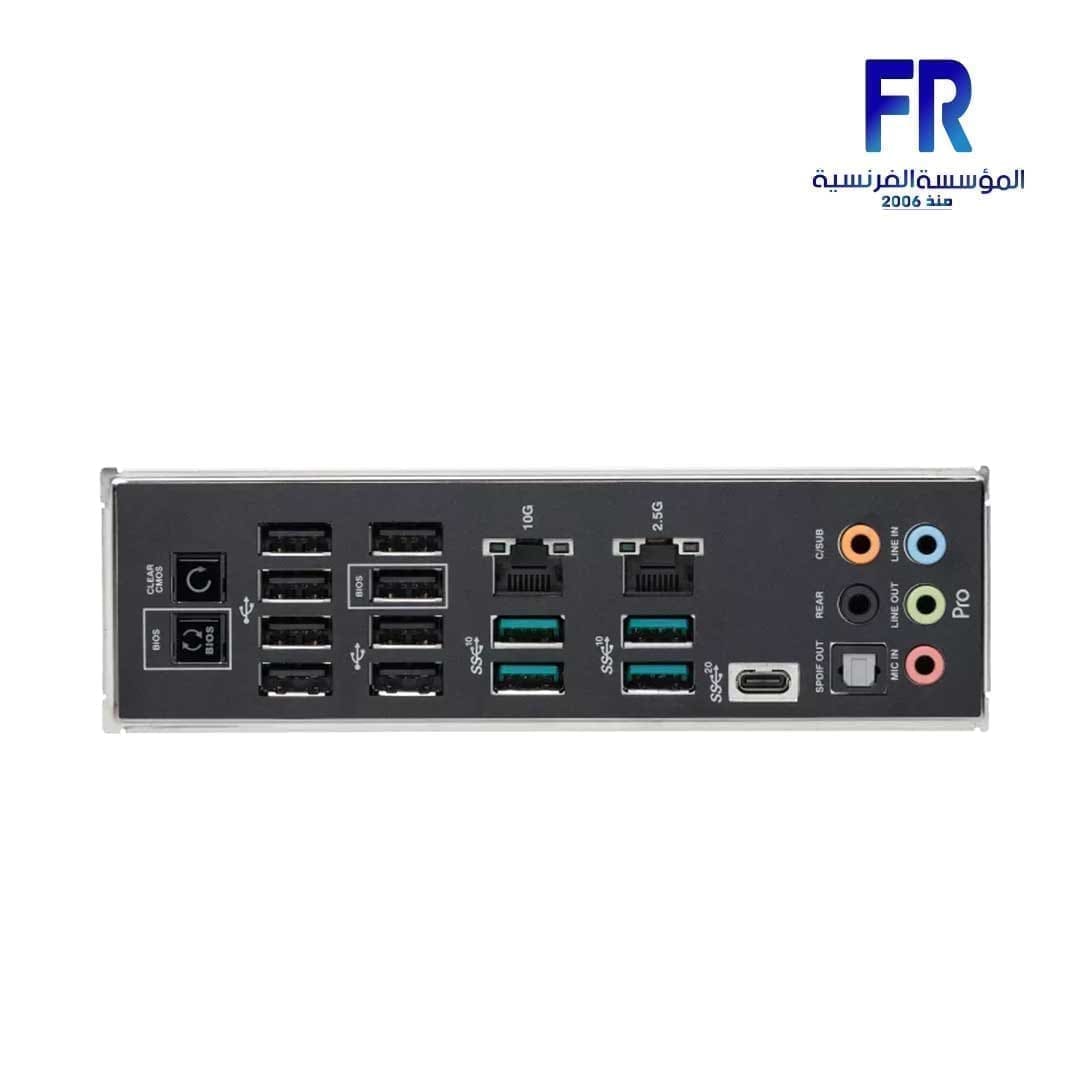

• Back Panel I/O Ports

  1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
  4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
  8 x USB 2.0 port(s) (8 x Type-A)
  1 x Marvell® AQtion 10Gb Ethernet port
  1 x Intel® 2.5Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™  button
  1 x Clear CMOS button

• Internal I/O Connectors

  Fan and Cooling related
  1 x 4-pin CPU Fan header(s)
  1 x 4-pin CPU OPT Fan header(s)
  5 x 4-pin Chassis Fan header(s)
  1 x W_PUMP+ header(s)
  Power related
  2 x 24-pin Main Power connector
  4 x 8-pin +12V Power connector
  1 x 8-pin PCIe Power connector
  Storage related
  2 x M.2 slots (Key M)
  3 x SlimSAS slots
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2×2 connector (support(s) USB Type-C® )
  1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
  Miscellaneous
  1 x BMC header
  1 x COM Port header
  1 x FlexKey button
  1 x Front Panel Audio header (AAFP)
  1 x LN2 Mode jumper
  1 x ReTry button
  1 x Start button
  1 x SPI TPM header (14-1pin)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thermal Sensor header
  1 x VROC Key header

• Special Features

  Extreme OC Kit
  – FlexKey button
  – ReTry button
  – Start button
  ASUS 5X PROTECTION III
  – DIGI+ VRM (- Digital power design with DrMOS)
  – ESD Guards
  – LANGuard
  – Overvoltage Protection
  – Safeslot
  – Stainless-Steel Back I/O
  ASUS Q-Design
  – M.2 Q-Latch
  – Q-Code
  – Q-Connector
  – Q-DIMM
  – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  – Q-Slot
  ASUS Thermal Solution
  – M.2 heatsink backplate
  – M.2 heatsink
  – VRM heatsink design
  ASUS EZ DIY
  – BIOS FlashBack™ button
  – BIOS FlashBack™ LED
  – Clear CMOS button
  – ProCool II
  – Pre-mounted I/O shield
  – SafeSlot
  – SafeDIMM
  Bespoke Motherboard Design & Business Focused Features
  – 24/7 Reliability
  – Overcurrent Protection

• Software Features

  ASUS Exclusive Software
  Armoury Crate
  – Fan Xpert 4
  AI Suite 3
  – TPU
  – DIGI+ VRM
  – Turbo app
  – PC Cleaner
  ASUS CPU-Z
  IT Management software supported
  – ASUS Control Center Express(ACCE)
  Adobe Creative Cloud (Free Trial)
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  – ASUS CrashFree BIOS 3
  – Start ASUS EzFlash
  FlexKey

• BIOS

  512 Mb Flash ROM, UEFI AMI BIOS

• Manageability

  WOL by PME, PXE (UEFI mode)

• Accessories

  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x Q-connector
  1 x M.2 Rubber Package(s)
  1 x M.2 backplate Rubber Package(s)
  1 x CPU guard for LGA 4677 E1A
  1 x CPU guard for LGA 4677 E1B
  Documentation
  1 x ACC Express Activation Key Card
  1 x User guide

• Operating System

  Windows^® 11, Windows^® 10 64-bit

• Form Factor

  CEB Form Factor
  12 inch x 10.5 inch (30.5 cm x 26.67 cm)
