Asus Rog Strix B860 F Gaming Wifi Motherboard
15500 جنية
- Motherboard Type: ATX
- CPU Series: Core Ultra (Series 2)
- Technology: DDR5
- Max Memory Size: 256GB
- Memory Slots: 4
- PCI-E x16: Yes
- PCI-E Gen: PCIe 5.0
- PCI-E Slots (M.2): 4
- SATA III: 4x SATA 6.0 Gb/s
- Communication Module: Bluetooth, Wireless
- Part Number: 90MB1JG0-M0EAY0
متوفر في المخزون
Asus Rog Strix B860 F Gaming Wifi اللوحه الام
Asus Rog Strix B860 F Gaming Wifi Motherboard specs:
CPU |
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2) |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| *Refer to ASUS Support for CPU support list. | |
| ** Support for Intel® Turbo Boost Max Technology 3.0 depends on CPU type. | |
Chipset |
Intel® B860 Chipset |
Memory |
4 x DIMM slots, max. 256GB, DDR5 |
| Supports up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) | |
| Dual channel memory architecture | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| ASUS Enhanced Memory Profile III (AEMP III) | |
Graphics |
1 x DisplayPort (8K@60Hz with DSC, DP 1.4) |
| 1 x HDMI™ (8K@60Hz with DSC, HDMI 2.1) | |
| 1 x Intel® Thunderbolt™ 4 (USB Type-C®, supports DisplayPort and Thunderbolt™ video outputs) | |
Expansion Slots |
Intel® Core™ Ultra Processors (Series 2) |
| 1 x PCIe 5.0 x16 slot (supports x16 mode) | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
Storage |
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| M.2_1 (PCIe 5.0 x4 mode) | |
| M.2_2, M.2_3, M.2_4 (PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
Ethernet |
1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
Wireless & Bluetooth |
Wi-Fi 7 (2×2, up to 2.9Gbps), Bluetooth® v5.4 |
USB Ports |
Rear: 1 x Thunderbolt™ 4 (USB Type-C®), 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 6 x USB 5Gbps (Type-A) |
| Front: 1 x USB 10Gbps (USB Type-C®), 1 x USB 5Gbps header (supports 2 USB 5Gbps ports), 2 x USB 2.0 headers (supports 3 USB 2.0 ports) | |
Audio |
ROG SupremeFX 7.1 Surround Sound, ALC4080 Codec, Savitech SV3H712 AMP, 120dB SNR stereo playback |

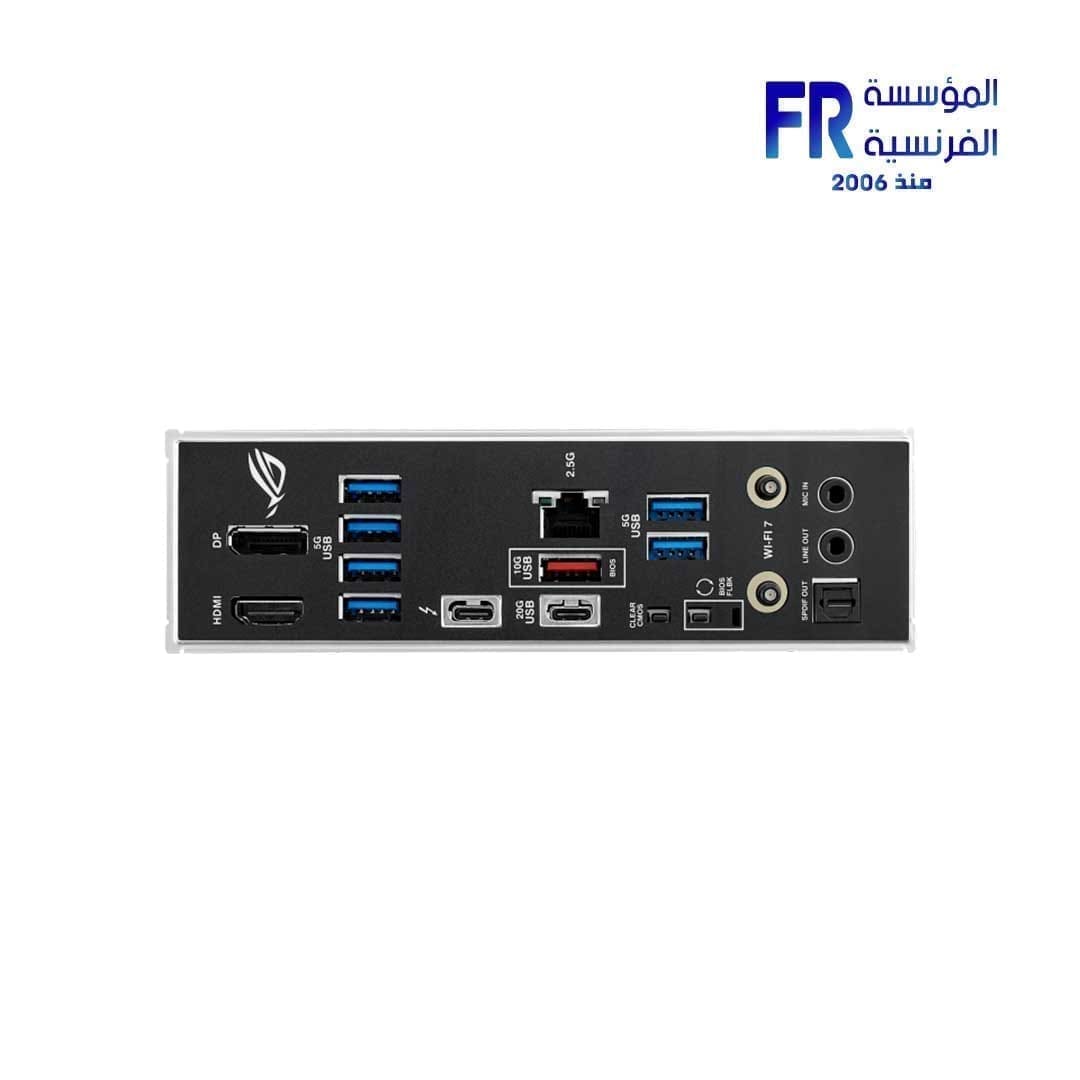

Back Panel I/O |
1 x Thunderbolt™ 4 (USB Type-C®), 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 6 x USB 5Gbps (Type-A), 1 x DisplayPort, 1 x HDMI™, 1 x Intel® 2.5Gb Ethernet, 1 x Wi-Fi module, 2 x audio jacks, 1 x Optical S/PDIF out, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
Internal I/O |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan, 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power, 4 x M.2 slots, 4 x SATA 6Gb/s ports |
Special Features |
Extreme Engine Digi+, Q-Design, Thermal Solution, EZ DIY, Aura Sync |
Software |
ROG CPU-Z, Dolby Atmos, Armoury Crate, Aura Creator, Fan Xpert 4, GameFirst, ASUS Driver Hub, AIDA64 Extreme (60 days trial), Norton 360 for Gamers (60 days trial), WinRAR (40 days trial) |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Accessories |
2 x SATA 6Gb/s cables, ASUS Wi-Fi Q-Antenna, M.2 Q-Latch package, ROG key chain, ROG Strix stickers, M.2 rubbers, Quick start guide |
Operating System |
Windows® 11 (22H2 & later) |
Form Factor |
ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
