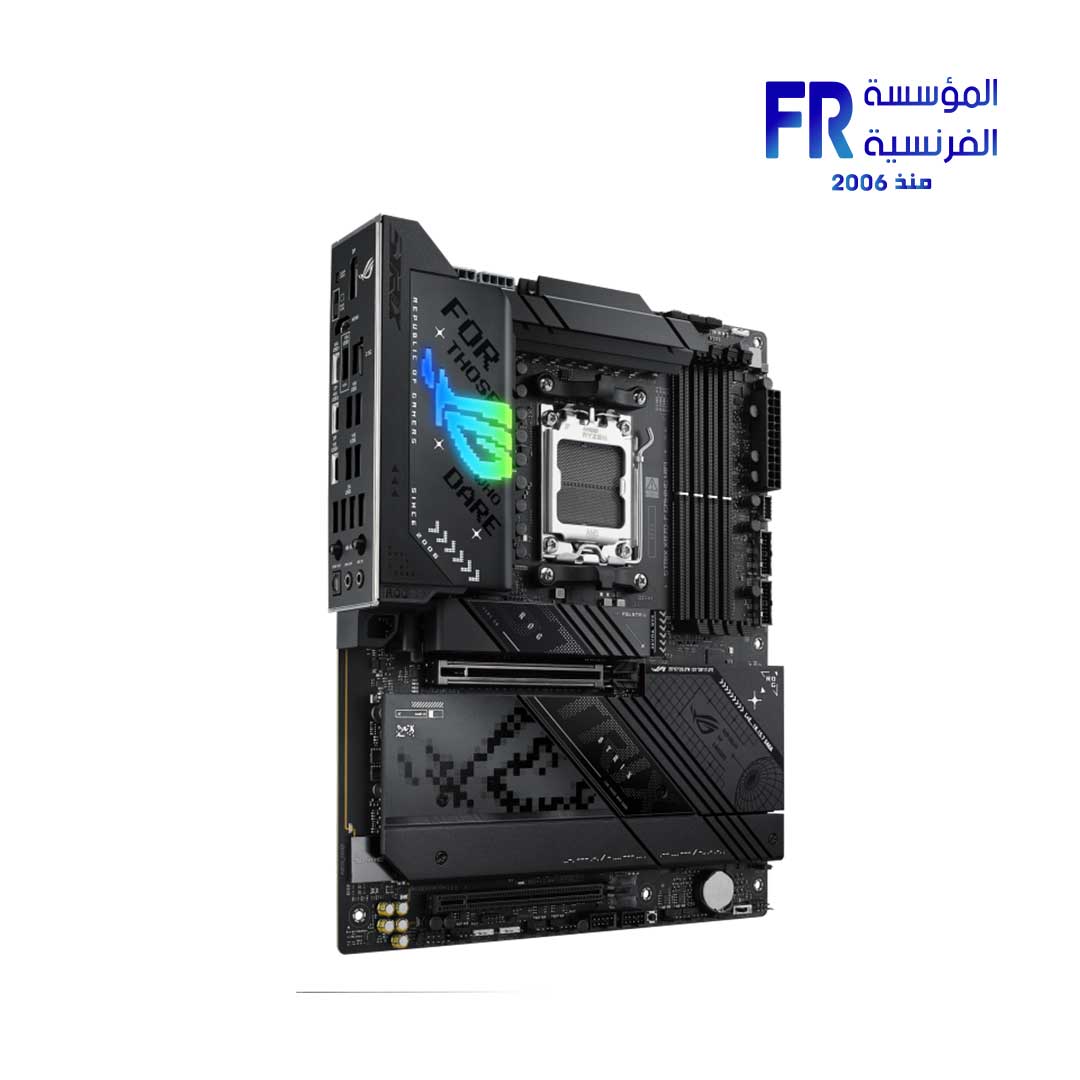

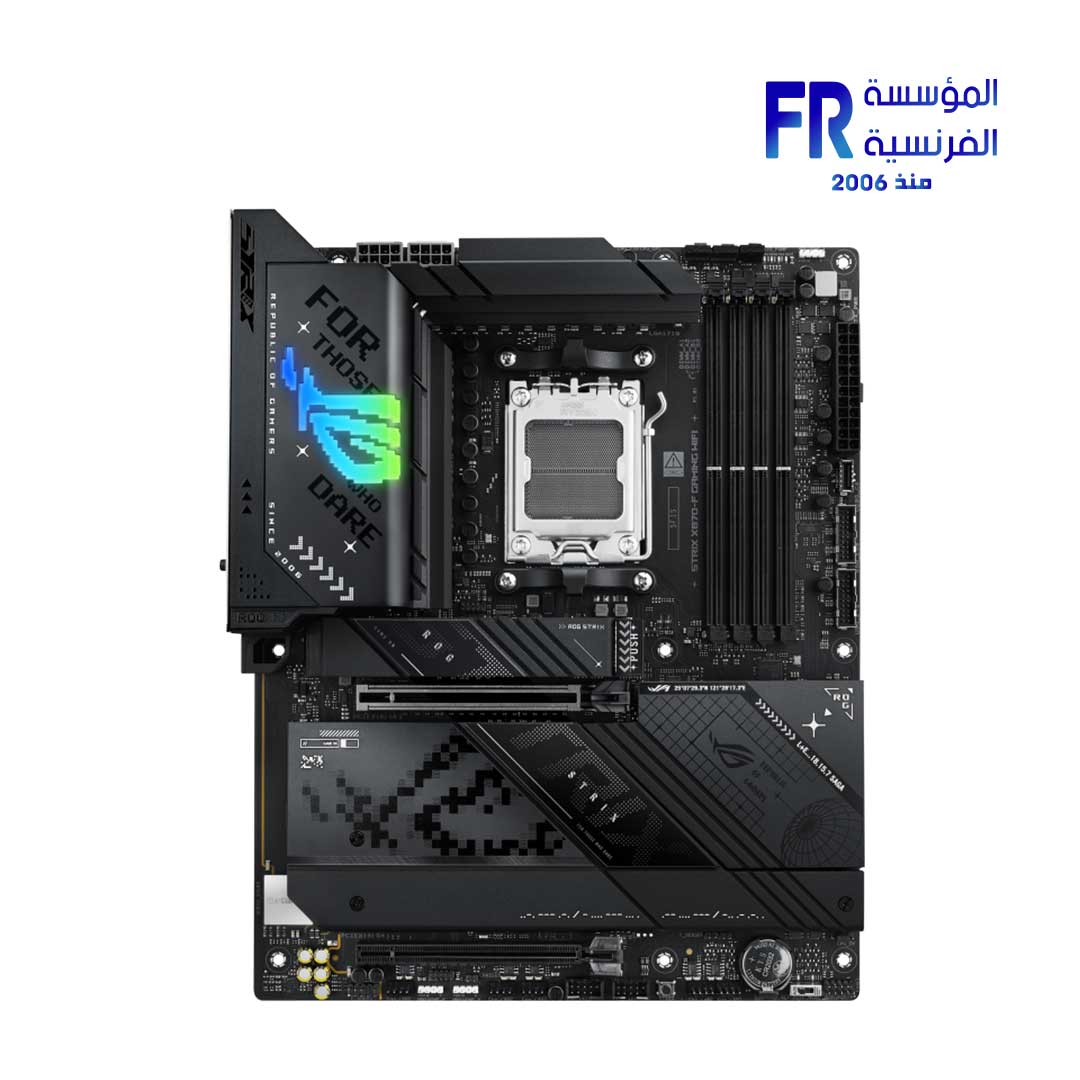

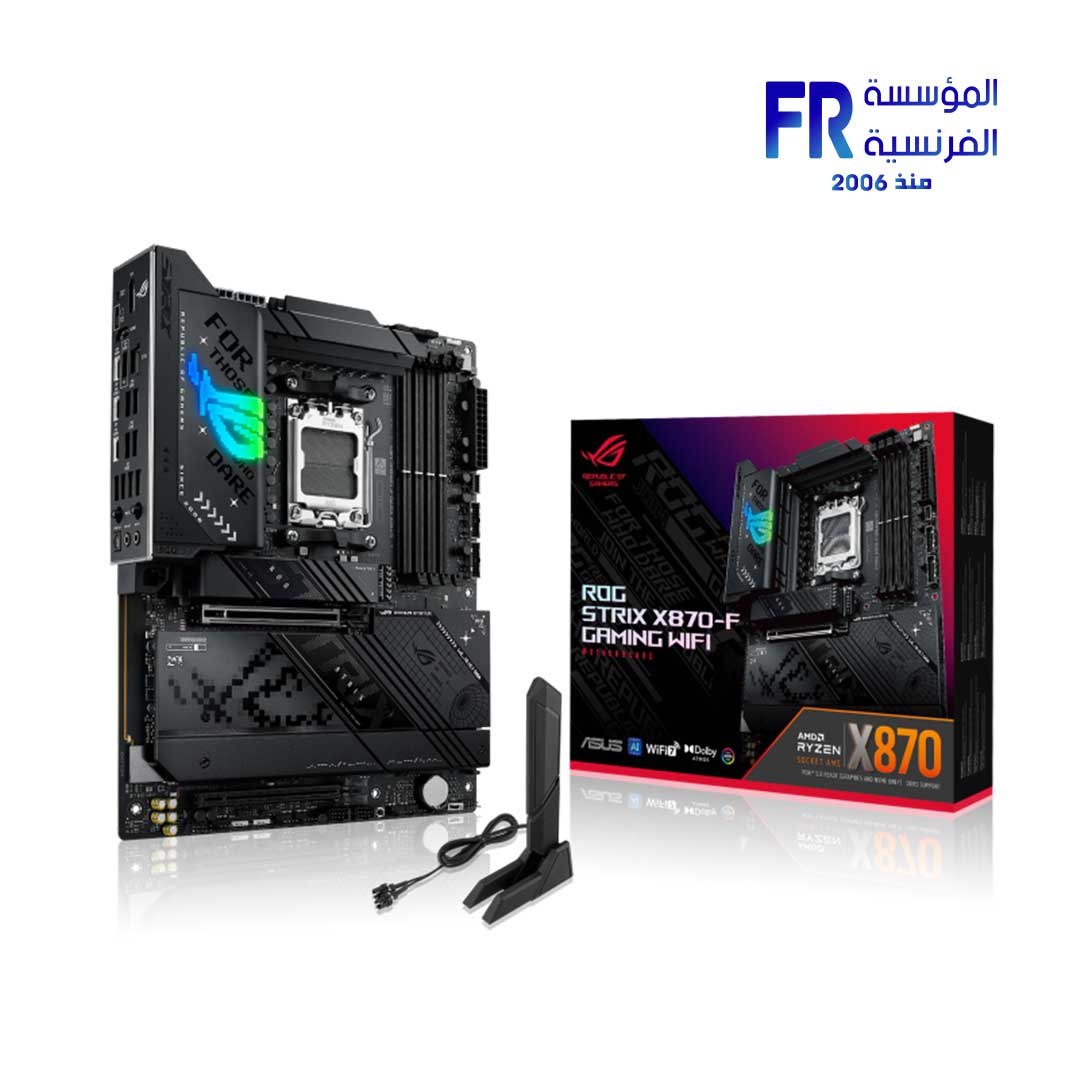

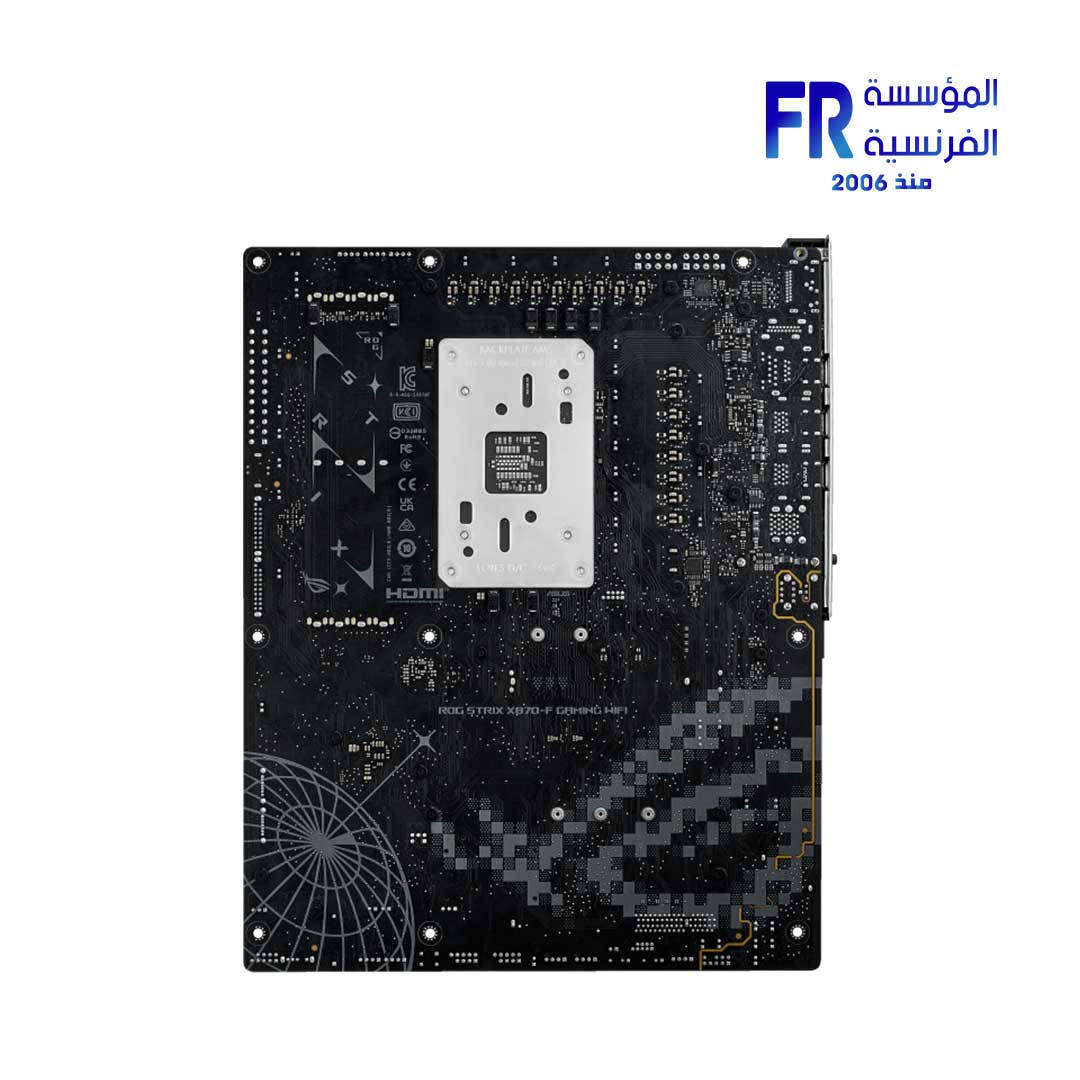

Asus Rog Strix X870 F Gaming Wifi Motherboard
21999 جنيه
- سوكت المعالج: AM5
- شريحة اللوحة الأم: X870
- Motherboard Type: ATX
- سلسلة المعالج: AMD Ryzen 7000 Series, Ryzen 8000 Series, Ryzen 9000 Series Processors
- Technology: DDR5
- Memory Speed: up 8000 MHz
- Max Memory Size: 256GB
- Memory Slots: 4
- PCI-E Gen: PCIe 5.0
- PCI-E Slots (M.2): 4
- SATA III: 2 x SATA 6Gb/s
- Communication Module: Bluetooth, Wireless
- Part Number: 90MB1IV0-M0EAY0
متوفر في المخزون
ضمان مطابقة السعرAsus Rog Strix X870 F Gaming Wifi اللوحات الأم
Asus Rog Strix X870 F Gaming Wifi Motherboard specs:
| Specification | Details |
|---|---|
CPU |
AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list. |
Chipset |
AMD X870 |
Memory |
4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. |
Graphics |
1 x DisplayPort (Supports max. 8K@30Hz as specified in DisplayPort 1.4.) 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1.) 2 x USB4® (40Gbps) ports support USB Type-C® display outputs. |
Expansion Slots |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode). |
وحدات التخزين |
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode). AMD Ryzen™ 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supported). |
Ethernet |
Intel 2.5Gb Ethernet, ASUS LANGuard |
Wireless & Bluetooth |
Wi-Fi 7, Bluetooth v5.4 |
Rear USB Ports |

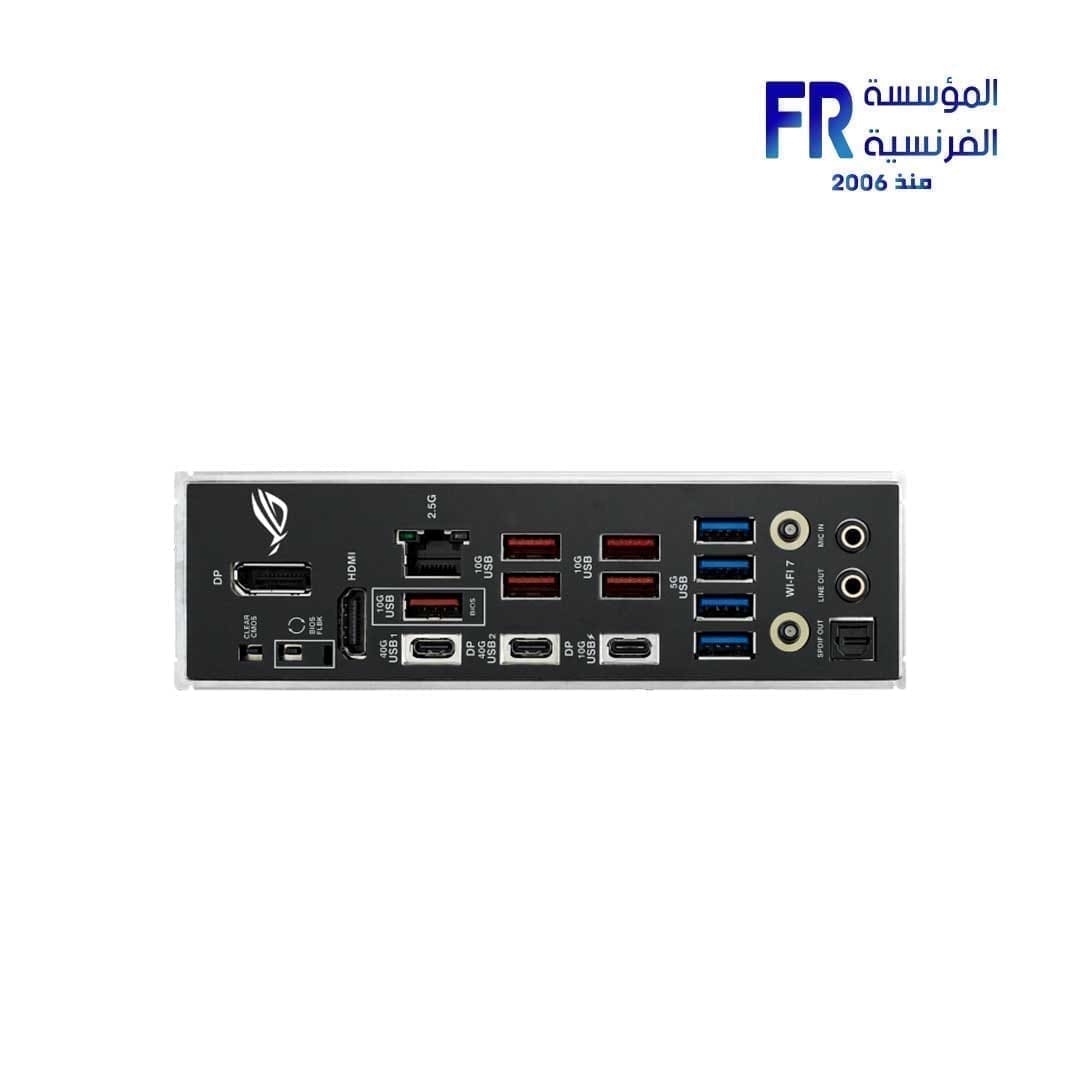

2 x USB4 (40Gbps), 6 x USB 10Gbps, 4 x USB 5Gbps |
Front USB Ports |
1 x USB 20Gbps Type-C, 4 x USB 5Gbps, 4 x USB 2.0 |
Audio |
ROG SupremeFX 7.1, Savitech SV3H712 AMP, Dolby Atmos |
Special Features |
Aura Sync, AI Cooling II, Dynamic OC Switcher, Q-Design (M.2 Q-Latch, etc.) |
Software |
Armoury Crate, Aura Creator, Norton 360 (Trial), Adobe Creative Cloud (Trial) |
BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
Manageability |
WOL by PME, PXE |
Accessories |
2 x SATA 6Gb/s cables, ASUS WiFi Q-Antenna, Cable ties, M.2 Q-Latch & Q-Slide packages, ROG keychain, Stickers, Quick start guide |
Operating System |
Windows 11 |
Form Factor |
ATX, 12″ x 9.6″ (30.5 cm x 24.4 cm) |
اللوحة الأم
| MODEL | |
|---|---|
| CHIPSET MANUFACTURERS | |
| سوكت المعالج | |
| شريحة اللوحة الأم | |
| Motherboard Type | |
| CPU SERIES | AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors |
| Technology | |
| Memory Speed | 4800 MHZ, 4866 MHz, 5000 MHz, 5066, 5066 MHz, 5200MHZ, 5333, 5333 MHz, 5400Mhz, 5600 MHz, 5800, 6000MHz, 6200MHZ, 6400Mhz, 6600Mhz, 6666MHZ, 6800Mhz, 7000 MHz, 7200MHZ, 7400MHZ, 7600MHZ, 7800MHZ, 7900MHZ, 7950MHZ, 8000MHZ |
| Max Memory Size | |
| Memory Slot | |
| PCI-E X16 | |
| PCI-E GEN | PCIe 5.0 |
| PCI-E Slots (M.2) | |
| SATAIII | |
| Communication module | |
| Part Number | |
| الضمان |
