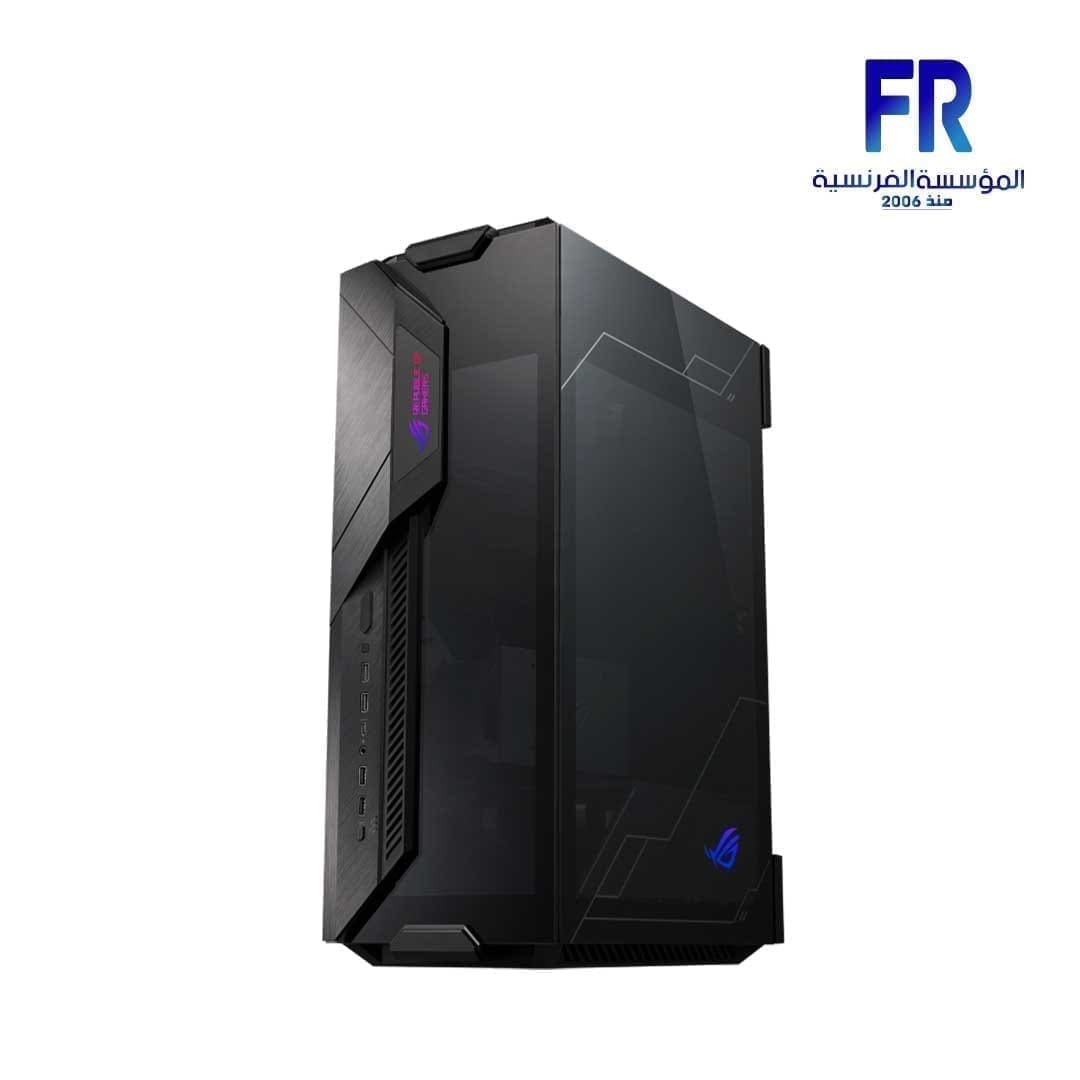

Asus RogZ11 GR101 Mini ITX Mini Tower Case
3700 EGP
- Mini-ITX, Mini-DTX Support
- 2 x 140mm Top / 1 x 140mm Bottom Fans
- Steel, Aluminum & ABS Plastic Frame
- Tempered Glass Panel
- 4 x 2.5″ Drive Bays
- 3 x Expansion Slots
- 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.2 Gen 1 | 2 x USB 2.0
- 1 x 3.5mm Audio Combo Jack
- Aura Sync RGB Lighting
Out Of Stock.
Asus RogZ11 GR101 Mini ITX Mini Tower Case
ROG Z11 is a premium Mini-ITX/DTX case with a sleek and stylish look that rises above the competition by empowering users to showcase compact builds without compromise. Each feature has been designed conscientiously with the user in mind to maximize utility, flexibility and connectivity. The patented 11° tilt design provides optimized airflow and heat dissipation to create an innovative solution that maximizes thermal performance with demanding hardware — such as an ATX power supply or a 3-slot graphics card without a riser cable. For fans of water cooling, Z11 offers ample space and the option of a custom liquid cooling loop. Adding style to substance, internal build components are beautifully illuminated by Aura Sync lighting that can be seen through the front and right-side 4 mm gray tempered glass panels.
THERMAL PERFORMANCE
Patented 11° Tilt Design
Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.
Optimized airflow and superior thermal performance are critical in high-powered systems with compact form factors, and ROG Z11 delivers this with a patented interior layout that tilts the motherboard tray at an 11° angle, providing an additional 40 mm of space at the back of the motherboard. This additional space enhances heat dissipation around the CPU and graphics card, as well as the M.2 SSD that can be installed on the back of the motherboard. The layout also enables compatibility with a 3-slot graphics card without a riser cable and creates a striking visual display of components.
.gif)
Optimal Airflow
ROG Z11 is built for optimized cooling performance. The entire design is conducive to efficient heat discharge from the case via the chimney effect and negative air pressure, which is generated by the fans expelling hot air at a faster rate than intake. With the choice of up to five 120 mm fans, or three 140 mm plus two 120 mm fans, users can maximize airflow and have the flexibility to customize.
.gif)
Fan & Radiator Capacity
Fan
- 140 mm
- 120 mm
Radiator
- Up to 240 mm radiator
- 120 mm radiator
-
Case Size
-
Mini Tower
-
Motherboard Support
-
Mini-ITXMini-DTX
-
Drive Bays
-
4 x 2.5″ Bay1 x 2.5″/3.5″ Combo Bay
-
Expansion Slots
-
(3 expansion slots space)
-
Front I/O Port
-
2 x USB 3.2 Gen11 x USB 3.2 Gen2 Type C2 x USB 2.0
-
Tempered Glass
-
Front SideRight Side
-
Radiator Support (Rear)
-
120 mm240 mm
-
Cooling Support (Top)
-
2 x 120 mm2 x 140 mm
-
Cooling Support (Rear)
-
2 x 120 mm
-
Maximum CPU Cooler Height
-
130 mm
-
Maximum GPU Length
-
320 mm
-
Maximum PSU Length
-
160 mm (ATX or SFX)
-
Removable Dust Filters
-
Front
-
Top
-
Bottom
-
Maximum Cable Management Space
-
40 mm
-
Dimensions
-
194 (W) x 531 (H) x 386 (D) mm 7.64 (W) x 20.9 (H) x 15.2 (D) inch
-
Weight
-
8.73 Kg
-
AURA Sync
-
ARGB
Asus RogZ11 GR101 Mini ITX Mini Tower Case
- ROG Z11 is a premium Mini-ITX/DTX case with a sleek and stylish design
- The case empowers users to showcase compact builds without compromise
- Designed with the user in mind to maximize utility, flexibility, and connectivity
- Features patented 11° tilt design for optimized airflow and heat dissipation
- Maximizes thermal performance with demanding hardware like an ATX power supply or a 3-slot graphics card without a riser cable
- Offers ample space and option for a custom liquid cooling loop for fans of water cooling
- Internal build components are beautifully illuminated by Aura Sync lighting
- The lighting can be seen through the front and right-side 4mm gray tempered glass panels.
Case
| MODEL | |
|---|---|
| CASE SIZE | |
| PANEL | |
| Motherboard Type | |
| FANS INCLUDED | |
| Expansion Slots | |
| Fan Support | |
| Radiator Support | |
| GPU Length | |
| CPU Height | |
| PSU SUPPORT | |
| Pre-installed PSU | |
| I/O Ports | |
| 3.5“ Drive Bays | |
| 2.5 Drive Bays | |
| Color | |
| Part Number | |
| Warranty |
