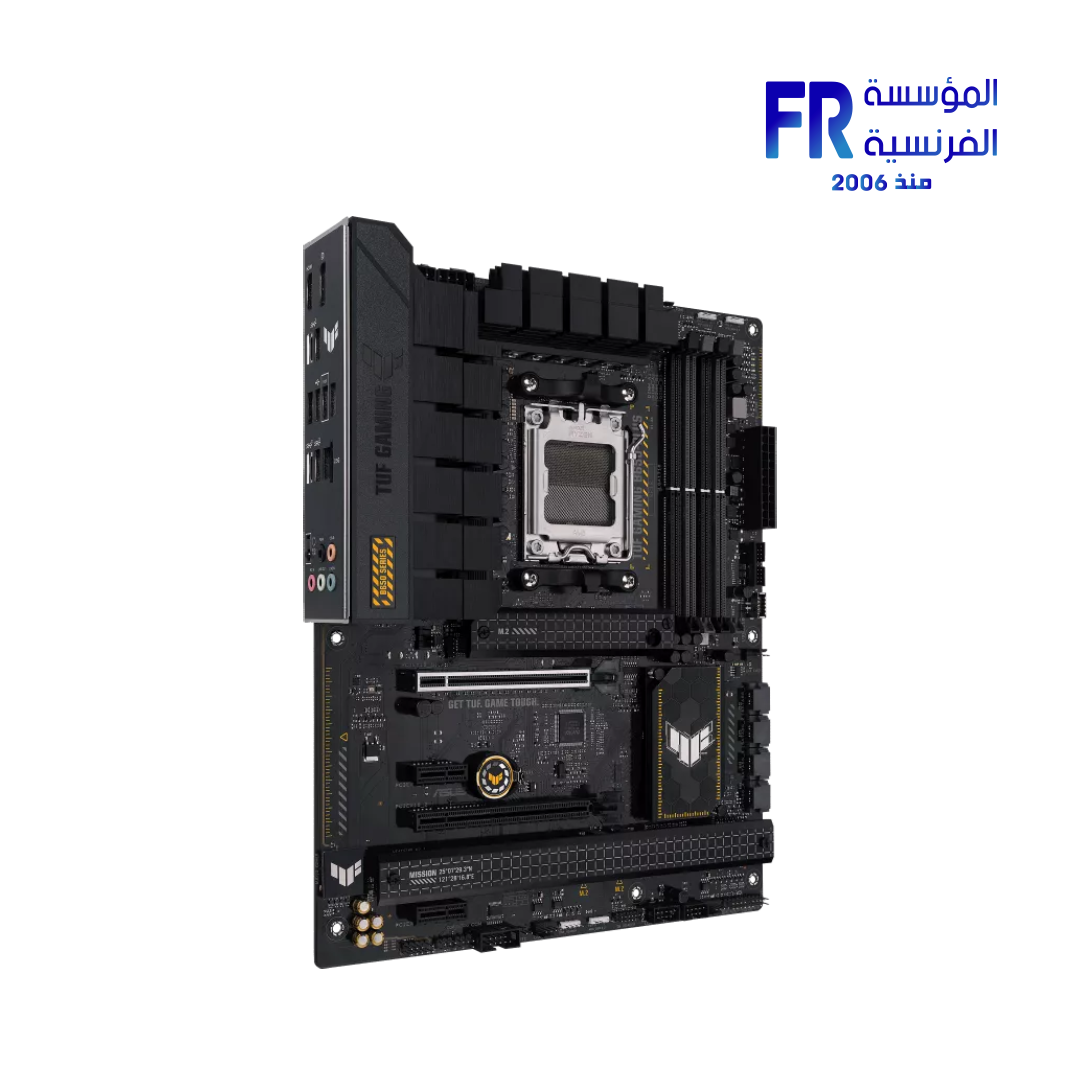

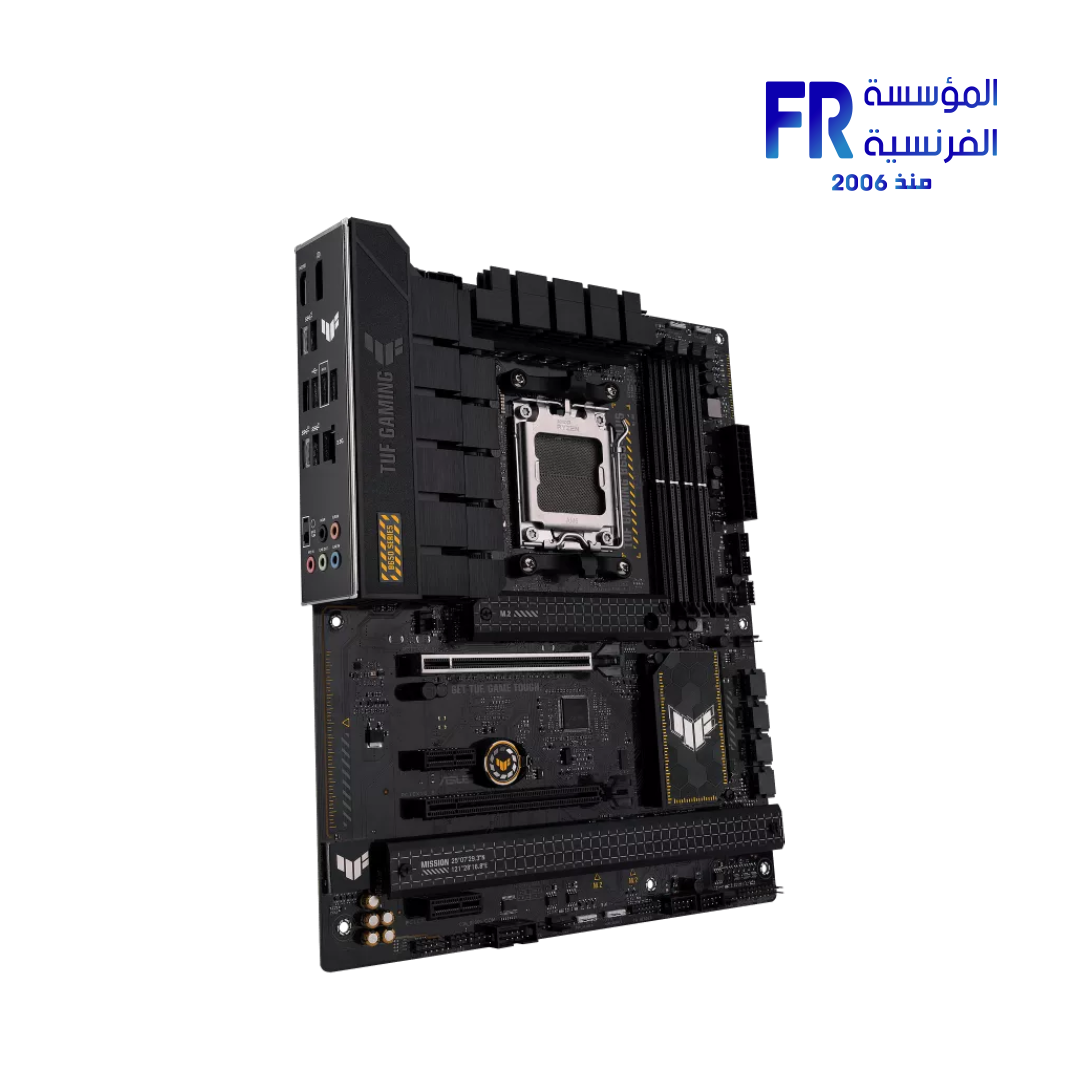

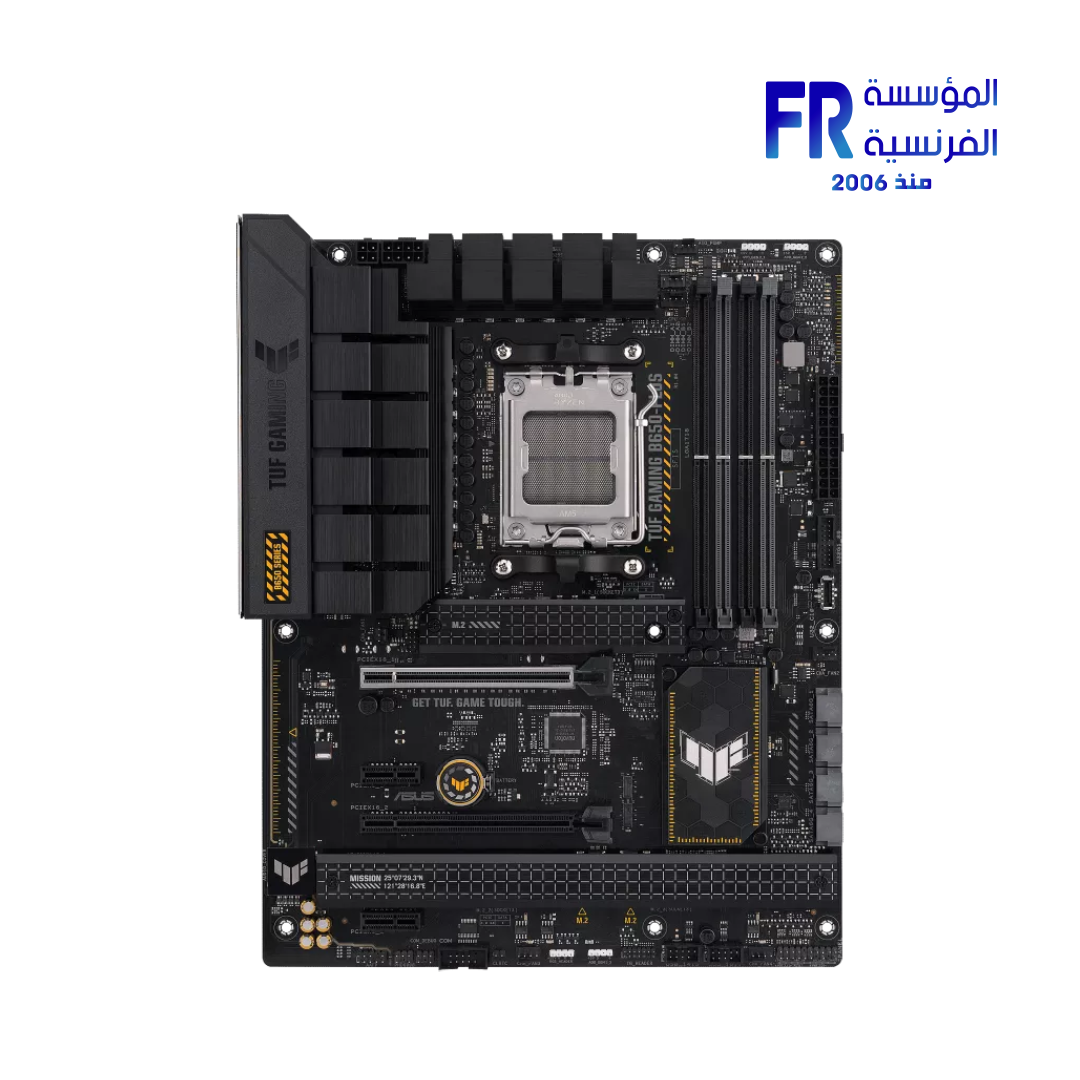

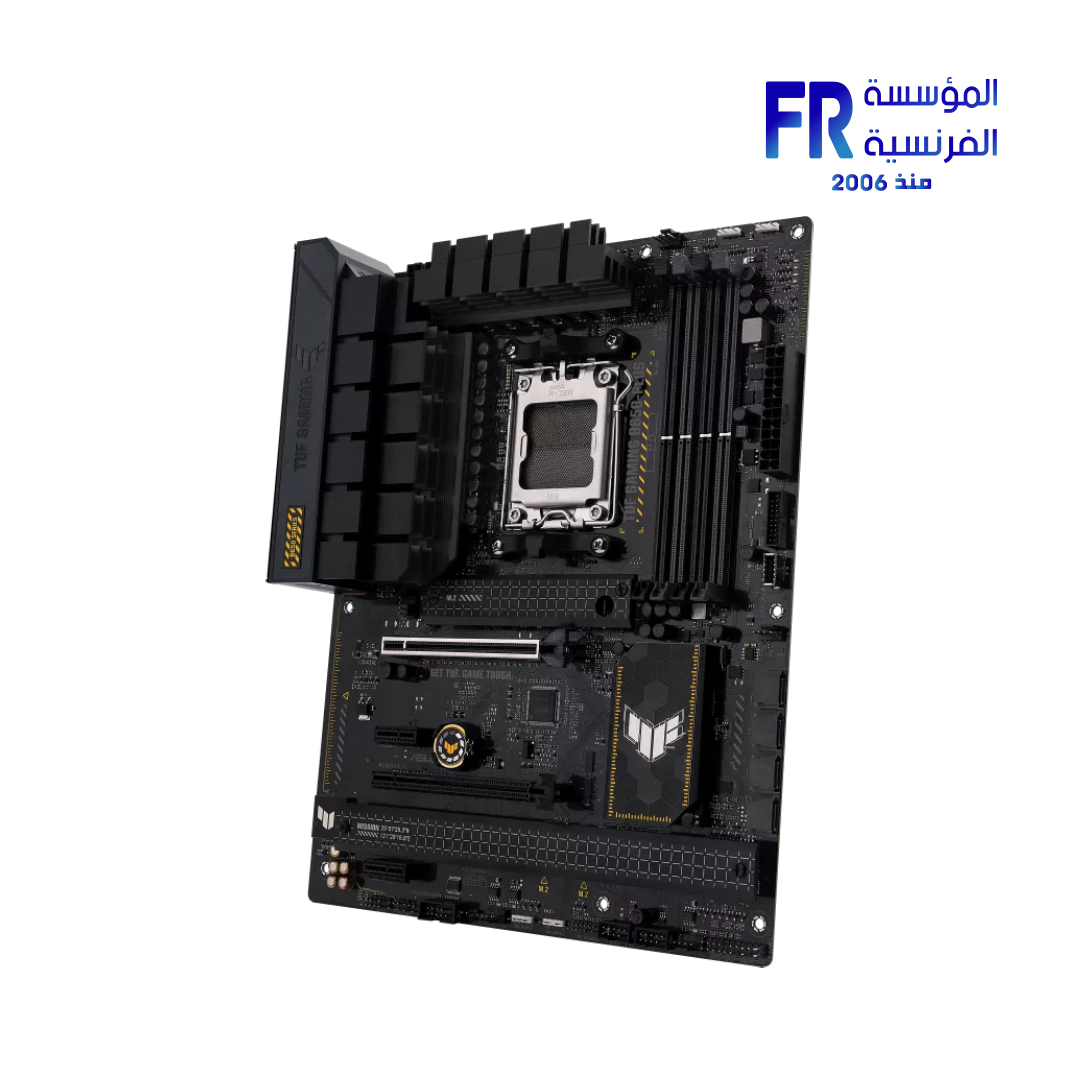

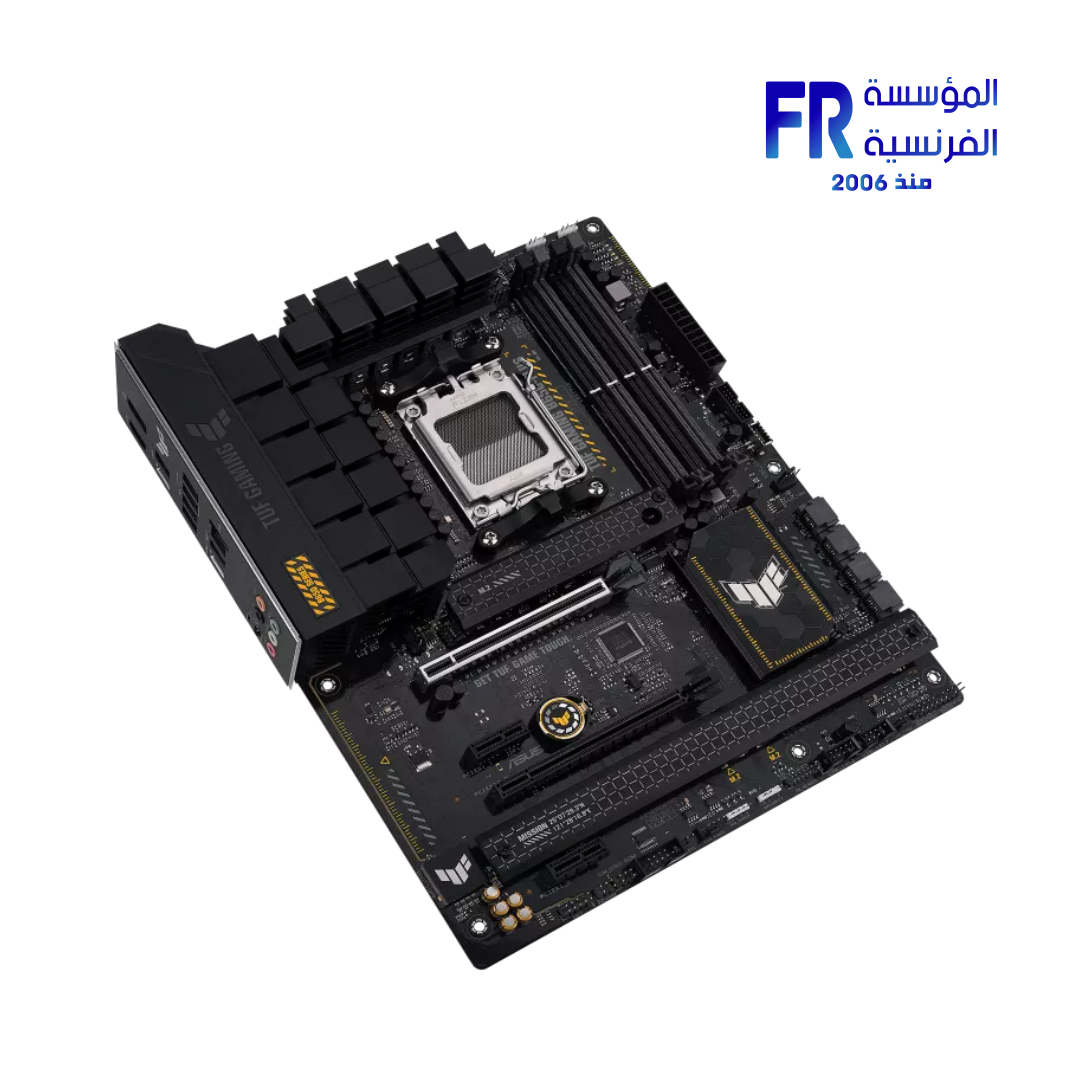

Asus Tuf Gaming B650 Plus Motherboard

Asus TUF Gaming B650-PLUS اللوحه الام

Forge a powerful and steadfast AMD gaming system with the TUF Gaming B650-PLUS motherboard. This ATX board is built for AMD Ryzen™ 9000, 8000, and 7000 series processors (Socket AM5). Importantly, it merges TUF’s signature durability with essential next-gen gaming features. You get support for blazing-fast PCIe 5.0 M.2 storage and high-speed DDR5 memory (up to 7600+ OC with EXPO). Additionally, connectivity is robust, featuring onboard 2.5Gb Ethernet for smooth online play.

Discover the TUF Gaming B650-PLUS Advantage

The TUF Gaming B650-PLUS is crafted for enduring performance. It boasts an enhanced power solution with DrMOS stages and comprehensive cooling, including enlarged VRM heatsinks and an M.2 heatsink. Consequently, your system remains stable even during intense sessions. Leverage cutting-edge storage speeds with the onboard PCIe 5.0 M.2 slot. Furthermore, two additional PCIe 4.0 M.2 slots provide ample room for fast SSDs. Connectivity options are also plentiful, highlighted by a rear USB 3.2 Gen 2×2 Type-C® port delivering up to 20Gbps.

Building is made easier with ASUS Q-Design features like M.2 Q-Latch and Q-LED diagnostic indicators. Meanwhile, TUF Protection features, such as SafeSlot Core+ and ESD Guards, provide peace of mind. You can also personalize your setup using Aura Sync headers for RGB lighting. Plus, features like BIOS FlashBack™ add convenient recovery options.

Key Specifications

• Model: TUF Gaming B650-PLUS
• Socket: AMD AM5 (Ryzen™ 9000/8000/7000 Series)
• Chipset: AMD B650
• Memory: 4x DIMM, Max. 128GB, DDR5 7600+(OC), EXPO Support
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 4.0 x16 (x4), 2x PCIe 4.0 x1
• Storage: 1x M.2 PCIe 5.0 x4, 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s ports
• Networking: Realtek 2.5Gb Ethernet, TUF LANGuard
• Rear USB: 1x USB 3.2 Gen 2×2 Type-C (20Gbps), 3x USB 3.2 Gen 2 (10Gbps – 2A/1C), 4x USB 2.0
• Audio: Realtek 7.1 Surround Sound Codec
• Form Factor: ATX
• Special Features: TUF Protection, Q-Design, PCIe 5.0 M.2, M.2/VRM Heatsinks, Aura Sync, 2.5Gb LAN, BIOS FlashBack™

Questions & Answers

Who is the TUF Gaming B650-PLUS for?

This motherboard is excellent for gamers and PC builders using the latest AMD Ryzen processors. Specifically, it targets those who need a reliable ATX board with key next-gen features like PCIe 5.0 M.2 storage and DDR5 memory. It’s ideal if you prioritize durability and essential performance without the premium cost of X670 chipsets.

Why choose this motherboard?

Choose the TUF Gaming B650-PLUS for its robust build quality and well-rounded feature set. You benefit from ultra-fast storage potential with PCIe 5.0 M.2 support. Additionally, high-speed DDR5 memory with AMD EXPO profiles ensures optimal performance. Combined with 2.5Gb LAN, solid cooling, and comprehensive USB options, it’s a dependable core for a modern AMD build.

What are the key Pros?

Pros: TUF-grade durability; PCIe 5.0 M.2 slot for maximum SSD speed; Supports high-speed DDR5 with EXPO; Fast 2.5Gb Ethernet; Good VRM and M.2 cooling solutions; Three M.2 slots in total; Comprehensive USB including 20Gbps Type-C; BIOS FlashBack™ for easy updates.

Are there any Cons?

Cons: Primary PCIe x16 slot is PCIe 4.0, not 5.0; B650 chipset offers fewer overall PCIe lanes than X670; Audio codec is standard Realtek.

Verdict on the TUF Gaming B650-PLUS

Overall, the TUF Gaming B650-PLUS stands as a strong contender in the B650 motherboard market. It provides a durable and feature-rich platform for AMD Ryzen 7000, 8000, and 9000 series CPUs. Notably, the inclusion of a PCIe 5.0 M.2 slot, DDR5 support, and 2.5Gb LAN makes it well-suited for high-performance gaming and productivity tasks. Consequently, if you seek a reliable ATX board that balances next-gen features with TUF resilience, this is an excellent choice.

For full technical details, please visit the official Asus TUF Gaming B650-PLUS Tech Specs page.

Check out compatible DDR5 RAM for your system.
