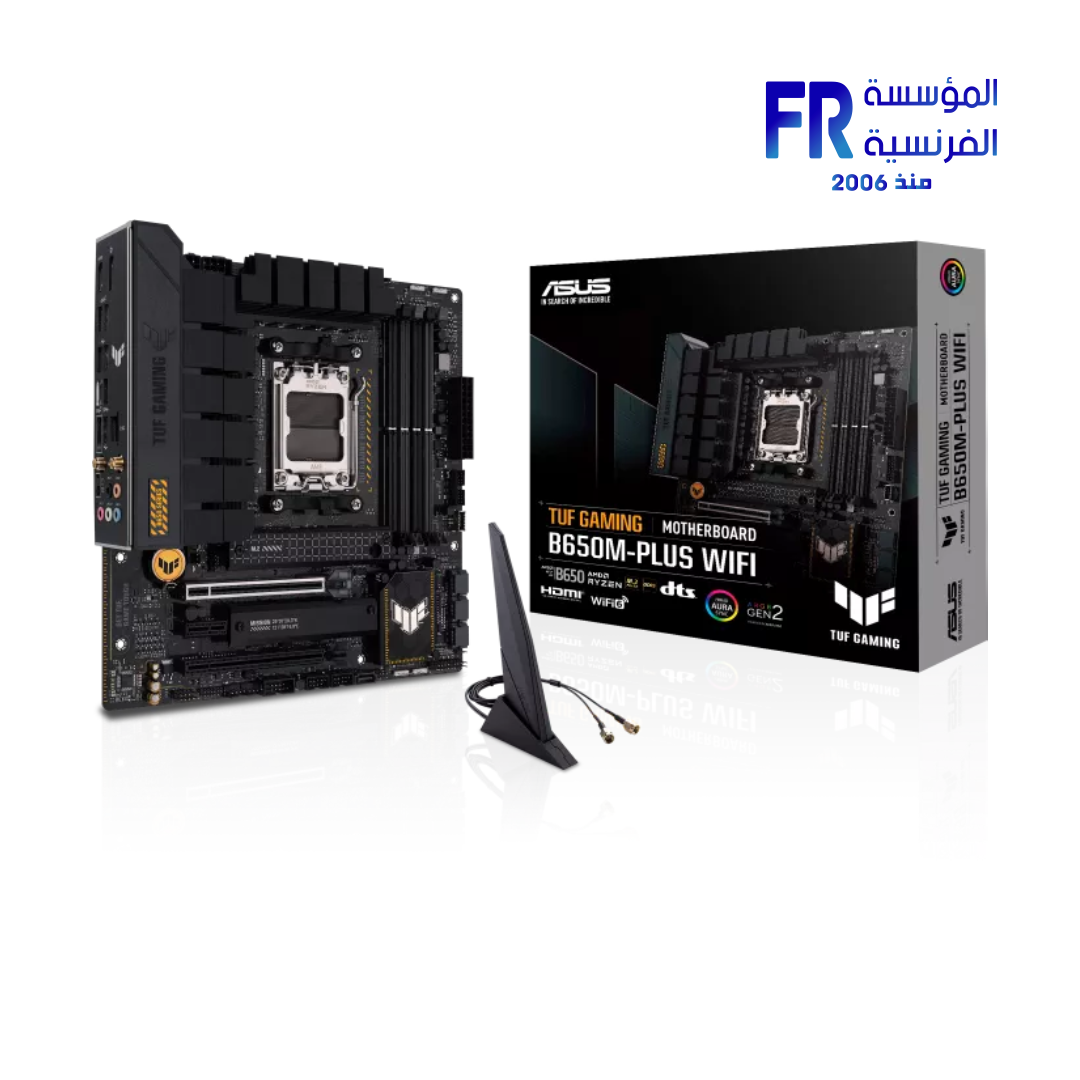

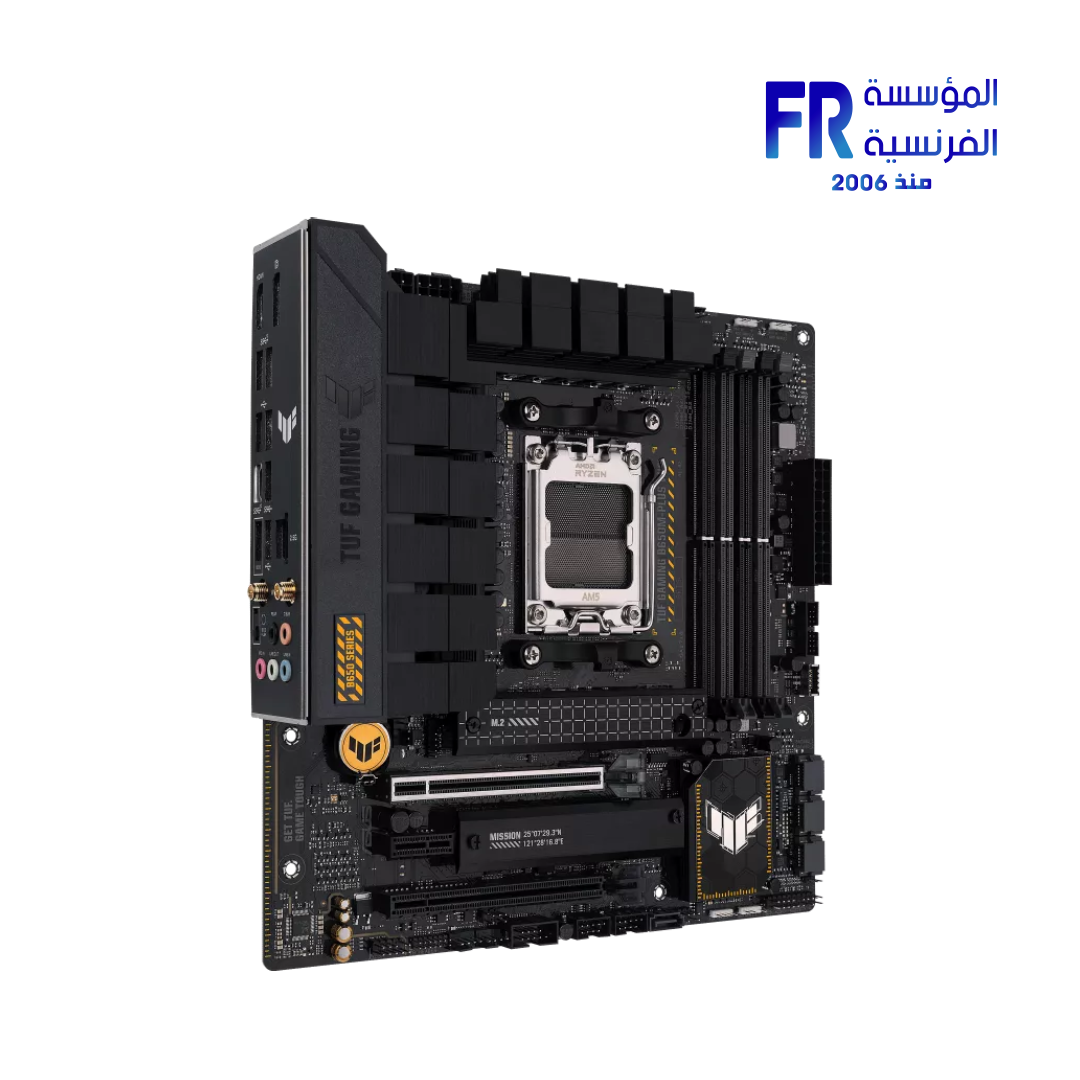

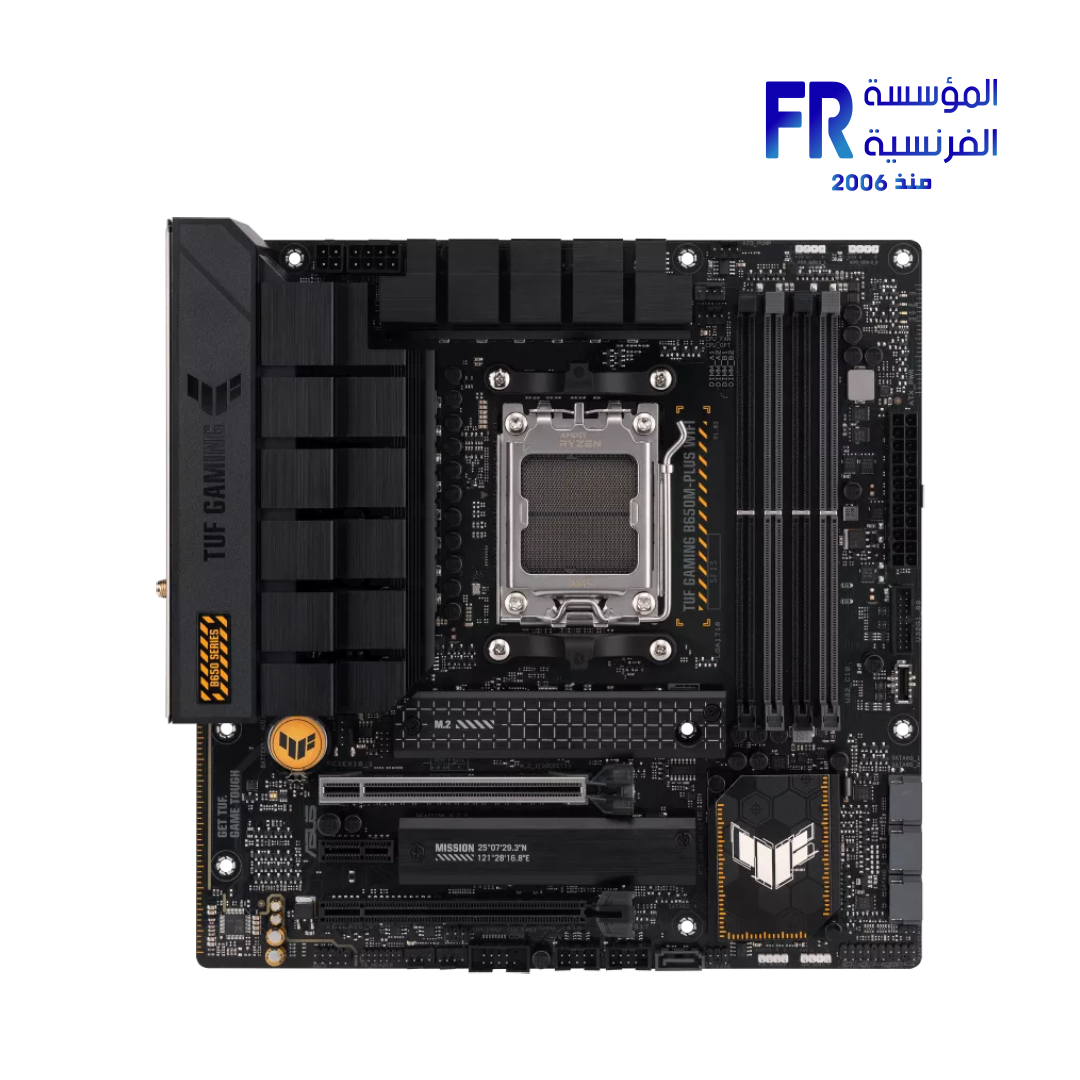

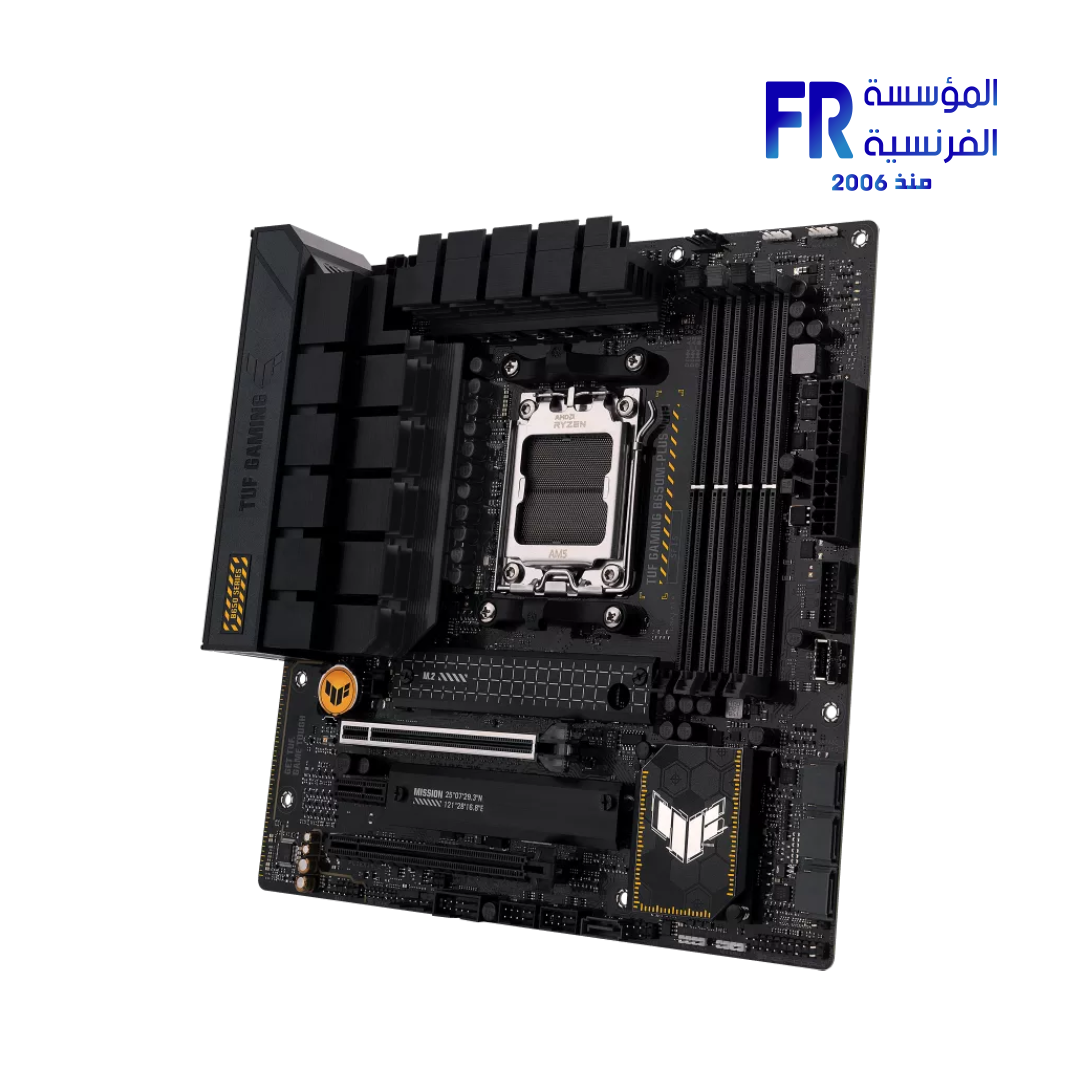

Asus Tuf Gaming B650M Plus Wifi اللوحه الام

Build a reliable and connected AMD Ryzen™ system with the TUF GAMING B650M-PLUS WIFI motherboard. This micro-ATX board leverages the durable TUF Gaming philosophy and the AMD B650 chipset for Socket AM5, supporting AMD Ryzen™ 9000, 8000, and 7000 series processors. It features high-speed DDR5 memory support, a PCIe 5.0 M.2 slot for next-gen storage (CPU dependent), robust power delivery, onboard Wi-Fi 6, and 2.5Gb Ethernet, making it a versatile choice for compact gaming builds demanding stability and connectivity.
Discover Connected Durability: TUF GAMING B650M-PLUS WIFI
The TUF GAMING B650M-PLUS WIFI is engineered to support the latest AMD processors, enabling high-speed DDR5 memory up to 7600+ MT/s (OC) with support for AMD EXPO™ and OptiMem II technology for enhanced performance. While the primary graphics card slot operates at PCIe 4.0 x16, this board excels in storage speed with a PCIe 5.0 x4 M.2 slot ready for the fastest SSDs (requires Ryzen™ 9000/7000 CPU; runs at PCIe 4.0 with Ryzen™ 8000 CPU), complemented by a second PCIe 4.0 M.2 slot.

Stay connected with integrated Wi-Fi 6 and Bluetooth® 5.2, alongside a fast Realtek 2.5Gb Ethernet port featuring TUF LANGuard protection. A comprehensive USB lineup includes a rear USB 3.2 Gen 2×2 (20Gbps) Type-C® port. TUF Protection features, including DIGI+ VRM with DrMOS stages, enhanced DRAM overcurrent protection, and SafeSlot Core+, ensure system stability. Cooling is addressed with VRM and M.2 heatsinks. Building is simplified with Q-Design elements like M.2 Q-Latch and Q-LED, plus BIOS FlashBack™. Customize your build’s aesthetics using both Aura RGB and Addressable Gen 2 headers. Explore compatible AMD Ryzen CPUs and DDR5 memory kits. Find full details on the official TUF GAMING B650M-PLUS WIFI product page.
Specifications
- Model: TUF GAMING B650M-PLUS WIFI
- Focus Keyphrase: TUF GAMING B650M-PLUS WIFI
- Socket: AMD Socket AM5
- Chipset: AMD B650
- Form Factor: micro-ATX (24.4 cm x 24.4 cm)
- CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Memory: 4 x DIMM, Max. 192GB, DDR5 7600+(OC) MT/s, EXPO™, OptiMem II
- PCIe Slots: 1x PCIe 4.0 x16 (CPU), 1x PCIe 4.0 x16 (x4, Chipset), 1x PCIe 4.0 x1
- Storage: 1x M.2 PCIe 5.0/4.0 x4 (CPU dependent), 1x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s
- Networking: 1x Realtek 2.5Gb Ethernet (TUF LANGuard), Wi-Fi 6 (802.11ax), Bluetooth 5.2
- USB Rear: 1x USB 3.2 Gen 2×2 (Type-C), 2x USB 3.2 Gen 2 (Type-A), 1x USB 3.2 Gen 1 (Type-A), 4x USB 2.0 (Type-A)
- USB Front: 1x USB 3.2 Gen 1 Conn. (Type-C), 1x USB 3.2 Gen 1 Hdr (2 ports), 2x USB 2.0 Hdrs (4 ports)
- Audio: Realtek 7.1 Surround Sound HD Audio CODEC
- Features: TUF Protection, Q-Design, M.2/VRM Heatsinks, EZ DIY (BIOS FlashBack™), Wi-Fi 6, Aura Sync Headers (RGB/ARGB), Thunderbolt™ Header
TUF GAMING B650M-PLUS WIFI: Q&A
Target Audience
Gamers and system builders looking for a feature-rich, reliable micro-ATX motherboard for AMD Ryzen™ 9000/8000/7000 CPUs, who value integrated Wi-Fi connectivity and support for next-generation M.2 storage.
Key Reasons to Choose
The TUF GAMING B650M-PLUS WIFI delivers a strong combination of performance and features for the AM5 platform, including onboard Wi-Fi 6, a PCIe 5.0 M.2 slot (CPU permitting), 2.5Gb LAN, robust power delivery, ample USB connectivity, and TUF Gaming’s signature durability, all in a compact mATX size.
What are the Pros?
- Supports AMD Ryzen™ 9000, 8000 & 7000 Series CPUs.
- PCIe 5.0 x4 M.2 slot for ultra-fast storage (with compatible CPU).
- Supports high-speed DDR5 memory (up to 7600+ MT/s OC).
- Integrated Wi-Fi 6 and Bluetooth 5.2.
- Fast Realtek 2.5Gb Ethernet port.
- Good USB connectivity including rear 20Gbps Type-C.
- Durable TUF components and comprehensive protection features.
- User-friendly Q-Design and EZ DIY features (Q-Latch, BIOS FlashBack™).
- Includes both Aura RGB and Addressable Gen 2 headers.
- Thunderbolt™ (USB4®) header for future expansion.
What are the Cons?
- Primary PCIe x16 slot is Gen 4.0, not Gen 5.0.
- Only two M.2 slots total.
- Audio codec is standard Realtek 7.1, not a higher-end model.
- Front panel USB Type-C connector is limited to 5Gbps (USB 3.2 Gen 1).
Verdict
The TUF GAMING B650M-PLUS WIFI stands as a solid and well-rounded micro-ATX choice for building a modern AMD Ryzen system. It provides essential features like Wi-Fi 6, 2.5Gb LAN, and support for ultra-fast PCIe 5.0 M.2 storage, wrapped in the reliable TUF Gaming package. While it uses a PCIe 4.0 slot for the graphics card, it offers excellent connectivity and durability, making the TUF GAMING B650M-PLUS WIFI a great value proposition for compact, high-performance gaming builds.
