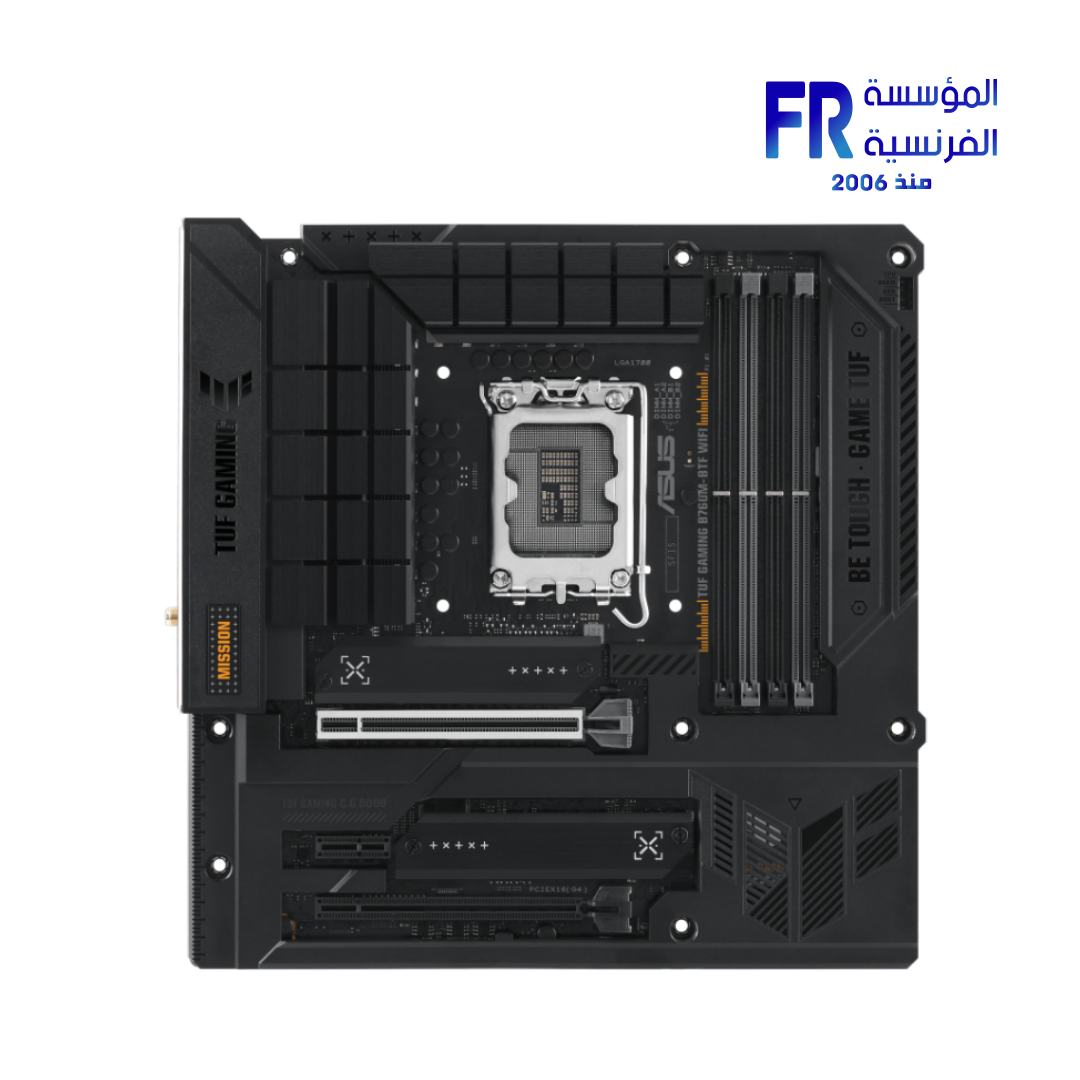

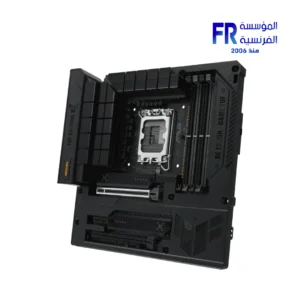

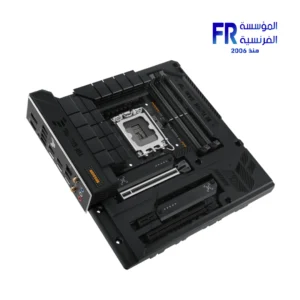

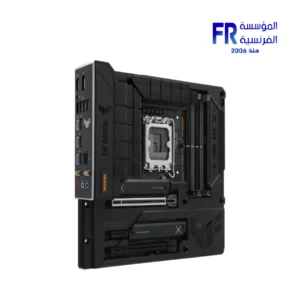

Asus Tuf Gaming B760M BTF Wifi Motherboard

CPU Support

• Intel® Socket LGA1700 for Intel® Core™ 14th Gen Processors
• Intel® Socket LGA1700 for Intel® Core™ 13th Gen Processors
• Intel® Socket LGA1700 for Intel® Core™ 12th Gen Processors
• Intel® Socket LGA1700 for Intel® Pentium® Gold Processors
• Intel® Socket LGA1700 for Intel® Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0
• Supports Intel® Turbo Boost Max Technology 3.0** (*Refer to ASUS website for CPU support list. **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.)

Chipset

• Intel® B760 Chipset

Memory

• 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* (*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Please refer to ASUS website for details.)
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort** (**Supports max. 4K@60Hz as specified in DisplayPort 1.4.)
• 1 x HDMITM port*** (***Supports 4K@60Hz as specified in HDMI 2.1.)
• * Graphics specifications may vary between CPU types. Please refer to Intel website for any updates.

Expansion Slots

• Intel® Core™ Processors (14th, 13th & 12th Gen): 1 x PCIe 5.0 x16 slot
• Intel® B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode), 1 x PCIe 4.0 x1 slot
• – To ensure compatibility of the device installed, please refer to ASUS website for the list of supported peripherals.

وحدات التخزين

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* (*Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.)
• Intel® Core™ Processors (14th, 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® B760 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)** (**M.2_3 slot shares bandwidth with PCIEX16(G4) slot. When M.2_3 slot has be installed a device, PCIEX16(G4) slot will be disabled.)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

• Wi-Fi 6: 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band
• Bluetooth® v5.2* (*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.)

USB

• Rear USB (Total 10 ports): 1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C®), 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®), 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A + 1 x USB Type-C®), 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports): 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C®), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports (* U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth. ** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.)

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC* (*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.)
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features: Audio Shielding, Dedicated audio PCB layers

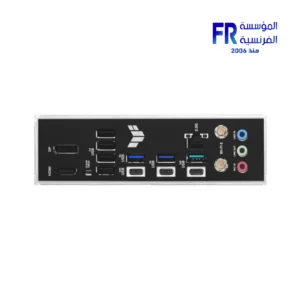

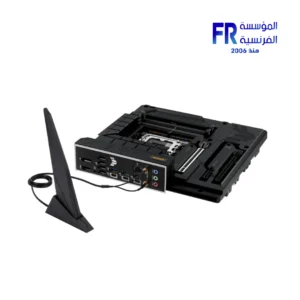

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2×2 (20G) port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A, 1 x USB Type-C®)
• 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers
• Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, 1 x 4-pin +12V Power connector
• Storage related: 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
• USB: 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C® ), 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x COM Port header, 1 x Front Panel Audio header (AAFP), 1 x 10-1 pin System Panel header, 1 x Thunderbolt™ (USB4®) header

Special Features

• ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O
• ASUS Q-Design: M.2 Q-Latch, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot
• ASUS Thermal Solution: M.2 heatsinks, VRM heatsink design
• ASUS EZ DIY: Clear CMOS button, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM
• Aura Sync: Aura RGB header, Addressable Gen 2 headers

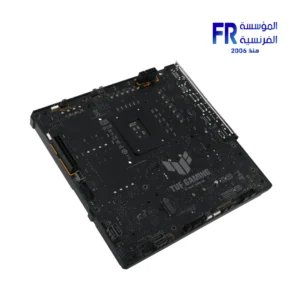

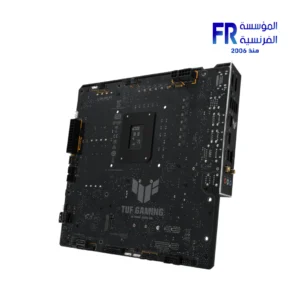

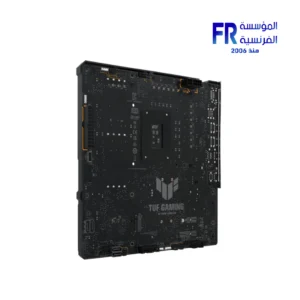

• Hidden-Connector (BTF): Without Graphics Card High-Power Slot (*Compatible with general graphics card, but not BTF graphics card.)

Software Features

• ASUS Exclusive Software: Armoury Crate, AI Suite 3, TUF GAMING CPU-Z, DTS Audio Processing, MyASUS, Norton 360 for Gamers (60 Days Free Trial), WinRAR
• UEFI BIOS: ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode)

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables: 2 x SATA 6Gb/s cables
• Miscellaneous: 1 x ASUS Wi-Fi moving antenna, 1 x TUF Gaming sticker, 1 x M.2 Rubber Package, 1 x Screw package for M.2 SSD
• Documentation: 1 x User guide

Operating System

• Windows® 11, Windows® 10 64-bit

Form Factor

• micro-ATX Form Factor: 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
