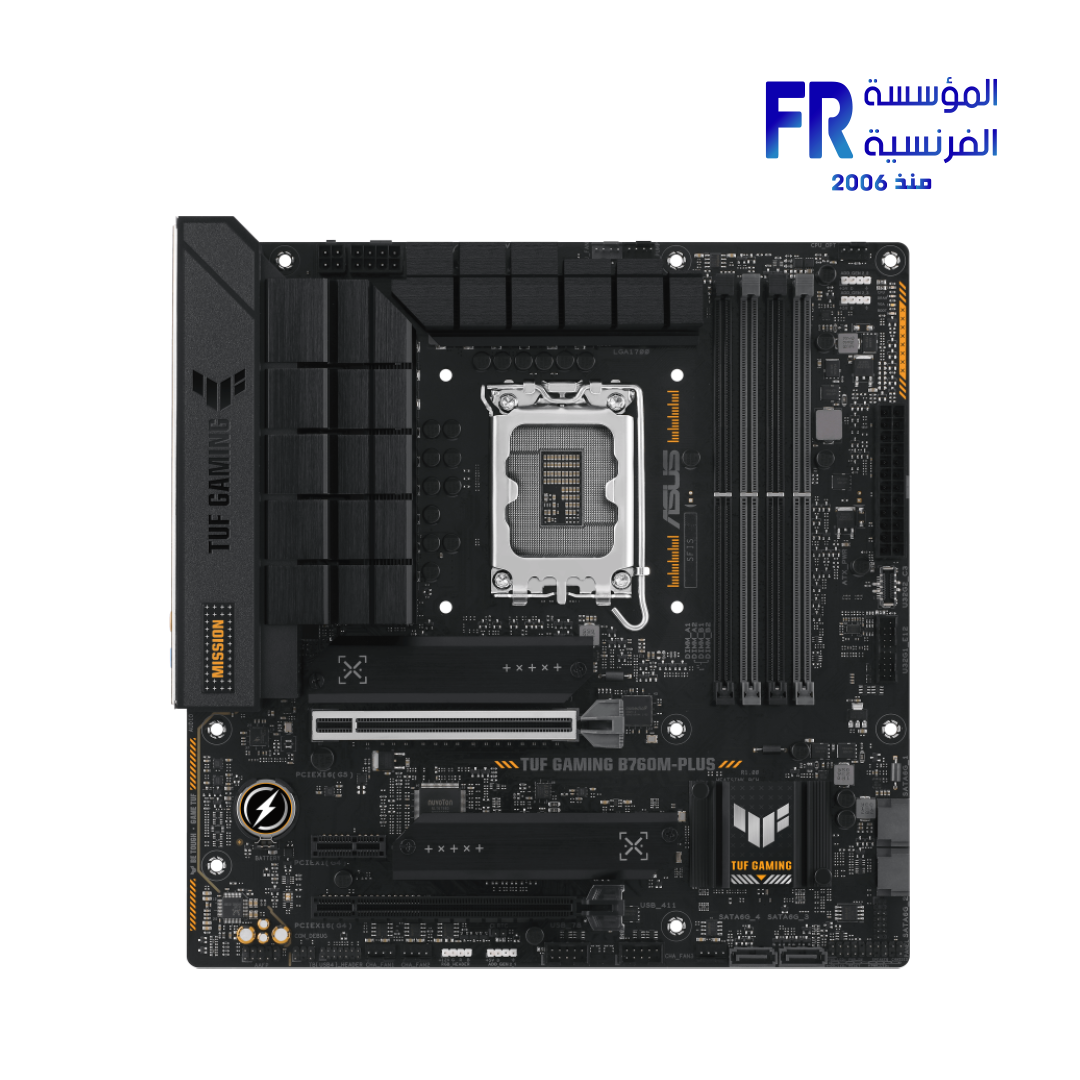

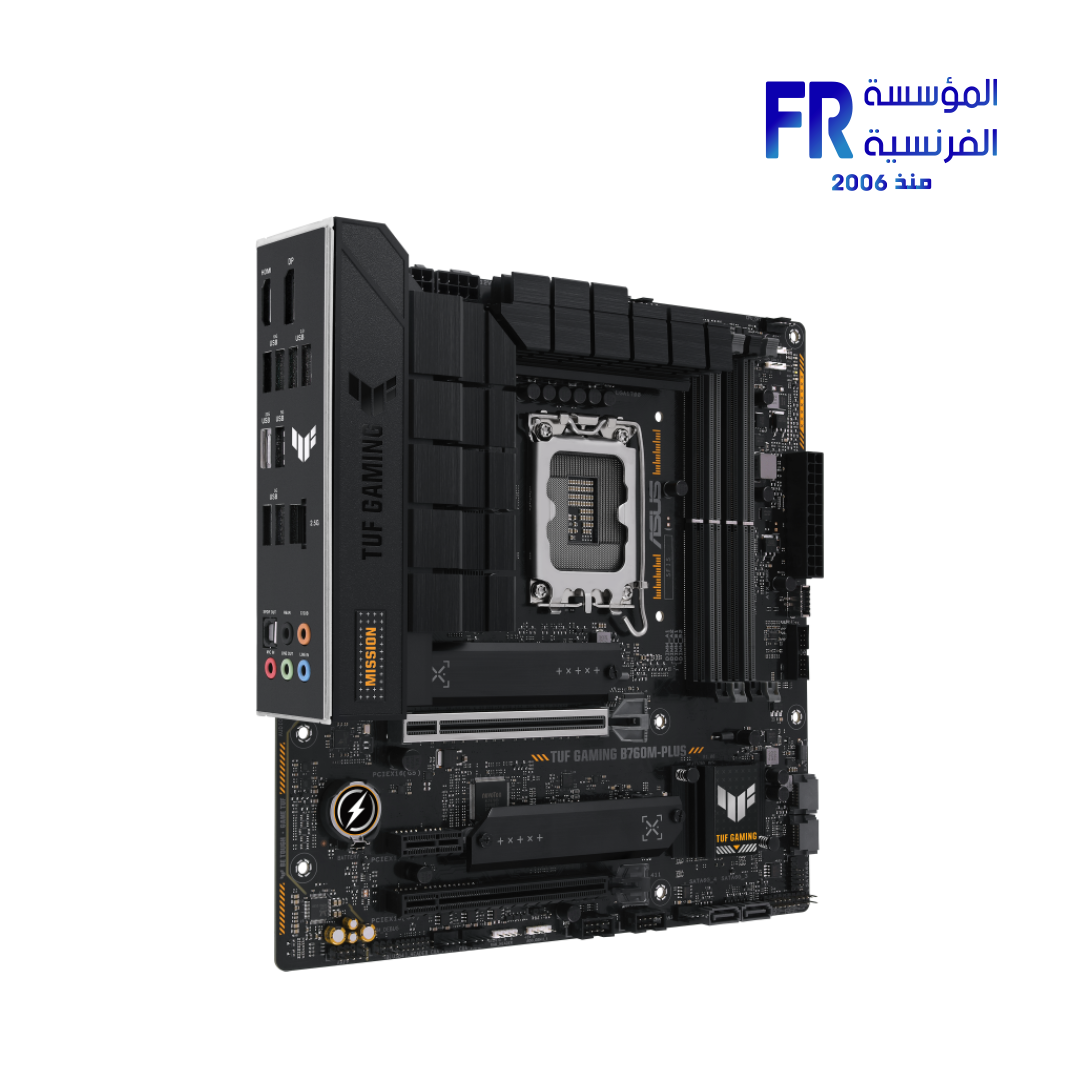

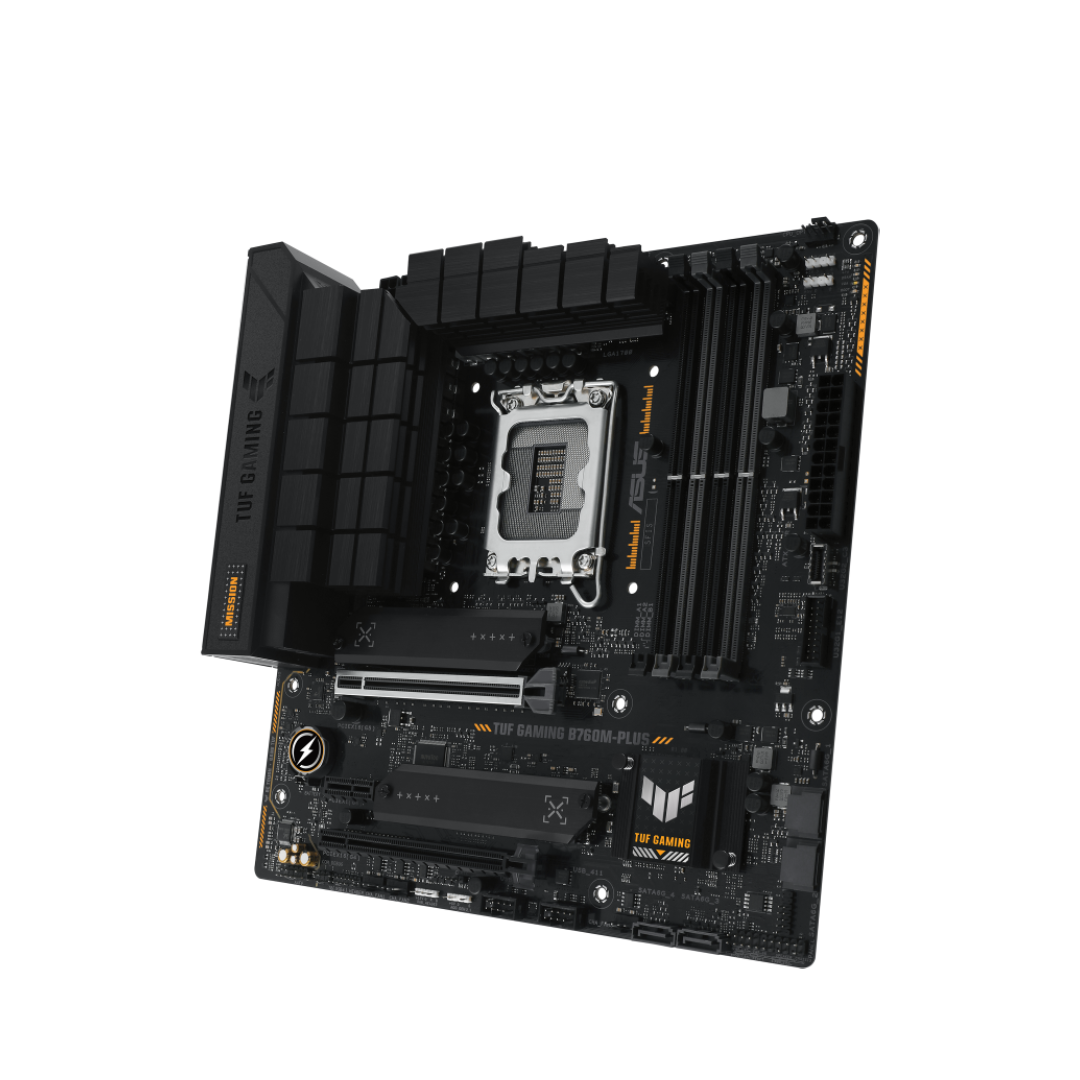

Asus Tuf Gaming B760M Plus Motherboard

Asus Tuf Gaming B760M Plus اللوحه الام

Build a durable and reliable gaming rig with the TUF Gaming B760M-PLUS motherboard. This mATX board is designed for Intel® Core™ 14th, 13th, and 12th Gen processors (LGA1700 socket). Importantly, it combines military-grade components with essential gaming features. Also, it offers future-proofing with a PCIe 5.0 x16 slot and support for high-speed DDR5 memory (up to 7200+ OC). Additionally, fast networking is provided via 2.5Gb Ethernet. TUF Gaming Alliance ensures compatibility and aesthetic cohesion.

Discover the TUF Gaming Advantage

The TUF Gaming B760M-PLUS is engineered for resilience and stable performance. It features upgraded power delivery with DrMOS stages and enlarged VRM heatsinks for reliable operation under load. Additionally, comprehensive cooling options, including an M.2 heatsink and multiple fan headers, maintain optimal temperatures. You can experience next-gen connectivity with the primary PCIe 5.0 slot, ready for demanding graphics cards. Furthermore, enjoy fast data transfers thanks to dual PCIe 4.0 M.2 slots. A rear USB 3.2 Gen 2×2 Type-C® port also offers up to 20Gbps bandwidth.

ASUS Q-Design features like M.2 Q-Latch and Q-LED simplify the building process. Meanwhile, TUF Protection elements like SafeSlot Core+ and ESD Guards enhance durability. Moreover, onboard Realtek 2.5Gb Ethernet provides faster-than-gigabit speeds for smoother online gaming. You can customize your build’s look with Aura Sync RGB headers. Plus, enjoy immersive audio via the Realtek 7.1 surround sound codec and DTS Audio Processing.

Key Specifications

• Model: TUF Gaming B760M-PLUS
• Socket: Intel® LGA1700 (14th/13th/12th Gen)
• Chipset: Intel® B760
• Memory: 4x DIMM, Max. 192GB, DDR5 7200+(OC)
• Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x1
• Storage: 2x M.2 PCIe 4.0 x4 slots, 4x SATA 6Gb/s ports
• Networking: Realtek 2.5Gb Ethernet, TUF LANGuard
• Rear USB: 1x USB 3.2 Gen 2×2 Type-C (20Gbps), 2x USB 3.2 Gen 2 (10Gbps), 3x USB 3.2 Gen 1 (5Gbps), 2x USB 2.0
• Audio: Realtek 7.1 Surround Sound Codec, Optical S/PDIF Out
• Form Factor: mATX (Micro-ATX)
• Special Features: TUF Protection, Q-Design, M.2/VRM Heatsinks, Aura Sync, 2.5Gb LAN

Questions & Answers

Who is the TUF Gaming B760M-PLUS for?

This motherboard is ideal for gamers and system builders. Specifically, it suits those seeking a robust and reliable mATX foundation for their Intel processor build. It suits users who prioritize durability and essential gaming features like PCIe 5.0 and 2.5Gb LAN. Indeed, DDR5 support is included, without needing the extensive overclocking capabilities found on Z-series chipsets.

Why choose this motherboard?

Choose the TUF Gaming B760M-PLUS for its military-grade components, enhanced power solution, and effective cooling that ensure stability. It includes a PCIe 5.0 slot, fast 2.5Gb Ethernet, and dual PCIe 4.0 M.2 slots. Combined with user-friendly Q-Design features, this makes it a well-rounded and durable choice for a modern mATX gaming PC.

What are the key Pros?

Pros: Excellent TUF durability and component quality; PCIe 5.0 x16 slot for future GPUs; Supports high-speed DDR5 memory; Fast 2.5Gb Ethernet onboard; Good VRM and M.2 cooling; Comprehensive USB ports including 20Gbps Type-C; Compact mATX form factor; User-friendly build features (Q-Design).

Are there any Cons?

Cons: B760 chipset limits CPU overclocking; Only two M.2 slots available; Audio codec is standard Realtek, not a premium solution.

Verdict on the TUF Gaming B760M-PLUS

Overall, the TUF Gaming B760M-PLUS delivers on its promise. It provides durability and essential gaming performance in a compact mATX package. It provides a stable platform for the latest Intel processors. Notably, it incorporates key next-generation features like PCIe 5.0 and DDR5 support alongside fast networking. Consequently, this motherboard is a tough and dependable choice for builders prioritizing reliability and core gaming features for an mATX build.

For full technical details, please visit the official Asus TUF Gaming B760M-PLUS Tech Specs page.
