Asus Tuf Gaming B860M Plus Motherboard

Asus Tuf Gaming B860M Plus اللوحه الام

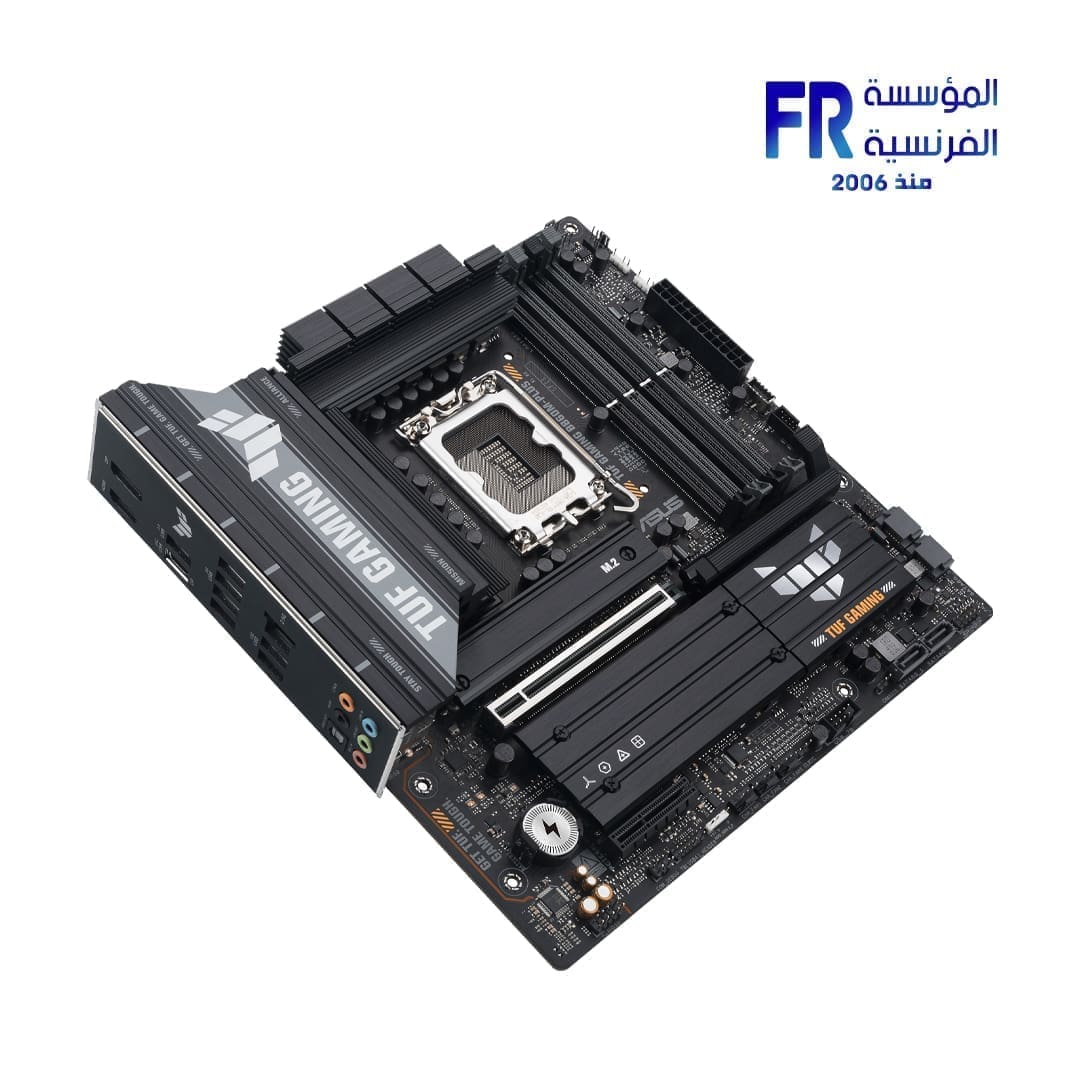

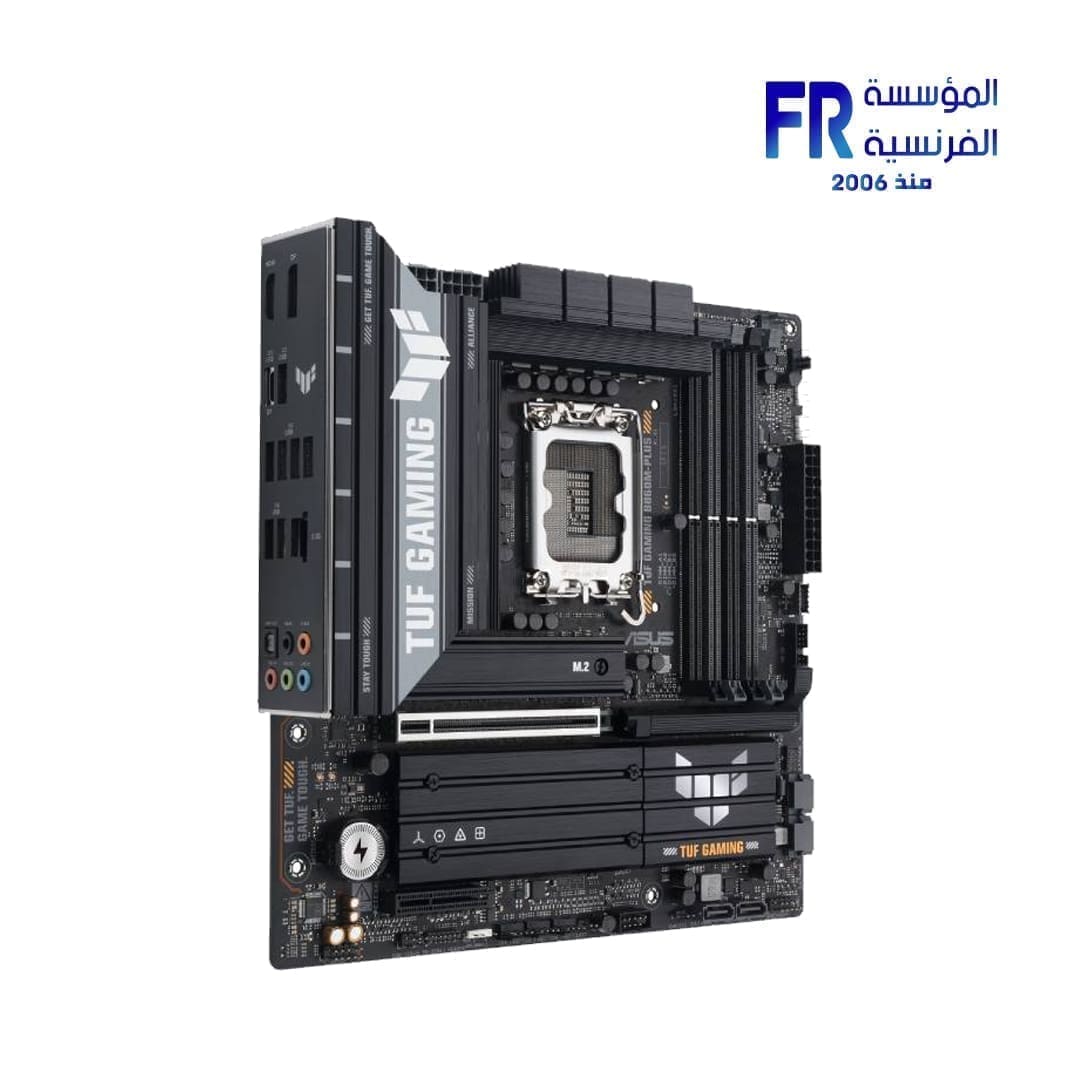

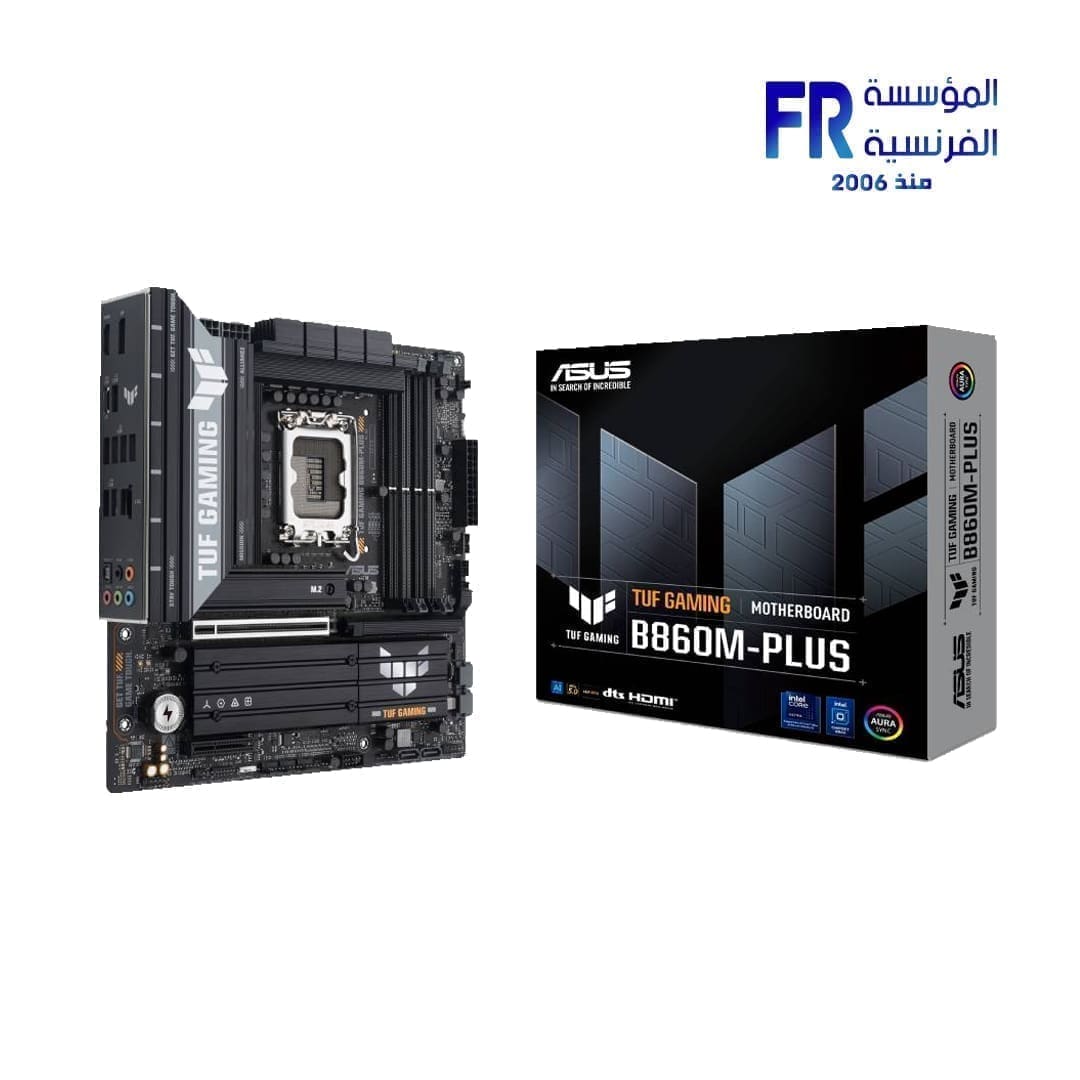

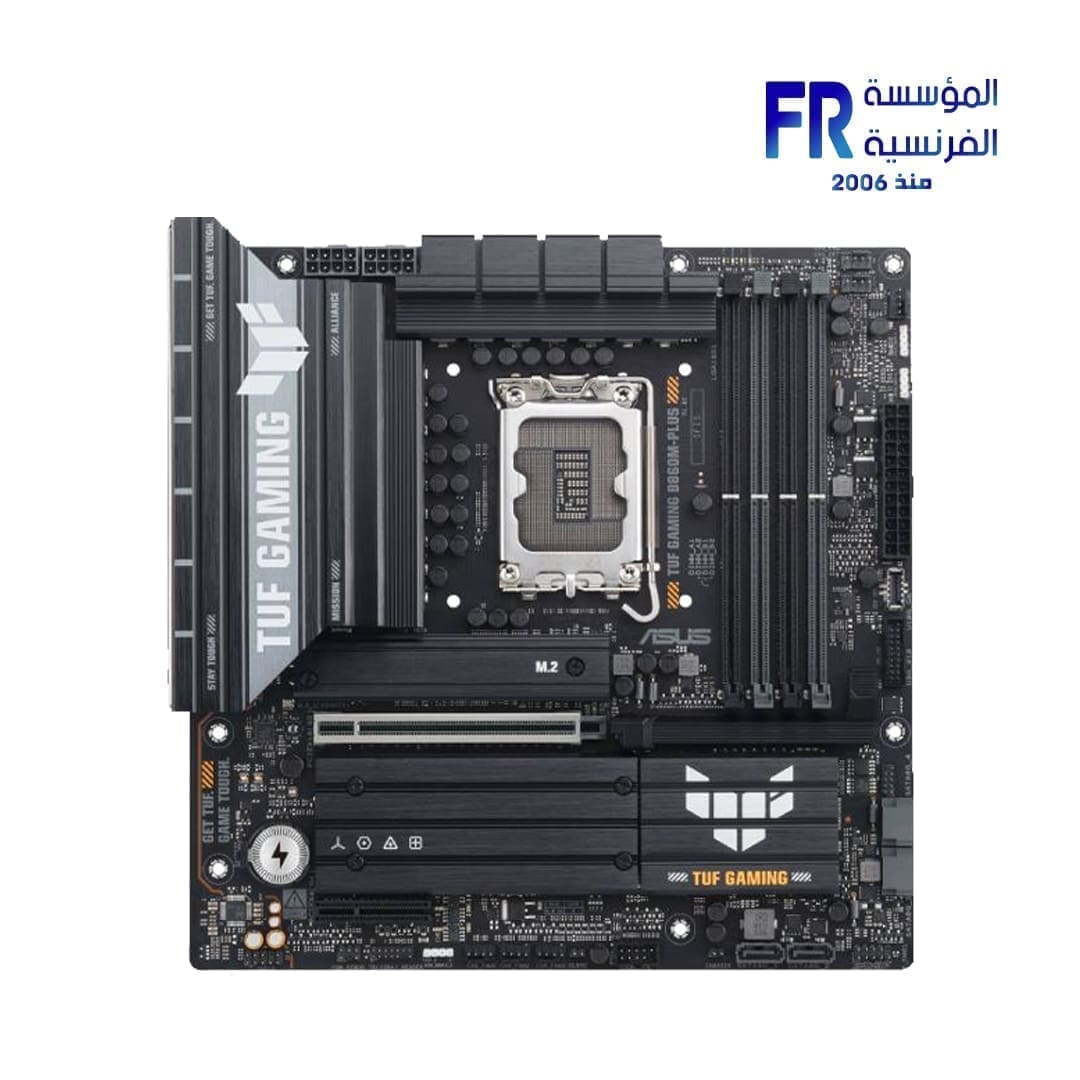

The Asus TUF Gaming B860M Plus motherboard is a robust and feature-rich mATX option designed for gamers and PC enthusiasts. Built around the Intel B860 chipset, this motherboard supports the latest Intel Core Ultra Processors (Series 2) with the LGA 1851 socket, offering a platform for high-performance computing.

Key Features and Specifications:

• CPU Support: Supports Intel Core Ultra Processors (Series 2), LGA 1851, including Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0.
• Chipset: Intel B860 Chipset.
• Memory: 4 x DIMM slots, max. 256GB DDR5, up to 8800+MT/s (OC), Non-ECC, Un-buffered, Dual Channel Architecture, Intel XMP, ASUS AEMP III.
• Graphics: 1 x DisplayPort (4K@60Hz), 1 x HDMI port (4K@60Hz), 1 x USB 20Gbps (Type-C) with DisplayPort video output.
• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4.
• Storage: 3 x M.2 slots (M.2_1: PCIe 5.0 x4, M.2_2 & M.2_3: PCIe 4.0 x4), 4 x SATA 6Gb/s (RAID 0/1/5/10).
• Networking: Realtek 2.5Gb Ethernet, TUF LANGuard, Wi-Fi 7 (2×2), Bluetooth v5.4.
• USB: Rear: 1 x USB 20Gbps (Type-C), 2 x USB 10Gbps (Type-A), 4 x USB 5Gbps (Type-A), 1 x USB 2.0. Front: 1 x USB 10Gbps (Type-C), 2 x USB 5Gbps, 2 x USB 2.0.
• Audio: Realtek 7.1 Surround Sound, Audio Shielding, Optical S/PDIF out, Premium capacitors.
• Rear Panel I/O: (List ports concisely – see below)
• Internal I/O: (List key headers concisely)
• Special Features: ASUS TUF PROTECTION, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, AURA Sync.
• Software Features: Armoury Crate, DriverHub, GlideX, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 (Trial), WinRAR (Trial).
• BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS.
• Form Factor: mATX (9.6″ x 9.6″).

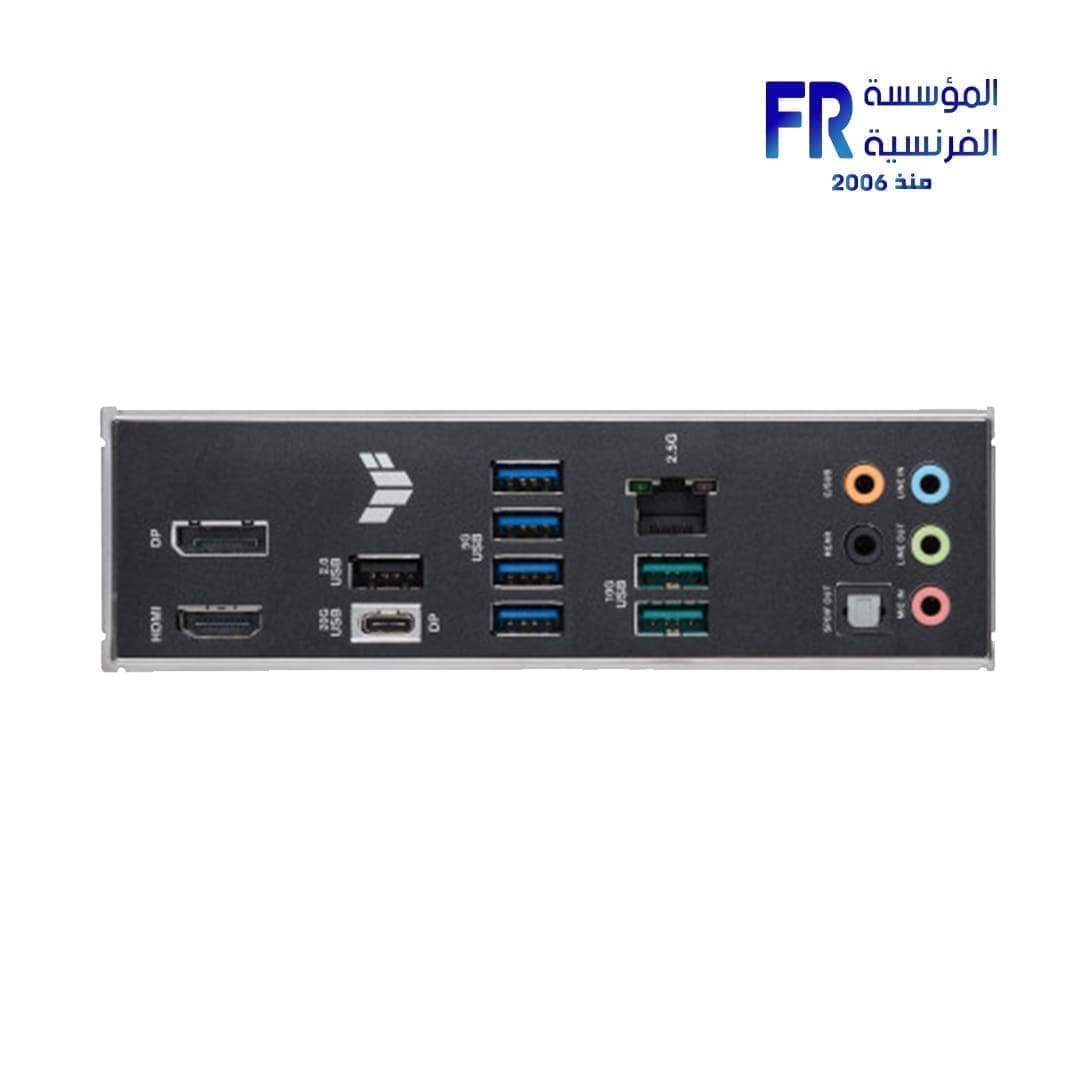

Rear Panel I/O:

• 1 x USB 20Gbps (Type-C with DP Alt mode)
• 2 x USB 10Gbps (Type-A)
• 4 x USB 5Gbps (Type-A)
• 1 x USB 2.0 (Type-A)
• 1 x DisplayPort
• 1 x HDMI
• 1 x Wi-Fi Module
• 1 x 2.5Gb Ethernet
• 5 x Audio Jacks
• 1 x Optical S/PDIF

Internal I/O:

• Fan/Cooling Headers
• Power Connectors
• M.2/SATA Ports
• USB Headers
• Addressable Gen 2 Headers
• Etc. (List key ones)

Target Audience:

The Asus TUF Gaming B860M Plus is ideal for gamers and PC builders seeking a reliable and feature-rich mATX motherboard that supports the latest Intel processors and offers a wide range of connectivity and expansion options. Its robust design and TUF features make it a durable choice for demanding applications.

Value Proposition:

This motherboard offers a strong balance of performance, features, and durability at a competitive price point, making it an excellent choice for building a high-performance gaming or general-purpose PC. The inclusion of Wi-Fi 7 and Bluetooth 5.4 adds further value.
