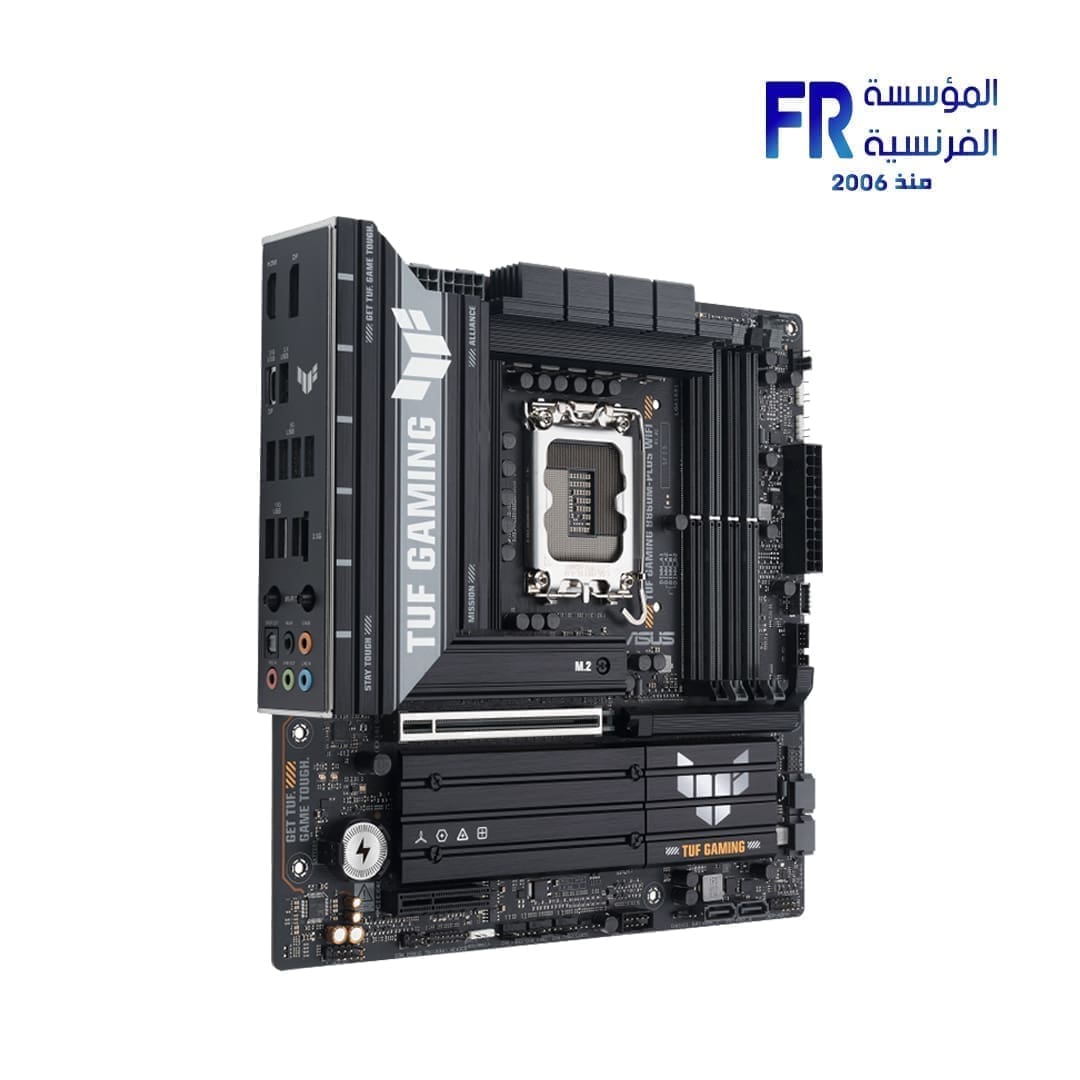

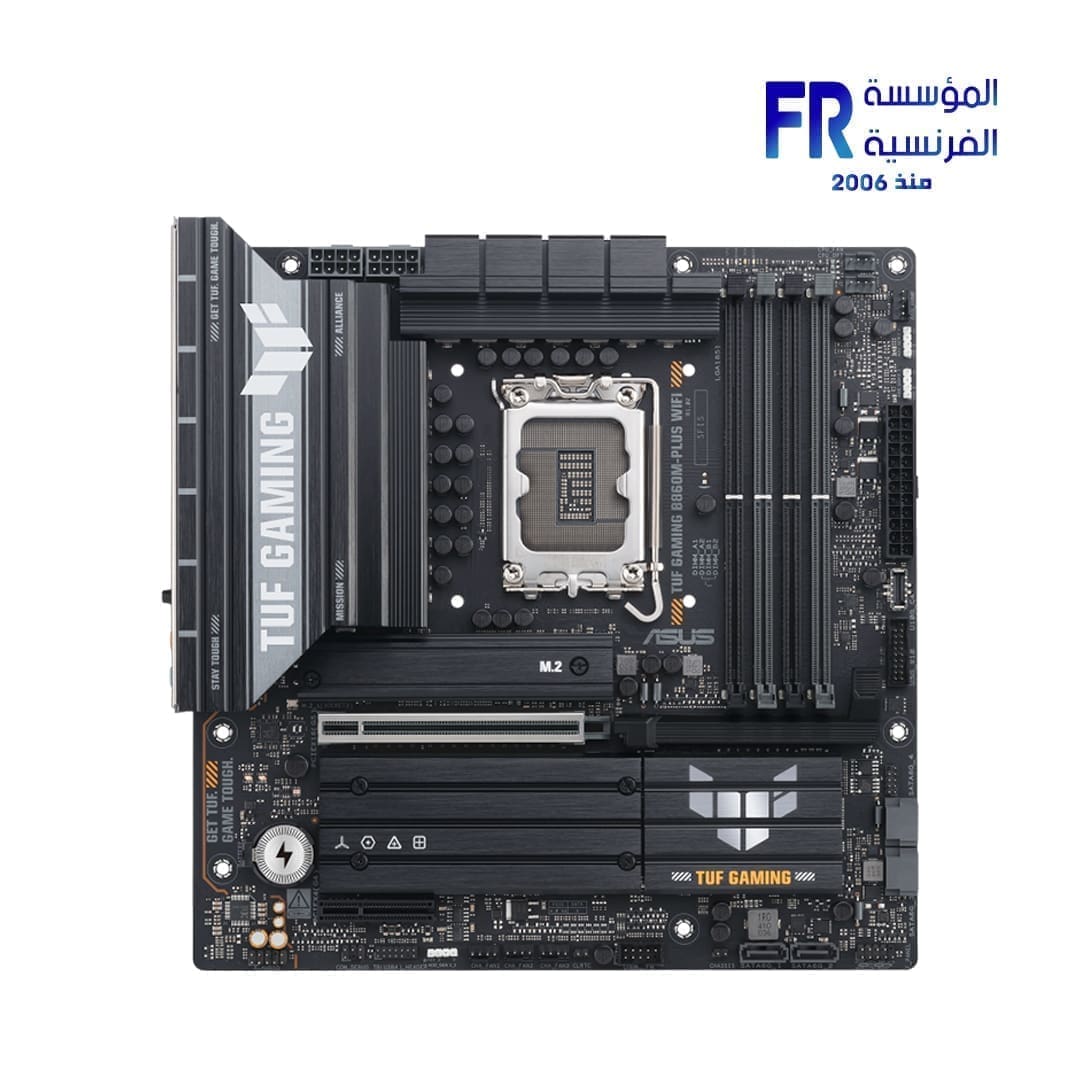

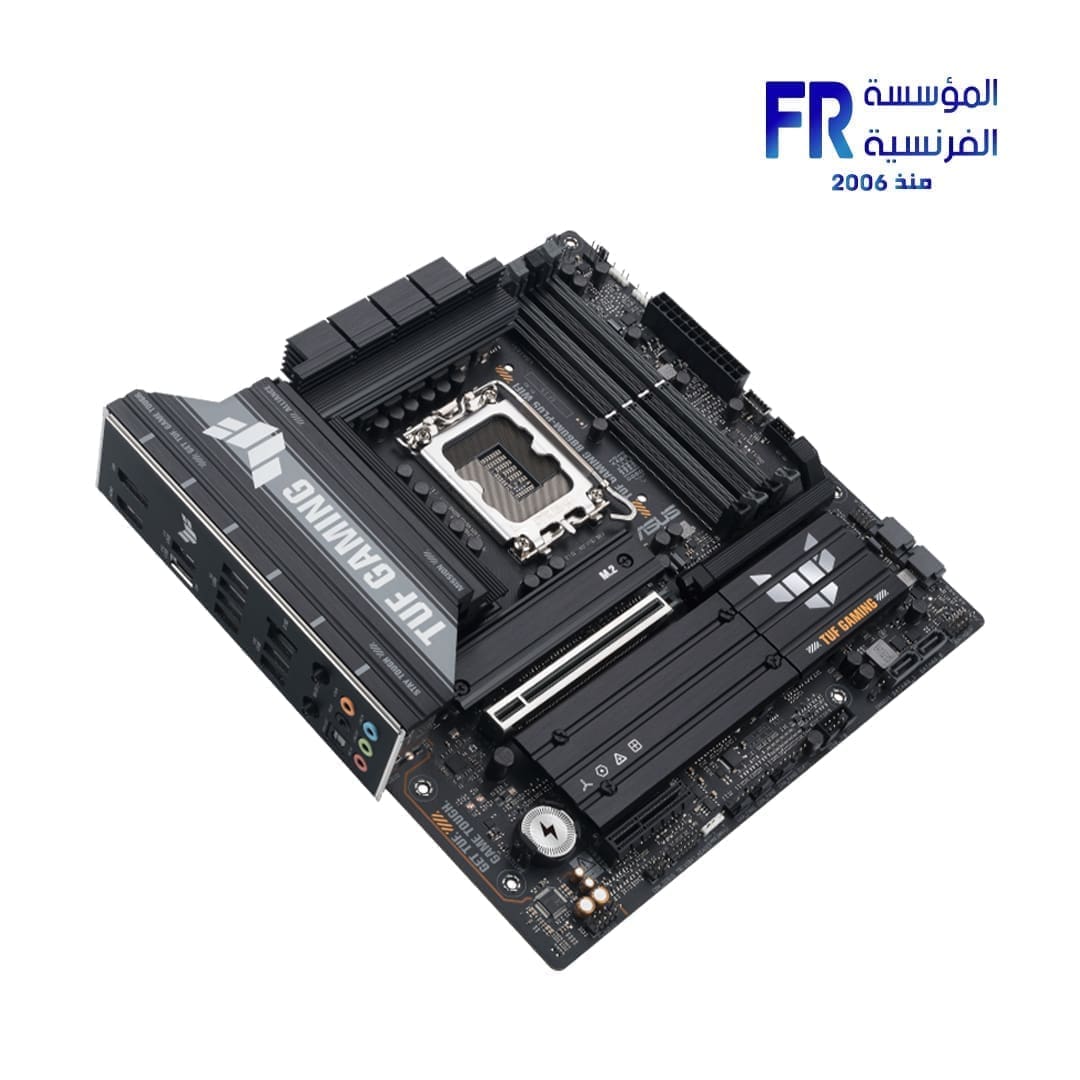

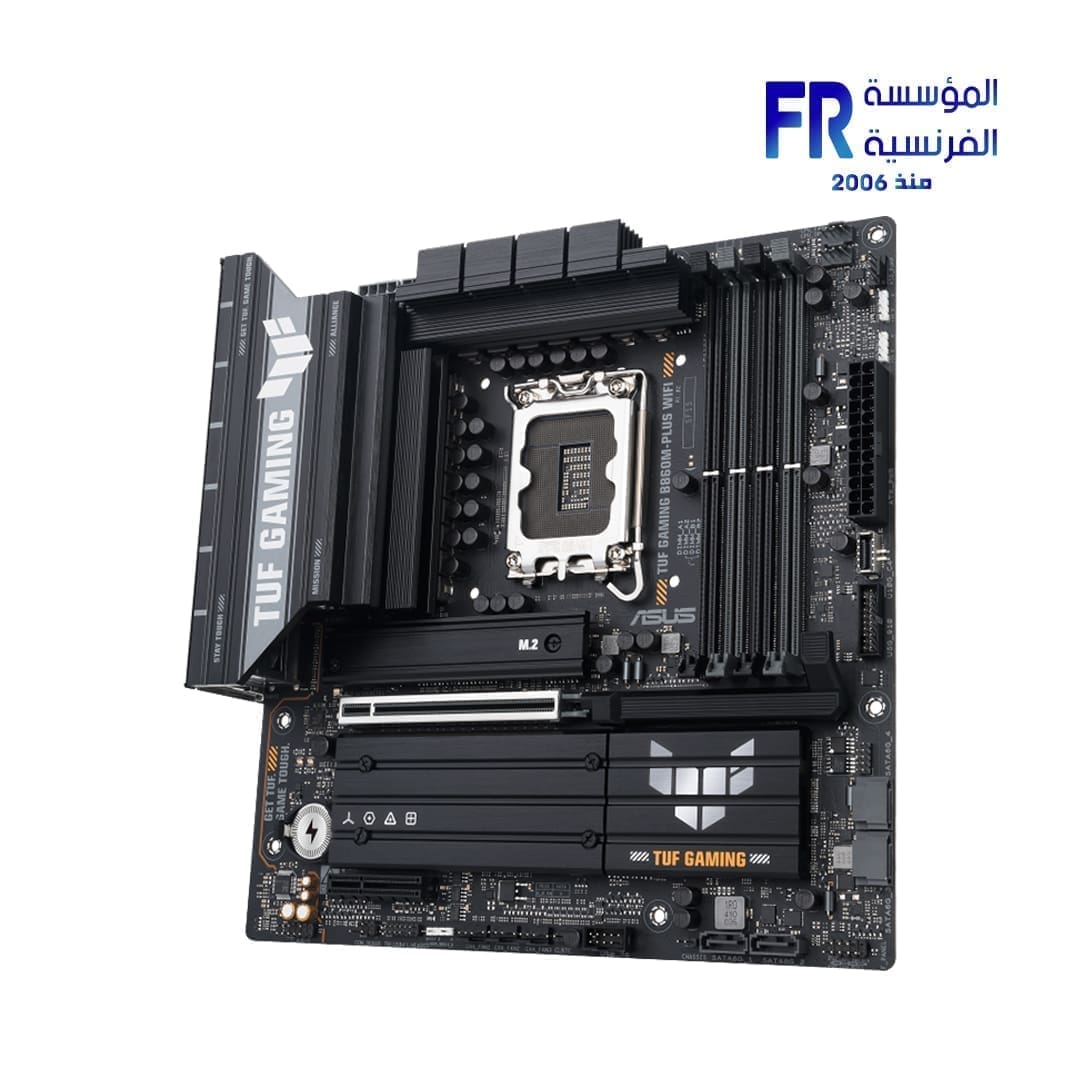

Asus Tuf Gaming B860M Plus Wifi Motherboard

Asus Tuf Gaming B860M Plus Wifi اللوحه الام

• CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851

• Chipset: Intel® B860

• Memory:

  • 4 x DIMM slots, Max. 256GB DDR5

  • Up to 8800+ MT/s (OC)

  • Dual Channel Architecture

  • Supports Intel® XMP, ASUS AEMP III

• Graphics:

  • 1 x DisplayPort (Max. 4K@60Hz via DP 1.4)

  • 1 x HDMI™ (Max. 4K@60Hz via HDMI 2.1)

  • 1 x USB-C® 20Gbps (Supports DisplayPort output)

• Expansion Slots: PCIe 5.0

• Storage: 3 x M.2 slots

• Networking: Realtek 2.5Gb Ethernet, Wi-Fi 7

• Rear Panel I/O: USB-C® 20Gbps

• Front Panel I/O: USB-C® 10Gbps

• Other Features: Aura Sync, Advanced AI PC ready

• Form Factor: mATX

• Power Design: 12+1+2+1 80A DrMOS power stages

Asus TUF Gaming B860M Plus WiFi Motherboard: A Powerful Foundation for Your Next Build

The Asus TUF Gaming B860M Plus WiFi motherboard is a solid choice for gamers and PC enthusiasts looking for a reliable and feature-rich platform for their Intel® Core™ Ultra Processor (Series 2) build. This mATX motherboard packs a punch, offering support for the latest technologies, including DDR5 memory, PCIe 5.0, and WiFi 7.

Key Features:

• CPU Support: Compatible with Intel® Core™ Ultra Processors (Series 2) utilizing the LGA 1851 socket.

• Chipset: Powered by the Intel® B860 chipset, providing a balance of performance and features.

• Memory: Four DIMM slots support up to 256GB of DDR5 memory with speeds up to 8800+ MT/s (OC). Dual-channel architecture and support for Intel® XMP and ASUS AEMP III ensure optimal memory performance.

• Graphics: Integrated graphics support includes a DisplayPort (4K@60Hz via DP 1.4), HDMI™ (4K@60Hz via HDMI 2.1), and a USB-C® 20Gbps port with DisplayPort output.

• Expansion Slots: Benefit from the high-speed PCIe 5.0 slot for the latest graphics cards.

• Storage: Three M.2 slots offer ample storage options for NVMe SSDs, providing lightning-fast boot times and application loading.

• Networking: Stay connected with Realtek 2.5Gb Ethernet and the latest WiFi 7 standard for blazing-fast wired and wireless connectivity.

• Connectivity: The rear panel features a USB-C® 20Gbps port, while the front panel offers a USB-C® 10Gbps port for convenient access to high-speed peripherals.

• Other Features: Enjoy customizable RGB lighting with Aura Sync, and the motherboard is Advanced AI PC ready.

• Form Factor: The mATX form factor makes it suitable for compact builds without compromising on features.

• Power Design: A robust 12+1+2+1 80A DrMOS power stage design ensures stable power delivery for demanding CPUs.

The Asus TUF Gaming B860M Plus WiFi motherboard offers a compelling combination of features, performance, and connectivity, making it an excellent choice for building a modern and powerful PC. Whether you’re a gamer, content creator, or simply a PC enthusiast, this motherboard provides a solid foundation for your next build.
