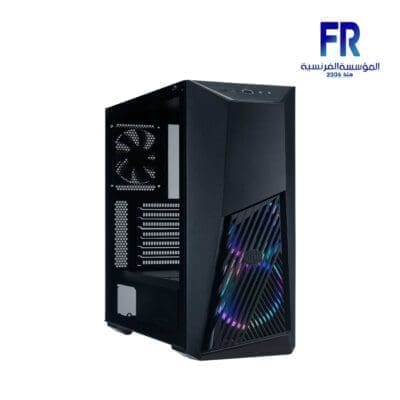

Cooler Master Masterbox K501L ARGB Mid Tower Case

COOLER MASTER MASTERBOX K501L ARGB MID TOWER CASE

---

Cooler Master Masterbox K501L ARGB Mid Tower Case SPECIFICATIONS:

---

• Series : MasterBox Series
• Size : Mid Tower
• Model Numbers :
  • MCB-K501L-KANN-S00 (MasterBox K501L)
  • MCB-K501L-KGNN-SR1 (MasterBox K501L RGB)

---

Materials

• Steel
• Plastic
• Mesh
• Acrylic (MCB-K501L-KANN-S00)
• Tempered Glass (MCB-K501L-KGNN-SR1)
• Nickel-Plated Copper (for cooling components, if applicable)

---

Color(s)

• Black
• Silver (RGB variant)

---

Dimensions

• Excluding Protrusions : 428.7mm x 205mm x 458.5mm (L x W x H)
• Including Protrusions : 496mm x 217mm x 469mm (L x W x H)

---

Volume

• 40.3L (excluding protrusions)

---

Weight

• Net Weight : 4.9 kg
• Gross Weight : 6.3 kg

---

Motherboard Support

• Mini ITX
• Micro ATX
• ATX
• E-ATX* (*Support for up to 12″ x 10.7″, but may limit cable management features)
• SSI CEB

---

Drive Bays

• 5.25″ Drive Bays : 0
• 2.5″ / 3.5″ Combo Drive Bays : 2
• 2.5″ Drive Bays : 4 (2+2 combo)

---

Fan Support

• Front :
  • 2x 140mm or 3x 120mm
  • Pre-installed Fans :
    • 1x 120mm Red LED (MCB-K501L-KANN-S00)
    • 1x 120mm RGB LED (MCB-K501L-KGNN-SR1)
• Top :
  • 2x 140mm or 3x 120mm
• Rear :
  • 1x 120mm
  • Pre-installed Fan : 1x 120mm
• Bottom : N/A

---

Clearance

• CPU Cooler : 165mm / 6.49″
• PSU :
  • 180mm / 7.08″ (standard)
  • 295mm / 11.61″ (with HDD cage removed)
• GPU : 410mm / 16.1″

---

Dust Filters

• Top
• Front
• Bottom

---

I/O Panel

• 1x USB 3.0 Type-A
• 1x USB 2.0
• 1x 3.5mm Audio Jack
• 1x 3.5mm Mic Jack

---

Cable Management

• Routing Space : 19mm / 0.74″

---

Expansion Slots

• 7

---

Power Supply Support

• Type : ATX
• Mounting : Bottom Mount

---

Lighting

• Digital aRGB LEDs (MCB-K501L-KGNN-SR1 RGB variant only)

---

Key Features

1. Dual Model Options :
   • MCB-K501L-KANN-S00: Red LED fan with acrylic panel.
   • MCB-K501L-KGNN-SR1: RGB LED fan with tempered glass panel.
2. Optimized Cooling : Supports multiple fans and radiators for superior airflow.
3. Advanced Cable Management : 19mm routing space for clean builds.
4. Durable Construction : Combination of steel, mesh, and tempered glass for strength and aesthetics.
5. Versatile Compatibility : Supports Mini ITX, Micro ATX, ATX, and limited E-ATX motherboards.
6. Convenient Dust Filters : Easy-to-clean filters on top, front, and bottom for improved maintenance.
