Cooler Master Masterfan Mf120 Lite 120mm Black Fan
0 EGP
- Model Name: Cooler Master MasterFan MF120 Lite Black
- Part Number: MFW-B2NN-17NPK-R1
- Fan Specs: 120mm, 650-1750 RPM, 120 m³/h (70.5 CFM) Airflow, 2 mmH₂O Air Pressure, 30 dBA Noise Level
- Features: Non-LED, Reinforced PBT Frame, Anti-Resonance Mounting System, 4-Pin PWM Control, Sleeve Bearing
- Warranty: 2 Years
✅ Authorized Cooler Master Retailer in Egypt | 2 Years Local Warranty | 100% Original Products

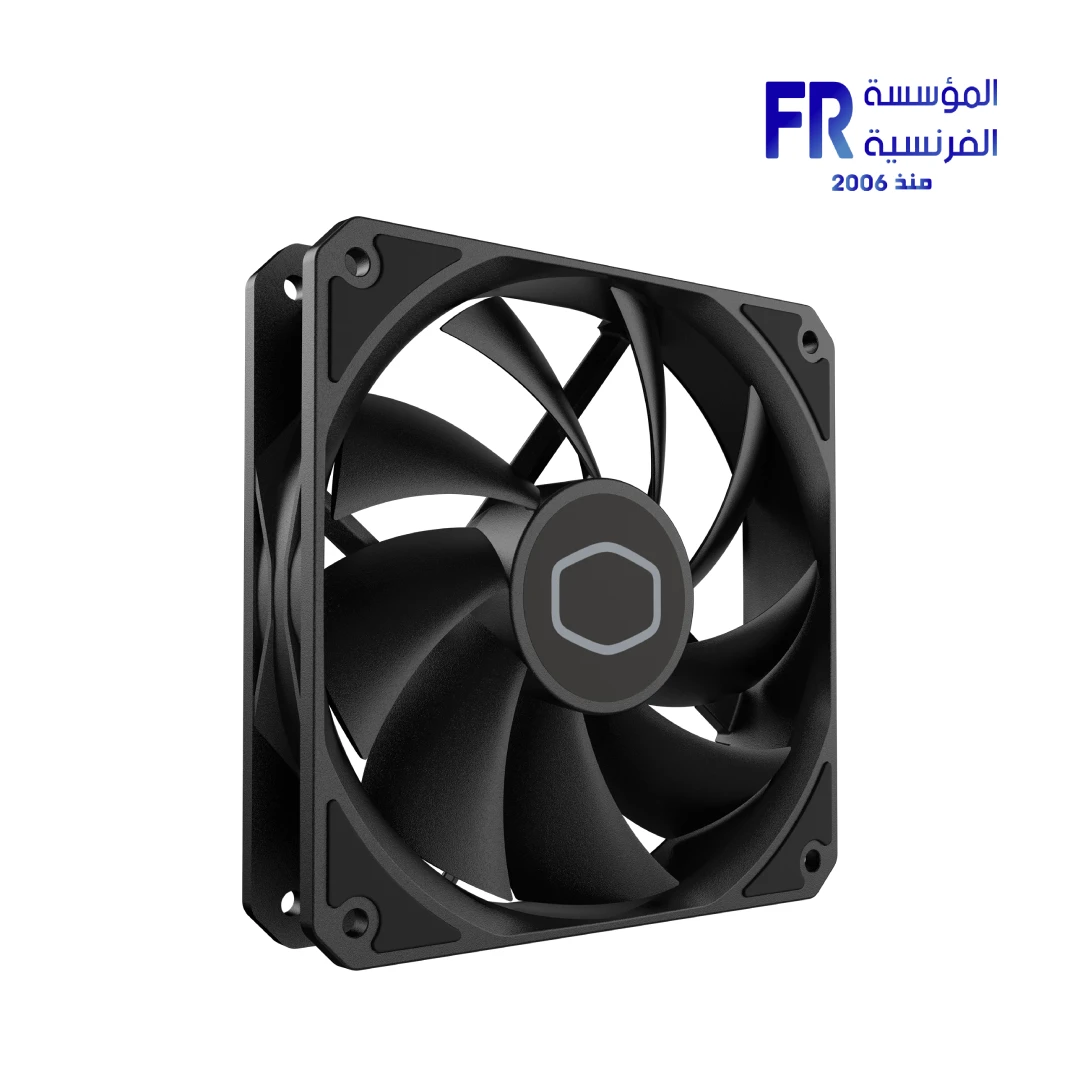

Cooler Master MasterFan MF120 Lite 120mm Black Fan
Optimize your chassis airflow without compromising your budget using the MasterFan MF120 Lite. Engineered for minimalist PC builders and stealth setups, this 120mm case fan combines a reinforced PBT frame with reliable 4-Pin PWM control. Furthermore, the MasterFan MF120 Lite delivers an impressive 70.5 CFM of airflow while utilizing an anti-resonance mounting system to keep your system cool, stable, and distraction-free.
Enhances structural rigidity to reduce vibration, ensuring consistent airflow and extending the fan’s operational lifespan.
Pushes up to 70.5 CFM of air at 2 mmH₂O static pressure, providing superior cooling efficiency for radiators or dense mesh panels.
The Non-LED design and anti-resonance rubber pads ensure a clean, professional look with minimal acoustic noise (30 dBA max).
Why Choose the MasterFan MF120 Lite?
The MasterFan MF120 Lite isn’t just about moving air; it is about delivering exceptional reliability for everyday builds and professional workstations. Consequently, the anti-resonance mounting system significantly reduces unwanted chassis vibration, allowing you to focus on your work or gameplay. Additionally, the 4-Pin PWM control ensures that the fan dynamically adjusts its speed between 650 and 1750 RPM based on your system’s thermal needs. Ultimately, whether you are building a stealth black-out PC, a home server, or simply need extra exhaust fans on a budget, this Cooler Master fan provides the durability and performance you need.
Technical Specifications
| Model Name | MasterFan MF120 Lite (Non-LED) |
| Part Number (MPN) | MFW-B2NN-17NPK-R1 |
| SKU | MFW-B2NN-17NPK-R1 |
| EAN / UPC | 884102127212 |
| Fan Dimensions | 120 x 120 x 25 mm |
| Lighting | Non-LED (Stealth Black) |
| Fan Speed | 650-1750 RPM ± 10% |
| Airflow (Max) | 120 m³/h (70.5 CFM) |
| Air Pressure | 2 mmH₂O |
| Noise Level | 30 dBA |
| Bearing Type | Sleeve Bearing |
| Connector | 4-Pin (PWM) |
| Power Consumption | 2.76 W (12 VDC / 0.45A) |
| MTTF | >160,000 Hours |
| Frame Material | Reinforced PBT |
| Color | Black |
| Warranty | 2 Years Local Warranty |
💡 Pro Tip
Because this fan features a standard 4-Pin PWM connector, it is highly recommended to connect it directly to a CPU_CHA or SYS_FAN header on your motherboard rather than a generic Molex/SATA adapter. This allows your BIOS to automatically curve the fan speed, keeping your PC whisper-quiet during office work and ramping up only when you start gaming or rendering.
Frequently Asked Questions
What is the advantage of the 4-Pin PWM connector on this fan?
The 4-Pin PWM (Pulse Width Modulation) connector allows your motherboard to dynamically control the fan speed between 650 and 1750 RPM based on system temperatures. This ensures optimal cooling when needed and near-silent operation during idle or light workloads.
How does the reinforced PBT frame improve cooling performance?
Polybutylene Terephthalate (PBT) is a highly durable and rigid plastic. By reinforcing the frame, Cooler Master minimizes vibration and prevents the fan housing from warping over time. This ensures the fan blades maintain perfect clearance, resulting in consistent airflow and reduced mechanical noise.
Is this specific model illuminated with RGB or ARGB?
No, the MasterFan MF120 Lite (MFW-B2NN-17NPK-R1) is the Non-LED version. It is specifically designed for stealth builds, professional workstations, server/NAS environments, or budget-conscious builders who prioritize raw cooling performance and cost-efficiency over RGB lighting.
