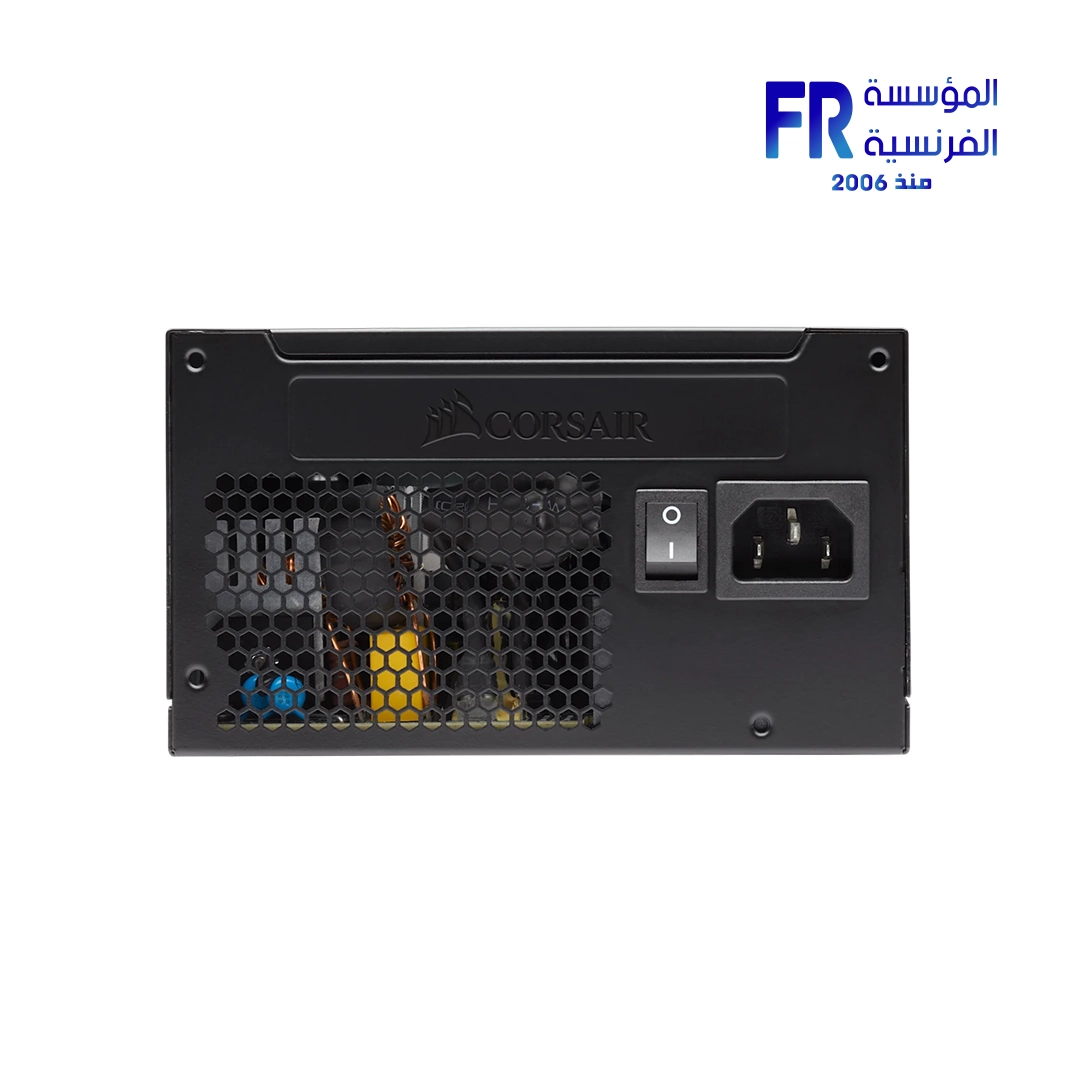

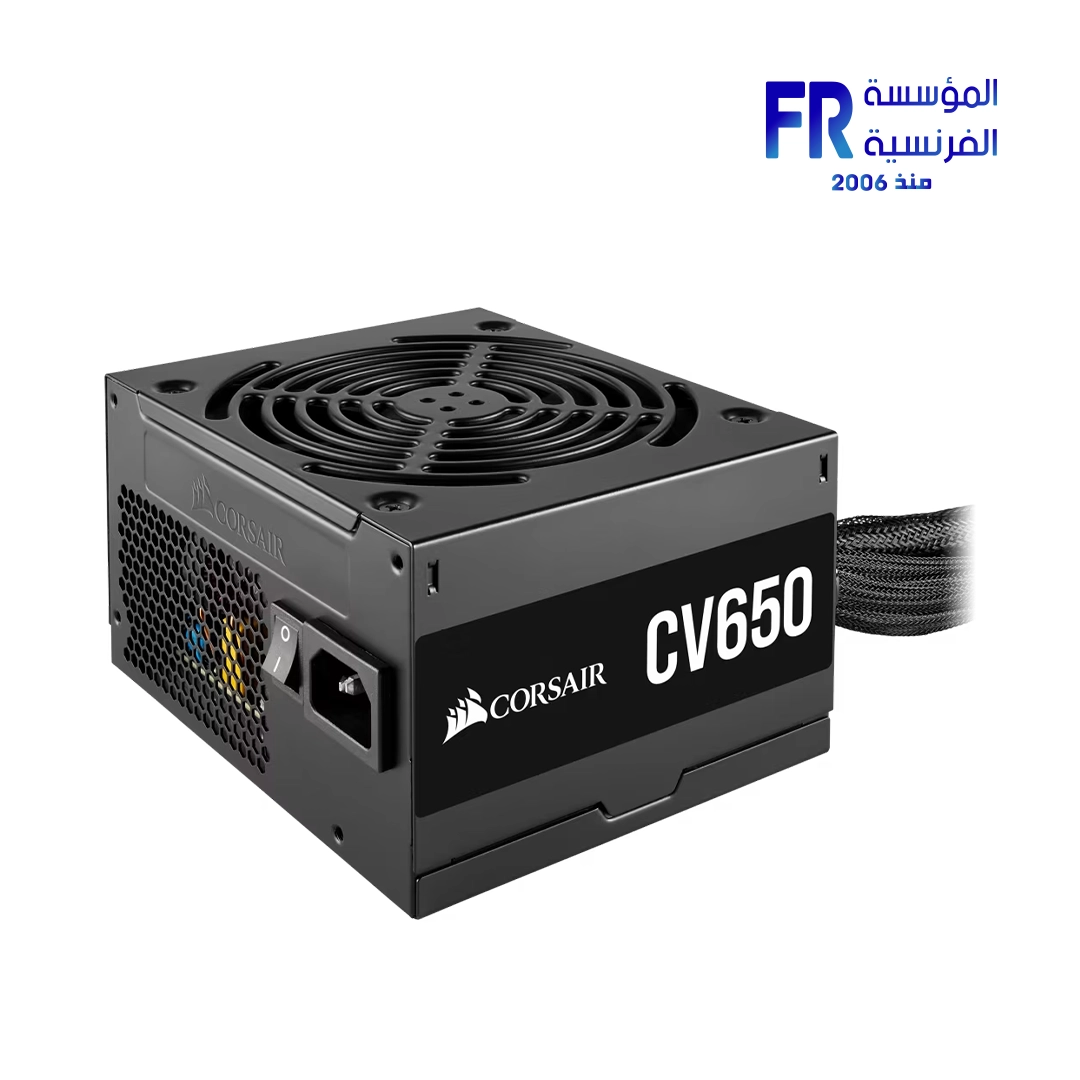

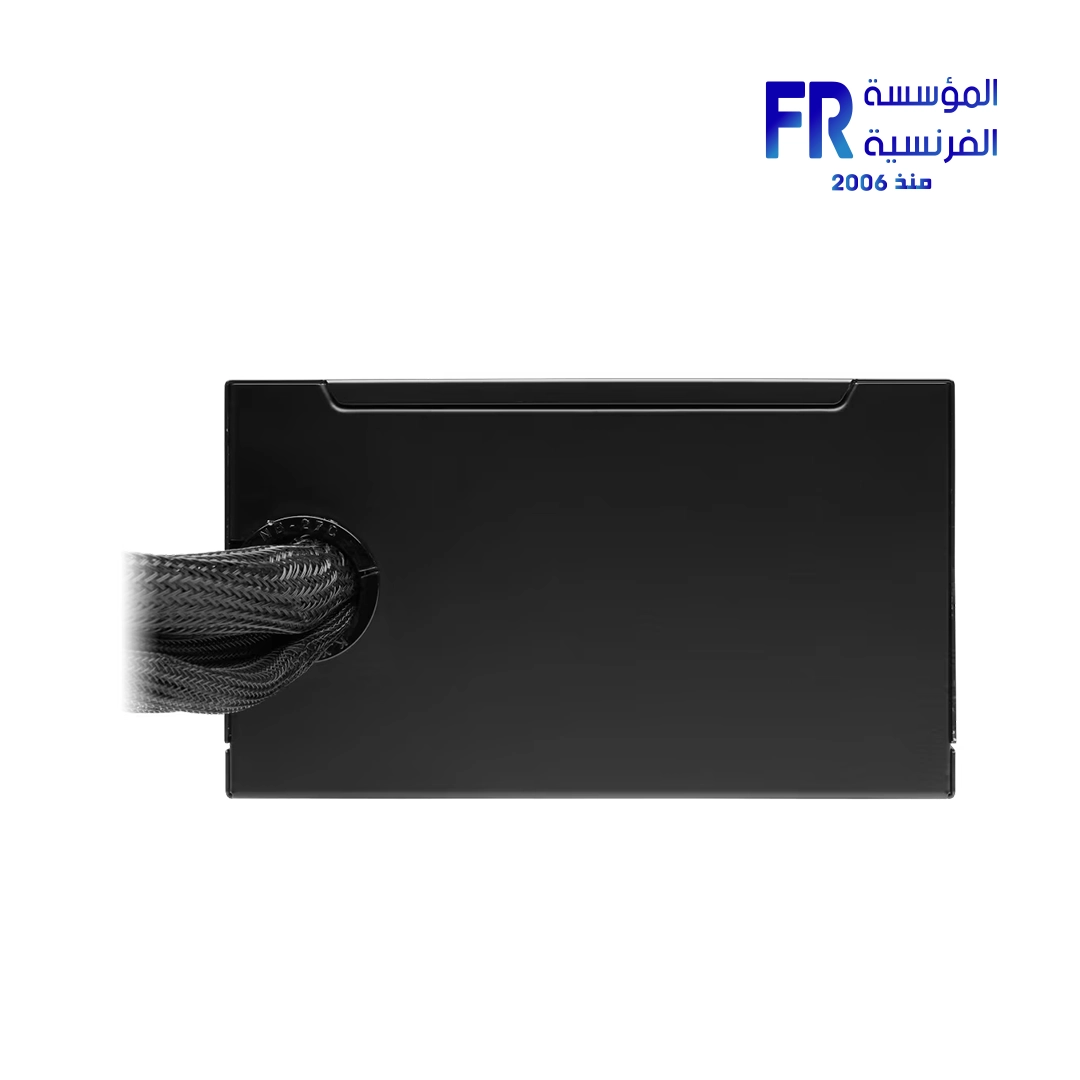

Corsair Cv650 650W Power Supply
1140 جنية
-
Wattage: 650W
-
Efficiency: 80 PLUS Bronze certified
-
Cable Type: Non-modular
-
Cooling: 140mm low-noise fan
-
Protections: OVP, UVP, OPP, OTP, SCP
-
Compatibility: Standard ATX cases
-
Part No.: CP-9020211-UK
-
الضمان: 2 years
Corsair Cv650 650W مزود الطاقة
Corsair Cv650 650W Power Supply specs:
| Special Technology | None |
|---|---|
| Protections | OVP (Over Voltage) | UVP (Under Voltage) | SCP (Short Circuit) | OTP (Over Temp) | OPP (Over Power) |
| PSU Compatibility | ATX12V v2.31 and EPS12V 2.91 standards |
| ATX Connector | 1 |
| ATX12V Version | v2.31 |
| Cable Type | Sleeved and Flat Black Cables |
| Continuous Power W | 650 Watts |
| EPS Connector | 1 |
| Fan Bearing Technology | Sleeve Bearing |
| Fan Size MM | 140mm |
| MTBF Hours | 100,000 hours |
| Multi GPU Ready | No |
| SATA Connector | 7 |
|---|---|
| Modern Standby | No |
| Dimensions | 150mm x 86mm x 125mm |
| Modular | No |
| Floppy Connector | 1 |
| PCIe Connector | 2 |
| PSU Form Factor | ATX |
| Zero RPM Mode | No |
| Single Multiple 12V Rail Toggl | No |
| 80 PLUS Efficiency | Bronze |
| Weight | 2.32 |

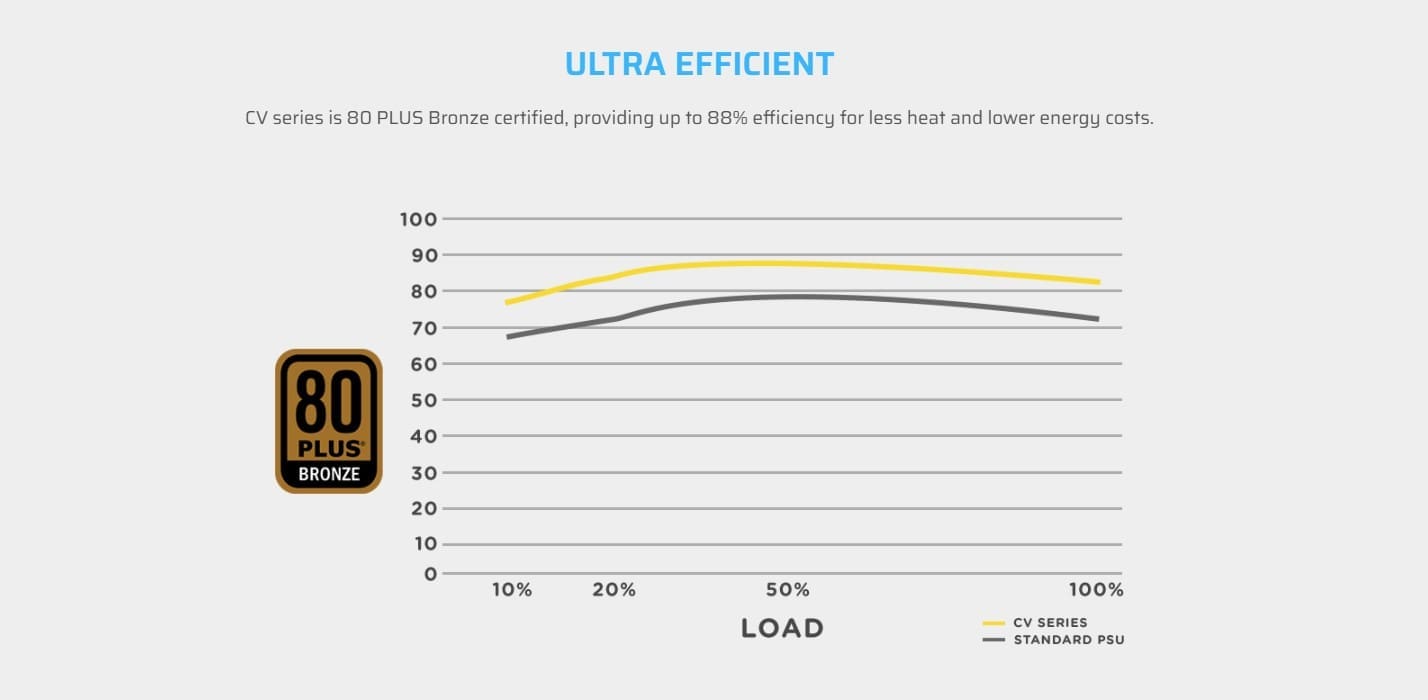

ULTRA EFFICIENT
CV series is 80 PLUS Bronze certified, providing up to 88% efficiency for less heat and lower energy costs.
CONTINUOUS, RELIABLE OUTPUT
Like all CORSAIR power supplies, the CV Series does exactly what it says it does: deliver continuous power at full capacity, no matter which wattage variant you choose.

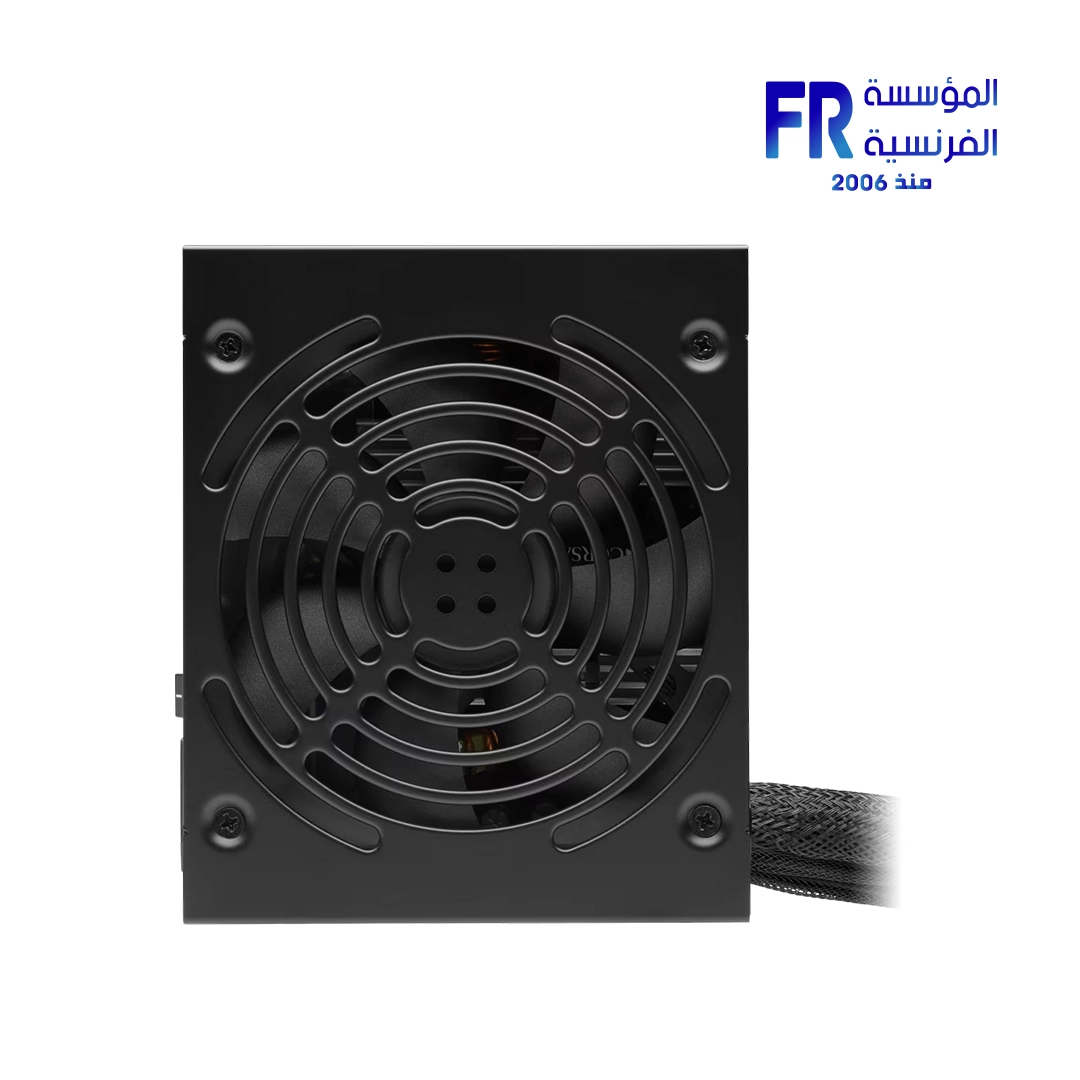

Low-Noise Operation
A 120mm thermally controlled low-noise cooling fan only spins at high speed when your power supply is under heavy stress, slowing down for quieter operation at lower loads.
Compact Design
CV series enclosures are only 125mm long, ensuring an easy fit in almost all modern PC cases.

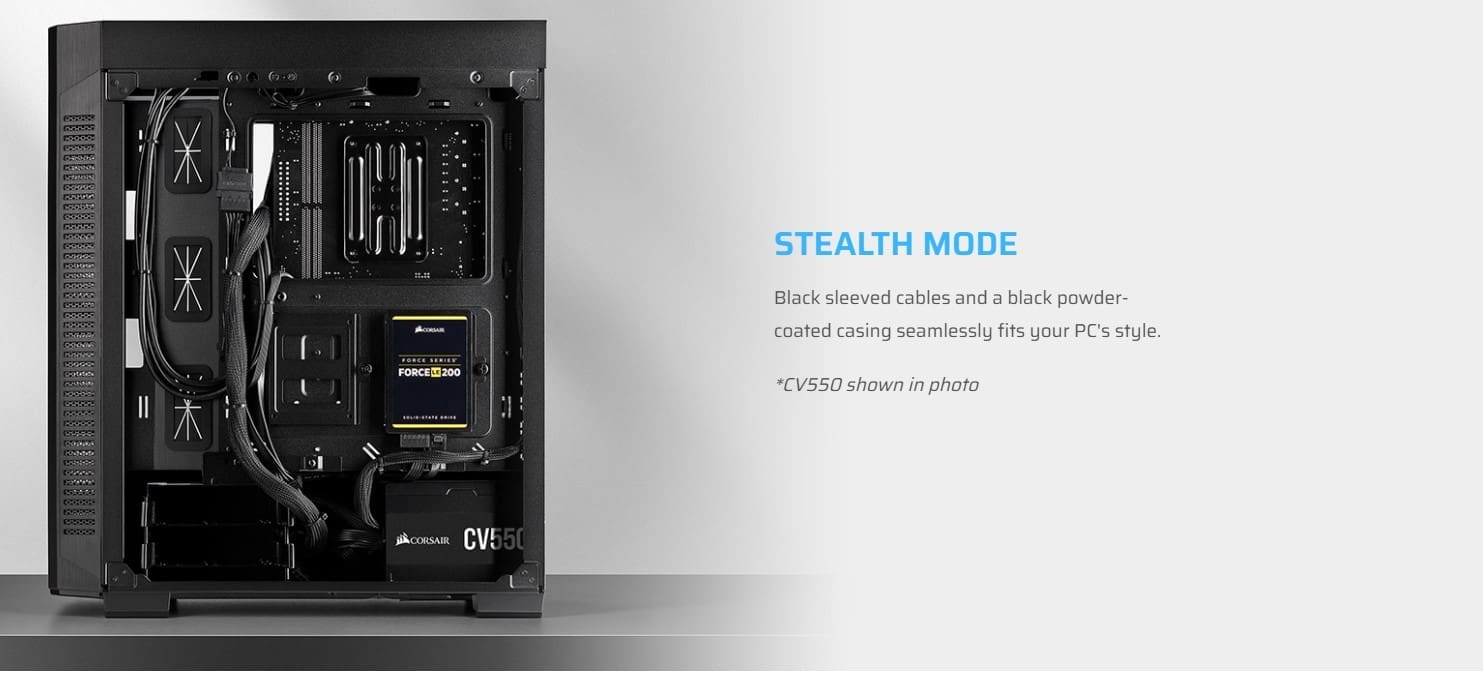

Stealth Mode
Black sleeved cables and a black powder-coated casing seamlessly fits your PC’s style.
CV650 POWER TABLE
| الموديل | RPS0128 | |
|---|---|---|
| Part No. | CP-9020236 | |
| AC Input Rating | ||
| AC Input | 100-240V | |
| Input Current | 10A-5A | |
| Frequency | 47~63Hz | |
| Max Load | Max Output | |
| +5V | 20A | 130W |
| +3.3V | 24A | |
| +12V | 52A | 624W |
| -12V | 0.3A | 3.6W |
| +5Vsb | 3A | 15W |
| Total Power | 650W | |
CV650 DC CABLE LISTING
| QTY | Cable | Connectors per cable |
Total connectors |
Connector Spacing |
Total length |
|---|---|---|---|---|---|
| 1 | ATX Cable 24 pin
|
1 | 1 | – | 550mm (± 10mm) |
| 1 | EPS/ATX12V 8 pin (4+4) cable
|
1 | 1 | – | 600mm (± 10mm) |
| 1 | PCIe 8 pin (6+2) cable
|
2 | 2 | 550mm, 120mm | 670mm (± 10mm) |
| 2 | SATA Cable (3 SATA)
|
3 | 6 | 450mm, 120mm, 120mm | 690mm (± 10mm) |
| 1 | SATA-PATA-PATA-FDD
|
4 | 4 | 450mm, 120mm, 120mm, 120mm | 810mm (± 10mm) |
| الموديل | |
|---|---|
| Psu-Cable-Type | |
| PSU WATT | |
| ENERGY EFFICIENT | |
| Protection | |
| PSU Capacitors | |
| DC to DC | |
| Fan Size (mm) | |
| Part Number | |
| الضمان |
