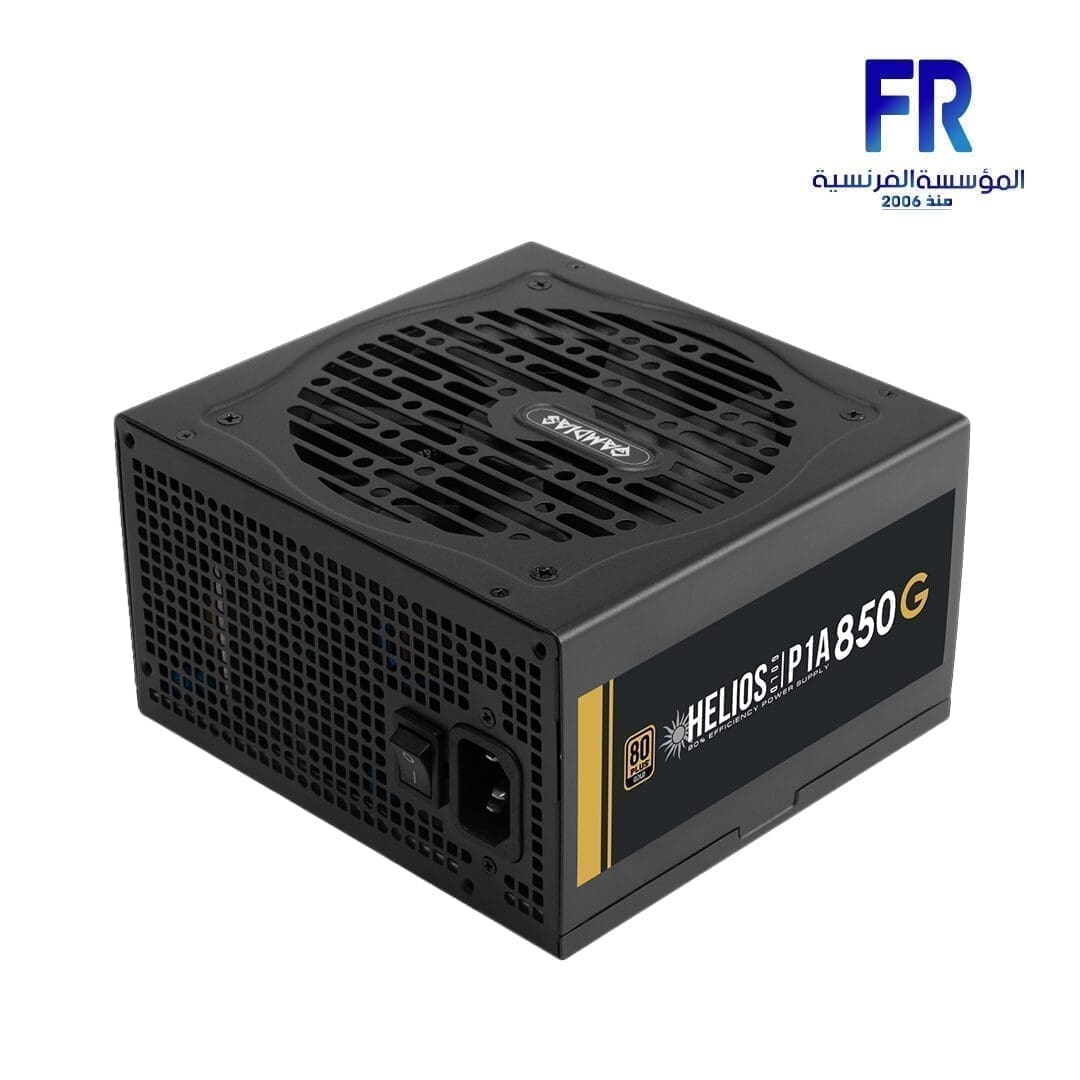

Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply
Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply

Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply

4500 جنية

  • Fully Modular
  • 850W 80 Plus Gold
  • High Quality Capacitors
  • 120mm Hydraulic Bearing Fan
  • Compatible with ATX12V v2.52
  • Support C6/C7 Power State
  • Automatic Fan Speed Optimizing According to Temperature
  • Full DC-DC, LLC Resonant Circuit Design
  • Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP

غير متوفر بالمخزون

Price Match Guarantee
رمز المنتج: 4712960139923 التصنيف: الوسوم: , , , , , , , , , العلامة التجارية:

Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular مزود الطاقة

  • POWERFUL. EFFICIENT. STABLE.

  • Certified with 80 PLUS GOLD, the HELIOS P1A-750G can deliver a stable output of up to 90% efficiency and reduce power consumption.
  • It features black flat cables for easy installation and cable management and is equipped with high-quality capacitors and a hydraulic bearing fan to perform reliably at top conditions.

  • 80 PLUS GOLD CERTIFIED

  • With an 80 PLUS GOLD certification, the unit guarantees stable power output at up to 92% efficiency at 50% load while reducing considerable power consumption.

  • SMART HYDRAULIC FAN

  • Equipped with a 120mm hydraulic bearing fan, the PSU ensures silent and stable operations for long durations.
  • The fan also features automatic fan speed optimization, enabling the fan speed to be adjusted based on the detection of temperature and load.

  • LLC RESONANT CIRCUIT LAYOUT

  • Made with DC to DC structure with full bridge LLC resonance assist and 12V synchronous rectification providing a safe and stable output.

  • FLAT BLACK CABLES

  • The sleek and flexible black cables are designed for easy cable installation, reducing clutter, and increase the airflow within the case.

  • HEAVY-DUTY PROTECTION

  • This PSU offers complete protection, meeting full demands to help the system operate safely and stably.

  • connectors

Gamdias Helios P1A 850G 850W 80 Plus Gold Fully Modular Power Supply

  • Type

  • ATX12V v2.52

  • Efficiency

  • Meet 80 PLUS Gold efficiency

  • Power Factor Correction

  • APFC with PF value of 0.99

  • Support MB Sync

  • No

  • Dimension (L x W x H)

  • 140 x 150 x 86 mm

  • Support C6/C7 power state

  • Yes

  • AC Input

  • 100-240V~ / 12-8A / 50-60Hz

  • DC Output

  • +3.3V / +5V / +12V / -12V / +5Vsb

  • Max. Output Current

  • 22A / 22A / 70.8A / 0.3A / 3A

  • Max. Output Power

  • 120W / 850W / 3.6W / 15W

  • Total Power

  • 850W

  • Peak Power

  • 1105W

  • Protection

  • OVP / UVP / OPP / SCP / OCP / OTP

  • Main Power

  • 1 (24 Pin)

  • CPU

  • 1 (4+4 Pin)

  • PCI-E

  • 4 (6+2 Pin)

  • SATA

  • 6 (5 Pin)

  • Molex

  • 3 (4 Pin)

  • Modular

  • Fully Modular

  • Flat Cable

  • Yes

  • Cooling System

  • 120mm hydraulic bearing fan

  • Silent Mode

  • No

  • DC to DC

  • Yes

  • Environmental Compliance

  • Erp Lot 6
