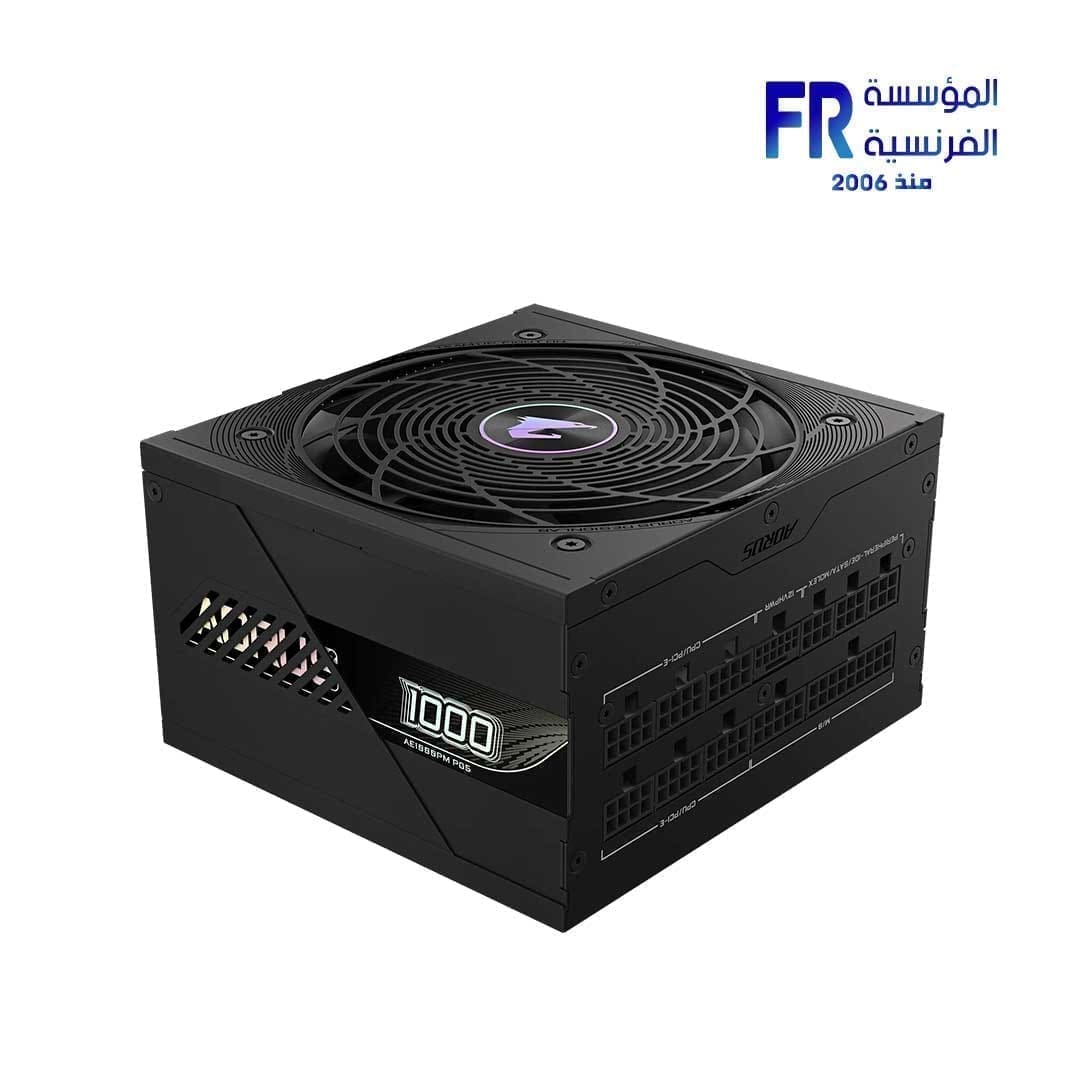

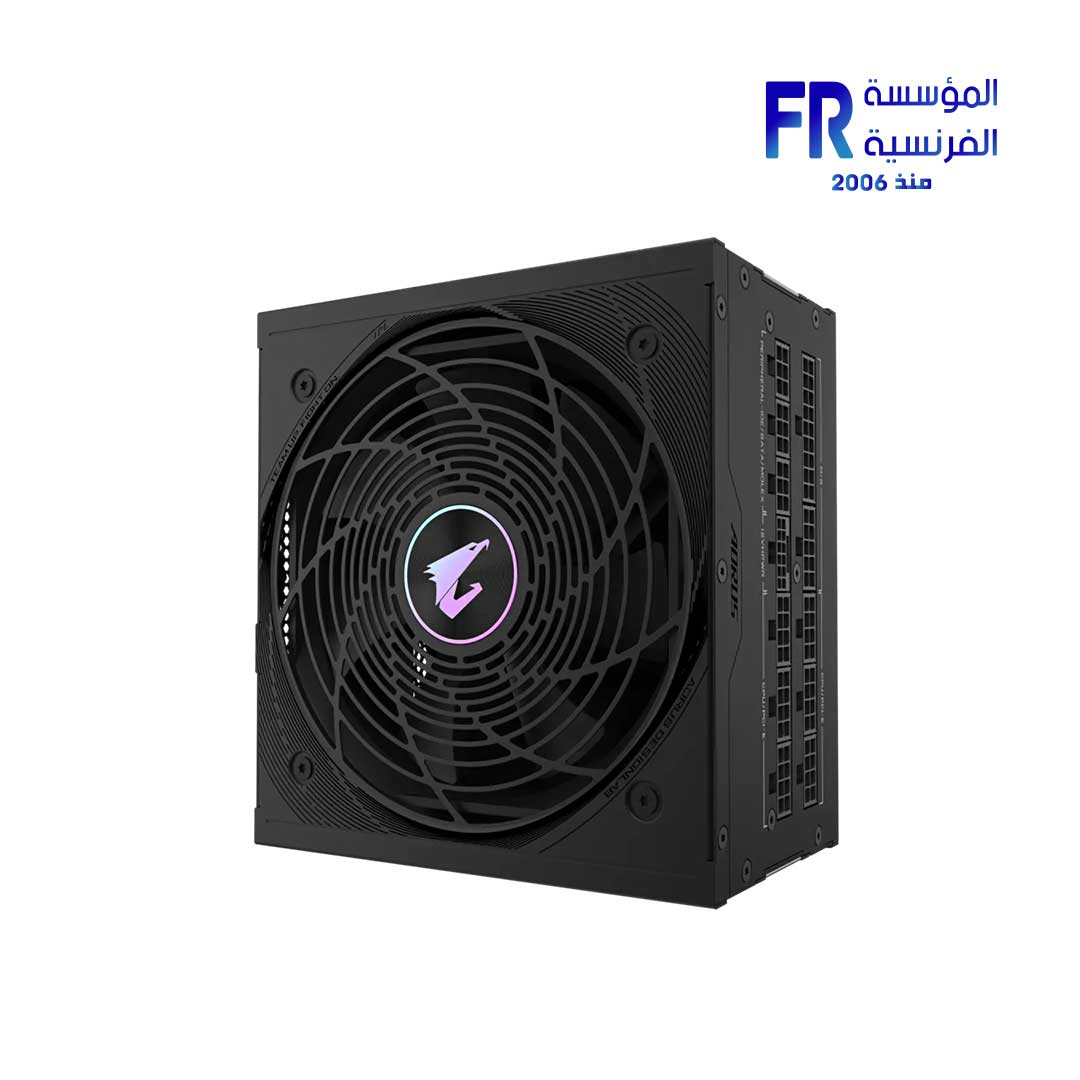

Gigabyte Aorus Elite P1000W 80+ Platinum Fully Modular Pcie 5.0 Power Supply
8800 جنية
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
| الموديل | |
|---|---|
| PSU CABLE TYPE | |
| PSU WATT | |
| ENERGY EFFICIENT | |
| Protection | |
| Fan Size | |
| Part Number |
Gigabyte Aorus Elite P1000W 80+ Platinum Fully Modular Pcie 5.0 مزود الطاقة
Gigabyte Aorus Elite P1000W 80+ Platinum Fully Modular Pcie 5.0 مزود الطاقة
-

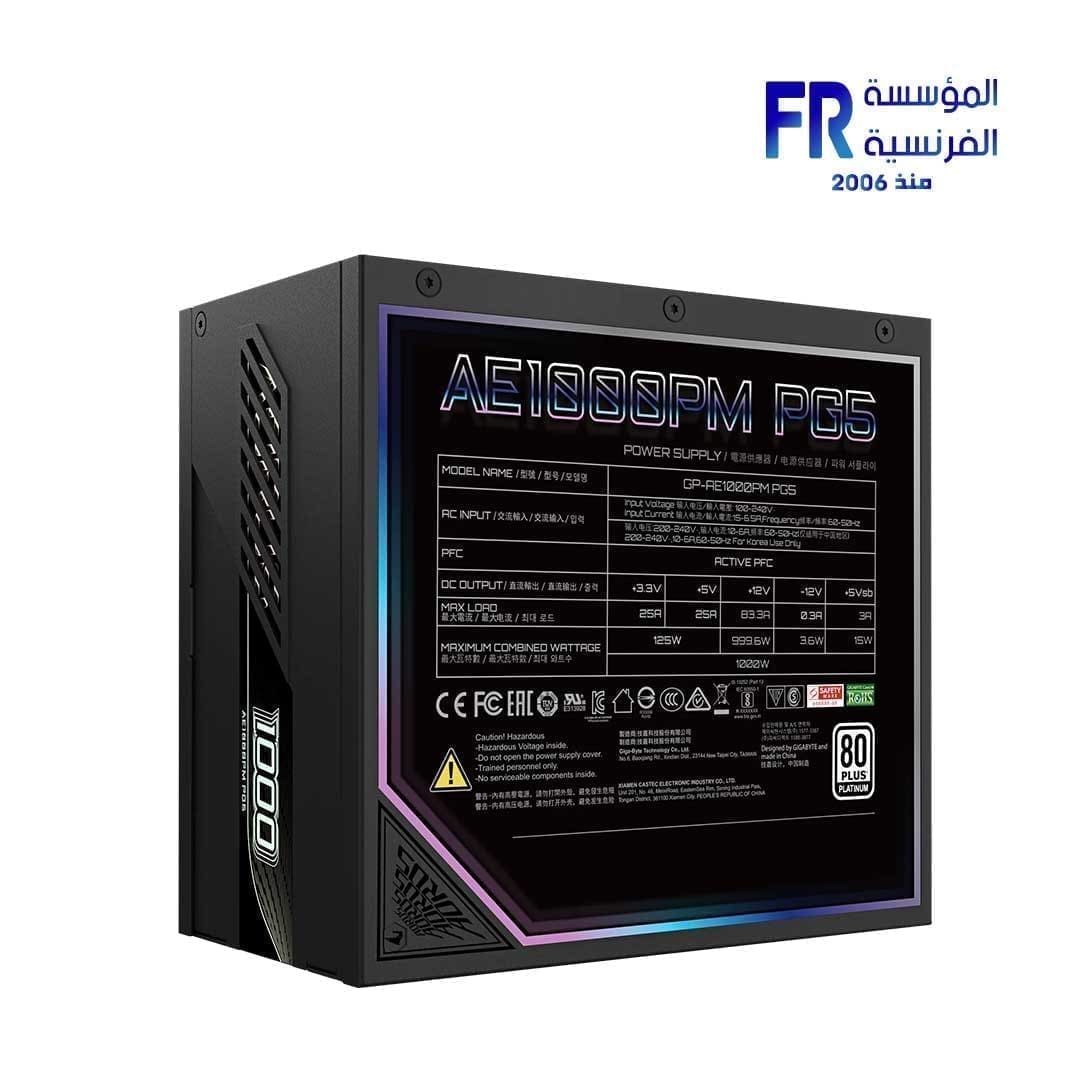

ModelGP-AE1000PM PG5
-
TypeIntel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
-
PFCActive PFC (>0.9 typical)
-
Input Voltage100-240 Vac (full range)
-
Input Current15-6.5A
-
Input Frequency60-50 Hz
-
Output Capacity1000W
-
Dimension150 x 140 x 86mm
-

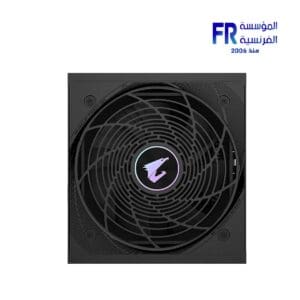

Fan Type120mm Fluid Dynamic Bearing (FDB) Fan
-
80 PLUSPlatinum
-
Efficiency92% at typical load
-
MTBF>100,000 hours
-
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
-
Power Good Signal100-150ms
-
Hold Up Time>16ms
-
Cable TypeFlat, All black
-

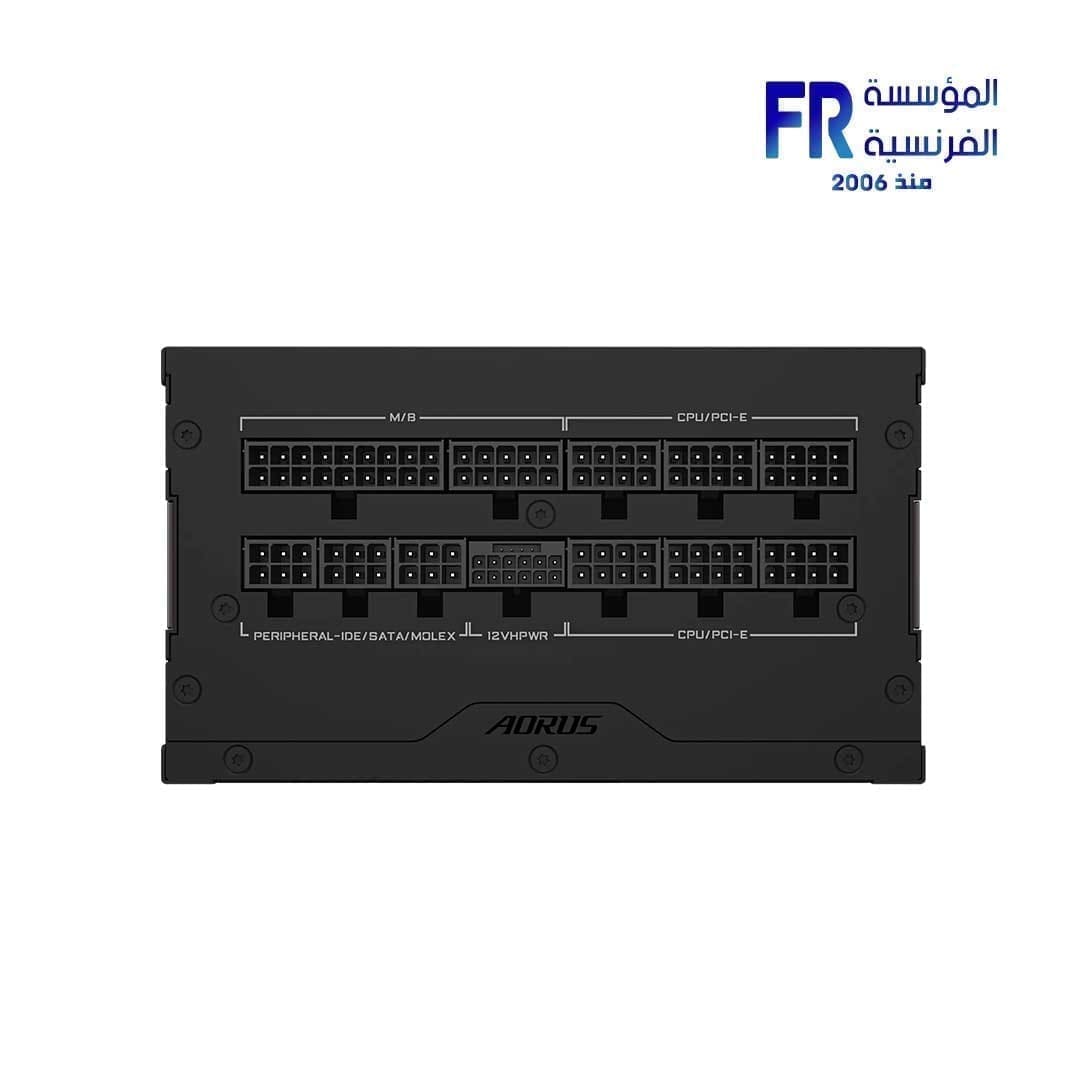

ConnectorsATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
KEY FEATURE
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 10 years warranty (Adjusted according to different regions)
ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
The AE1000PM PG5 can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It’s fully compliant with the Intel ATX 3.0 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads. Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5.0 graphics cards, delivering up to 600 watts of power.
AORUS magnetic plate design
The unique AORUS magnetic plate can be attached to different sides of the power supply based on the user’s preference, presenting the best visual effect from any angle. Additionally, while the plate being moved on the case, its neon color printing with metallic sheen creates solid and hollow special effects for the AORUS logo.
