What processors are compatible with the Gigabyte B550M DS3H R2 motherboard?

The Gigabyte B550M DS3H R2 supports a wide range of AMD processors for the AM4 socket, including AMD Ryzen™ 5000 G-Series, Ryzen™ 5000 Series, Ryzen™ 4000 G-Series, and Ryzen™ 3000 Series processors.

Does the B550M DS3H R2 motherboard support PCIe 4.0?

Yes, it features PCIe 4.0 hardware design. The primary full-length PCIe x16 slot and one of the M.2 connectors support the ultra-fast PCIe 4.0 standard when used with compatible AMD Ryzen™ 5000/3000 Series CPUs.

What is the maximum amount and speed of RAM supported by this motherboard?

The motherboard supports up to 128 GB of DDR4 memory across its four DIMM slots. It also supports memory overclocking with speeds up to 4733(O.C.) MT/s via Extreme Memory Profile (XMP).

How many M.2 SSDs can be installed on the Gigabyte B550M DS3H R2?

The motherboard is equipped with dual M.2 connectors for high-speed NVMe SSDs. One slot supports PCIe 4.0/3.0 x4, and the second slot supports PCIe 3.0 x2, providing flexible and fast storage solutions.

تصفية

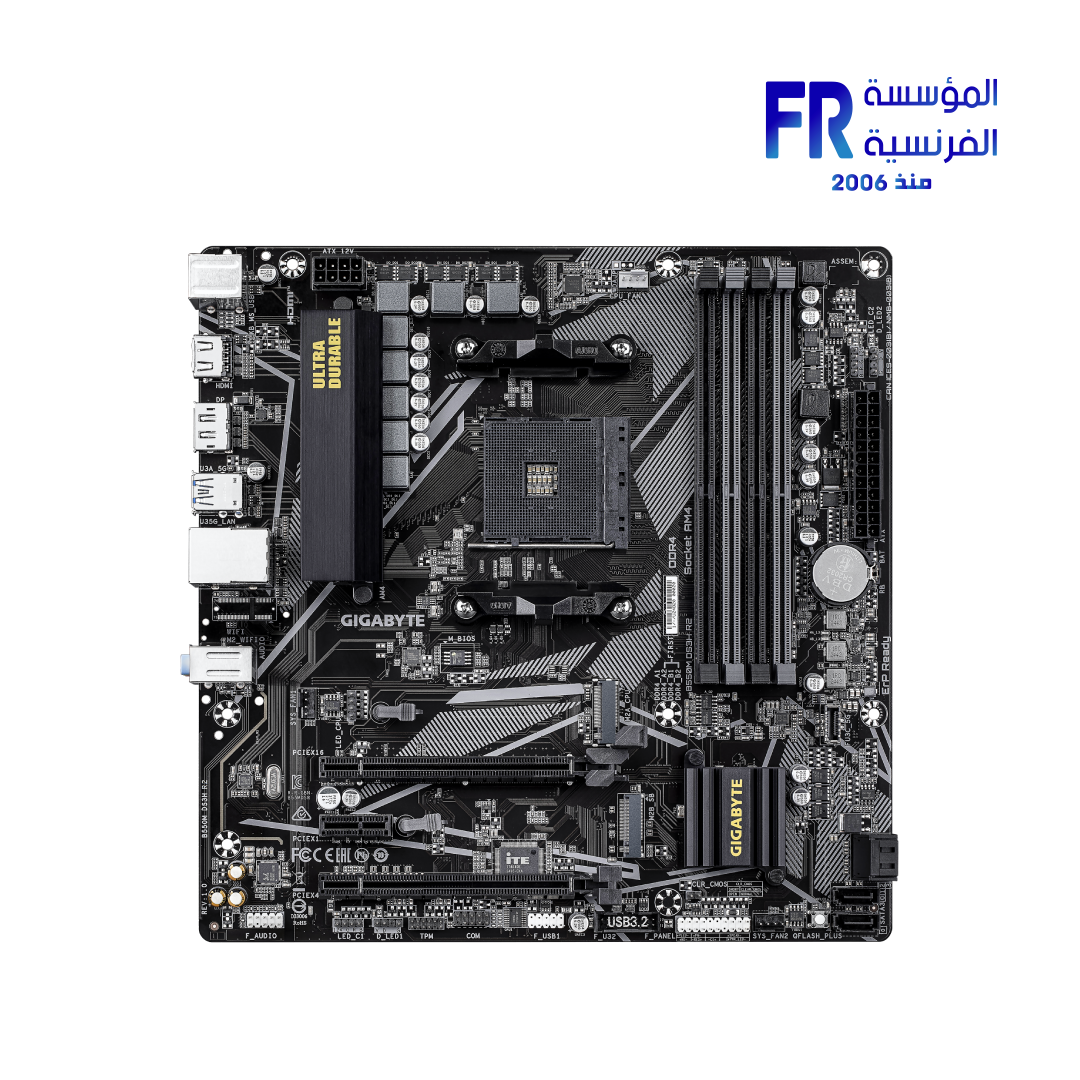

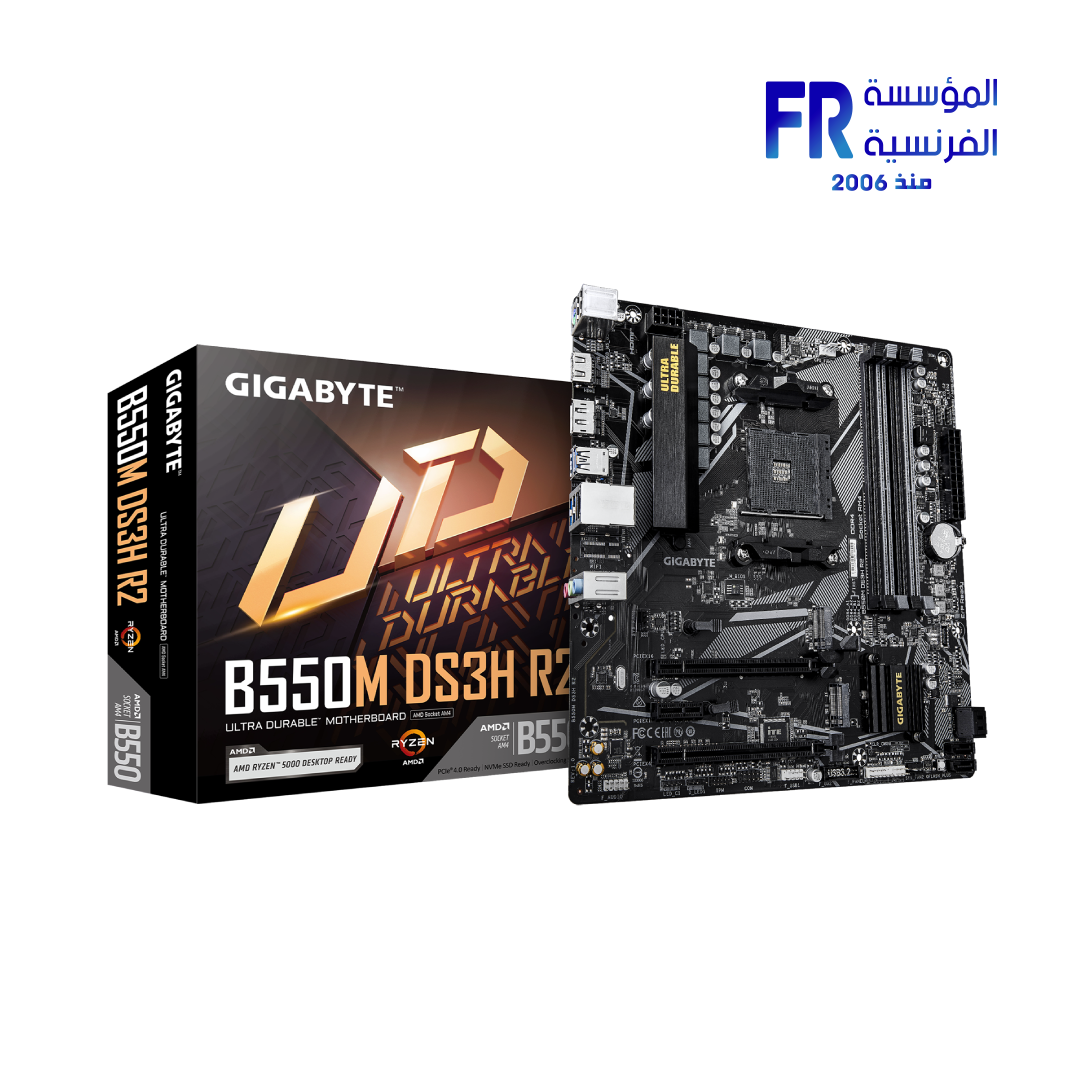

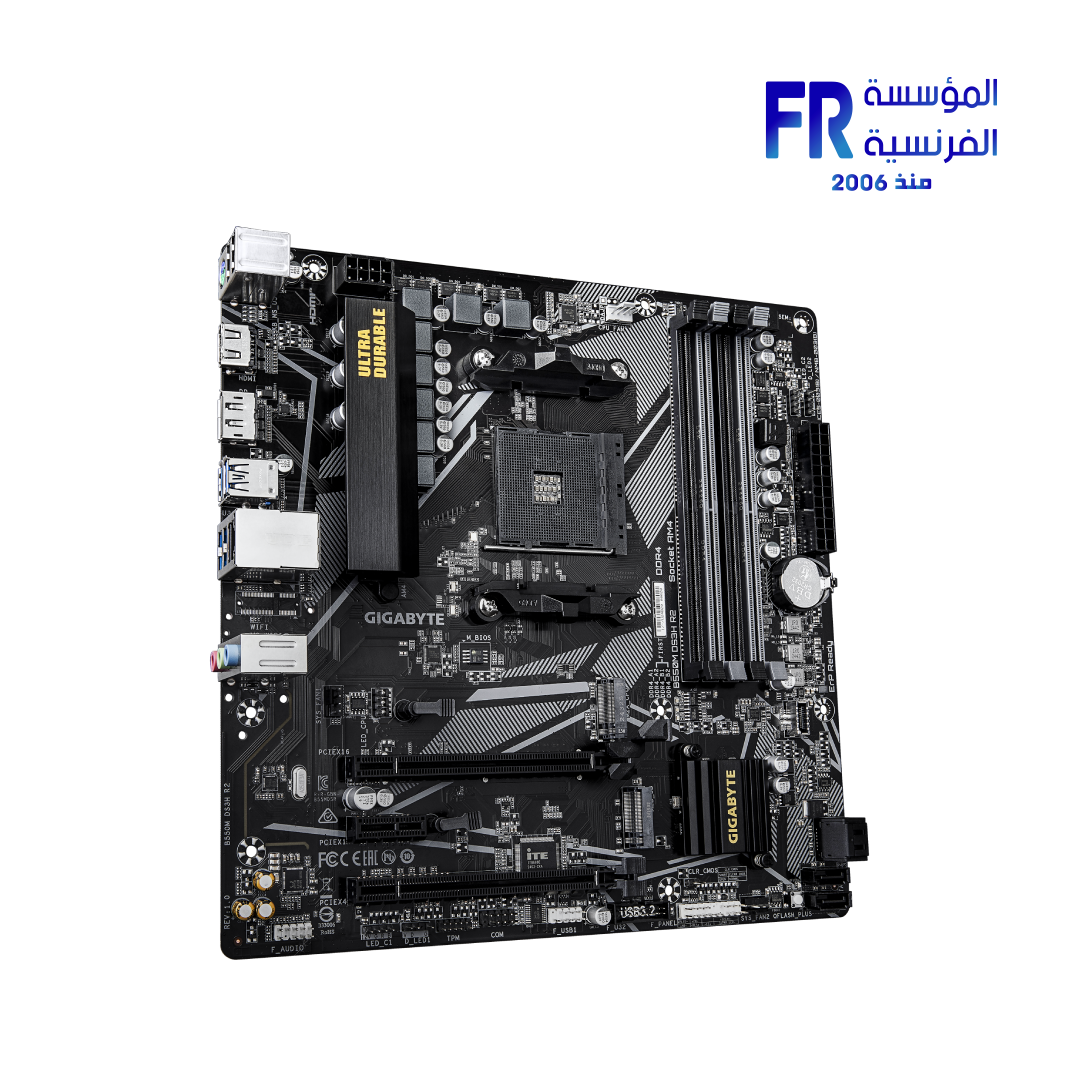

Gigabyte B550M DS3H R2 Motherboard

4749 جنية

Model Name: B550M DS3H R2
CPU Socket: AMD Socket AM4 (Ryzen 5000/4000/3000 Series)
Memory: 4 x DDR4 DIMM (up to 128GB)
Storage Interface: Dual M.2 Slots (Primary PCIe 4.0)
Power Design: Digital 5+3 Phases VRM
Networking: Realtek GbE LAN
Warranty: 3 سنوات

غير متوفر بالمخزون

Price Match Guarantee

رمز المنتج: 889523048627 التصنيفات: لوحة الام, AMD Motherboards الوسوم: B550M, micro-ATX, gaming, DDR4, Content Creation, 9MB55MDSR-00-G10, GIGABYTE, AMD, Computer Components, 889523048627, DS3H, R2, AM4 socket, M.2 Slots, Desktop Motherboard, motherboard, Pcie 4.0 العلامة التجارية: GIGABYTE

Gigabyte B550M DS3H R2 Motherboard

Build a powerful and responsive system with the Gigabyte B550M DS3H R2 Motherboard. Designed for gamers and creators, this motherboard leverages the AMD B550 chipset to support AMD Ryzen™ 5000, 4000, and 3000 series processors on the AM4 socket. Featuring a robust digital VRM solution, dual-channel DDR4 memory support, and ultra-fast PCIe 4.0 M.2 storage, the Gigabyte B550M DS3H R2 Motherboard delivers the performance you need for a modern PC build.

Overview of the Gigabyte B550M DS3H R2

The Gigabyte B550M DS3H R2 Motherboard maximizes your PC’s potential with advanced features and durable construction. It utilizes AMD StoreMI technology to accelerate traditional storage devices, combining the speed of SSDs with the capacity of HDDs to reduce boot times and enhance the user experience. The board’s PCIe 4.0 hardware design provides faster bandwidth and lower impedance for both the primary graphics card slot and the main M.2 connector. With dual NVMe M.2 slots, Realtek GbE LAN with bandwidth management, and support for high-resolution displays via HDMI 2.1, this motherboard is built for performance. Furthermore, its Smart Fan 6 and RGB Fusion 2.0 features ensure your system stays cool and looks great. For more details, visit the official Gigabyte product page.

Gigabyte B550M DS3H R2: Key Features

AMD AM4 Socket: Supports AMD Ryzen™ 5000, 4000, and 3000 Series Processors.
Robust Power Design: Digital 5+3 phases VRM solution for stable power delivery.
Dual Channel DDR4: 4 DIMM slots supporting up to 128GB of system memory.
Ultra-Fast Storage: Dual M.2 slots, with the primary slot supporting PCIe 4.0 for next-gen SSDs.
Advanced Cooling: Smart Fan 6 and VRM Thermal Armor for efficient heat dissipation.

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series/5000 Series/4000 G-Series/3000 Series Processors
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB, Speeds up to 4733(O.C.) MT/s

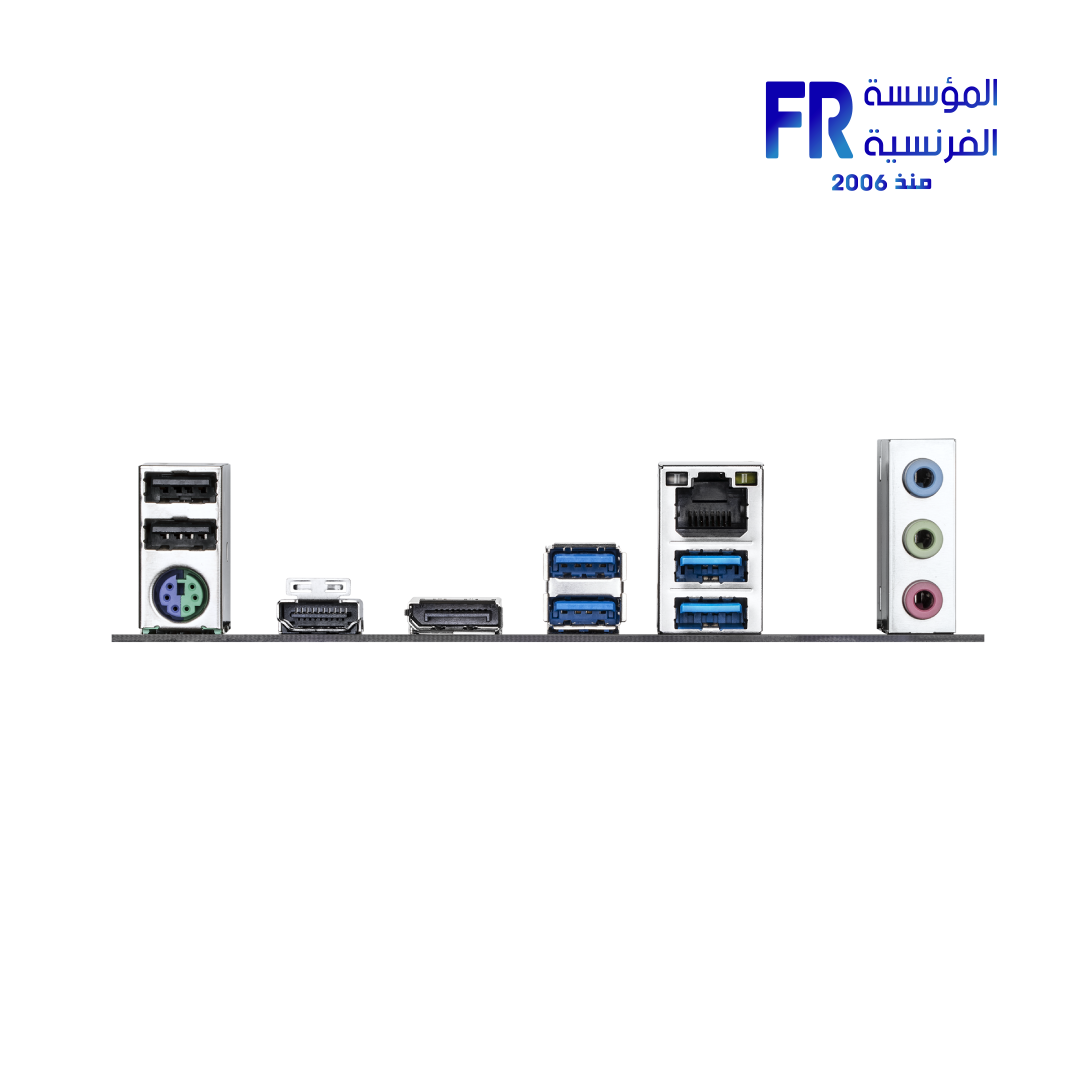

Onboard Graphics	1 x DisplayPort, 1 x HDMI port (Requires processor with integrated graphics)
Audio	Realtek® ALC1220 CODEC High Definition Audio
LAN	Realtek® GbE LAN chip (1 Gbps)
Expansion Slots	1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x16 slot (x4 mode), 1 x PCIe 3.0 x1 slot
Storage Interface	1 x PCIe 4.0 M.2, 1 x PCIe 3.0 M.2, 4 x SATA 6Gb/s
USB	USB Type-C® with USB 3.2 Gen 1, USB 3.2 Gen 1, USB 2.0/1.1 ports
Form Factor	Micro ATX; 24.4cm x 24.4cm

Frequently Asked Questions

What is AMD StoreMI Technology?

AMD StoreMI is a utility that combines the speed of an SSD with the high capacity of an HDD into a single, faster drive. It accelerates your system by reducing boot times and improving overall responsiveness by automatically moving your most-used files to the SSD.

What is Smart Fan 6?

Smart Fan 6 is GIGABYTE’s advanced cooling solution that allows you to control multiple fan and pump headers. It provides precise control over fan curves based on different temperature sensors, ensuring your gaming PC maintains performance while staying cool and quiet.

What warranty comes with this motherboard?

This Gigabyte motherboard comes with a standard 1-year warranty, ensuring reliability and support for your build.

All information and descriptions are for illustrative purposes only. Visual representations of the products may not be perfectly accurate. Product specifications, functions, and appearance may vary by model and differ from country to country. All specifications are subject to change without notice. Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. For the most accurate and up-to-date information, please review the official manufacturer’s website. If you notice any discrepancies, please report them to us.

لوحة الام

الموديل	B550M DS3H R2
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM4
Motherboard Chipset	B550
Motherboard Type	Micro ATX
CPU SERIES	AMD Ryzen 5000 Series/5000 G-Series/4000 G-Series/3000 Series/3000 G-Series/2000 Series/2000 G-Series
Technology	DDR4
Memory Speed	3200 MHz
Max Memory Size	128 GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 4.0
PCI-E Slots (M.2)	2
SATAIII	4x SATA 6.0 Gb/s
Communication module	N/A
Part Number	9MB55MDSR-00-G10
الضمان	3 سنوات
