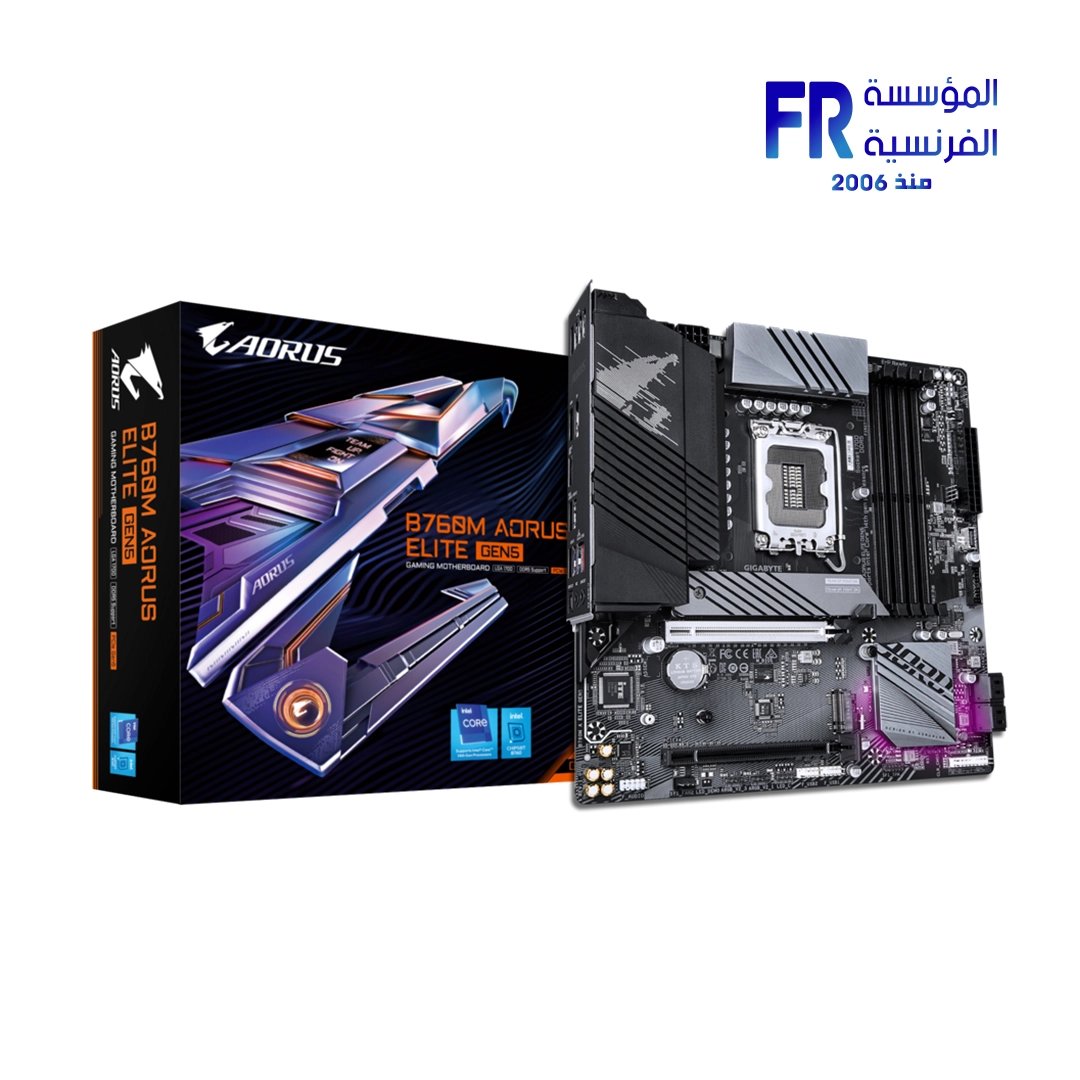

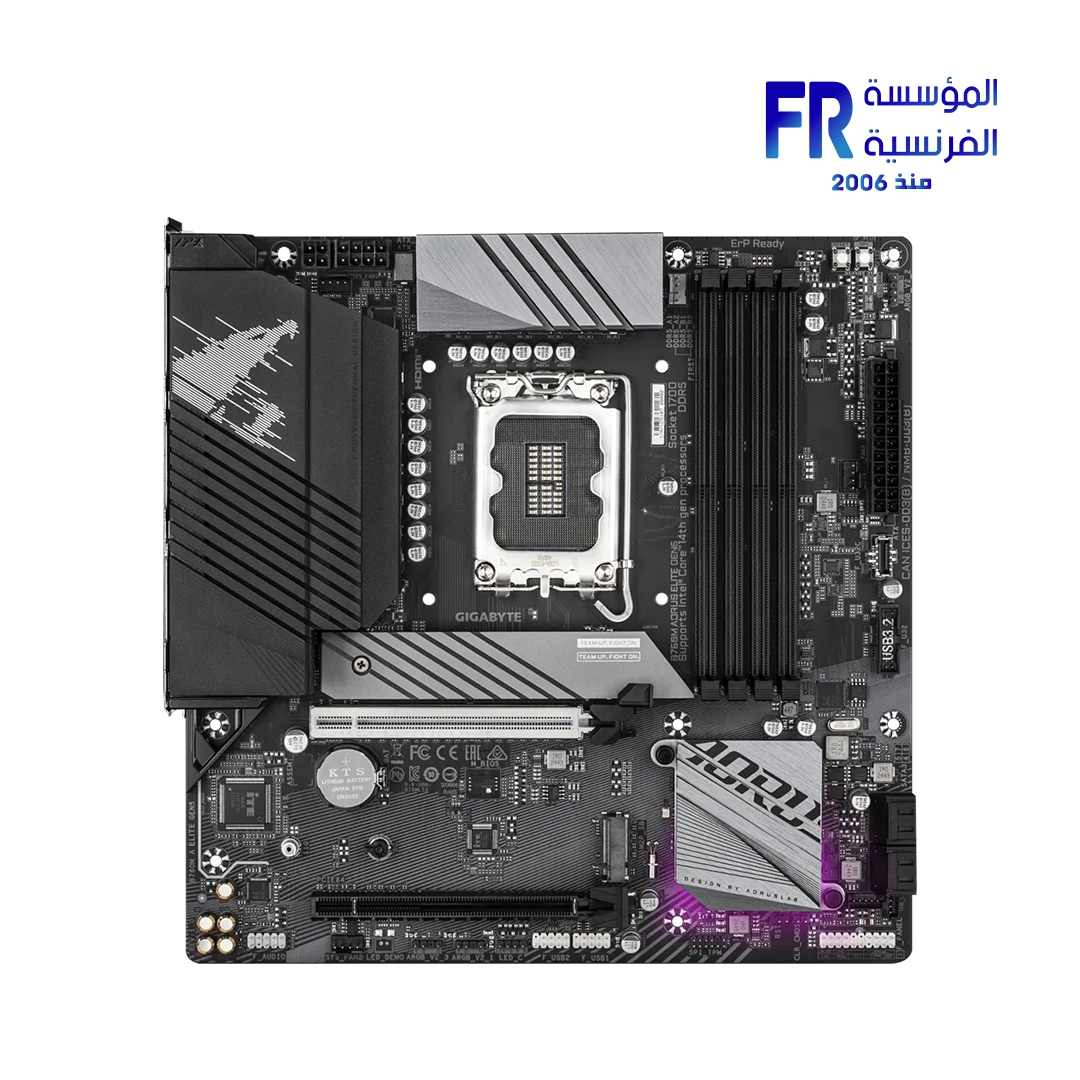

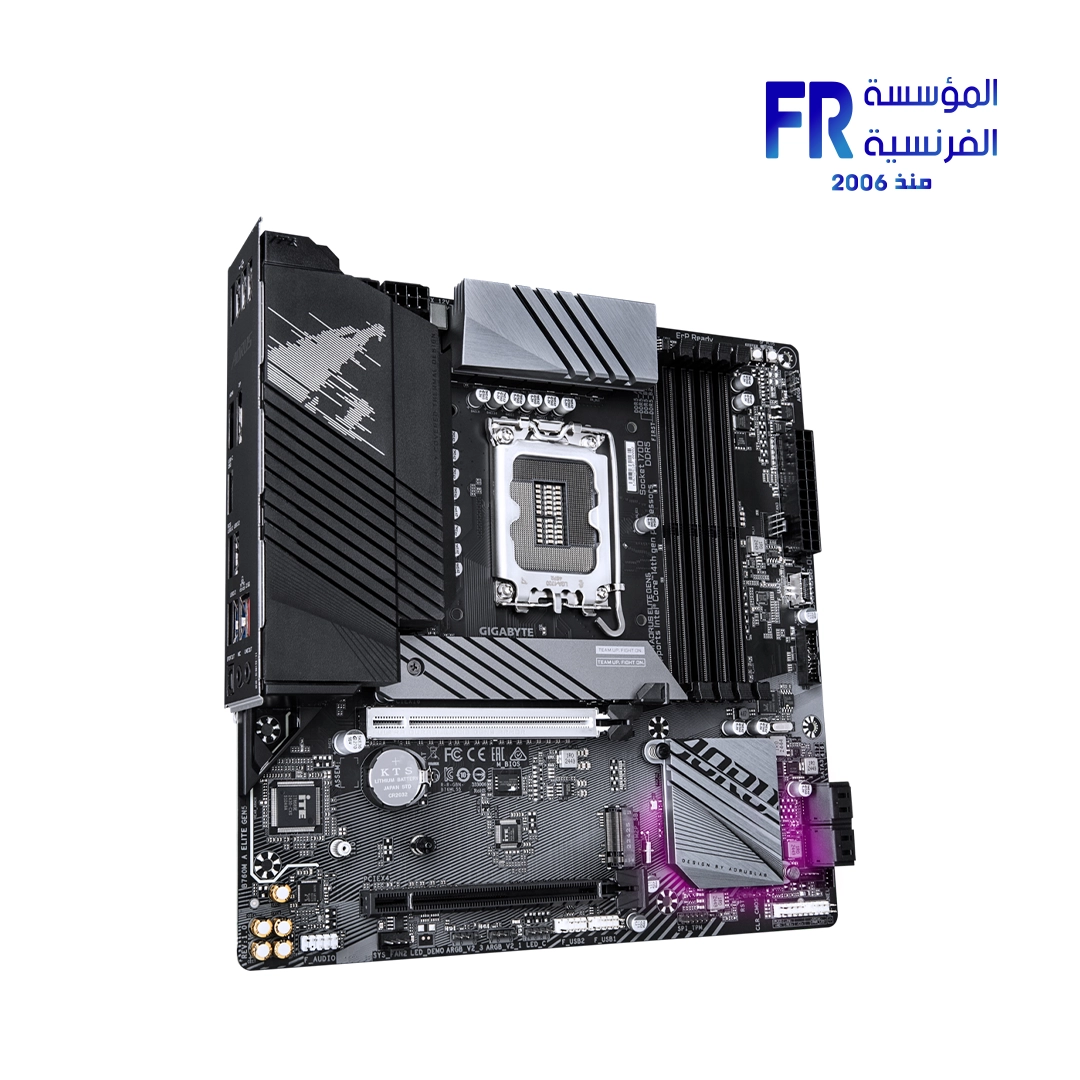

Gigabyte B760M Aorus Elite Gen5 LGA1700 Gaming Motherboard

Gigabyte B760M Aorus Elite Gen5 LGA1700 Gaming اللوحه الام:

The Gigabyte B760M Aorus Elite Gen5 LGA1700 Gaming Motherboard provides a robust and high-performance foundation for your gaming PC. It supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. This motherboard features a PCIe 5.0 x16 slot, ensuring blazing-fast performance for the latest graphics cards. Furthermore, its comprehensive connectivity, including USB 3.2 Gen 2×2, makes it an excellent choice for building a cutting-edge gaming system.

---

Unleashed Performance & DDR5 Support:

The Gigabyte B760M Aorus Elite Gen5 Motherboard is designed for peak performance. It supports the latest 14th, 13th, and 12th Generation Intel® Core™ Processors. This ensures compatibility with current and future high-end CPUs. The motherboard features a dedicated PCIe 5.0 x16 slot. This slot provides extreme bandwidth for the newest graphics cards, maximizing gaming and content creation capabilities.

For memory, this motherboard boasts four DDR5 DIMM sockets. These support up to 256 GB of system memory. It features a dual-channel memory architecture. This allows for high-speed data transfer. Specifically, it supports DDR5 5600/5200/4800/4400 MT/s memory modules for 14th and 13th Gen Intel Core i9/i7 processors. For other compatible CPUs, it supports DDR5 4800/4400 MT/s. Furthermore, it supports Extreme Memory Profile (XMP) modules. This enables easy overclocking for enhanced memory performance.

---

Advanced Connectivity & Storage:

The Gigabyte B760M Aorus Elite Gen5 ensures robust and future-proof connectivity. It features a Realtek® 2.5GbE LAN chip. This delivers blisteringly fast transfer speeds, ensuring a stable network environment for online gaming and data transfer. For display outputs, it includes one HDMI 2.1 port and one DisplayPort 1.2, supporting high resolutions up to 4096×2160@60 Hz.

Storage options are comprehensive. The motherboard includes two M.2 connectors, supporting PCIe 4.0 x4/x2 SSDs for lightning-fast boot times and application loading. Additionally, four SATA 6Gb/s connectors provide ample space for traditional storage devices, with support for RAID 0, 1, 5, and 10 configurations. USB connectivity is extensive, featuring a rear USB Type-C® port with USB 3.2 Gen 2×2 support (20Gbps), a USB 3.2 Gen 2 Type-A port, and multiple USB 3.2 Gen 1 and USB 2.0/1.1 ports, ensuring compatibility with a wide range of peripherals.

---

Premium Audio & User-Friendly Features:

Experience immersive audio with the Realtek® Audio CODEC. This provides High Definition Audio with 2/4/5.1/7.1-channel support and S/PDIF Out. This ensures crystal-clear sound for gaming and multimedia. The motherboard also includes convenient internal I/O connectors for easy system assembly and expansion.

The Gigabyte B760M Aorus Elite Gen5 incorporates several user-friendly features. It supports GIGABYTE Control Center (GCC) for unified software management. Q-Flash and Q-Flash Plus functionalities allow for easy BIOS updates without needing to install the CPU, memory, or graphics card. Hardware monitoring features like voltage, temperature, and fan speed detection ensure your system operates optimally. This motherboard runs on a licensed AMI UEFI BIOS, providing a robust and reliable foundation for your system.

Explore compatible Intel Motherboards or check Gigabyte Products for other options. Find full details on the official Gigabyte B760M Aorus Elite Gen5 product page.

---

Specifications:

CPU & Chipset:

• CPU Socket: LGA1700 (Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors)
• Chipset: Intel® B760 Express Chipset

Memory:

• Memory Slots: 4 x DDR5 DIMM sockets, supporting up to 256 GB (64 GB single DIMM capacity)
• Memory Type (14th/13th Gen i9/i7): DDR5 5600/5200/4800/4400 MT/s
• Memory Type (13th Gen i5/i3, 12th Gen): DDR5 4800/4400 MT/s
• Memory Architecture: Dual channel
• ECC Support: ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
• Non-ECC Support: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
• XMP Support: Yes

Onboard Graphics:

• Graphics Processor: Integrated Graphics Processor-Intel® HD Graphics support
• HDMI Port: 1 x HDMI port, max resolution 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3)
• DisplayPort: 1 x DisplayPort, max resolution 4096×2304@60 Hz (DisplayPort 1.2, HDCP 2.3)

Audio & LAN:

• Audio Chip: Realtek® Audio CODEC
• Audio Channels: High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out support
• LAN Chip: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots:

• PCIe x16 Slot (CPU): 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• PCIe x16 Slot (Chipset): 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface:

• M.2 Connector (CPU): 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• M.2 Connector (Chipset): 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• SATA Connectors: 4 x SATA 6Gb/s connectors
• RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB Ports:

• Rear USB Type-C (Gen 2×2): 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
• Internal USB Type-C (Gen 2): 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
• Rear USB 3.2 Gen 2 Type-A: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• Rear USB 3.2 Gen 1: 1 x USB 3.2 Gen 1 port on the back panel
• Internal USB 2.0/1.1: 4 x USB 2.0/1.1 ports available through the internal USB headers
• Rear USB 3.2 Gen 1 (Hub): 2 x USB 3.2 Gen 1 ports on the back panel
• Internal USB 3.2 Gen 1 (Hub): 2 x USB 3.2 Gen 1 ports available through the internal USB header
• Rear USB 2.0/1.1 (Hub): 4 x USB 2.0/1.1 ports on the back panel

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

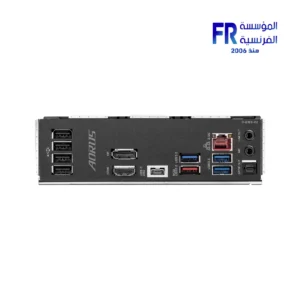

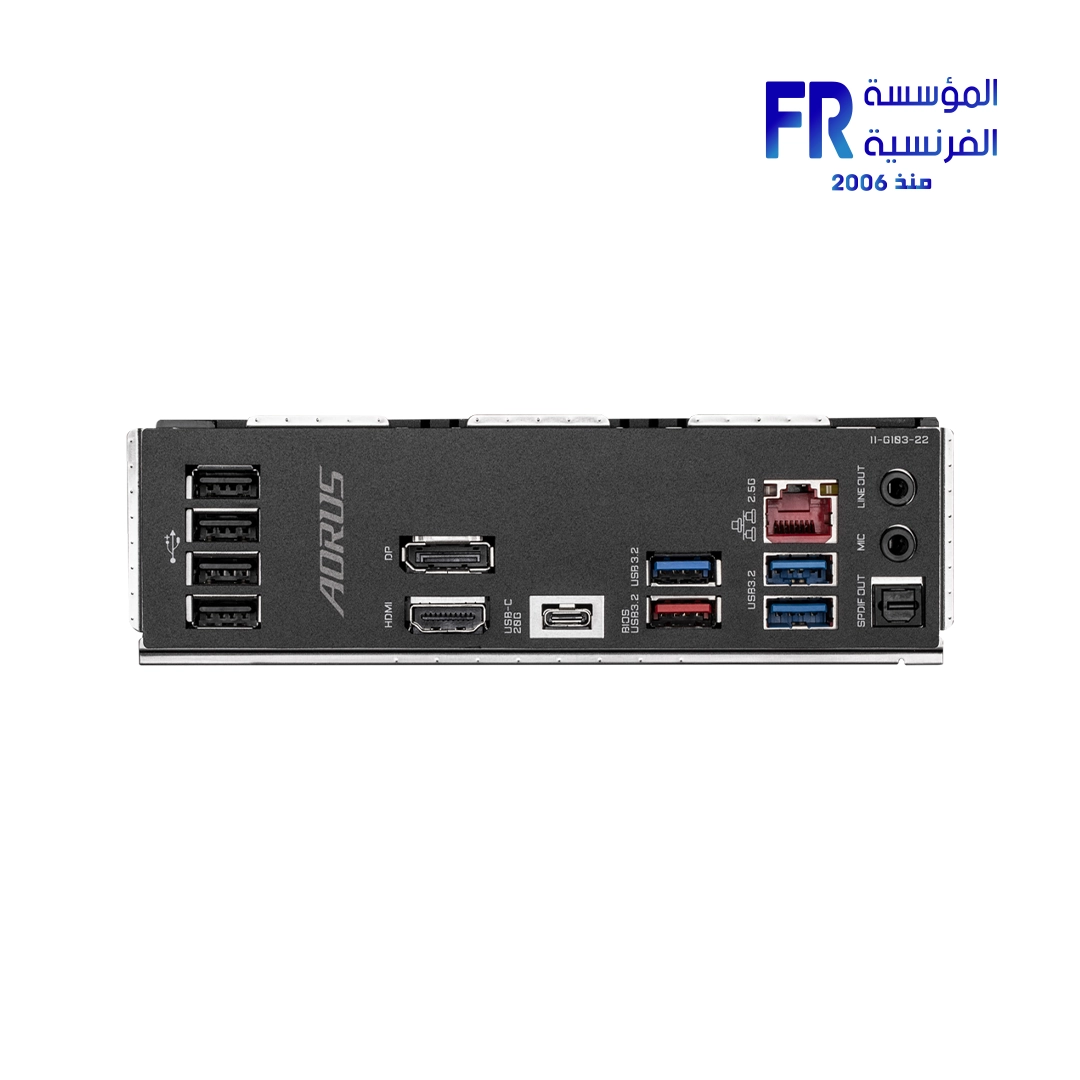

Back Panel Connectors:

• 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x HDMI port
• 1 x DisplayPort
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

I/O Controller & BIOS:

• I/O Controller: iTE® I/O Controller Chip
• BIOS: 1 x 256 Mbit flash, licensed AMI UEFI BIOS
• BIOS Features: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Hardware Monitoring:

• Monitoring: Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection
• Warnings: Fan fail warning
• Control: Fan speed control (depends on fan installed)

Unique Features & Software:

• GIGABYTE Control Center (GCC) Support: Yes
• Q-Flash Support: Yes
• Q-Flash Plus Support: Yes
• Bundled Software: Norton® Internet Security (OEM version), LAN bandwidth management software

Operating System & Form Factor:

• OS Support: Windows 11 64-bit, Windows 10 64-bit
• Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm

Product Identifiers:

• Part Number/SKU: 9MB76ML55-00-G10
• EAN/UPC: 889523049778
