Gigabyte B760M E Micro ATX Socket LGA1700 Motherboard
4999 جنيه
- Part Number 9MB76ME5-00-G10
- سوكت المعالج LGA1700 (Intel 14th/13th/12th Gen)
- Chipset Intel B760
- Memory Support 2x DDR5 DIMM, up to 7200(O.C.) MT/s
- Primary Expansion Slot 1x PCIe 4.0 x16
- وحدات التخزين 2x M.2 Slots (PCIe 4.0 x4)
- Networking Realtek® GbE LAN (1Gbps)
- الضمان 3 Years
المتوفر في المخزون 2 فقط
ضمان مطابقة السعر
Gigabyte B760M E Micro ATX Socket LGA1700 اللوحات الأم

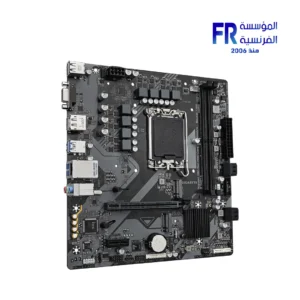

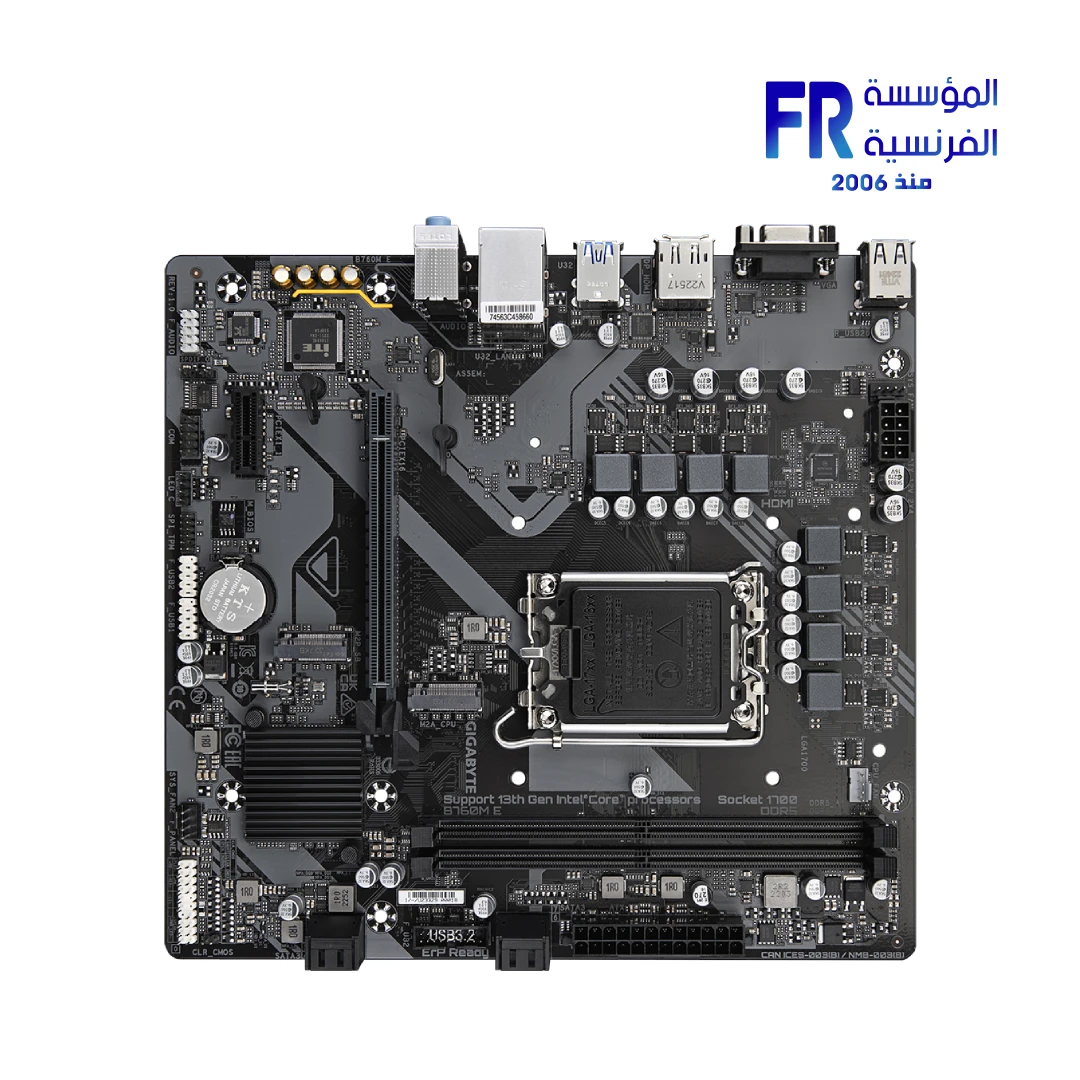

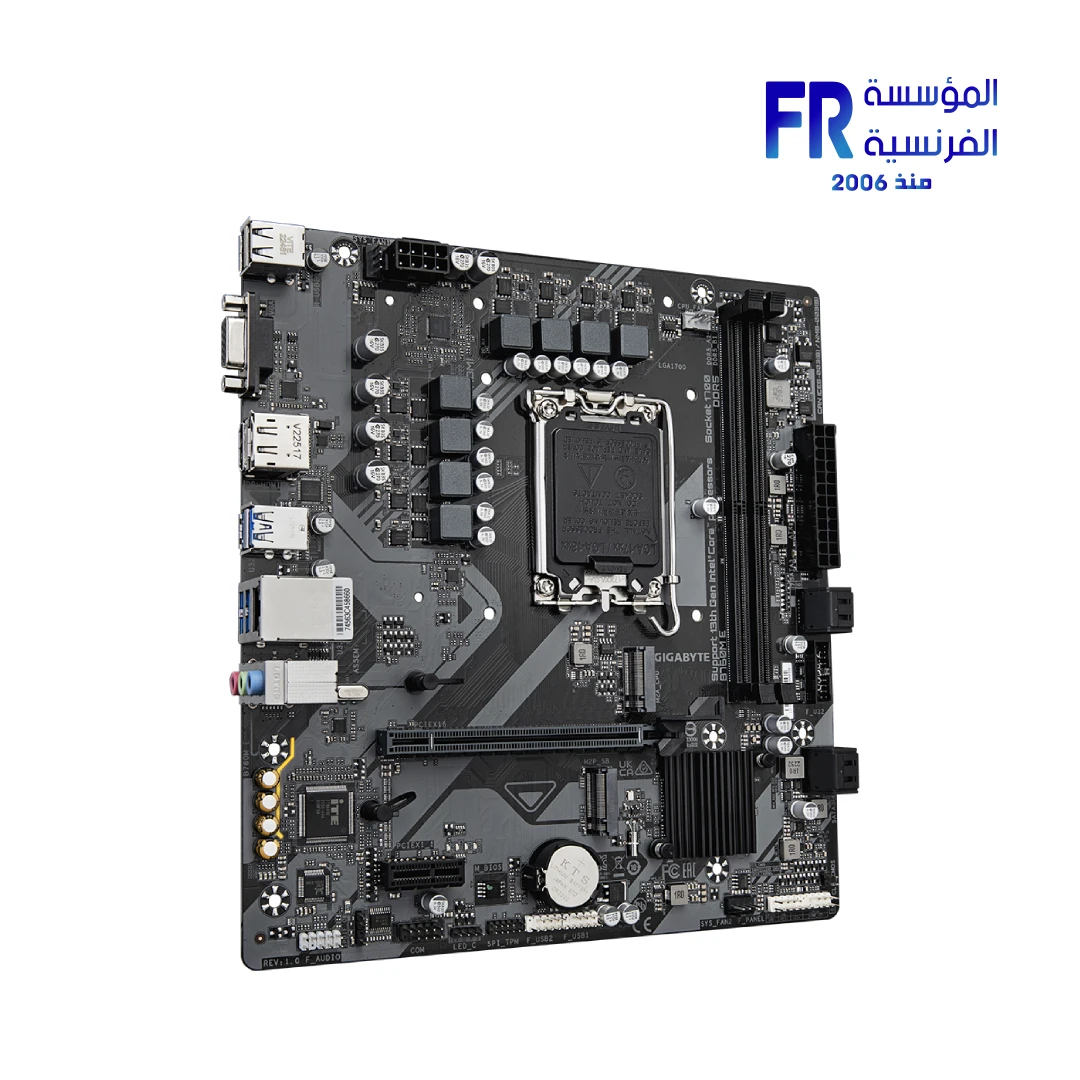

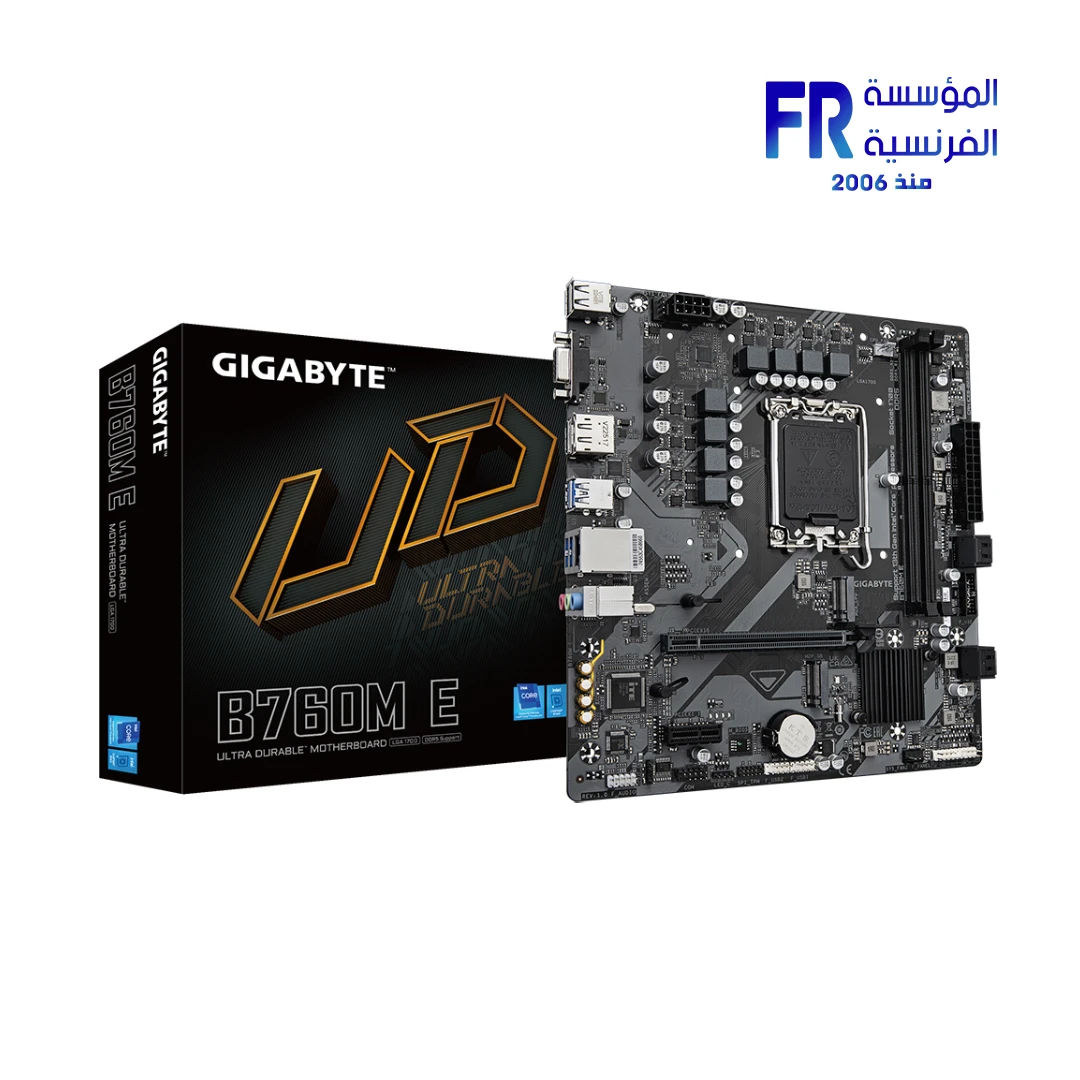

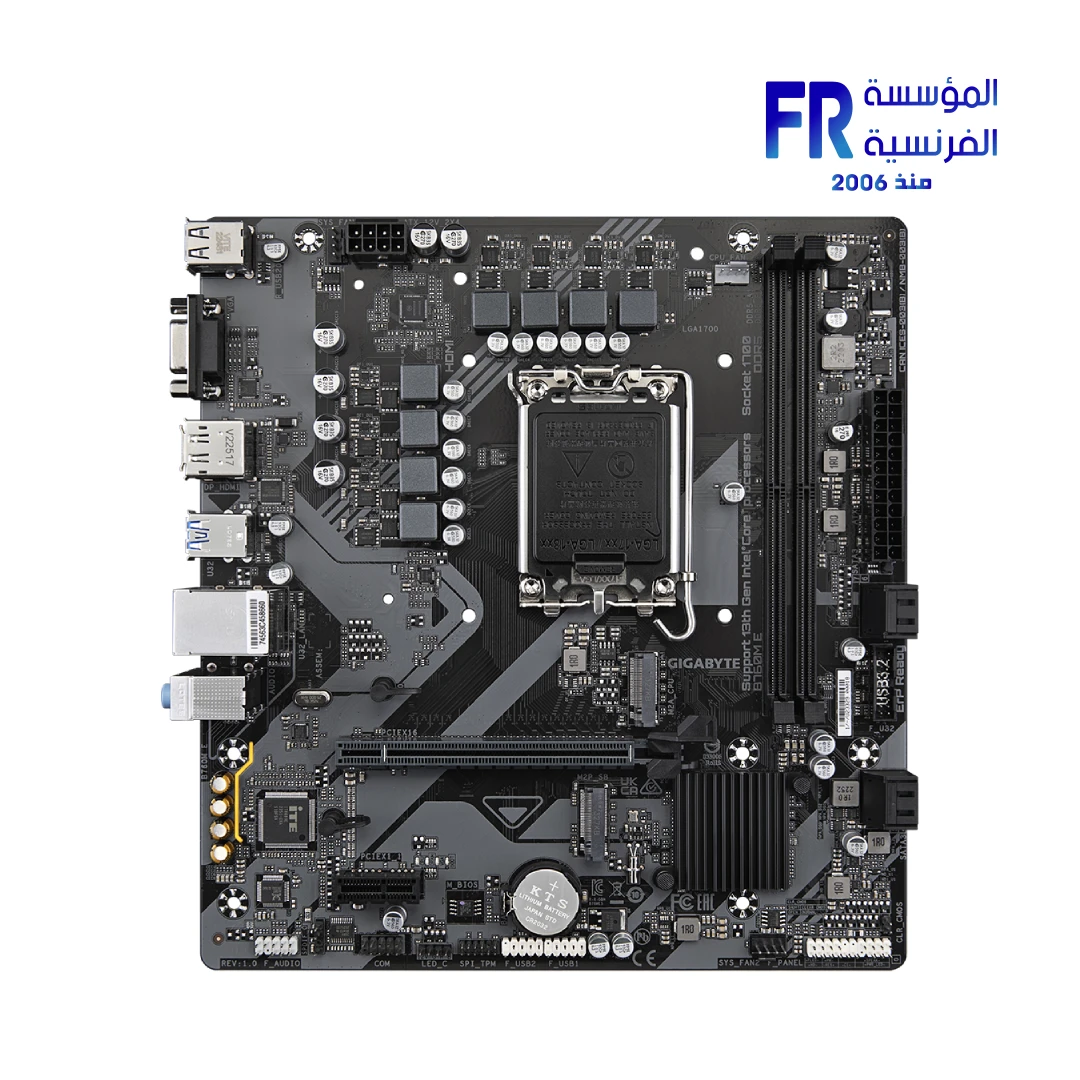

Build a powerful and efficient system with the Gigabyte B760M E. Designed for the LGA1700 socket, this Micro-ATX board offers high-speed DDR5 support and PCIe 4.0 connectivity, delivering a rock-solid foundation for 14th Gen Intel gaming and productivity.
Durable Performance & Smart Connectivity
Next-Gen DDR5 Power
Take advantage of faster data transfer rates with DDR5 memory support. This board features two DIMM slots supporting up to 128GB of RAM with XMP profile support, ensuring your system stays responsive under heavy multitasking.
Ultra-Fast Storage
Equipped with two M.2 PCIe 4.0 x4 connectors, the B760M E allows you to install the latest high-speed NVMe SSDs. Experience near-instantaneous boot times and rapid file transfers for gaming and creative workloads.

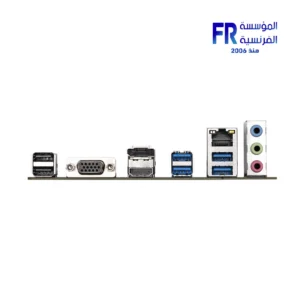

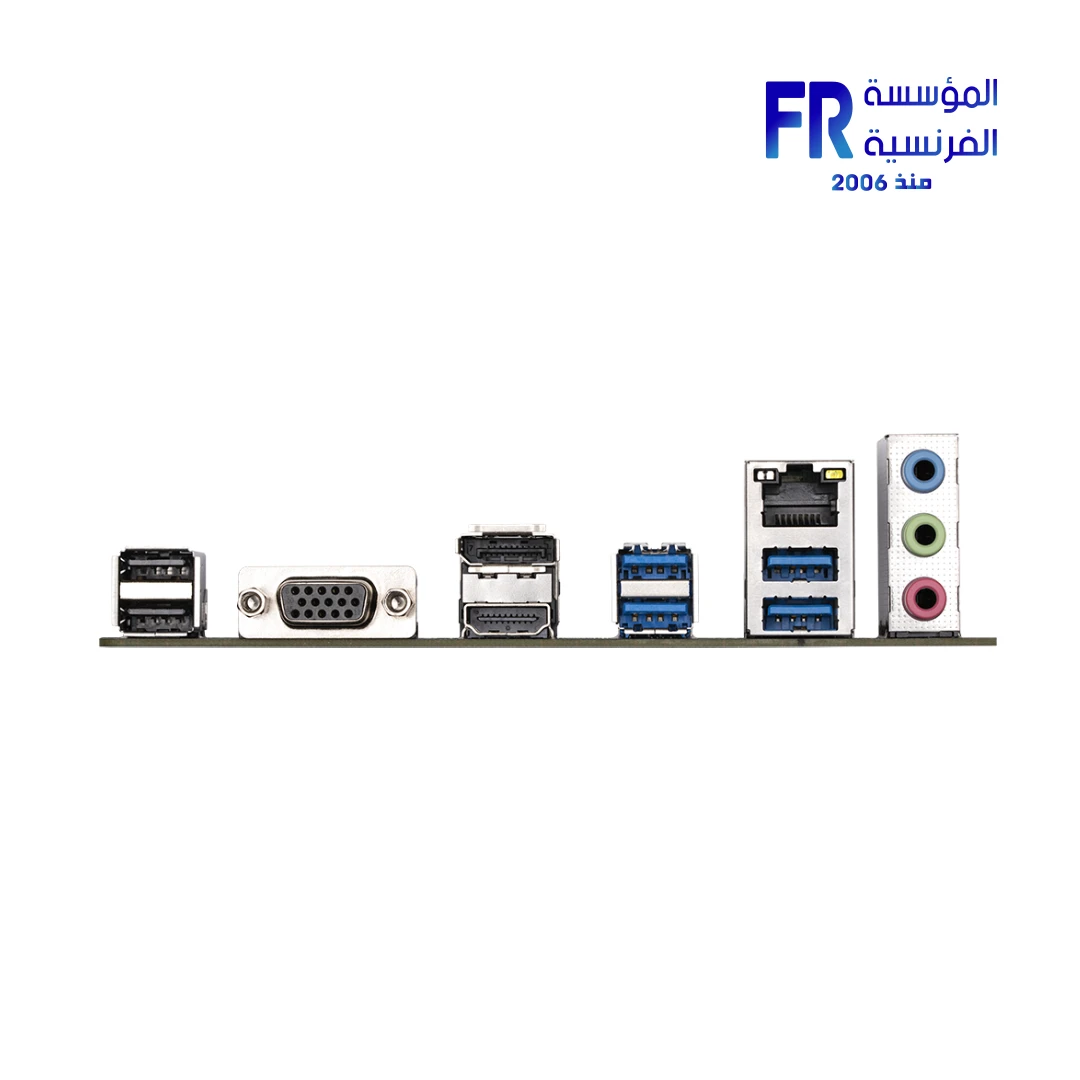

Diverse Video Outputs
Supporting up to triple-display output simultaneously, this motherboard includes HDMI 2.1, DisplayPort 1.2, and a classic D-Sub (VGA) port, offering flexible connectivity for both modern monitors and legacy displays.
المواصفات الفنية
| Feature | Details |
|---|---|
| Chipset | Intel B760 Express |
| Socket | LGA1700 (14th/13th/12th Gen Support) |
| Memory | 2x DDR5 DIMM, Max 128GB, up to 7200(OC) |
| Expansion Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| وحدات التخزين | 2x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s |
| Networking | Realtek GbE LAN (1 Gbps) |
| USB Ports | 6x USB 3.2 Gen 1 (4 Rear, 2 Front), 6x USB 2.0 |
| Video Output | 1x HDMI 2.1, 1x DisplayPort 1.2, 1x D-Sub (VGA) |
| Form Factor | Micro-ATX (23.0cm x 21.5cm) |
💡 Pro Tip:
This motherboard uses the latest DDR5 memory standard. Ensure you purchase a DDR5 RAM kit, as DDR4 modules are physically incompatible with this board. For the best performance, use a dual-channel kit to maximize bandwidth for Intel’s hybrid architecture.
