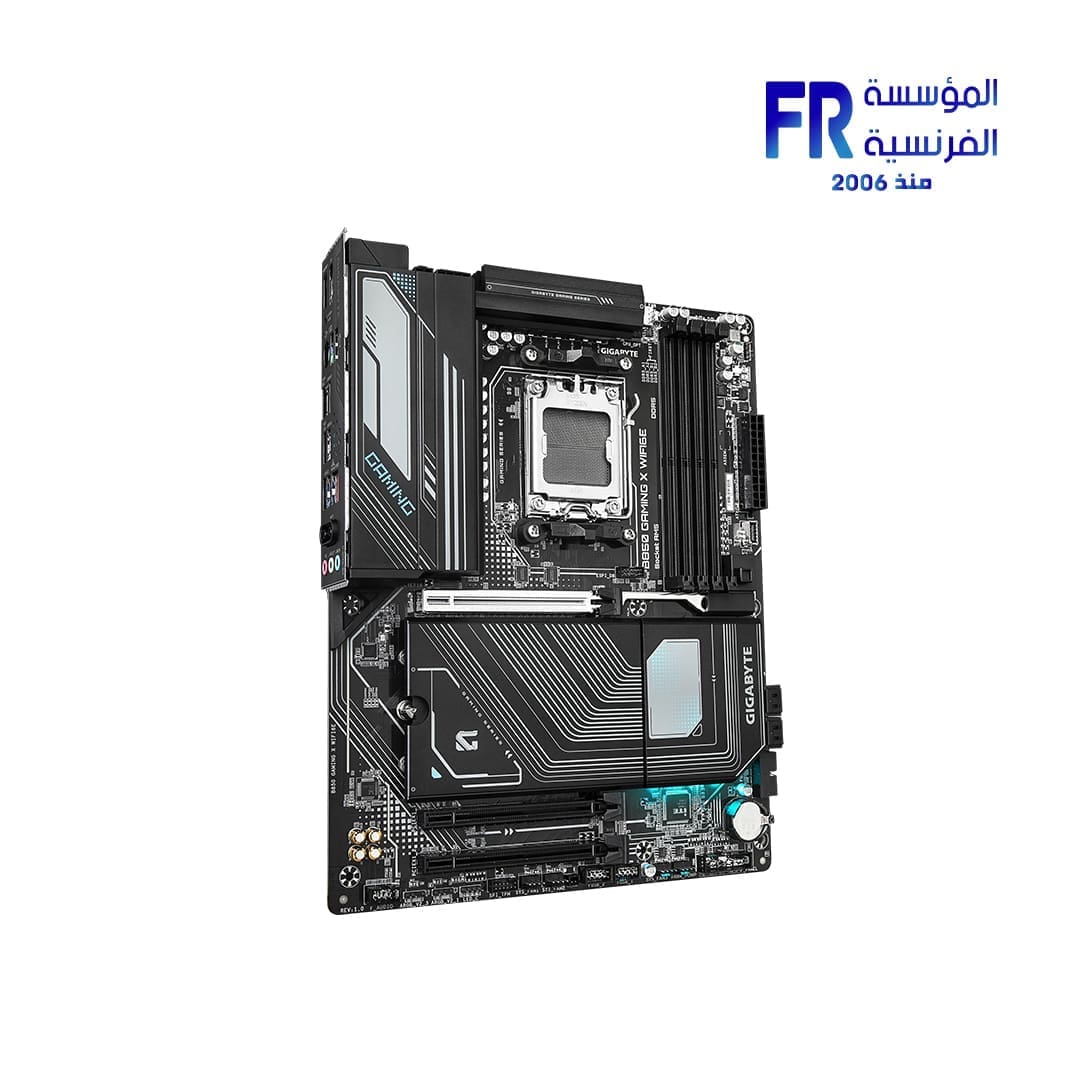

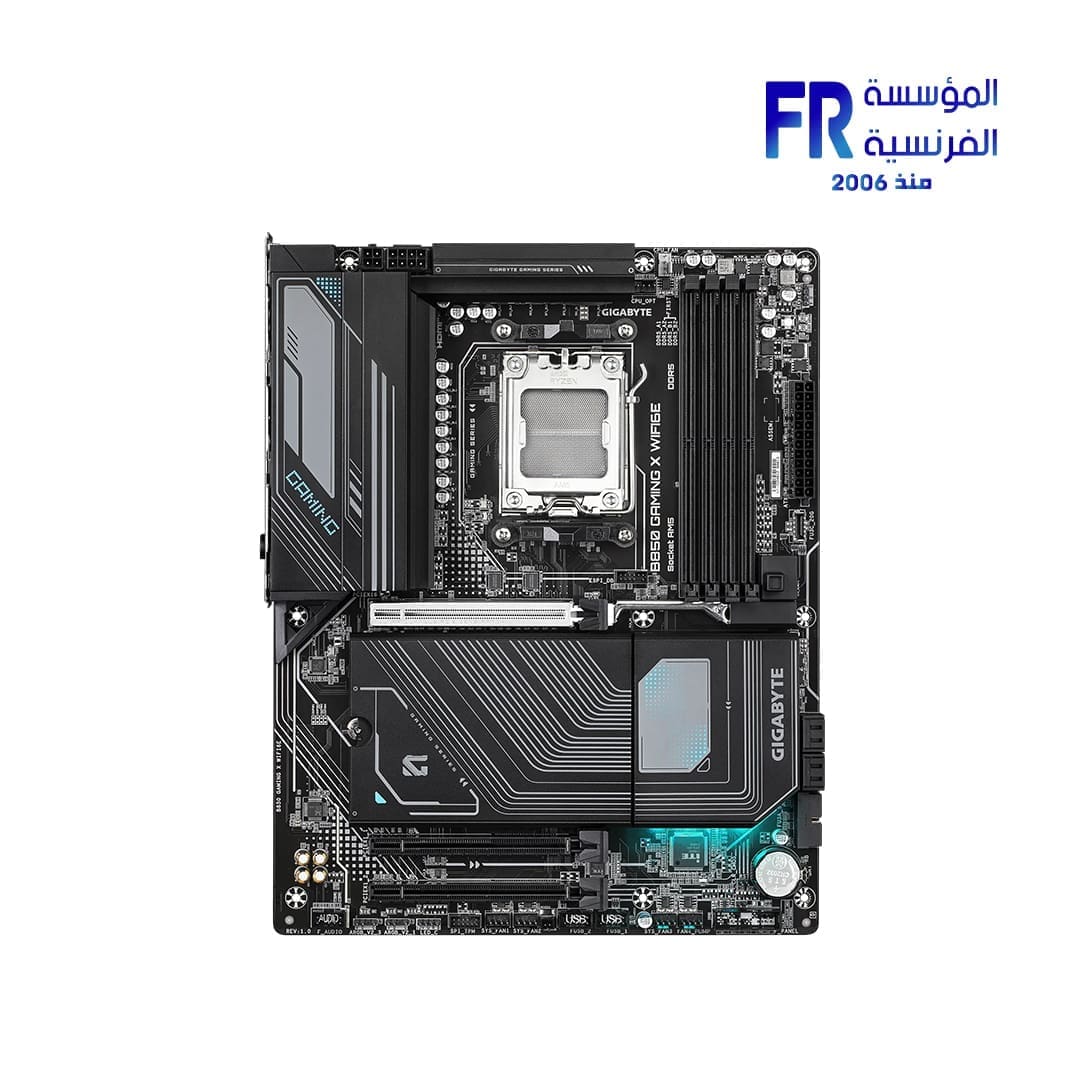

Gigabyte B850 Gaming X WIFI6E AM5 Gaming اللوحه الام
Gigabyte B850 Gaming X WIFI6E AM5 Gaming Motherboard specifications :
-
CPU Support:
- AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
- AMD Ryzen™ 7000 Series Processors (Socket AM5)
- Chipset: AMD B850
- Memory:
- DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
- Dual channel memory architecture
- Supports speeds up to 8200 MT/s (O.C.)
- Supports AMD EXPO™ and XMP memory modules
- Onboard Graphics:
- Integrated AMD Radeon™ Graphics
- 1 x HDMI port (HDMI 2.1, 4K@60Hz)
- 1 x DisplayPort (DisplayPort 1.4, 4K@144Hz)
-
Audio:
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel support
- Networking:
- Realtek® 2.5GbE LAN chip
- Realtek® Wi-Fi 6E RTL8852CE (WIFI a/b/g/n/ac/ax, Bluetooth 5.3)
- Expansion Slots:
- 1 x PCI Express x16 slot (PCIEX16) for CPU
- 2 x PCI Express x16 slots (x1 mode) from chipset
- Storage Interfaces:
- 3 x M.2 connectors (supporting PCIe 5.0/4.0 x4/x2 SSDs depending on CPU model)
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, RAID 10 support
- USB Ports:
- USB Type-C® ports with USB 3.2 Gen 2×2/Gen 2 support
- Multiple USB 3.2 Gen 1 and USB 2.0/1.1 ports
-
Internal I/O Connectors:
- Power connectors (24-pin ATX, 8-pin & 4-pin ATX 12V)
- Fan headers (CPU, system, water cooling pump)
- RGB LED headers
- SATA connectors, front panel headers
- BIOS:
- 256 Mbit flash
- AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features:
- GIGABYTE Control Center (GCC)
- Q-Flash, Q-Flash Plus, Smart Backup
-
Bundled Software:
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
- Operating System Support:
- Windows 11 64-bit
- Windows 10 64-bit
- Form Factor:
- ATX; 30.5cm x 24.4cm
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
-
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 12+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0×4 slot
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
-
Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Displayport
