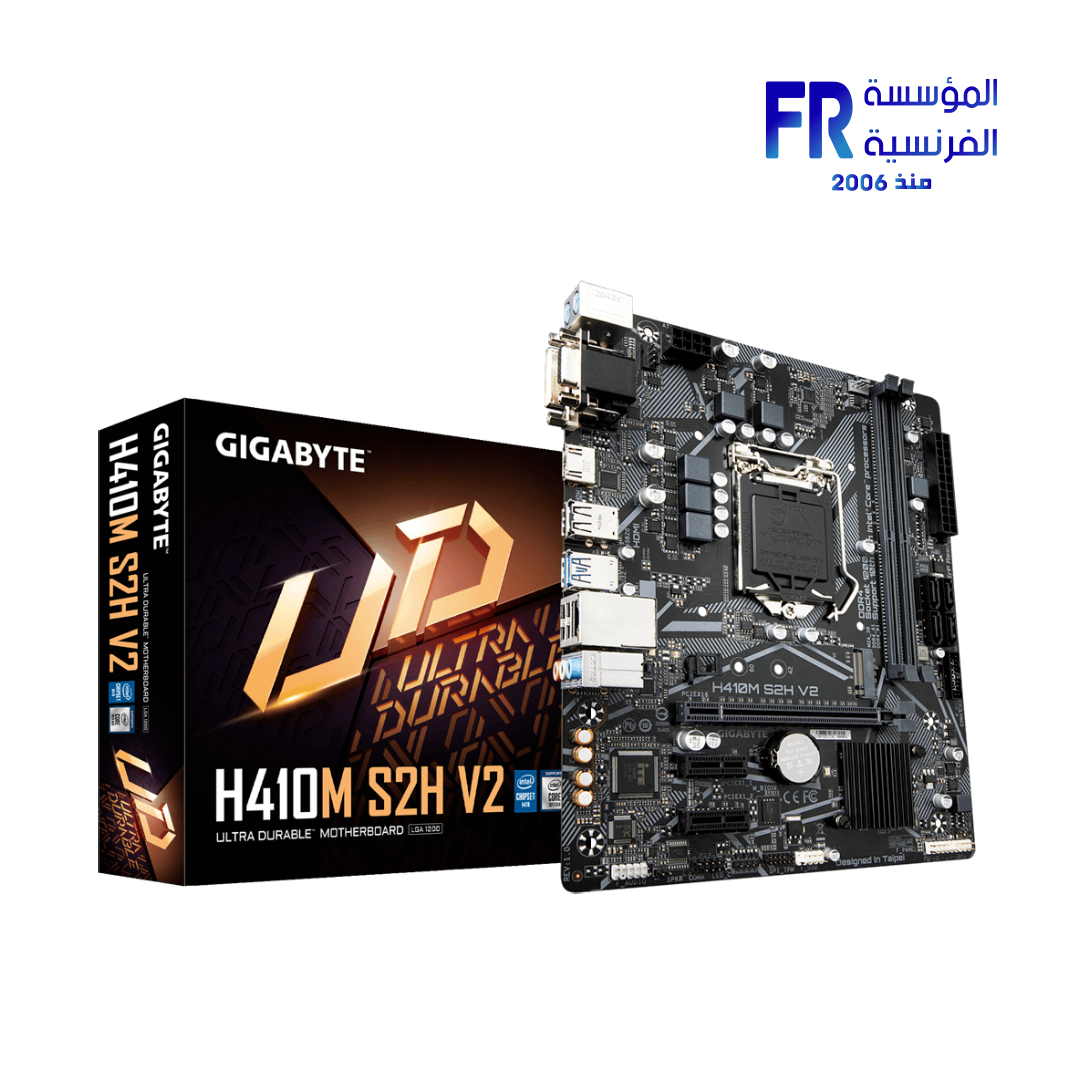

Gigabyte H410M S2H V2 Motherboard

Gigabyte H410M S2H V2 Motherboard:

The Gigabyte H410M S2H V2 Motherboard (rev. 1.x) is a micro ATX motherboard designed to support 10th Generation Intel® Core™ processors (LGA 1200 socket). It’s built for reliable, everyday computing, offering essential features for home or office PCs. While its model name might suggest an H410 chipset, some revisions are noted to feature the Intel® H510 Express Chipset, providing similar functionality for entry-level systems.

Key Features for Everyday Computing:

This motherboard supports Dual Channel Non-ECC Unbuffered DDR4 RAM with two DIMM sockets, allowing for up to 64GB of system RAM. It handles RAM speeds up to 2933MHz for Intel® Core™ i9/i7 processors and up to 2666MHz for Intel® Core™ i5/i3/Pentium®/Celeron® processors, also supporting Extreme Memory Profile (XMP) modules.

For connectivity, it features a Realtek® GbE LAN chip (1000 Mbit) for a stable wired network connection. It offers multiple display outputs including D-Sub, DVI-D, and HDMI, supporting integrated Intel® HD Graphics for versatile monitor setups.

Storage options include an Ultra-Fast NVMe PCIe 3.0 x4 M.2 connector (supporting SATA and PCIe x2 SSDs) and four SATA 6Gb/s connectors.

The motherboard integrates Smart Fan 5, allowing users to control fan headers based on various temperature sensors to maintain optimal system cooling and acoustics. It also boasts High Quality Audio Capacitors and an Audio Noise Guard for enhanced audio output. For durability, it features an Anti-Sulfur Resistors Design, protecting against environmental sulfur compounds.

You can find more details on the official Gigabyte H410M S2H V2 product page.

Specifications:

• CPU Socket: LGA 1200 (Supports 10th Gen Intel® Core™ processors)
• Chipset: Intel® H410 Express Chipset (some revisions may feature H510)
• RAM Slots: 2 x DDR4 DIMM sockets
• Max. System RAM: Up to 64 GB
• RAM Support: Dual Channel Non-ECC Unbuffered DDR4, up to 2933 MHz (with i9/i7 CPUs)
• Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support (D-Sub, DVI-D, HDMI)
• Audio: Realtek® ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel
• LAN: Realtek® GbE LAN chip (1000 Mbit)
• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16 (PCIe 3.0)
  • 2 x PCI Express x1 slots (PCIe 3.0)
• Storage Interface:
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
  • 4 x SATA 6Gb/s connectors
• USB Ports:
  • 2 x USB 3.2 Gen 1 (rear), 4 x USB 2.0/1.1 (rear)
  • Internal headers for additional USB 3.2 Gen 1 and USB 2.0/1.1 ports
• Form Factor: Micro ATX (22.6cm x 18.5cm)
• BIOS: 1 x 128 Mbit flash, AMI UEFI BIOS
• Part Number/SKU: GA-H410M S2H V2 (rev. 1.x)
