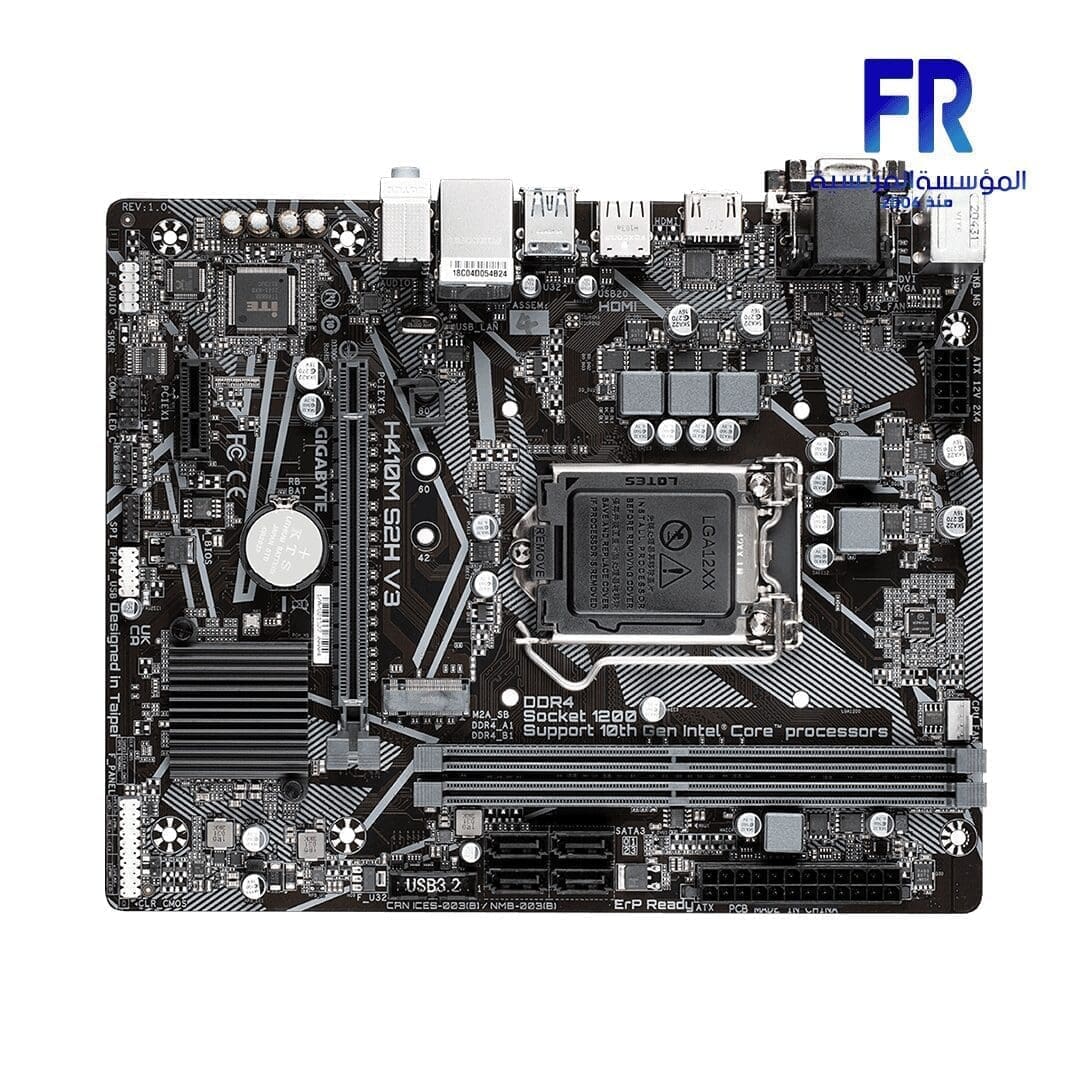

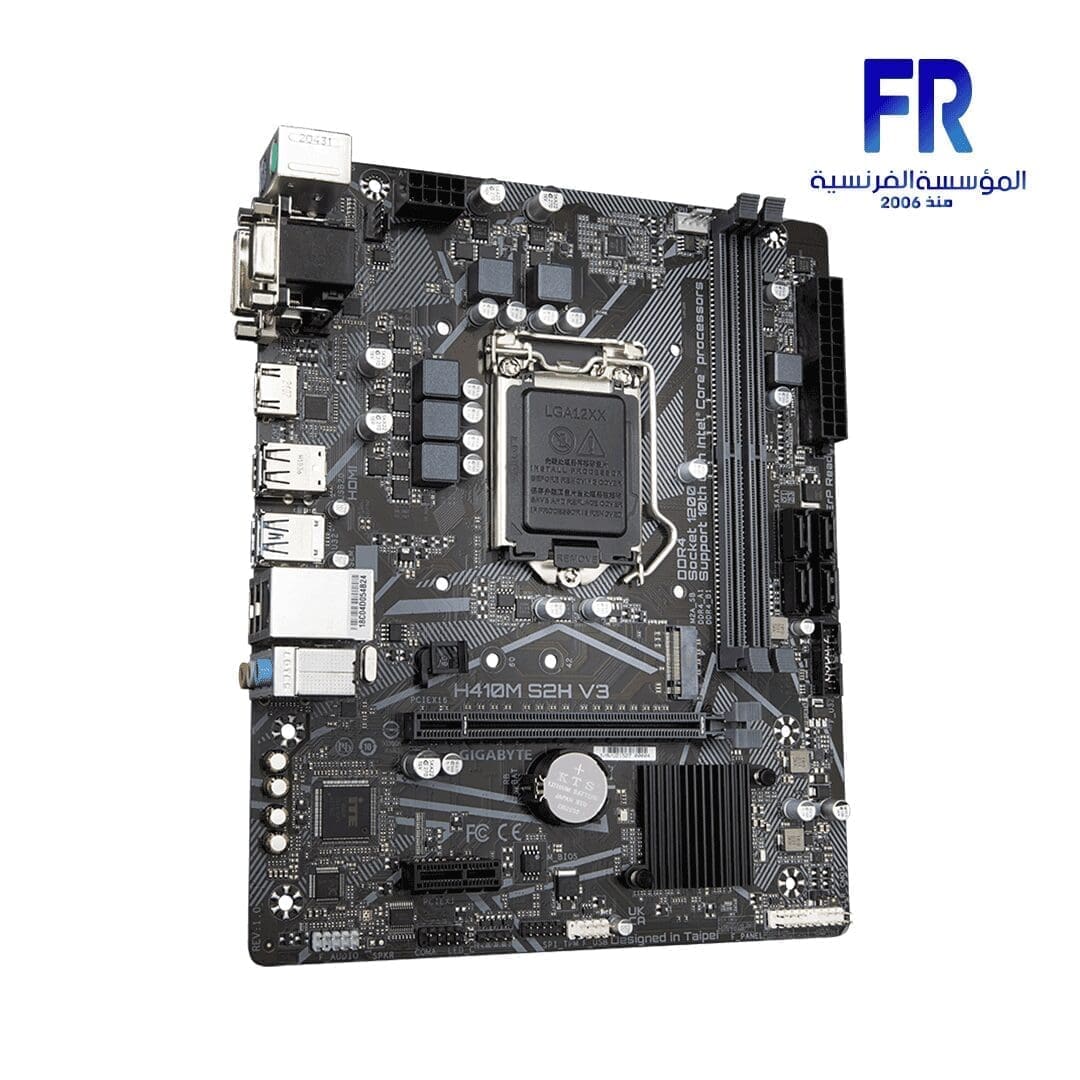

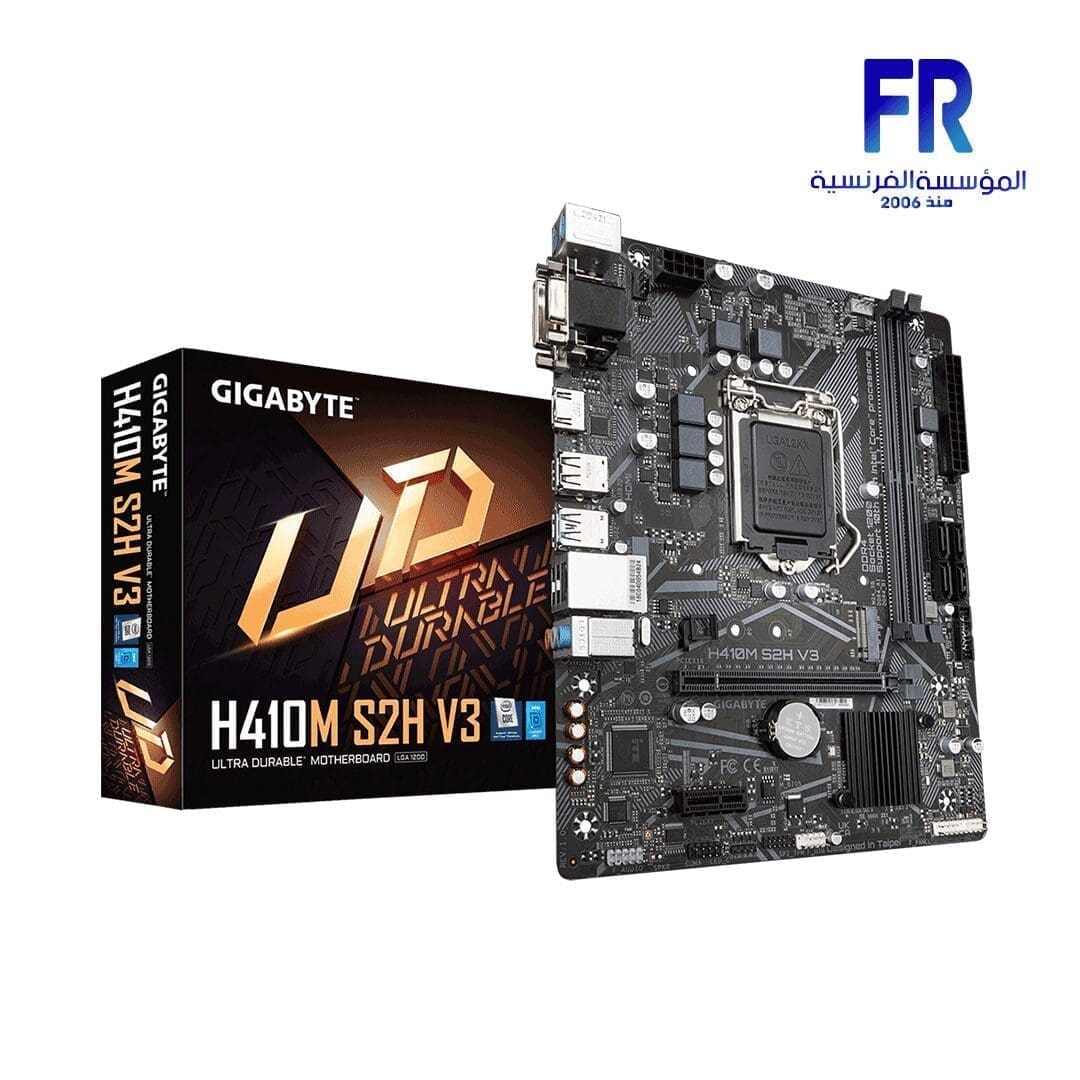

Gigabyte H410M S2H V3 Motherboard
2390 جنية
- Supports 10th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 8-Channel HD Audio with High Quality Audio Capacitors
- NVMe PCIe Gen3 x4 2280 M.2 Connector
- GIGABYTE Gaming GbE LAN with Bandwidth Management
- HDMI /DVI-D/D-Sub Ports for Multiple Display
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
غير متوفر بالمخزون
CPU
| CPU Socket | Socket 1200 |
| CPU Brand | Intel |
| Installed Processors (Max) | 0 (1) |
| Supported Processor Manufacturer | Intel |
| Supported Processors | 10th Generation Intel Core processors, Intel Pentium processors, Intel Celeron processors |
| 64-bit Support | Yes |
| Socket | LGA1200 |
Rear Panel I/O Ports
| USB Ports | 2 x USB 3.0 4 x USB 2.0 |
| HDMI Port | 1 x HDMI 1.4 |
| VGA Port | 1 x D-Sub |
| Keyboard Port | 1 x PS/2 |
| Mouse Port | 1 x PS/2 |
| RJ-45 Ports | 1 x RJ-45 |
| Digital Port | 1 x DVI-D |
| Audio Line In Ports | 1 x 3.5mm Jack |
| Audio Line Out Ports | 1 x 3.5mm Jack |
| Microphone In Port | 1 x 3.5mm Jack |
Internal I/O Connectors
| SATA Connectors | 4 x SATA III |
| USB Connectors | 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 4 ports) |
| Front Panel Connectors | 1 x Front Panel 1 x Front Audio |
| Cooling Fan Support | 1 x CPU fan header 1 x System fan header |
| Serial Connectors | 1 x COM header |
| TPM Header | 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Power Connector Port | 1 x 24-pin ATX 1 x 8-pin EPS |
| Other Connectors | 1 x M.2 slot, Socket 3, M Key, Type 2242/2260/2280 (PCIe Gen3) 1 x 4-pin RGB LED header |
Memory
| Memory Bus Speed | Up to 2933 MHz |
| Memory Type | DDR4 |
| Maximum RAM | 64 GB |
| Memory Slot | 2 x DIMM |
اللوحه الام
| Chipset Manufacturer | Intel |
| Northbridge | H410 |
| RAID Supported | No |
| SATA Supported | Yes |
Expansion
| Number of PCI Express Slots | 1 x PCI Express 3.0 x16 slot 1 x PCI Express 3.0 x1 slot |
Graphics Device
| Integrated Graphics Supported | Yes |
Sound
| Integrated Sound | Realtek Audio |
الضمان
| الضمان | 3 سنوات |
راوتر وملحقاته
| Integrated Network | Intel |
| Network Speeds Supported | Up to 1 Gbps |
| Wireless LAN | No |
| Bluetooth | No |
System Requirements
| Operating Systems Supported | Microsoft Windows 10 64-bit |
System
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Jumpers | 1 x Clear CMOS |
| Software Included (may be trial or restricted) | Yes |
| Drivers | Yes |
Physical
| Form Factor | MicroATX Motherboard |
| Width | 226 mm |
| Length | 185 mm |
Key Features
| CPU Power Pins (female) | 8 |
| Total M.2 Slots | 1 |
| Maximum NVMe M.2 ports | 1 |
| Maximum SATA M.2 ports | 1 |
| SATA ports | 4 |
| USB2.0 headers | 2 |
| USB3.0 headers | 2 |
| Firewire | No |
| Wireless Network | No |
| Memory Channel | Dual |
| On-board Audio Type | 7.1 |
| Number of SATA Ports | 4 port(s) |
| Number of USB Ports | 6 port(s) |
| SATA III Support | Yes |
| USB 3.0 Support | Yes |
| Multi GPU Support | No |
| VGA Connection | Yes |
| DVI Connection | Yes |
| HDMI Connection | Yes |
| DisplayPort Connection | No |
| Motherboard Form Factor | mATX |
| Motherboard Power Connectors | 8-Pin |
| Motherboard Chipset | Intel H410 |
| Thunderbolt | No |
| Motherboard Model | Gigabyte H410M S2H V3 |
| USB 3.1 Support | No |
| Internal USB3.0 Header | Yes |
| M.2 Support | Yes |
| On-board RGB Control | Gigabyte RGB Fusion |
| Memory Speed | 2933 MHz |
| RGB Header Type | 4-Pin RGB |
| Addressable RGB | No |
| Power Requirement (auto) | 60 W |
| Max Memory Speed Supported (Non-overclocked) | 2933 MHz |
Item Details
| Manufacturer | Gigabyte |
| Manufacturer Code | H410M S2H V3 |
| EAN | 4719331823535 |
| UPC | 889523029008 |
| Condition | New |
