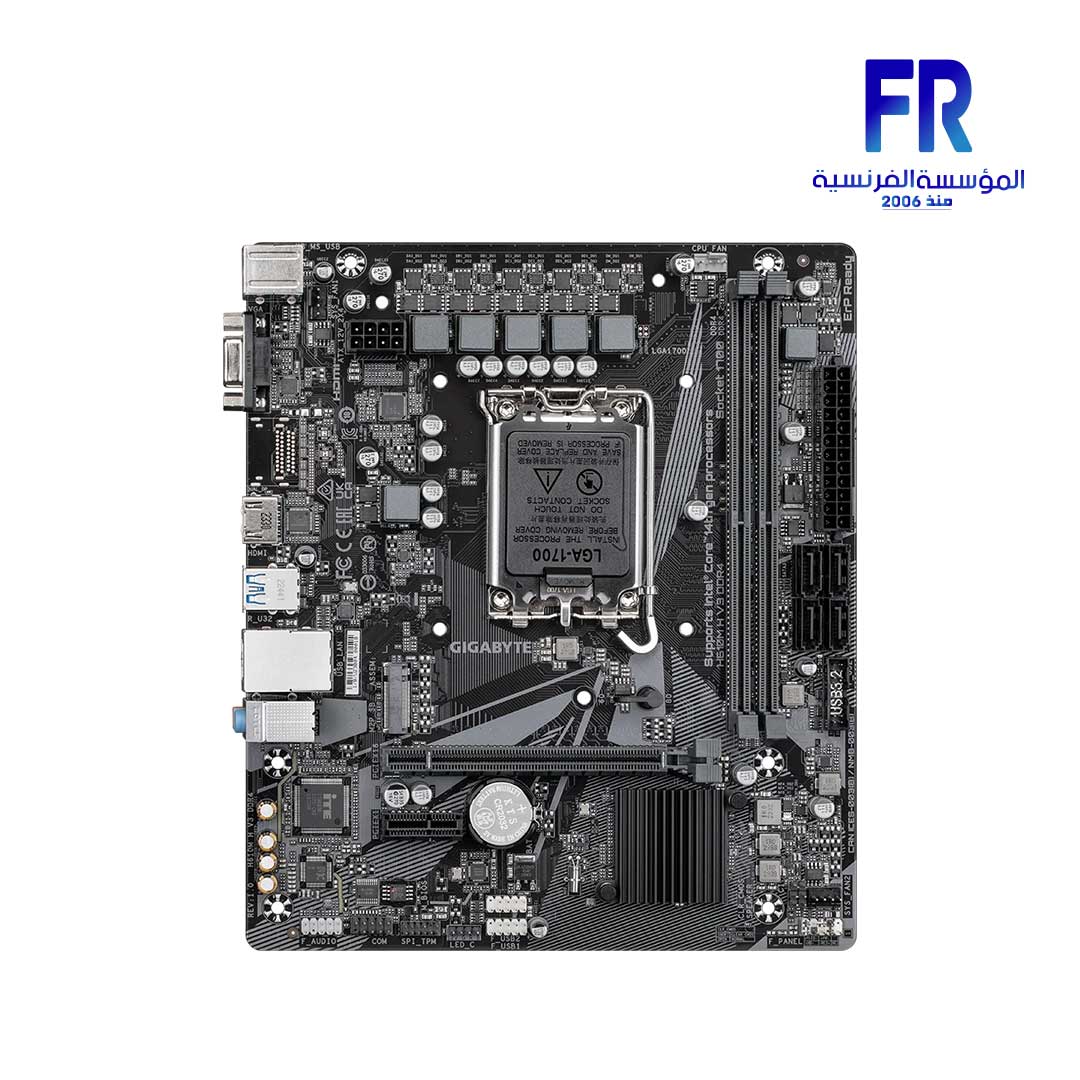

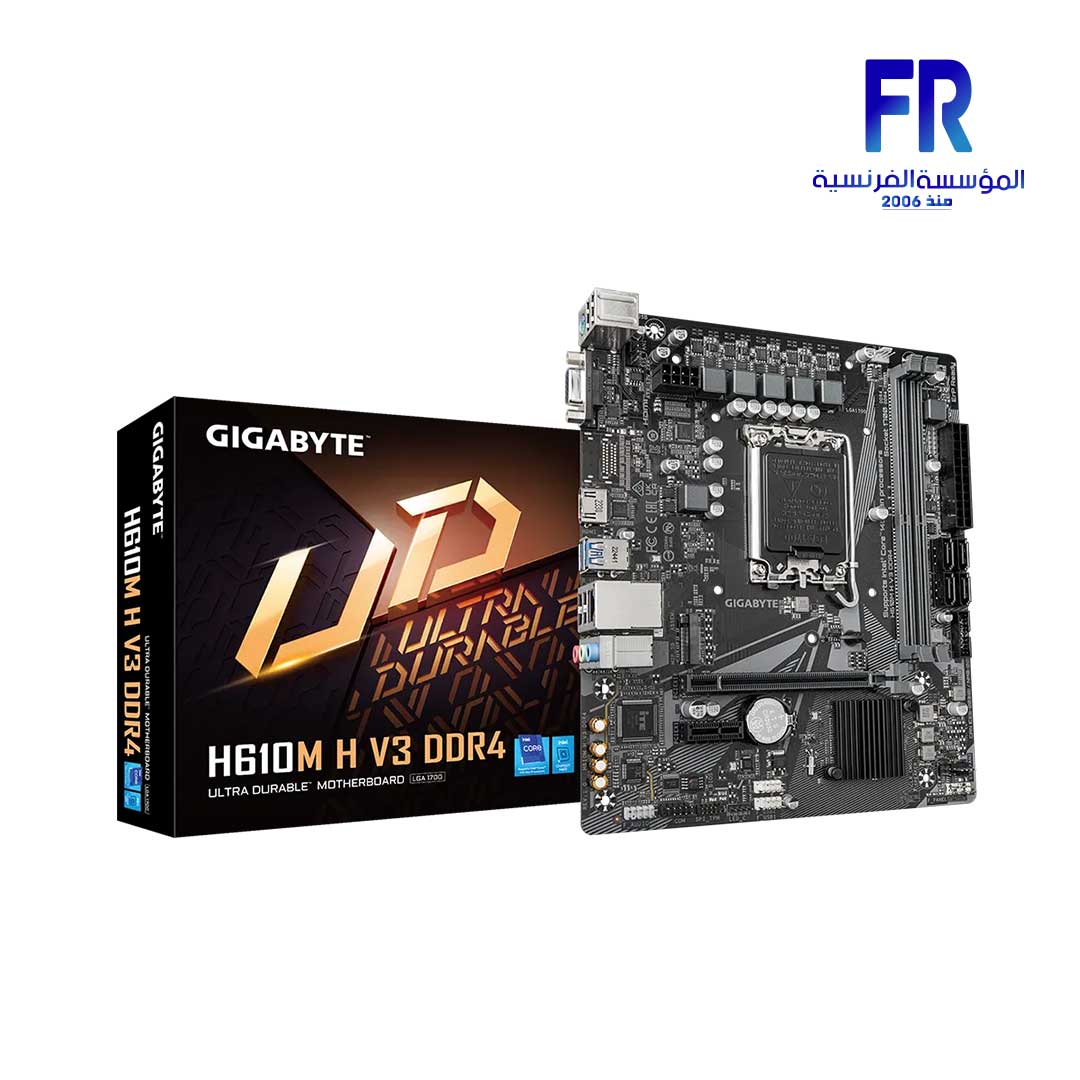

Gigabyte H610M H V3 DDR4 Motherboard

Gigabyte H610M H V3 DDR4 اللوحات الأم

Gigabyte H610M H V3 DDR4 Motherboard specs :

• CPU

  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
  L3 cache varies with CPU
  (Please refer “CPU Support List” for more information.)

• Chipset

  Intel® H610 Express Chipset

• Memory

  Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel® HD Graphics support:
  – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
  – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)

• Audio

  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

• Expansion Slots

  CPU:
  – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface

  Chipset:
  – 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
  support)
  – 4 x SATA 6Gb/s connectors

• USB

  Chipset:
  – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  – 4 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
  – 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x RGB LED strip header
  1 x front panel header
  1 x front panel audio header
  1 x speaker header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Clear CMOS jumper
  1 x chassis intrusion header

• Back Panel Connectors

  1 x PS/2 keyboard/mouse port
  1 x D-Sub port
  1 x HDMI port
  2 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

• I/O Controller

  iTE® I/O Controller Chip

• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS
  – EasyTune
  – Smart Backup
  – System Information Viewer
  Support for Q-Flash

• Bundled Software

  Norton® Internet Security (OEM version)
  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit

• Form Factor

  Micro ATX Form Factor; 22.3cm x 19.3cm
