GIGABYTE P750GM 750W 80 PLUS Gold FULLY MODULAR POWER SUPPLY

• الموديل

  GP-P750GM

• Type

  Intel Form Factor ATX 12V v2.31

• PFC

  Active PFC (>0.9 typical)

• Input Voltage

  100-240 Vac (full range)

• Input Current

  12-6 A

• Input Frequency

  60-50 Hz

• Output Capacity

  750W

• Dimension

  150 x 140 x 86 mm

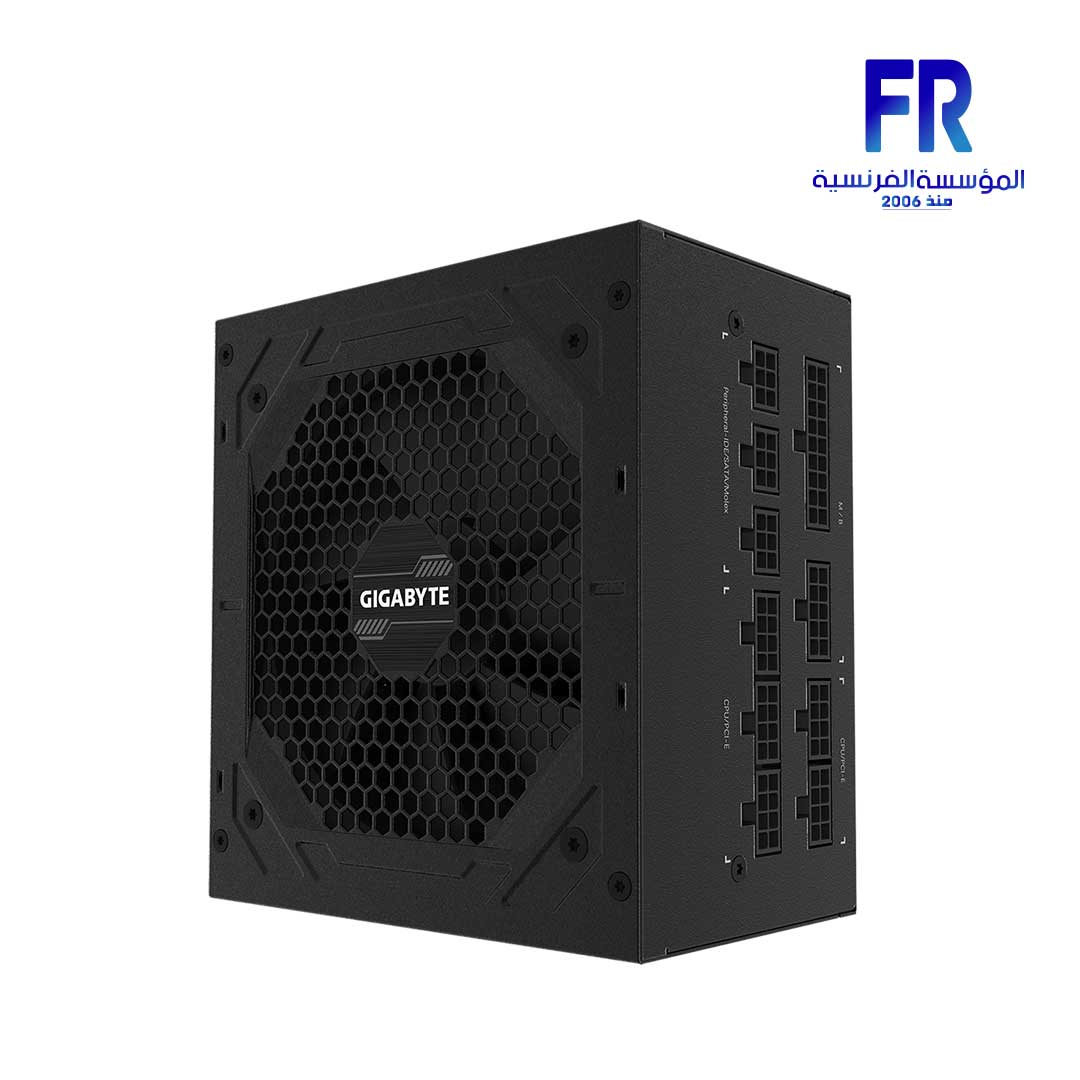

• Fan Type

  120mm Hydraulic Bearing ( HYB ) fan

• 80 PLUS

  Gold

• Efficiency

  90% at typical load

• MTBF

  >100,000 hours

• Protection

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  100-500ms

• Hold Up Time

  >16ms

• نوع الكابل

  Flat, All black

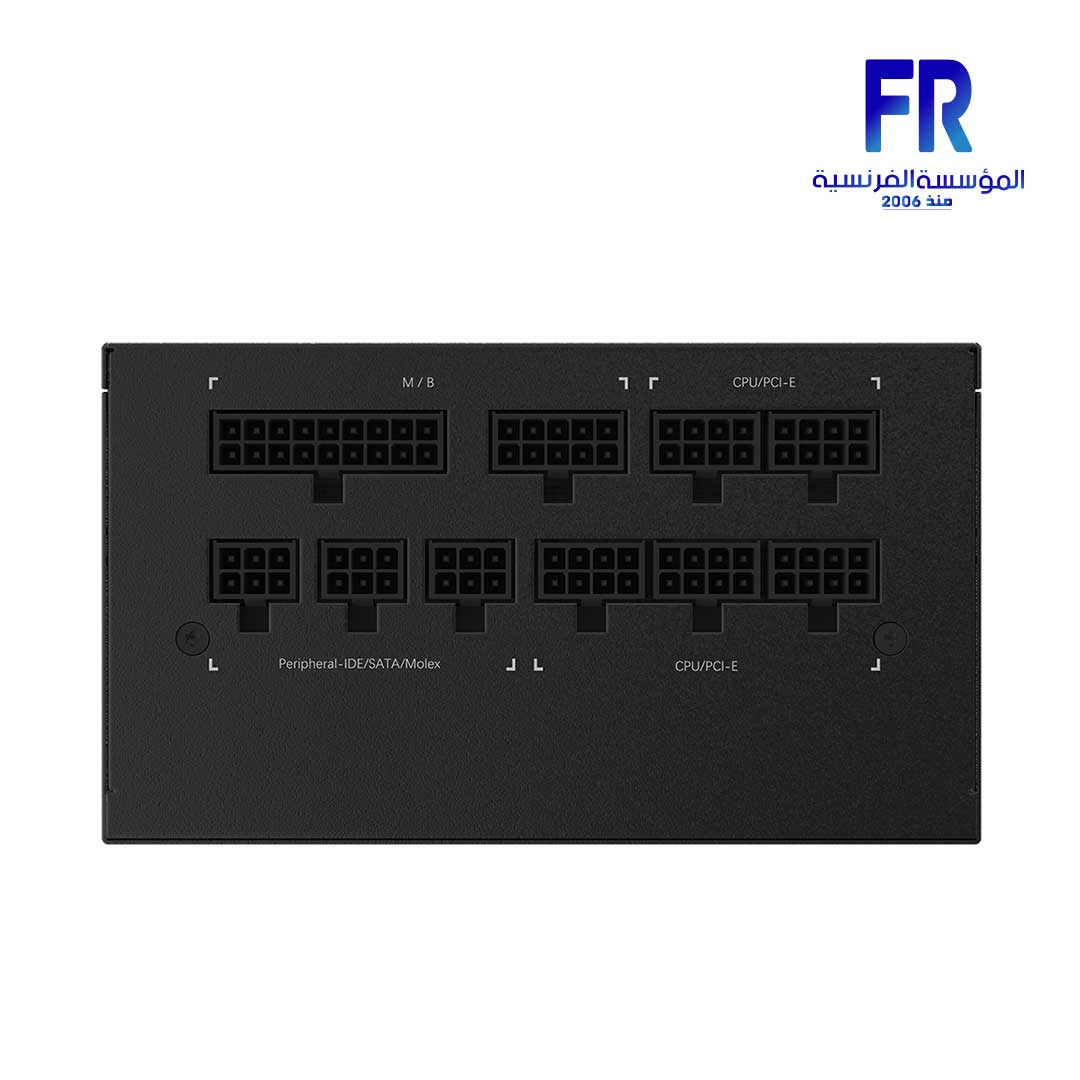

• Connectors

  ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm*2
  PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 : 600mm+150mm+150mm+150mm*2 :
  4 Pin Peripheral x 3 + 4-Pin floppy x 1
  500mm+120mm+120mm+120mm *1

  GIGABYTE P750GM 750W 80 PLUS Gold FULLY MODULAR POWER Supply
