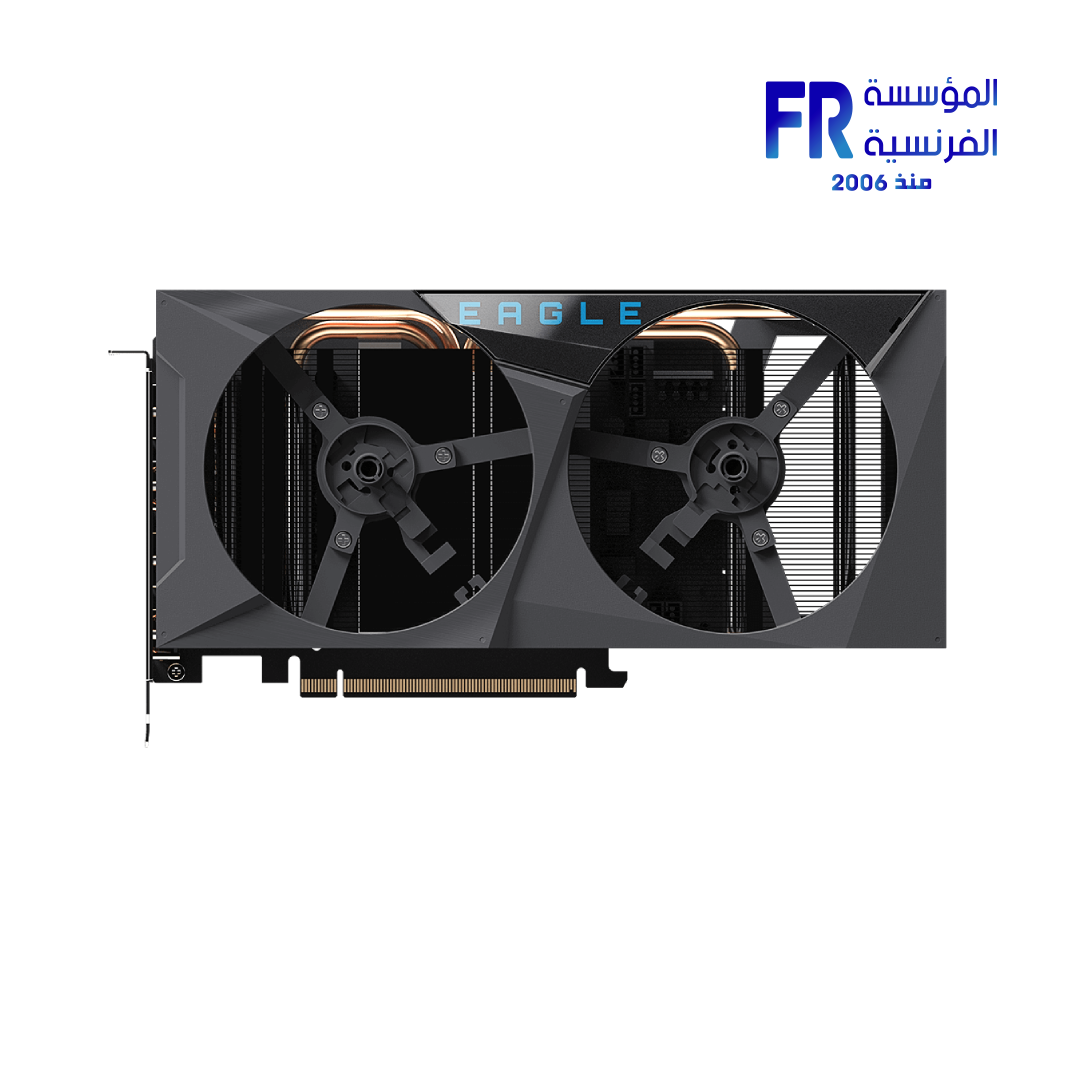

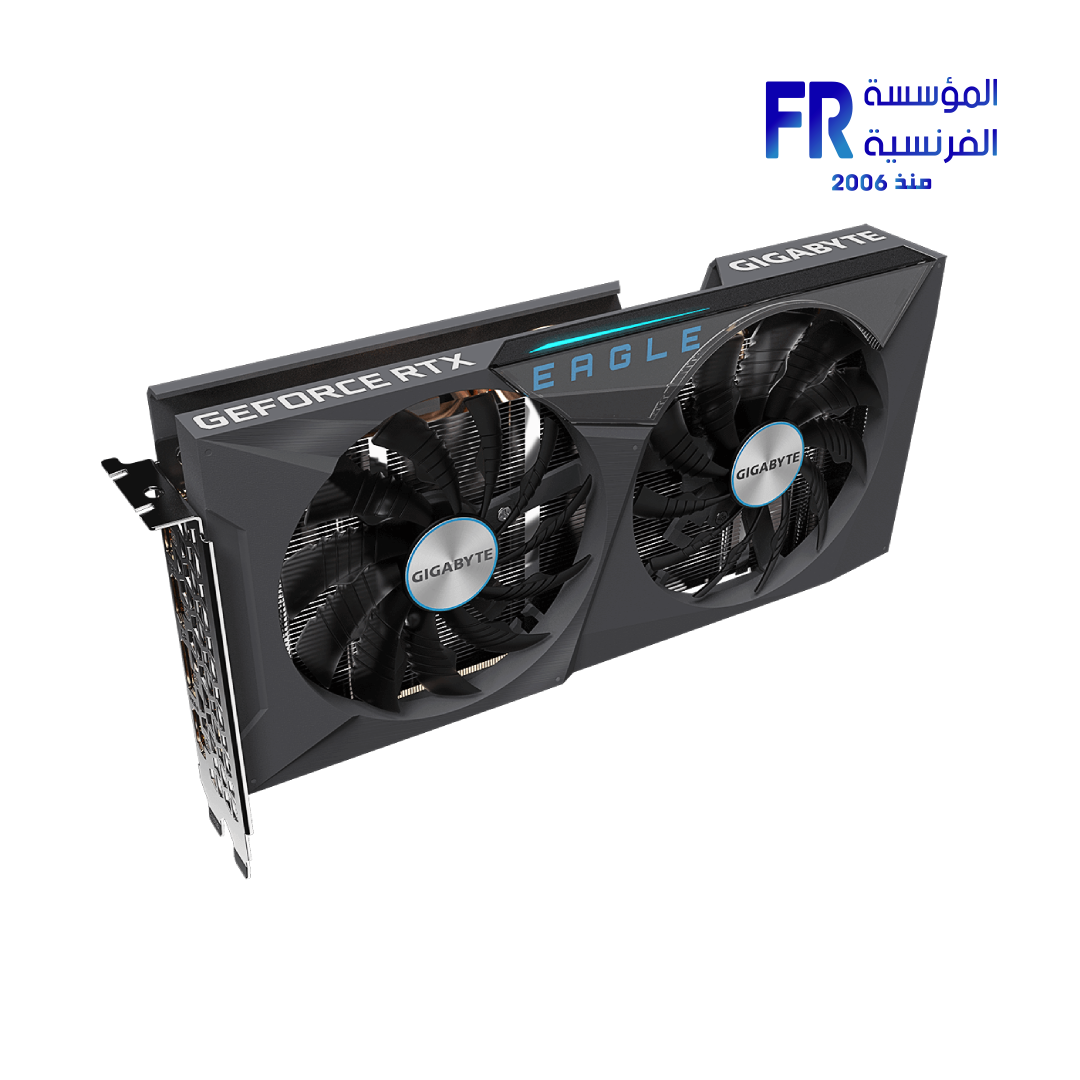

Gigabyte RTX 3060 Ti Eagle 8GB Graphics Card:
The Gigabyte GeForce RTX™ 3060 Ti EAGLE OC 8G Graphics Card is built on the NVIDIA Ampere architecture, delivering a powerful gaming experience with advanced ray tracing and AI capabilities. The “EAGLE OC” designation indicates it’s a factory-overclocked model with Gigabyte’s custom cooling solution, designed for enhanced performance and stability.
Key Features for Immersive Gaming:
This graphics card is powered by the NVIDIA Ampere architecture, featuring 4864 CUDA® Cores, 2nd Generation RT Cores, and 3rd Generation Tensor Cores. This combination provides significant throughput for real-time ray tracing and AI-powered DLSS (Deep Learning Super Sampling), which boosts frame rates with uncompromised image quality.
The card is equipped with Gigabyte’s WINDFORCE 2X Cooling System, which features two 100mm unique blade fans with alternate spinning technology. This design helps to reduce air turbulence and enhance airflow pressure, leading to more efficient heat dissipation. It also includes 4 composite copper heat pipes that directly touch the GPU, and a “Screen cooling” extended heatsink design for improved thermal performance. The 3D Active Fan provides semi-passive cooling, keeping the fans off during low load or low-power gaming for quieter operation. The use of Graphene Nano Lubricant in the fan bearings extends their lifespan.
With 8GB of GDDR6 RAM on a 256-bit memory interface, the RTX 3060 Ti Eagle OC delivers strong performance for 1080p and 1440p gaming. It supports DirectX 12 Ultimate, enabling advanced graphics effects. NVIDIA Reflex provides the lowest latency for competitive gaming, and the card is compatible with NVIDIA® G-SYNC® monitors for smooth, tear-free visuals. For creators, the RTX 30 Series GPUs offer AI acceleration in creative applications and enhanced hardware encoding for high-quality live streaming.
The card also features RGB Fusion 2.0, allowing for 16.7 million customizable color options and various lighting effects to personalize your gaming setup. A protective back plate enhances the card’s structural integrity.
For more details, you can refer to the official Gigabyte GeForce RTX™ 3060 Ti EAGLE OC 8G (rev. 2.0) product page.
Specifications:
- Graphics Processing: GeForce RTX™ 3060 Ti
- Core Clock: 1695 MHz (Reference Card: 1665 MHz)
- CUDA® Cores: 4864
- RAM Clock: 14000 MHz
- RAM Size: 8 GB
- RAM Type: GDDR6
- RAM Bus: 256 bit
- RAM Bandwidth: 448 GB/s
- Card Bus: PCI-E 4.0 x 16
- Digital Max Resolution: 7680×4320
- Multi-view: 4
- Card Size: L=242 W=124 H=41 mm
- PCB Form: ATX
- DirectX: 12 Ultimate
- OpenGL: 4.6
- Recommended PSU: 600 وات
- Power Connectors: 8 pin1 (some revisions may have 8 pin2)
- Output:
- DisplayPort 1.4a *2
- HDMI 2.1 *2
- Part Number/SKU: GV-N306TEAGLE OC-8GD (rev. 1.0 / rev. 2.0)
- UPC: 889523024980 (Example)
