Gigabyte X570 Aorus Ultra اللوحه الام:

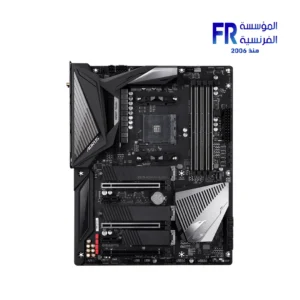

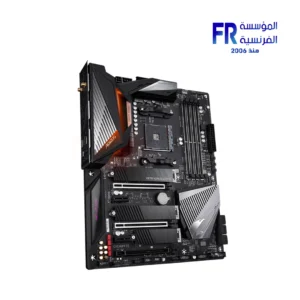

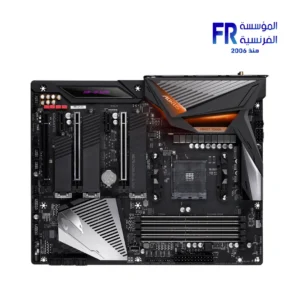

The Gigabyte X570 Aorus Ultra Motherboard is a high-performance motherboard designed to unleash the full potential of AMD Ryzen™ processors. It supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, 3rd Gen Ryzen™, 2nd Gen Ryzen™, and Ryzen™ with Radeon™ Vega Graphics Processors on the AM4 Socket. This Gigabyte X570 Aorus Ultra features a robust 12+2 Phases IR Digital VRM Solution with Power Stage. This ensures stable power delivery for demanding workloads. Furthermore, its advanced thermal design with Fins-Array Heatsink and Direct Touch Heatpipe keeps critical components cool.
Key Features & Performance of the Gigabyte X570 Aorus Ultra Motherboard:
Blazing-Fast Connectivity & Storage:
The Gigabyte X570 Aorus Ultra Motherboard offers blazing-fast connectivity. It includes Triple Ultra-Fast NVMe PCIe 4.0/3.0 M.2 slots with Triple Thermal Guards. This ensures rapid data transfer speeds for your SSDs. It supports PCIe 4.0 on its x16 and x8 slots for 3rd Gen Ryzen™ processors. This provides ample bandwidth for the latest graphics cards. Integrated Intel® WiFi 6 802.11ax 2T2R & BT 5 provides high-speed wireless communication. Intel® Gigabit LAN with cFosSpeed further enhances network performance.
Enhanced Audio & RGB Fusion 2.0:
Experience immersive audio with the Gigabyte X570 Aorus Ultra Motherboard’s Realtek® ALC1220-VB codec. This delivers 7.1-channel High Definition Audio. It is enhanced with WIMA Audio Capacitors. The back panel line out jack also supports DSD audio. RGB FUSION 2.0 provides Multi-Zone Addressable LED Light Show Design. This supports Addressable LED & RGB LED Strips. This allows for extensive customization of your system’s lighting.
Smart Fan 5 & User-Friendly Features:
The Gigabyte X570 Aorus Ultra Motherboard incorporates Smart Fan 5. This features multiple temperature sensors and Hybrid Fan Headers with FAN STOP. This ensures optimal cooling and quiet operation. Q-Flash Plus allows you to update the BIOS without installing the CPU, memory, or graphics card. This simplifies the build process. Integrated I/O Shield Armor enhances durability and simplifies installation. Support for NVIDIA® Quad-GPU SLI™ and AMD Quad-GPU CrossFire™ technologies enables multi-GPU setups for extreme gaming performance.
Explore compatible Motherboards or check Gigabyte Products for other options. Find full details on the official Gigabyte X570 Aorus Ultra Motherboard product page.
Specifications:
- CPU Socket: AMD Socket AM4 (Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors)
- Chipset: AMD X570
- Memory: 4 x DDR4 DIMM sockets, up to 128 GB, DDR4 4400(O.C.) – 2133 MHz
- Onboard Graphics: 1 x HDMI port (4096×2160@60 Hz, HDMI 2.0, HDCP 2.2, HDR)
- Audio: Realtek® ALC1220-VB codec, 7.1-channel High Definition Audio, S/PDIF Out
- LAN: Intel® GbE LAN chip (10/100/1000 Mbit)
- Wireless Communication: Wi-Fi 802.11a/b/g/n/ac/ax (2.4/5 GHz Dual-Band, up to 2.4 Gbps), BLUETOOTH 5.0
- Expansion Slots (CPU): 1 x PCIe x16 (PCIe 4.0/3.0 x16), 1 x PCIe x16 (PCIe 4.0/3.0 x8)
- Expansion Slots (Chipset): 1 x PCIe x16 (PCIe 4.0/3.0 x4), 2 x PCIe x1 (PCIe 4.0/3.0)
- Multi-Graphics Technology: Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™, AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™
- Storage Interface (CPU): 1 x M.2 (PCIe 4.0/3.0 x4/x2 SSD support)
- Storage Interface (Chipset): 2 x M.2 (PCIe 4.0/3.0 x4/x2 SSD support), 6 x SATA 6Gb/s connectors
- RAID Support: RAID 0, RAID 1, and RAID 10 (for M.2 NVMe and SATA)
- USB (CPU): 3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2/Gen 1 Type-A (red) on back panel
- USB (Chipset): 1 x USB Type-C™ (USB 3.2 Gen 2) on back panel, 1 x USB 3.2 Gen 2 Type-A (red) on back panel, 1 x USB Type-C™ (USB 3.2 Gen 2) via internal header, 4 x USB 3.2 Gen 1 via internal headers
- USB (Chipset+USB 2.0 Hubs): 8 x USB 2.0/1.1 (4 on back panel, 4 via internal headers)
- BIOS: 2 x 128 Mbit flash, DualBIOS™, UEFI AMI BIOS
- Operating System Support: Windows 11 64-bit, Windows 10 64-bit
- Form Factor: ATX Form Factor (30.5cm x 24.4cm)
- Model Number/SKU: X570-AORUS-ULTRA
- EAN/UPC: 22035010
