What CPUs are compatible with the Gigabyte X870 AORUS STEALTH ICE?

This motherboard uses the AMD Socket AM5 and supports the AMD Ryzen™ 9000 Series, 8000 Series, and 7000 Series Processors.

Does the X870 AORUS STEALTH ICE support PCIe 5.0?

Yes, it supports PCIe 5.0 for the main x16 graphics card slot and for two of the M.2 SSD slots when used with compatible AMD Ryzen™ 9000 or 7000 series processors.

What kind of wireless connectivity does this motherboard have?

It features the latest Qualcomm® Wi-Fi 7 module, which supports 2.4, 5, and 6 GHz wireless bands, and also includes BLUETOOTH 5.4 for connecting peripherals.

How many M.2 SSDs can be installed on the X870 AORUS STEALTH ICE?

You can install up to four M.2 SSDs. Two slots are connected directly to the CPU supporting up to PCIe 5.0 speeds, and two are connected to the chipset supporting PCIe 4.0 speeds.

تصفية

Gigabyte X870 Aorus Stealth with Wifi 7 and USB 4 Ice Motherboard

Gigabyte X870 Aorus Stealth with Wifi 7 and USB 4 Ice Motherboard

18000 جنية

CPU Socket: AMD Socket AM5
Memory Type: 4 x DDR5 DIMM, up to 256GB at 8200(O.C.) MT/s
Expansion Slots: 1 x PCIe 5.0 x16
Wireless: Qualcomm Wi-Fi 7, Bluetooth 5.4
Connectivity: Dual USB4 Type-C ports, Realtek 5GbE LAN

المتوفر في المخزون 1 فقط

Price Match Guarantee

رمز المنتج: 889523051276 التصنيفات: AMD Motherboards, لوحة الام الوسوم: gaming, AMD, Ice, GIGABYTE, 7, 9MX87STLE-00-G10, PCIe 5.0, Content Creation, X870, 889523051276, Computer Components, M.2 Slots, X870 chipset, WIFI, 4, USB 4, white motherboard, DDR5, AM5 Socket, Desktop Motherboard, motherboard, AORUS, STEALTH, Wi-Fi 7, USB, High-Speed Networking العلامة التجارية: GIGABYTE

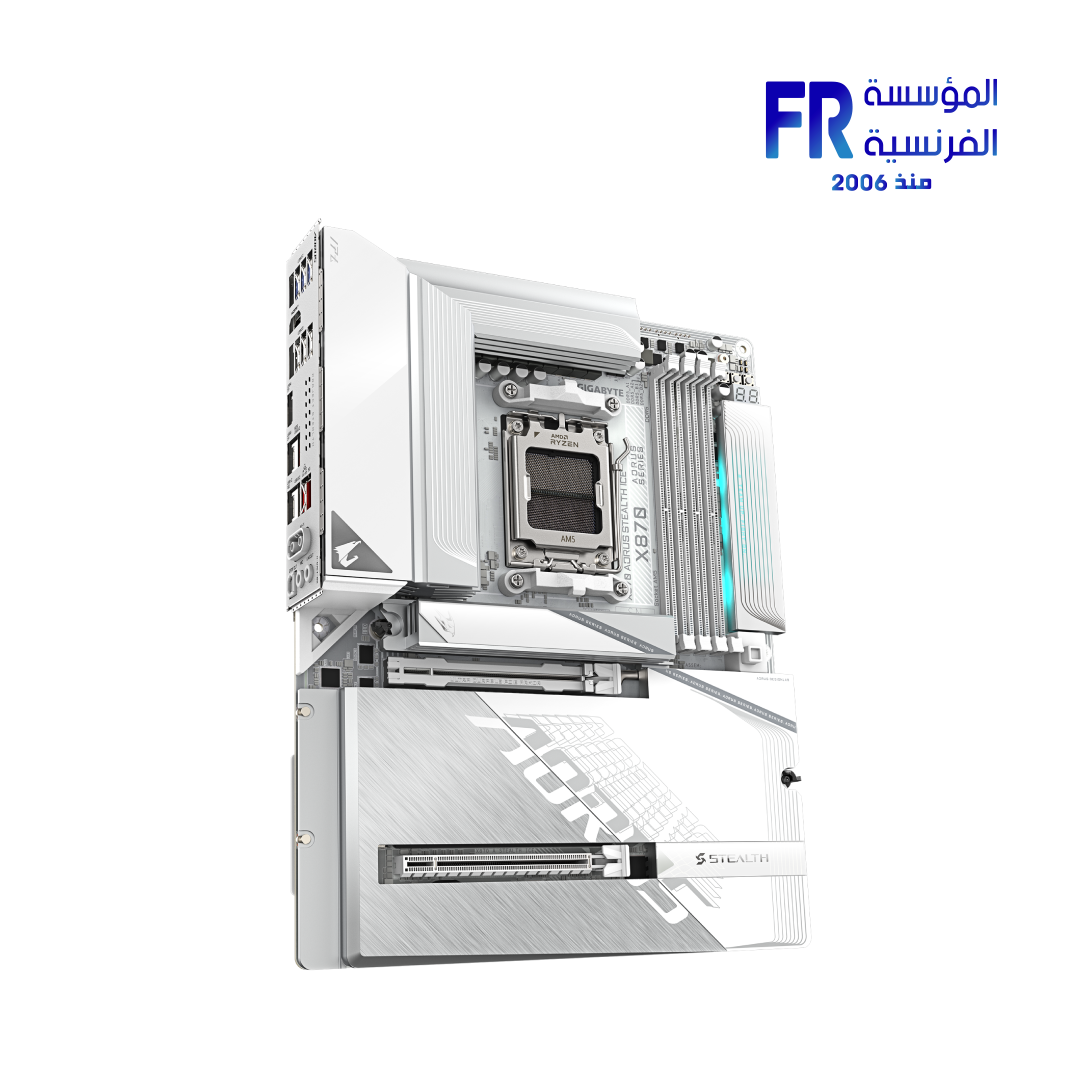

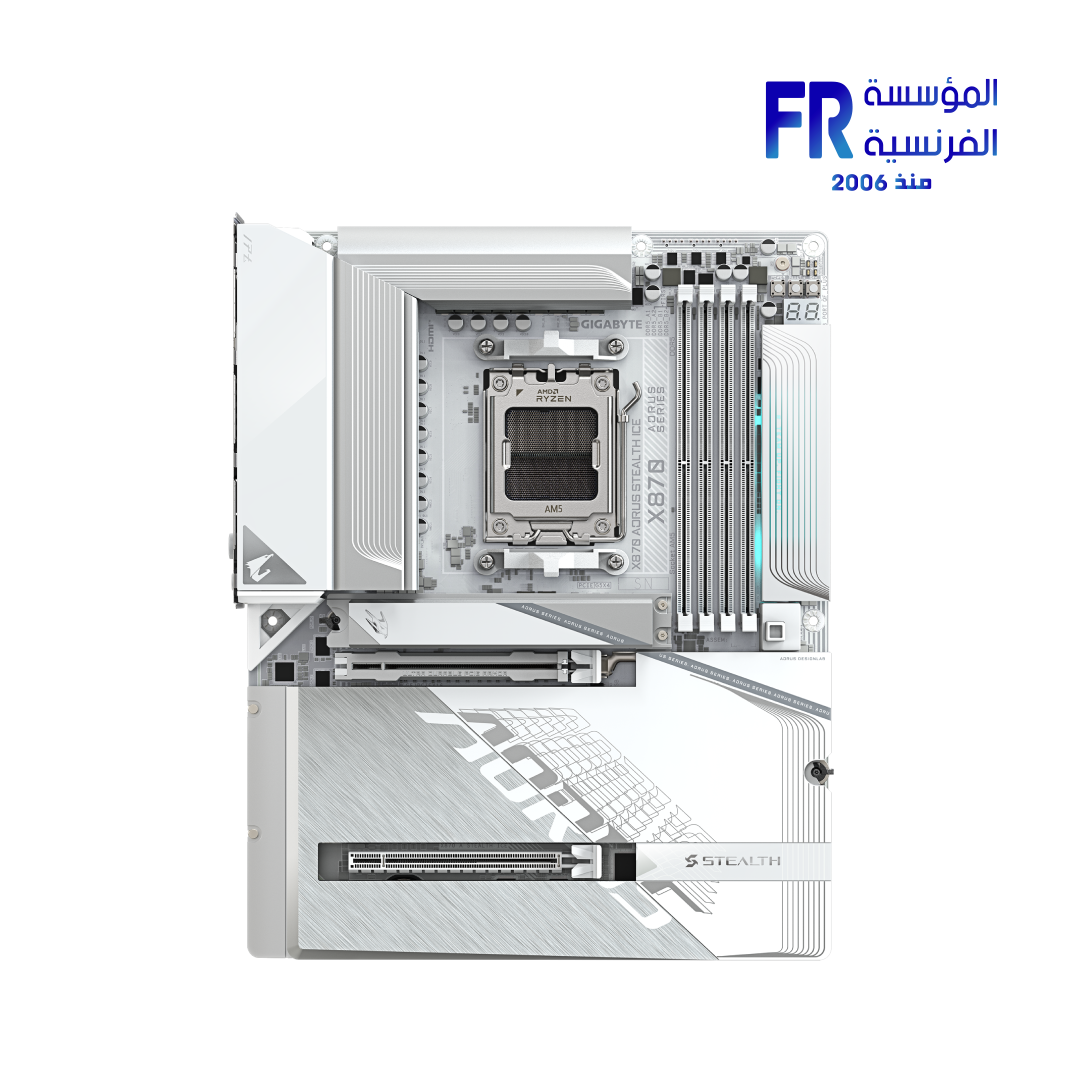

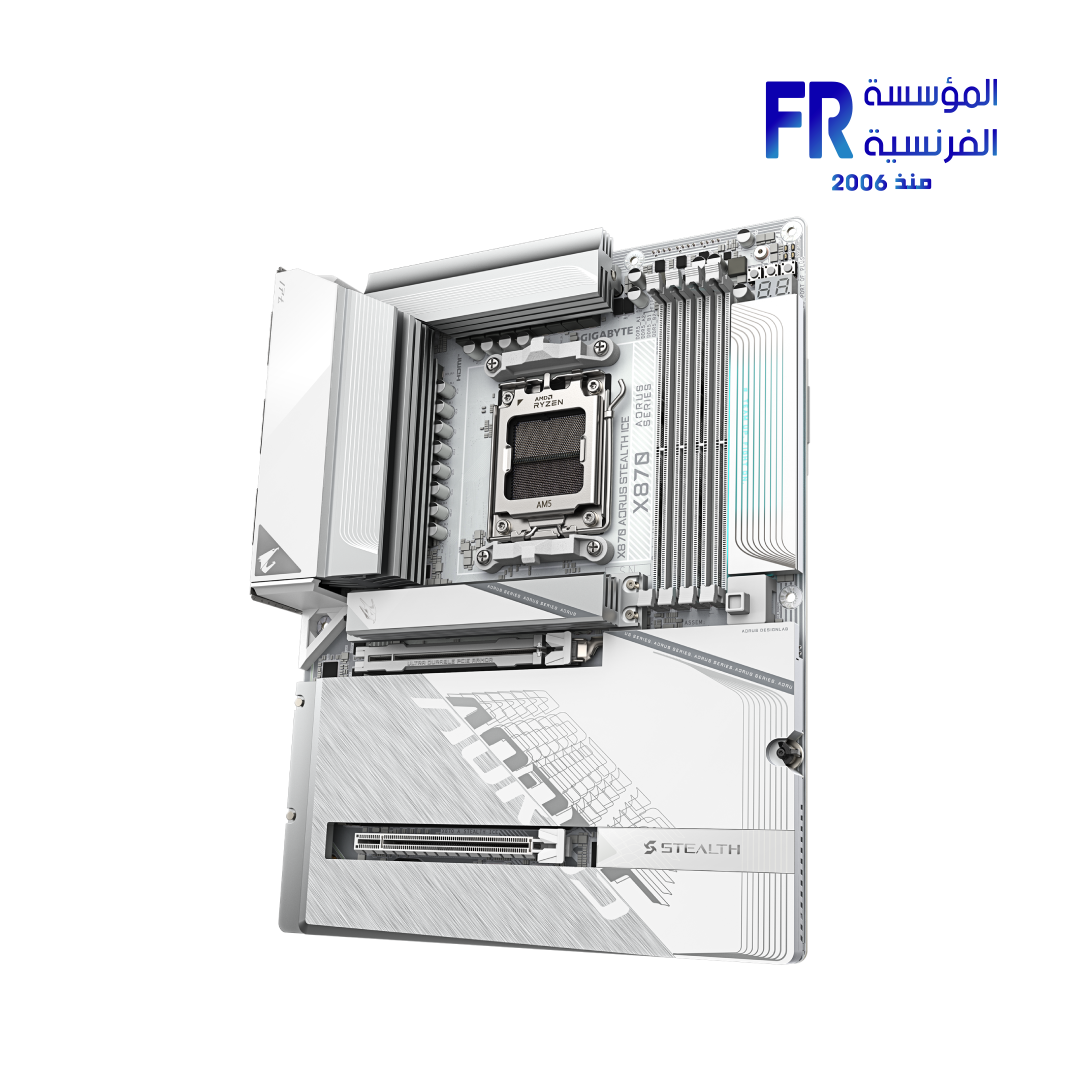

Gigabyte X870 Aorus Stealth with Wifi 7 and USB 4 Ice Motherboard

Build your next-gen powerhouse with the Gigabyte X870 Aorus Stealth ICE. Gigabyte engineered this motherboard for elite performance, supporting the latest AMD Ryzen™ processors, DDR5 memory, and PCIe 5.0 connectivity.

Overview of the Gigabyte X870 Aorus Stealth ICE

The Gigabyte X870 Aorus Stealth ICE (full model name: Gigabyte X870 Aorus Stealth with Wifi 7 and USB 4 Ice Motherboard) represents a masterclass in modern motherboard design. The company engineered it to support the powerful AMD Ryzen™ 9000, 8000, and 7000 Series processors on the AM5 socket. Consequently, this board pushes the boundaries of performance with support for overclocked DDR5 memory up to a blistering 8200 MT/s and a dual-channel architecture for up to 256 GB of system memory. Moreover, Gigabyte built the Gigabyte X870 Aorus Stealth ICE for the future, featuring PCIe 5.0 support for graphics cards and NVMe SSDs, ensuring maximum data throughput. In addition, connectivity is unparalleled, with dual USB4® Type-C® ports, a Realtek® 5GbE LAN port, and a Qualcomm® Wi-Fi 7 module.

Key Features of the X870 Aorus Stealth ICE

Next-Gen CPU Support: Fully compatible with AMD Socket AM5 for Ryzen™ 9000, 8000, & 7000 Series CPUs.
Extreme Memory Performance: Supports up to 256 GB of high-speed DDR5 memory with speeds reaching 8200(O.C.) MT/s.
PCIe 5.0 Ready: Features a PCIe 5.0 x16 slot and multiple PCIe 5.0 M.2 connectors for the fastest graphics cards and SSDs.
Ultra-Fast Connectivity: Equipped with dual USB4® Type-C® ports, 5GbE LAN, and cutting-edge Wi-Fi 7 with Bluetooth 5.4.

Technical Specifications: Gigabyte X870 Aorus Stealth ICE

For the most detailed information, please visit the official Gigabyte product page.

Specification	Details
CPU Socket	AMD Socket AM5
Chipset	AMD X870
Memory Support	4 x DDR5 DIMM Sockets, up to 256 GB
Memory Speed	DDR5 8200(O.C) / 8000(O.C) … 4400 MT/s
Onboard Graphics	2 x USB4® Type-C® (DisplayPort 1.4), 1 x HDMI 2.1
Audio	Realtek® ALC1220 CODEC, 7.1-Channel High Definition Audio
LAN	Realtek® 5GbE LAN
Wireless Communication	Qualcomm® Wi-Fi 7, BLUETOOTH 5.4
Expansion Slots	1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
Storage Interface	2 x PCIe 5.0 M.2, 2 x PCIe 4.0 M.2, 2 x SATA 6Gb/s

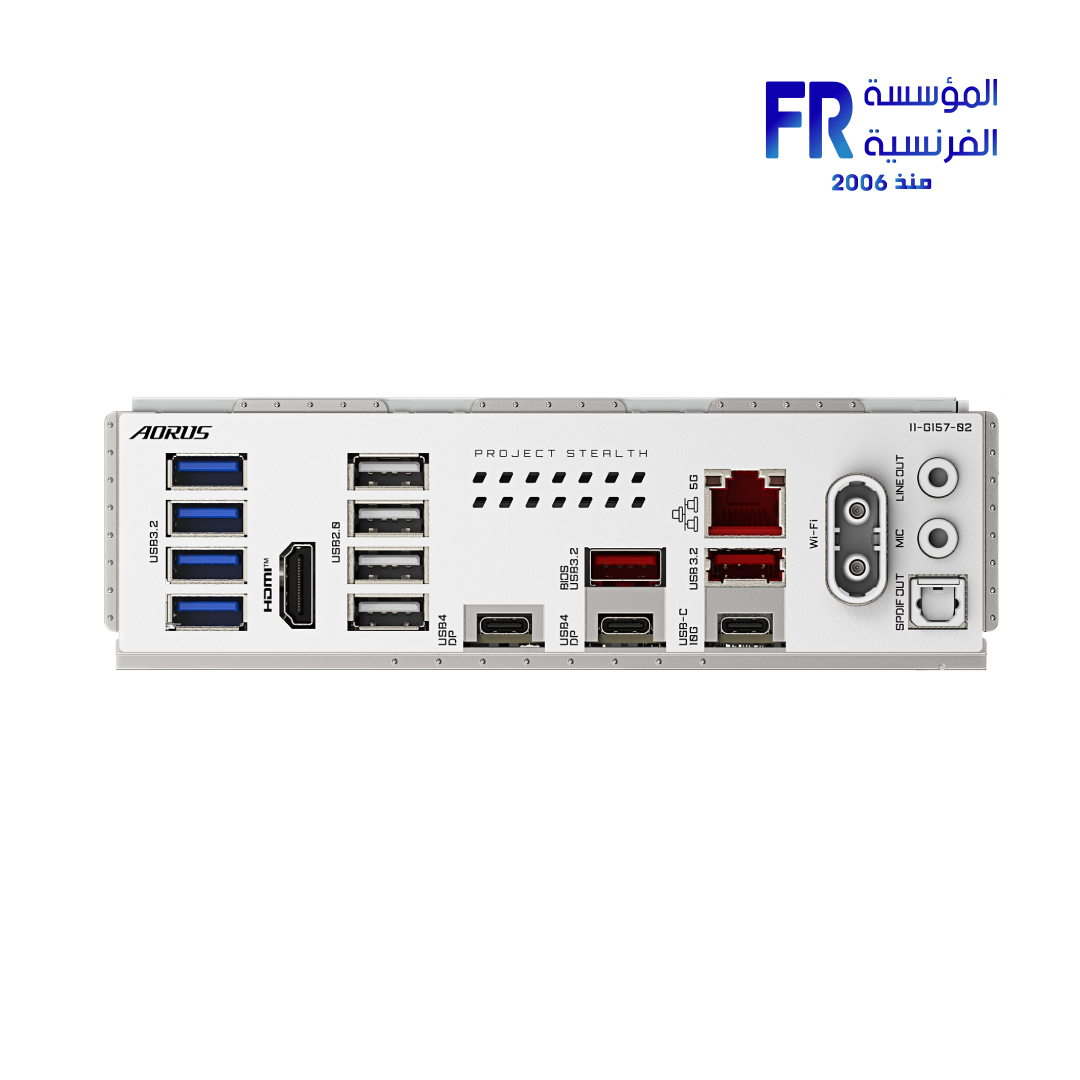

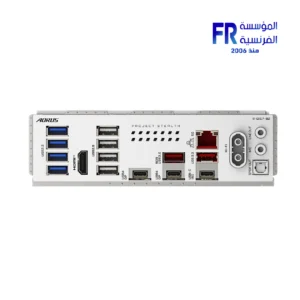

USB Ports	2x USB4, 1x USB 3.2 Gen 2×2, 3x USB 3.2 Gen 2, 6x USB 3.2 Gen 1, 8x USB 2.0
Form Factor	ATX; 30.5cm x 24.4cm
الضمان	3 سنوات

لوحة الام

الموديل	X870 Aorus Stealth
CHIPSET MANUFACTURERS	AMD
CPU Socket	AM5
Motherboard Chipset	X870
Motherboard Type	ATX
CPU SERIES	AMD Ryzen 7000 Series & Ryzen 8000 & Ryzen 9000 Series Processors
Technology	DDR5
Memory Speed	8200MHz
Max Memory Size	256GB
Memory Slot	4
PCI-E X16	YES
PCI-E GEN	PCIe 5.0
PCI-E Slots (M.2)	4
SATAIII	2 x SATA 6Gb/s
Communication module	Bluetooth, Wi-Fi
Part Number	9MX87STLE-00-G10
الضمان	3 سنوات
