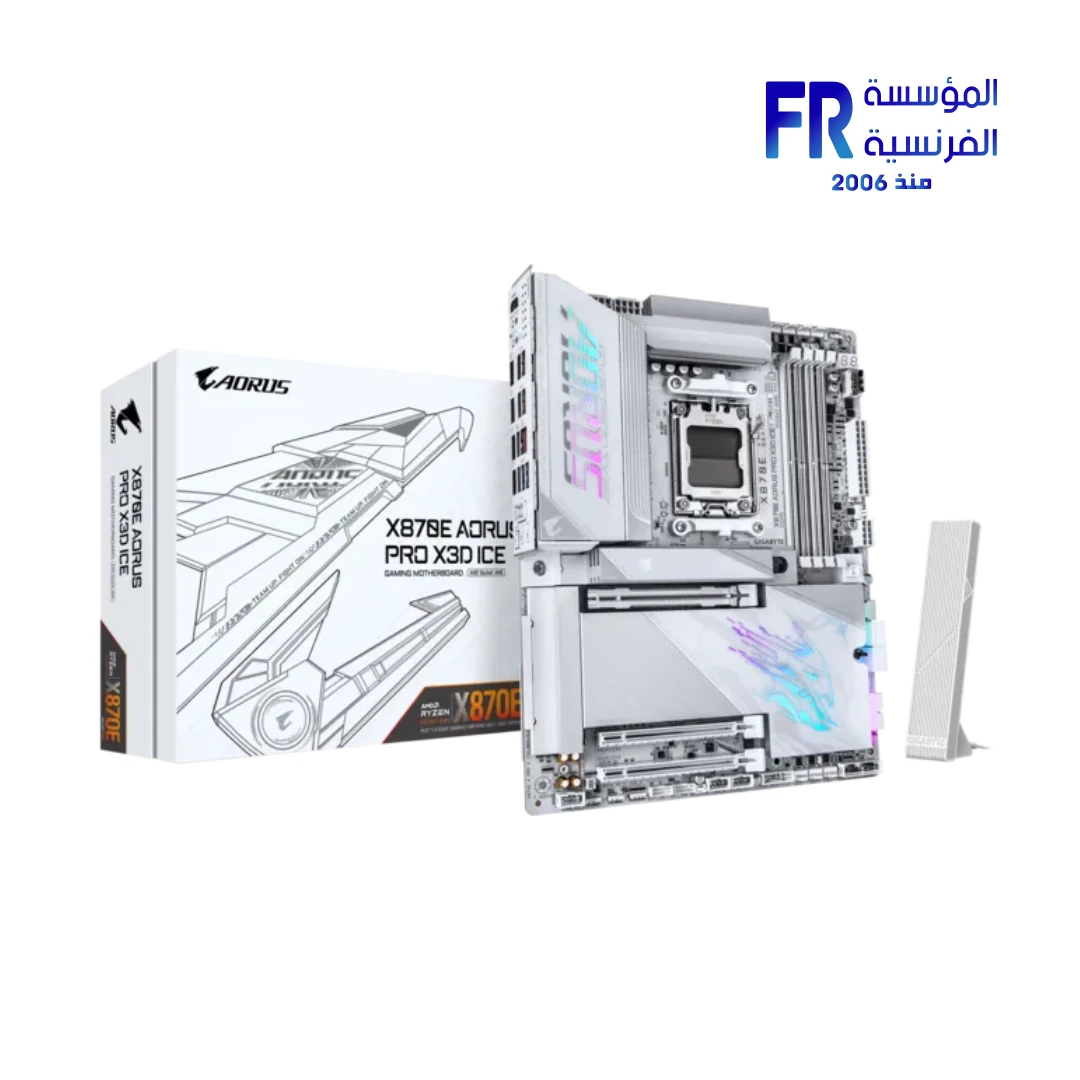

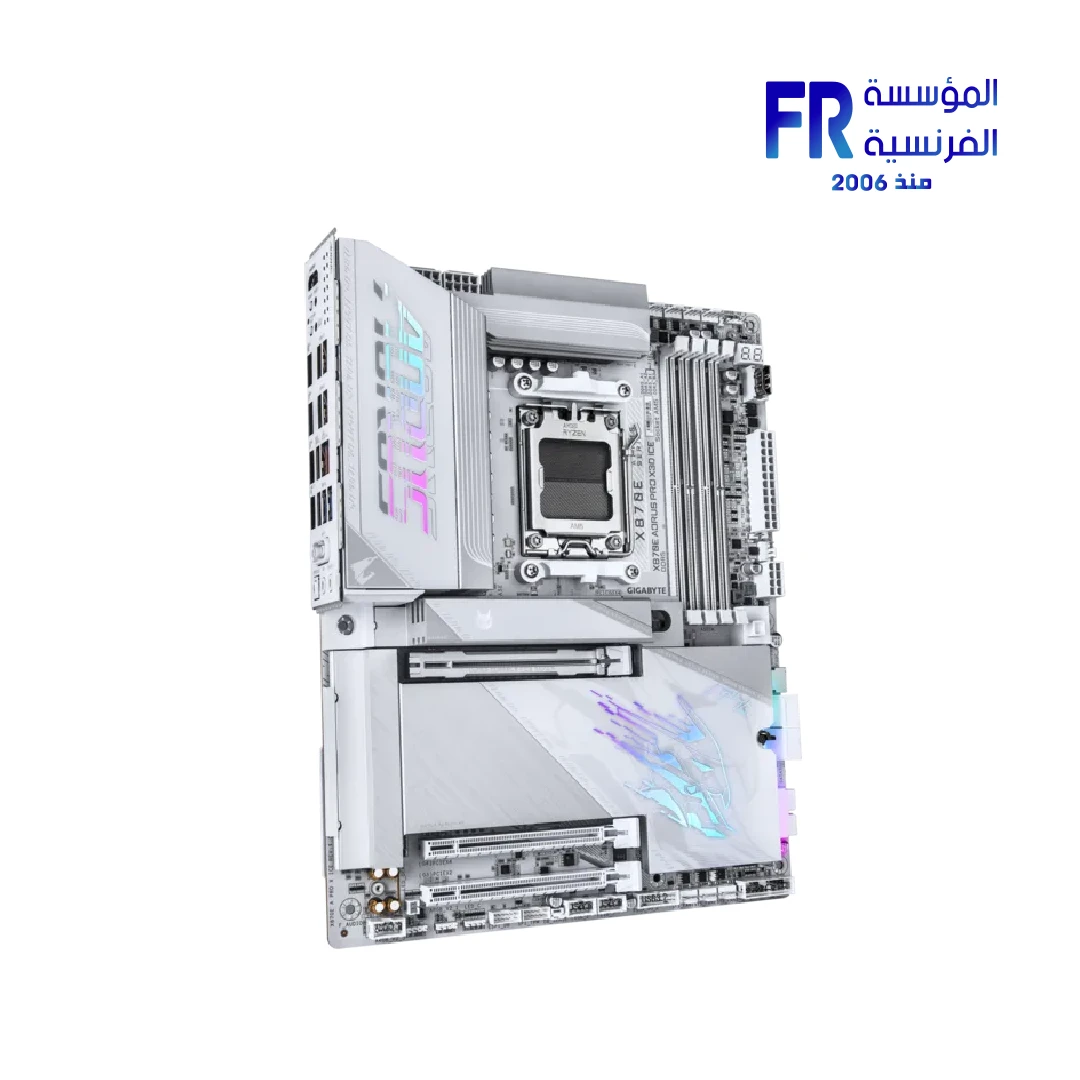

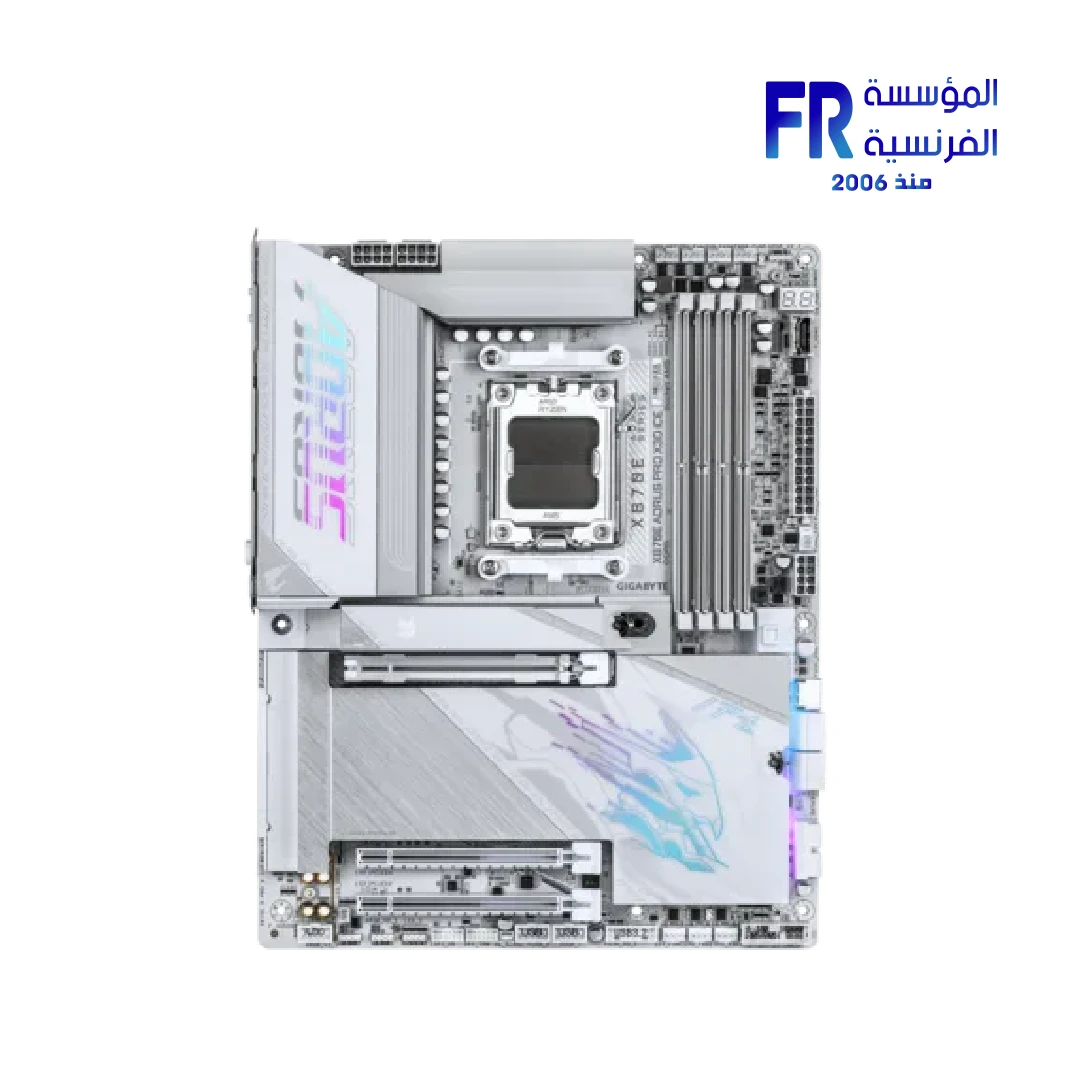

Gigabyte X870E Aorus Pro X3D Ice WiFi 7 Motherboard
23500 EGP
- Part Number 9MX87EPXE-00-G10
- CPU Socket AM5 (Ryzen 9000 / 8000 / 7000 Series)
- Memory Support 4x DDR5 DIMM, up to 9000(O.C) MT/s
- Primary Slot 1x PCIe 5.0 x16 (UD Slot X)
- Storage Interface 4x M.2 Slots (2x PCIe 5.0 x4, 2x PCIe 4.0 x4)
- Networking Wi-Fi 7 (320MHz) & 5GbE LAN
- High-Speed I/O 2x USB4® Type-C (40Gbps) & Front 65W PD 3.0
- Warranty 3 Years
المتوفر في المخزون 2 فقط
Price Match Guarantee
Gigabyte X870E Aorus Pro X3D Ice: The Ultimate White WiFi 7 Performance Foundation
In short, the Gigabyte X870E Aorus Pro X3D Ice (9MX87EPXE-00-G10) technically facilitates a revolutionary era of computing through its specialized X3D Turbo Mode 2.0 technology. Since this motherboard is specifically engineered for AMD Ryzen 9000, 8000, and 7000 series processors, it effectively optimizes the voltage and clock parameters for X3D chips to unleash up to 25% better gaming performance. Notably, the pristine “Ice” white aesthetic provides a sophisticated visual anchor for premium PC builds.
Furthermore, the architectural complexity of the X870E chipset is specifically balanced by an 18+2+2 Twin Digital VRM design. Because the board incorporates dual USB4 ports and cutting-edge WiFi 7 connectivity, it technically ensures that data throughput remains at the industrial-grade limit. Consequently, the Aorus Pro X3D Ice delivers a consistent stability presence that effectively streamlines the assembly process for enthusiasts. As a result, you receive a highly versatile platform that merges AI-enhanced overclocking with a future-proof interface suite.
Next-Gen Thermal Design & DIY Simplicity
M.2 EZ-Match & EZ-Latch
Notably, the revolutionary magnetic design specifically allows for effortless M.2 heatsink installation without screws. This technically facilitates a rapid maintenance cycle, effectively ensuring that users can swap high-speed PCIe 5.0 storage devices during critical system iterations with a single click.
DDR5 Bionic Corsa
Moreover, the AI-enhanced overclocking tech specifically pushes DDR5 speeds up to an impressive 9000 MT/s. Consequently, your gaming setup effectively maintains a high-bandwidth presence across memory-intensive applications, resultantly providing the lowest possible latency for competitive eSports iterations.

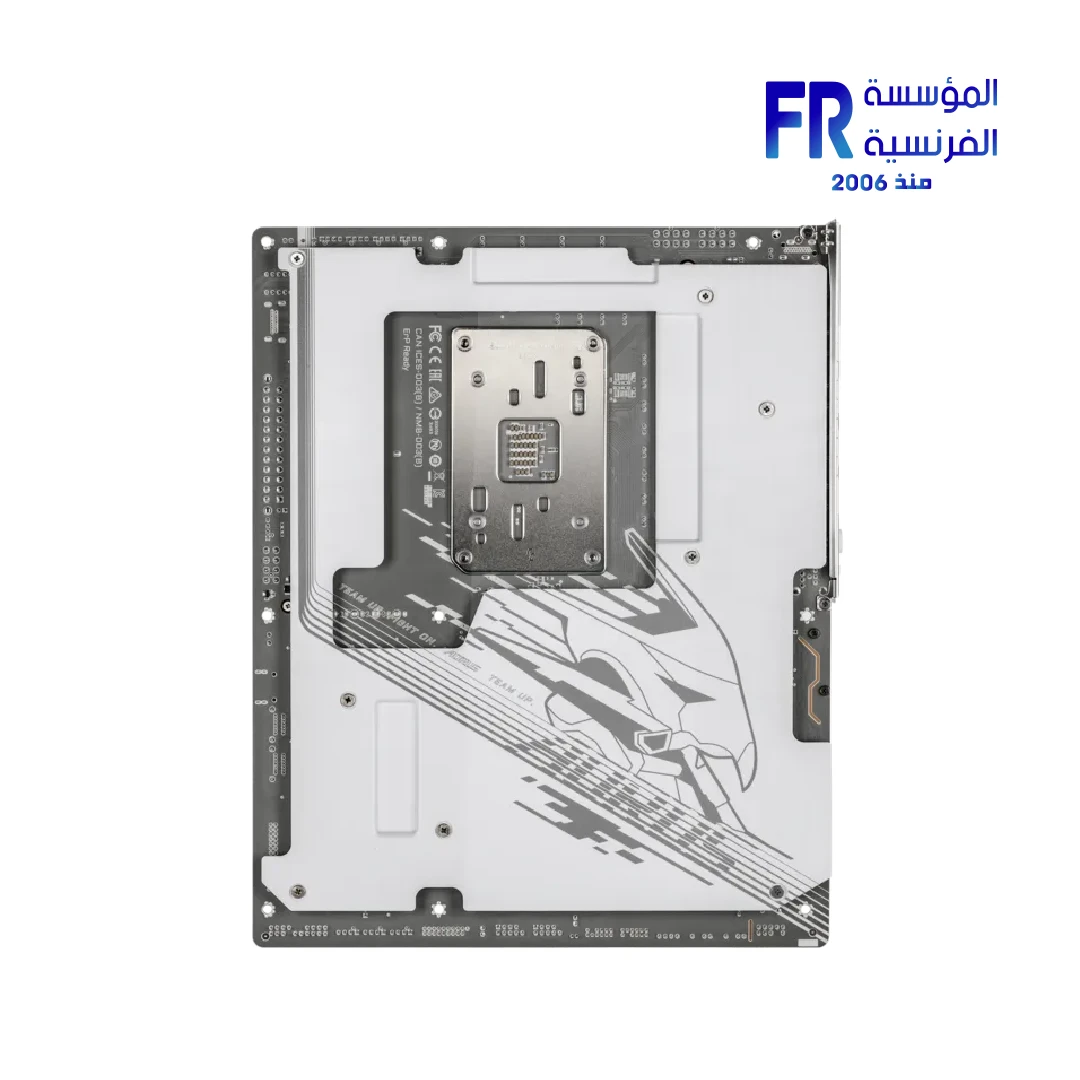

Additionally, the inclusion of a comprehensive thermal armor suite effectively provides superior heat dissipation for the 110A Smart Power Stages. Unlike standard boards, the “Ice” edition incorporates a dedicated PCB thermal plate that resultantly improves stability by 14%. As a result, you receive a technically advanced foundation that balances extreme overclocking capability with long-term industrial reliability.
💡 Pro-Tip: X3D Optimization
To clarify, activating “X3D Turbo Mode 2.0” in the UC BIOS 2.0 specifically optimizes the CCD allocation for Ryzen processors. This technically allows the system to prioritize the cache-stacked cores, effectively ensuring that you receive the maximum frame-rate consistency during high-fidelity gaming iterations.
Detailed Technical Specifications
| Hardware Feature | Specification Details |
|---|---|
| Chipset | AMD X870E High-End Chipset |
| CPU Support | Socket AM5 (Ryzen 9000 / 8000 / 7000 Series) |
| Memory Support | 4x DDR5 DIMM (Up to 9000 MT/s O.C, 256GB Max) |
| VRM Design | 18+2+2 Twin Digital VRM (110A SPS) |
| PCIe Slots | 1x PCIe 5.0 x16 (UD Slot X), 1x PCIe 4.0 x4, 1x PCIe 3.0 x2 |
| Storage Interface | 4x M.2 Slots (2x PCIe 5.0 + 2x PCIe 4.0), 4x SATA 6Gb/s |
| Connectivity | Qualcomm Wi-Fi 7 (320MHz) + BT 5.4 + Realtek 5GbE LAN |

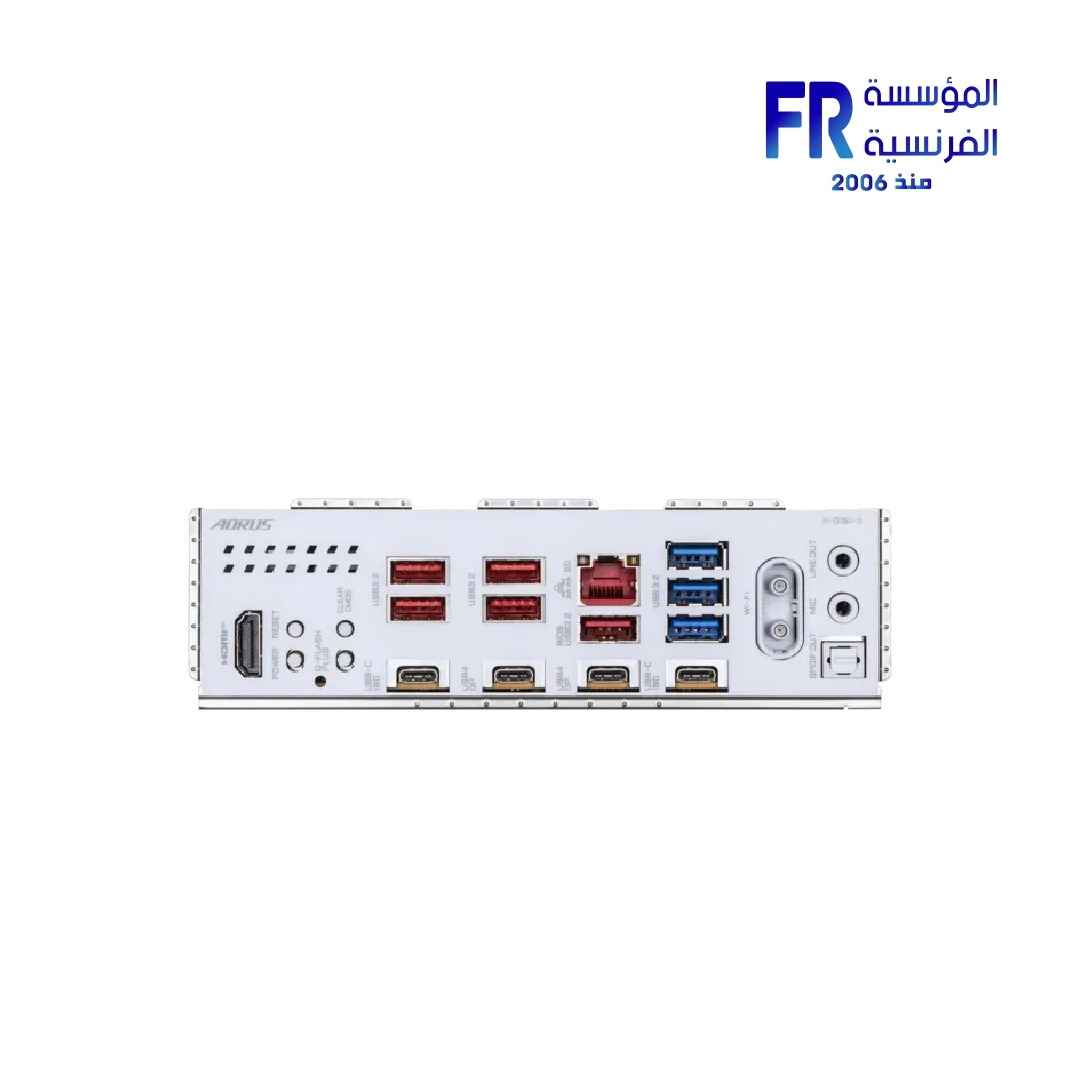

| USB Ports | 2x USB4 Type-C (40Gbps), 1x Front USB-C (20Gbps w/ 65W PD) |
| Audio | Realtek ALC1220 (High Definition 7.1 Channel) |
| Model Name | X870E AORUS PRO X3D ICE |
| Part Number | 9MX87EPXE-00-G10 |
| EAN | 889523053164 |
| Warranty | 3 Year Local Warranty |
What’s In The Box
Frequently Asked Questions
What is the primary benefit of X3D Turbo Mode 2.0?
Notably, it technically facilitates a deep integration between the hardware and the AI-driven BIOS. Specifically, it dynamically optimizes the processor’s V-Cache parameters in real-time. Consequently, your setup ensures industrial-grade gaming efficiency without requiring manual voltage adjustments across various software iterations.
How does the WiFi 7 connection differ from previous standards?
Notably, the Qualcomm WiFi 7 module specifically supports the ultra-wide 320MHz channel bandwidth. Specifically, this technically allows for data speeds that effectively double the throughput of WiFi 6E. Consequently, your portable setup ensures a consistent wireless presence with minimal interference during high-bandwidth streaming iterations.
Does the motherboard support fast charging for mobile devices?
Notably, the internal USB Type-C header specifically supports Power Delivery 3.0 up to 65W. Specifically, this technically allows you to effectively charge laptops or smartphones directly from your PC case front panel. Consequently, your workspace resultantly benefits from a streamlined power presence during daily productivity iterations.
*GIGABYTE, AORUS, and Ultra Durable are registered trademarks of GIGA-BYTE Technology Co., Ltd. AMD, Ryzen, and EXPO are trademarks of Advanced Micro Devices, Inc. Technical specifications are based on official documentation provided at the time of publication.
