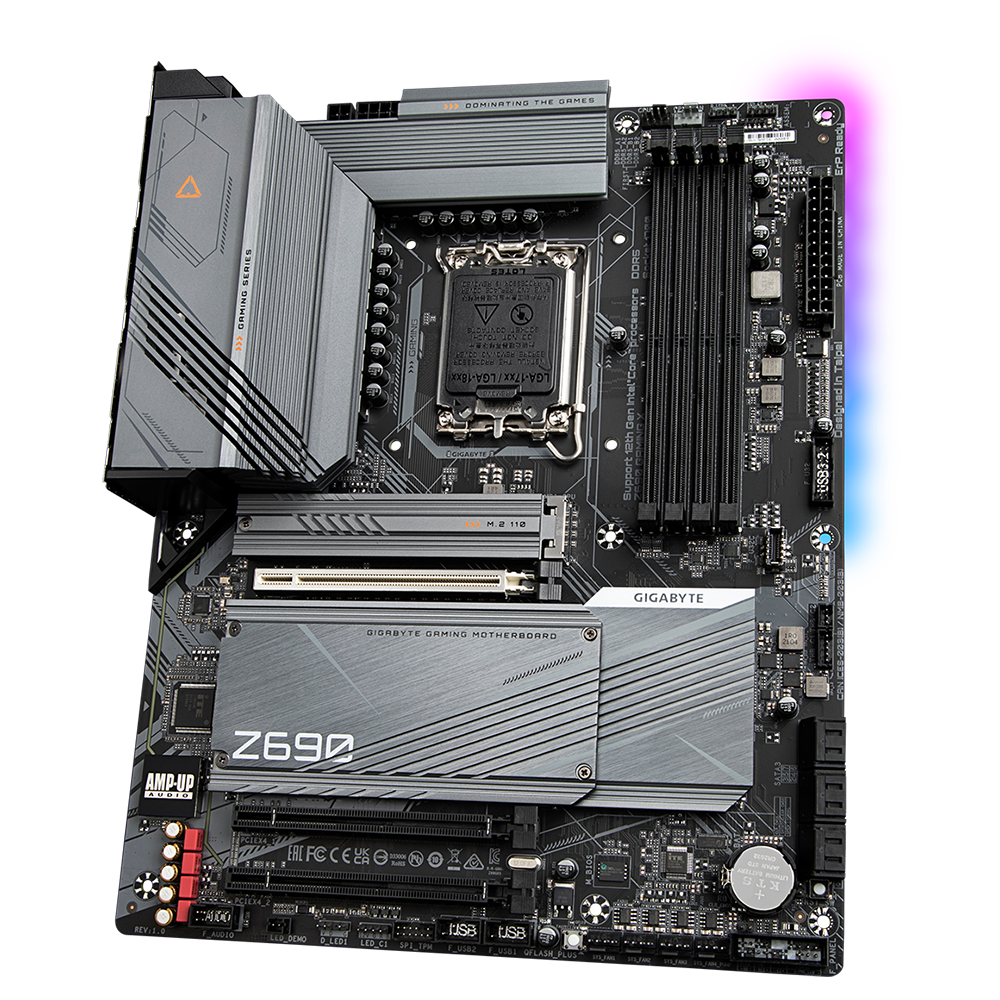

Gigabyte Z690 Gaming X DDR5 Motherboard

7600 جنية

Supports 12th Gen Intel^® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS* and Tantalum Polymer Capacitor
DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C^® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

مشاهدات 3٬252

Out Of Stock.

رمز المنتج: 889523030509 التصنيفات: Intel Motherboards, اللوحه الام الوسوم: GIGABYTE, GIGABYTE Z690, GIGABYTE Z690 GAMING X, GIGABYTE Z690 GAMING X DDR5, GIGABYTE Z690 GAMING X DDR5 Motherboard

CHIPSET MANUFACTURERS	انتل
MOTHERBOARD CHIPSET	Z690
CPU SOCKET	LGA 1700

GIGABYTE Z690 GAMING X DDR5 اللوحه الام

Intel^® Z690 GAMING Motherboard with 16*+1+2 Twin Hybrid Phases Digital Power Design, DDR5 XTREME MEMORY Design, PCIe 5.0 Design, Fully Covered Thermal Design, 4 x PCIe 4.0 M.2 with Enlarged Thermal Guard, 2.5GbE LAN, 120dB Hi-Res Audio with WIMA, Rear USB 3.2 Gen2x2 TYPE-C^®, RGB FUSION 2.0, Q-Flash Plus

Supports 12th Gen Intel^® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
16*+1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS* and Tantalum Polymer Capacitor
DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
Fast 2.5GbE LAN with Bandwidth Management
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
SuperSpeed USB 3.2 Gen2x2 TYPE-C^® delivers up to 20Gb/s transfer speeds
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

CPU
1. LGA1700 socket: Support for 13th Generation Intel^® Core™ Processors and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
2. L3 cache varies with CPU
Chipset
1. Intel^® Z690 Express Chipset
Memory
1. Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Go to GIGABYTE’s website for the latest supported memory speeds and memory modules.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek^® ALC1220-VB CODEC
  * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2-channel analog output
4. Support for S/PDIF Out
  7.1-channel digital signals
  * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
  (The PCIEX4 slots conform to PCI Express 3.0 standard.)
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
3. 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to “2-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel^® Optane™ Memory Ready
* System acceleration with Intel^® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB
Chipset:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2×2 support
2. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 3 x system fan headers
7. 1 x system fan/water cooling pump header
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 2 x Thunderbolt™ add-in card connectors
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x reset button
20. 1 x reset jumper
21. 1 x Q-Flash Plus button
22. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red)
3. 3 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 1 x HDMI port
6. 1 x DisplayPort
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 2 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install
Bundled Software
1. Norton^® Internet Security (OEM version)
2. Realtek^® Gaming LAN Bandwidth Control Utility
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

OVERVIEW

PERFORMANCE

DDR5

THERMAL

CONNECTIVITY

PERSONALIZATION

ULTRA DURABLE

DisplayPort

HDMI

Rear USB 3.2 Gen 2×2 Type-C^®

2.5 GbE LAN

Advanced Thermal Design

Fully Covered MOSFET Heatsinks
5 W/mK Thermal Conductivity Pad
Integrated IO Shield

4* M.2 Ultra Storage Performance Connectors

4*PCIe 4.0 x4 M.2
2*Enlarged Thermal Guards

AMP-UP Audio

ALC1220-VB Audio
High-End Audio Capacitor
Audiophile Grade WIMA Capacitors

RGB FUSION 2.0

Addressable LED Header*2
RGB LED Header*2

16*+1+2 Twin Hybrid Phases Digital Power Design

60A DrMOS
PCIe 5.0 Ready PCB
Premium Choke and Capacitor
6-Layer & 2X Copper PCB

Solid Pin Power Connectors

24 pin ATX Power Connector
8+4 pin CPU Power Connector

Dual Channel DDR5, 4 DIMMs

Supports 12th Gen. Intel Core™ Processors

Front USB3.2 Gen2 Type-C® for Connecting Devices

Next Generation PCIe 5.0 Design

1*PCIe 5.0 x16 SMD Slot
Ultra Durable™ SMD PCIe 5.0 Armor

6*SATA 6Gb/s

Q-FLASH Plus Onboard Button

* 8+8 phases parallel power design

PERFORMANCE

Twin Hybrid VRM Design

PCIe 5.0 Design

Hybrid Cores Optimization

UNPARALLELED PERFORMANCE

With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.

DDR5

XMP 6000+

Unlock DDR5 Voltage

Shielded Memory Routing

XMP3.0

THERMAL

Thermal Design

Fully Covered MOSFET Heatsink

M.2 Thermal Guard

2X Copper PCB

SMART FAN 6

Fully Covered Thermal Design

5 W/mK Thermal Pad

M.2 Thermal Guard

Enlarged Thermal Guard

2X Copper PCB

CONNECTIVITY

2.5 GbE LAN

USB3.2 Gen 2×2 Type-C^®

AMP-UP Audio

NEXT GENERATION CONNECTIVITY

GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.

PERSONALIZATION

RGB FUSION

UEFI BIOS

Easy Tune

System Information Viewer

DEFINITIVE AESTHETICS

GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

Q-Flash Plus

Solid Pin

ULTRA DURABLE

GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
